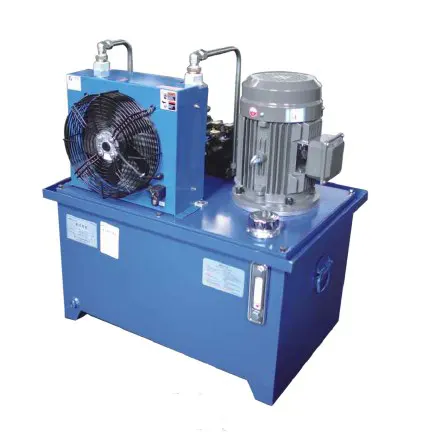

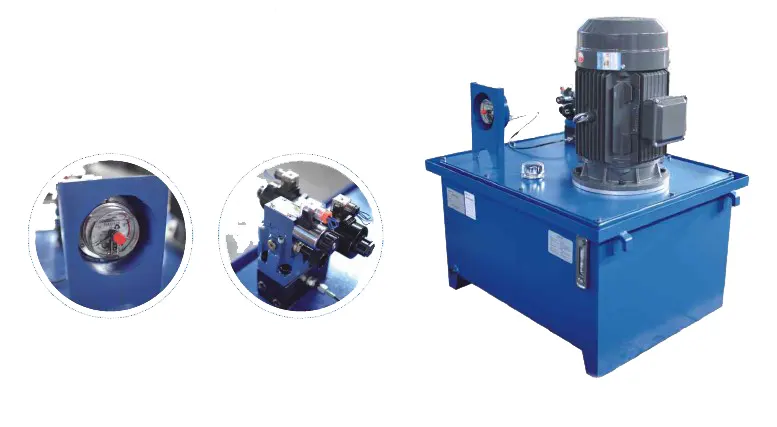

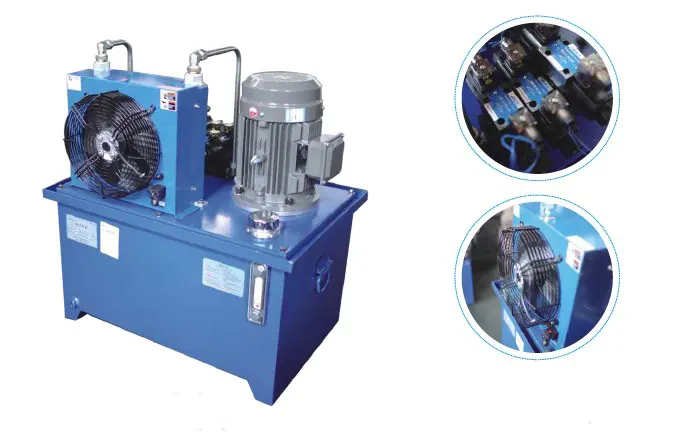

Hydraulic System For Press Machine

Hydraulic System For Press Machine

The Hydraulic System for Press Machine is a cutting-edge solution designed to optimize productivity, efficiency, and precision in various industrial applications. This advanced hydraulic system harnesses the power of hydraulic fluid to generate controlled force, enabling the press machine to exert immense pressure with accuracy and reliability. Let's delve into the key characteristics, usage method, maintenance requirements, and other essential aspects of the Hydraulic System for Press Machine.

Hydraulic System For Lifter Parameter:

Motor Power:4KWOil Tank:120LMotor Power:15KWOil Tank:250L

Characteristics of the Explosion-Proof Hydraulic System For Lifting Platform:

1. High Force Generation:

• The hydraulic system is engineered to deliver high force output, allowing the press machine to exert significant pressure for shaping, bending, forming, and other metalworking processes.
• It provides consistent force throughout the entire stroke, ensuring uniformity, precision, and repeatability in the manufacturing process.

2. Versatile Application:

• The Hydraulic System for Press Machine accommodates a wide range of industrial applications, including metal stamping, forging, punching, deep drawing, and assembly operations.
• It can be tailored to suit specific requirements, such as tonnage capacity, stroke length, and speed, making it adaptable to diverse production needs.

3. Precise Control:

• The system offers precise control over the force and speed of the press machine, allowing operators to achieve accurate results and maintain tight tolerances.
• It enables adjustable pressure settings, dwell times, and stroke lengths, facilitating customization based on the specific demands of the production process.

Custom Hydraulic System Model Description:

Structure Of Oil Tank:

Oil Tank Cleaning Cap:

Custom Hydraulic System:

(1)Vertical Hydraulic System

(2)Horizontal Hydraulic System

(3)Side Mounting Hydraulic System

The side mounting hydraulic pump station, that is, the oil pump device, is horizontally installed based on a separate tank, and the side type can be equipped with a spare pump, which is mainly used for the system with a large mailbox capacity of 250 liters and an electric power of 7.5KW or more.

How Does A Hydraulic Brake System Work?

A hydraulic brake system is common in vehicles, including cars, trucks, and motorcycles. It utilizes fluid mechanics principles to convert mechanical force into hydraulic pressure, which is then used to apply the brakes. Here's a step-by-step overview of how a hydraulic brake system works:

1. Brake Pedal Application:When the driver presses the brake pedal, a mechanical force is applied to the brake pedal assembly. This force is transferred to the master cylinder.
2. Master Cylinder:The master cylinder is a key component of the hydraulic brake system. It consists of a piston(s) and a reservoir filled with brake fluid. When the brake pedal is pressed, the piston(s) in the master cylinder is pushed forward, increasing the pressure in the brake fluid.
3. Brake Lines:The brake fluid, under increased pressure from the master cylinder, travels through brake lines or hoses to reach the individual brake assemblies at each wheel. These brake lines are typically made of reinforced rubber or metal, ensuring durability and resistance to high pressures.
4. Brake Calipers or Wheel Cylinders:At each wheel, the brake fluid enters either a brake caliper (in disc brake systems) or a wheel cylinder (in drum brake systems). These components contain pistons that are pushed outward by the hydraulic pressure from the brake fluid.
5. Brake Pads or Brake Shoes:In a disc brake system, the brake caliper contains brake pads that are pressed against the rotating brake disc (rotor) when the hydraulic pressure is applied. The friction between the brake pads and the rotor slows down the rotation, ultimately stopping the vehicle.In a drum brake system, the wheel cylinder pushes the brake shoes outwards, causing them to press against the rotating brake drum. The friction between the brake shoes and the drum slows down and stops the vehicle.
6. Release of Brake Pressure:When the driver releases the brake pedal, the mechanical force on the master cylinder is relieved, allowing springs or return mechanisms to retract the brake calipers or wheel cylinders. This action reduces the pressure in the brake fluid, releasing the friction between the brake pads or shoes and the rotor or drum.
7. Brake Fluid Reservoir:The hydraulic brake system includes a brake fluid reservoir connected to the master cylinder. The reservoir ensures a constant supply of brake fluid to the system and compensates for any fluid loss due to wear or leaks.
8. Brake Fluid:Brake fluid plays a critical role in the hydraulic brake system. It is formulated to withstand high temperatures and provide reliable hydraulic transfer of force. Brake fluid also has corrosion inhibitors to protect the brake system components.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of hydraulic systems. It maintains a leading position in China's market segment of hydraulic systems. In 2020, the domestic market share was around 29%. We produce Industrial hydraulic systems, Aerial work vehicle hydraulic cylinders, agricultural machinery hydraulic cylinders, and sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The hydraulic systems production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
