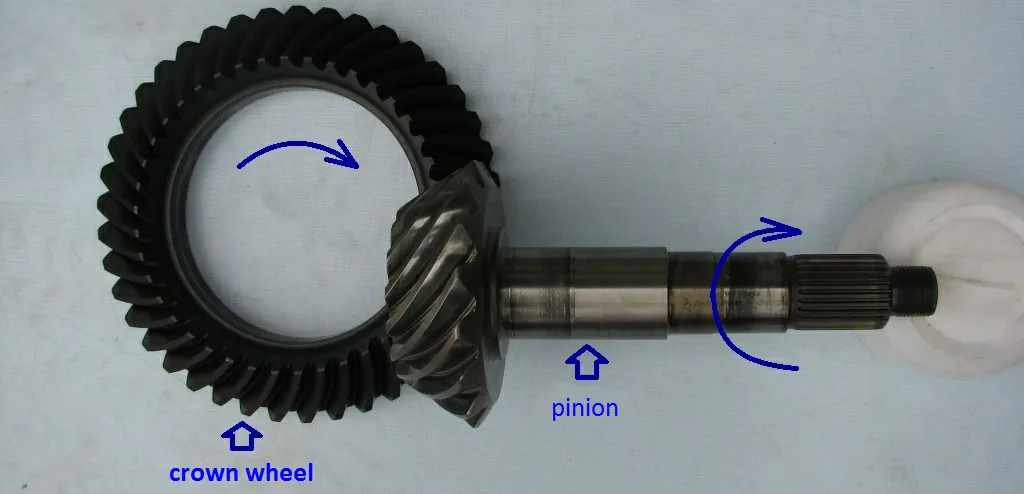

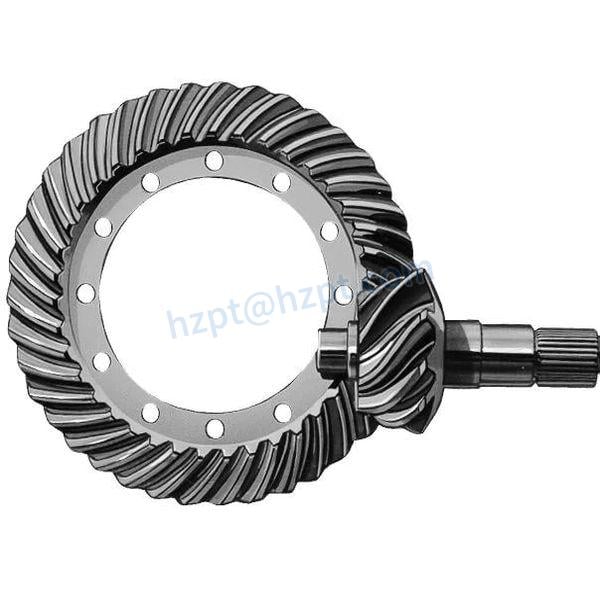

What Are Hypoid Gears?

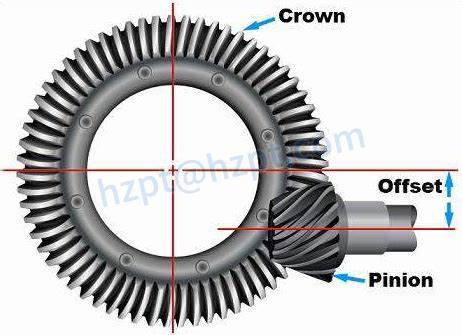

Hypoid gears are beveled gears similar to spiral ones, except they transmit motion between axes that do not intersect. The small gear shaft (hypoid pinion side) is offset from the giant gear shaft (hypoid gear side). Given the proper offset amount, the pinion shaft and large gear shaft can pass without interference, enabling the shafts to be supported securely on both ends.Generally, compared with bevel gears, hypoid gears can obtain higher speed reduction. Their extensive contact ratio allows heavier load transmission than similar bevel gears. Also, the smooth meshing makes it possible to suppress noise and vibration further. However, the meshing is very complicated, and the production is more difficult. As for applications, they are mainly used in automotive drive systems such as differential gears.

Advantages of Hypoid Gears

It is possible to obtain a very high-speed reduction with one pair of hypoid gears. Compared to worm gear drives of similar high-speed reduction, hypoid gears have the following characteristics.

• Both pinion and gear can be heat treated, resulting in high rigidity, which leads to a smaller unit.
• Less sliding and high-efficiency result in smaller capacity motors.
• Compared to the worm, the offset between pinion and gear is slight, with resultant space savings.

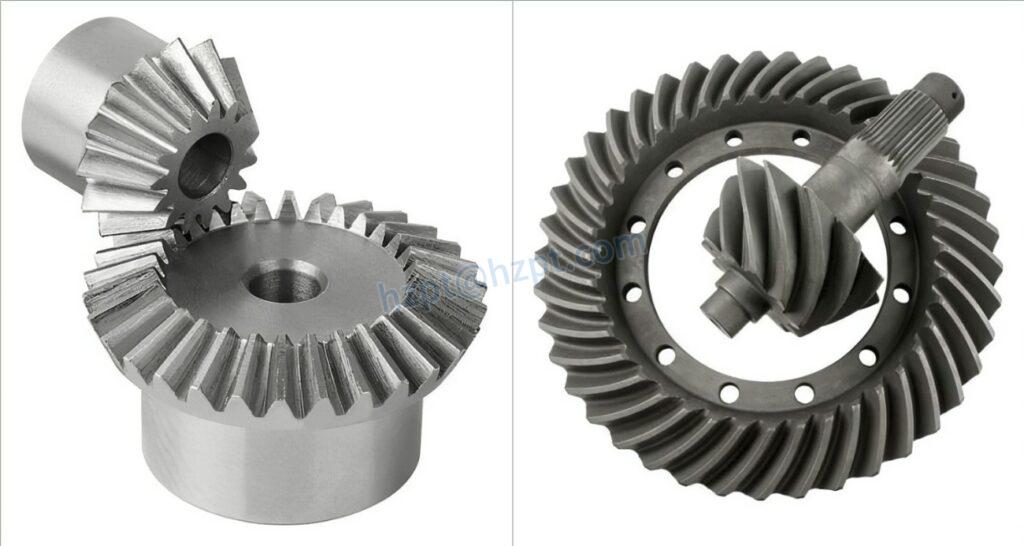

Difference Between Hypoid and Spiral Bevel Gears

Hypoid gears are more robust, operate more quietly, and can be used for higher reduction ratios. However, they also have some sliding action along with the teeth, which reduces mechanical efficiency. The energy losses are in the form of heat produced in the gear surfaces and the lubricating fluid.Hypoid gears are typically used in rear-drive automobile drivetrains.A higher hypoid offset allows the gear to transmit higher torque. However, increasing the hypoid compensation reduces mechanical efficiency and a consequent reduction in fuel economy. It is often impossible to replace low-efficiency hypoid gears with more efficient spiral bevel gears in automotive use because the spiral bevel gear would need a much larger diameter to transmit the same torque. Increasing the size of the drive axle gear would require an increase in the size of the gear housing and a reduction in the ground clearance, interior space, and an increase in weight.The hypoid gear is also commonly used in some railcar transmissions with diesel power units - where the engine and gearbox are similar to those used in traditional trucks and busses (not diesel/electric hybrid type drive). The transmission allows the input shaft to rotate in one specific direction (either clockwise or anti-clockwise) while allowing the output shafts to change their rotational movement, thus allowing a vehicle to drive in either direction continuously.Another advantage of hypoid gear is that the ring gear of the differential and the input pinion gear are both hypoid. In most passenger cars, this allows the pinion to be offset to the bottom of the crown wheel. This allows for more extended tooth contact and lowers the shaft that drives the pinion, reducing the "hump" intrusion in the passenger compartment floor. However, the greater the displacement of the input shaft axis from the crown wheel axis, the lower the mechanical efficiency.

Hypoid Gears Animation

With hypoid gears, rotary motions between non-intersecting axes can be realized![video poster="https://hzpt.com/wp-content/uploads/2023/01/Hypoid-Gears-Animation-mp4-image.png?v=1672819356" width="1920" height="1080" mp4="https://hzpt.com/wp-content/uploads/2023/01/Hypoid-Gears-Animation.mp4"][/video]

How Hypoid Gears Work in Reducers?

Hypoid gears can achieve reductions with ratios of 3:1 to 10:1. In comparison to straight or spiral bevel gears, which need an additional planetary step to accomplish the removal, the hypoid gear is well suited for compact applications that fall in this range of reduction ratios.Hypoid gears can be combined with planetary gears in multiple-stage gearboxes to reach higher reduction ratios, typically up to 100:1, with a single additional planetary stage. In that case, hypoid gears should be chosen over bevel gears for the 90° angle transmission if the system's configuration requires non-intersecting shafts or if higher torques need to be transmitted with low noise levels.When compared to the worm gear, hypoid gears are a better option in terms of efficiency and heat generation. They require less maintenance and fit into tighter places while delivering the same torque. For long-term cost savings, hypoid gears are an alternative to worm gears that should be considered.

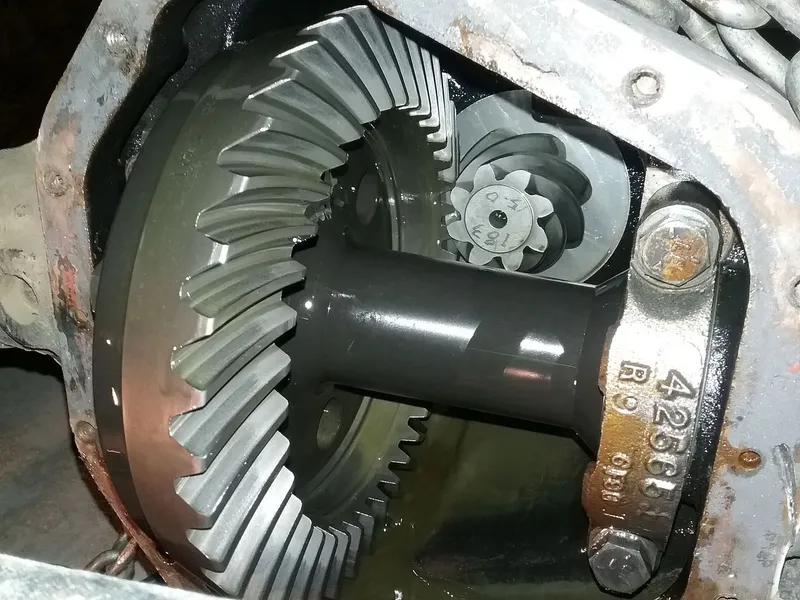

Why Are Hypoid Gears Used?

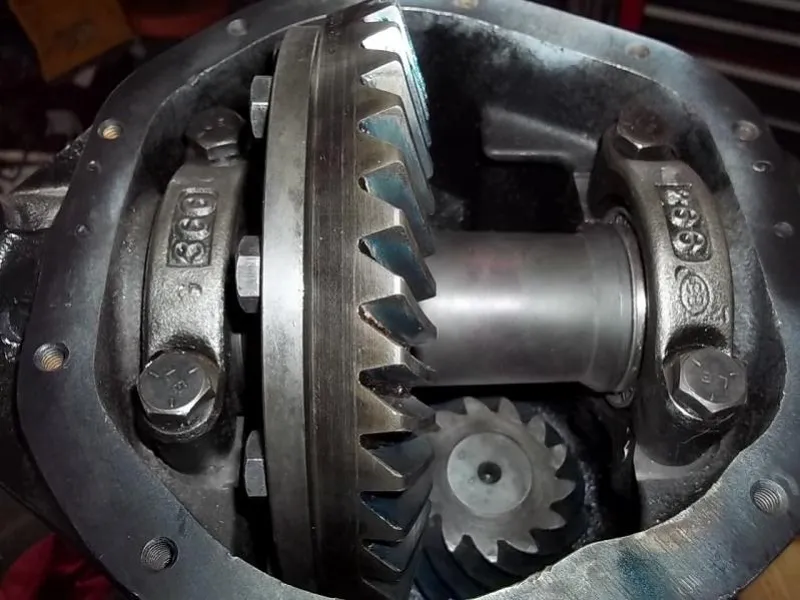

Hypoid gears are found in most of today’s modern vehicles. They are commonly used in rear axle differentials, where they transmit power from the driveline to the axle shafts. They are a type of spiral bevel gear with a left-hand spiral angle on the pinion and a right-hand spiral angle on the crown. This lowers the driveshaft away from the bottom of the vehicle, lowering the vehicle’s center of gravity and in some cases, reducing interference with the interior space of the vehicle.Hypoid Gears are often used in:  transmission of auto and semi-auto equipment applications such as transport, lifting, printing, packing, medicine, food, electronics and many more.  They also are used to support devices such as video production equipment and stage lighting.

Why Are Special Lubricants Used with Hypoid Gears?

All vehicles require gear oil to provide lubrication in transmissions and axle differentials. Unlike normal engine oil, gear oil viscosity is generally much higher to Help combat the chances of extreme conditions squeezing a thinner fluid out and allowing gears to grind each other down.Hypoid gearsets, by design, are under higher pressure than other types of gear sets. A sliding action of the gear tooth face is also introduced in combination with the rotational motion with a hypoid gearset that is not present in many other gear set designs. This elevated pressure and sliding action can cause the gear lubricant to be squeezed out from between the meshing gear teeth, causing metal-on-metal grinding.Hypoid gear oils have been specially formulated to help protect these special types of gear sets. Hypoid gear oils can have higher viscosities just like other gear oils, but hypoid gear oils contain special extreme pressure and anti-wear additives that increase its resistance to breakdown under the high temperatures and mechanical pressure produced by the sliding surfaces of a hypoid gearbox.As with all engine fluids and oils, regularly maintaining and changing hypoid gear oil can extend the life of a vehicle and its performance. Well-lubricated gears have less probability of pitting, breaking, or grinding against each other under pressure. Regularly changing gear oil removes wear material and other potential contaminants such as dirt and water. Not changing the gear oil can lead to accelerated wear of the gear set due to debris and potential rust, and corrosion from water and oxidation byproducts.

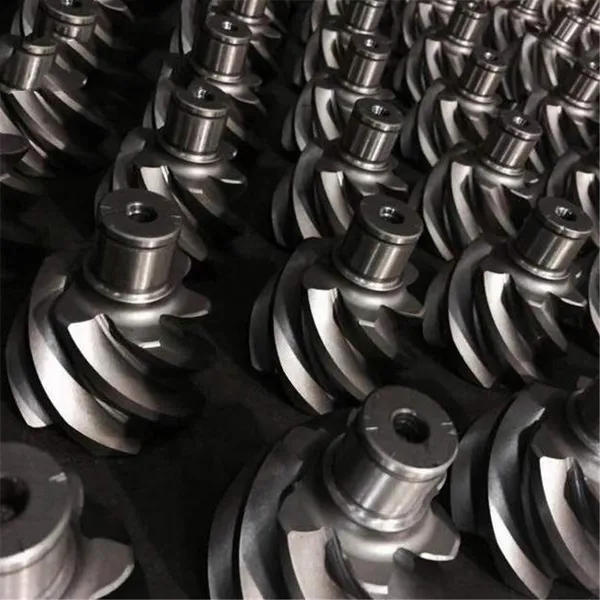

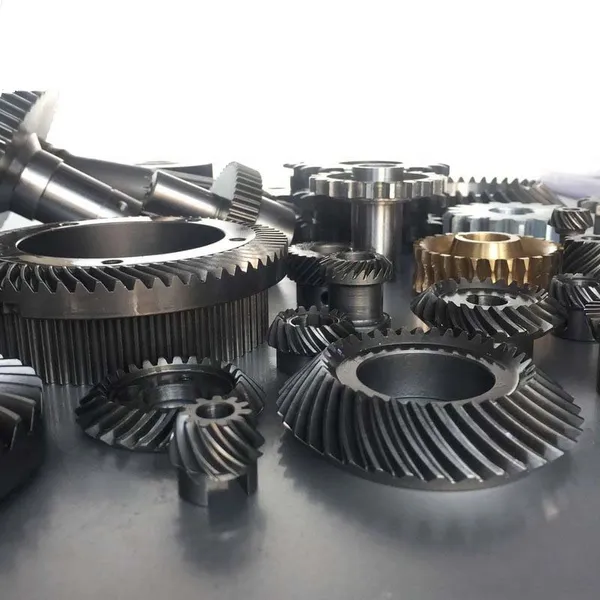

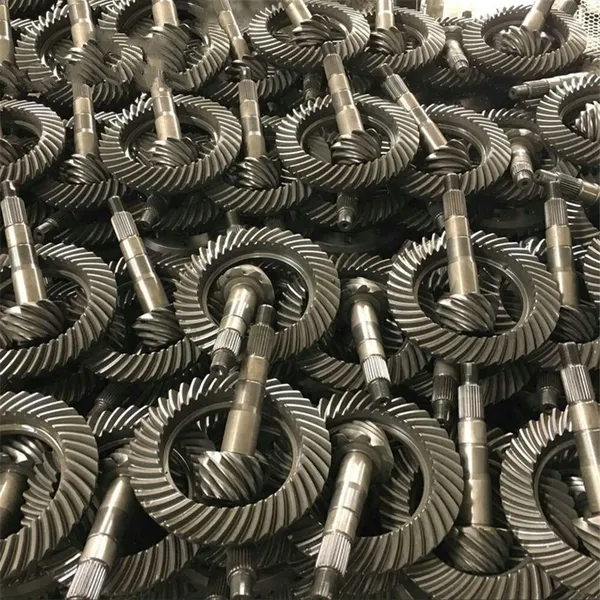

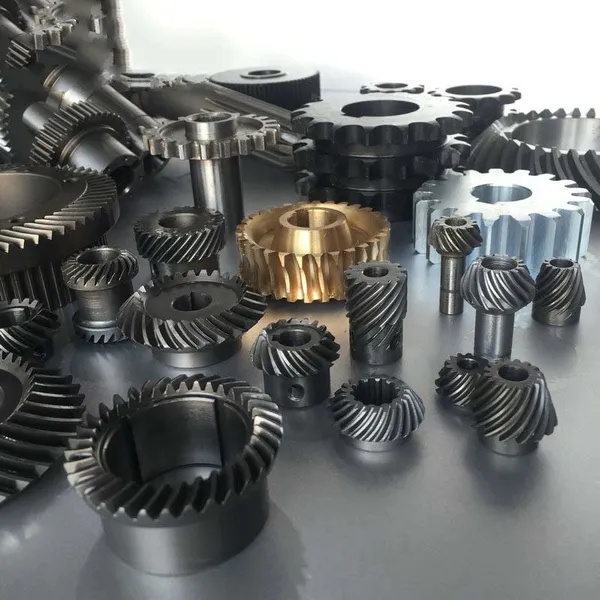

Hypoid Gears Manufacturers & Suppliers
