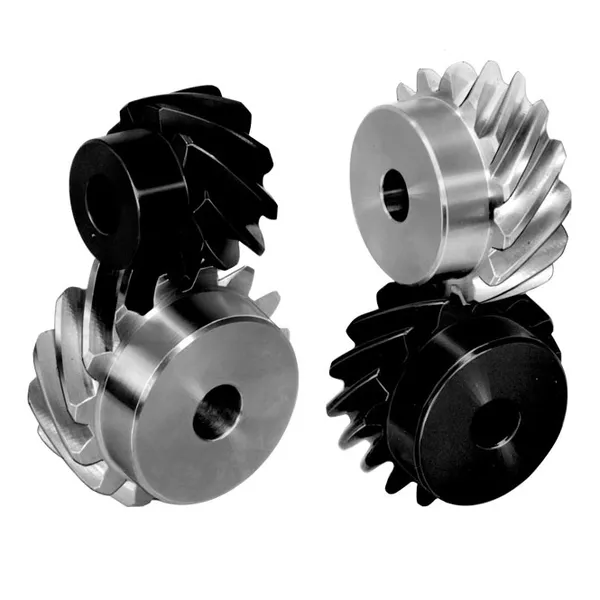

Screw Gears (Crossed Helical Gears)

▍Types of Screw Gears

Screw gears can be made from a variety of materials, including steel, stainless steel, and plastic. The material used will depend on the application and the loads that the gear will be subjected to. Steel is the most common material for screw gears, as it is strong and durable. Stainless steel is often used in applications where corrosion resistance is required. Plastic is sometimes used in applications where weight and cost are important considerations.

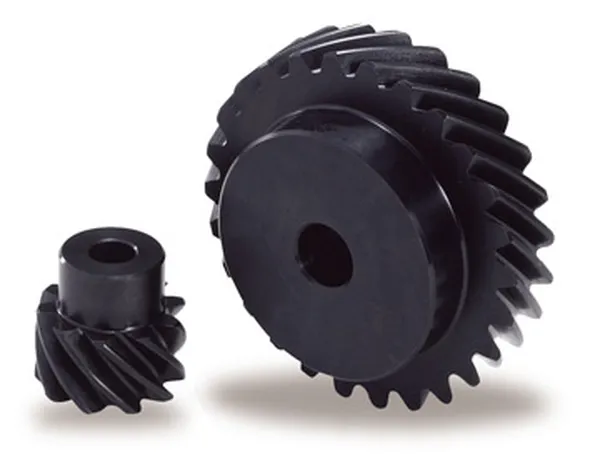

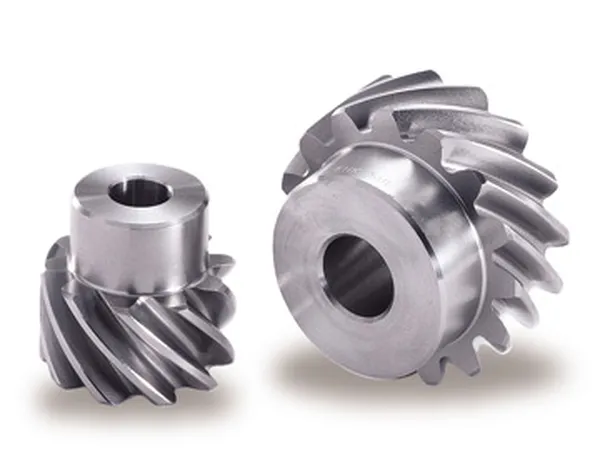

Steel Screw Gears	Stainless Steel Screw Gears

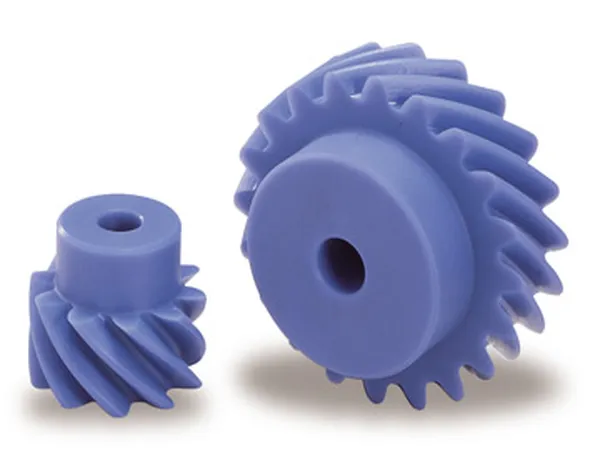

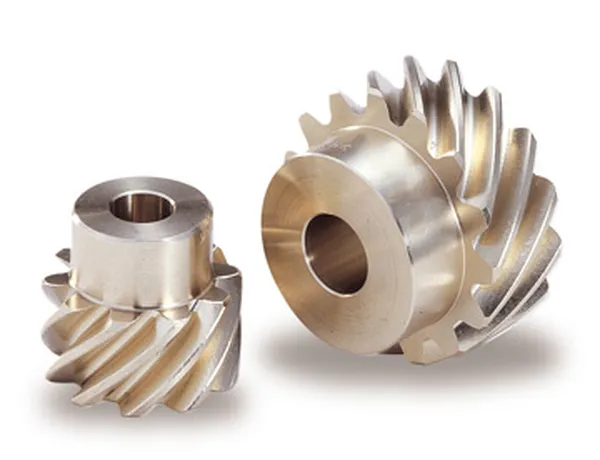

Aluminum Bronze Screw Gears	Plastic Screw Gears

▍Advantages of Using the Screw Gears

Screw gears, also called crossed helical gears, are a type of gear that is used to transmit motion between non-parallel, non-intersecting shafts. They are characterized by their helical teeth, which provide a number of advantages over other types of gears.1. Low noise operation: The helical teeth of screw gears mesh smoothly, which results in low noise operation. This makes them ideal for use in applications where noise is a concern, such as machine tools and medical equipment.2. High efficiency: Screw gears are very efficient, with efficiencies of up to 98% being possible. This is due to the fact that the helical teeth provide a larger contact area, which reduces friction and wear.3. Wide speed range: Screw gears can be used to transmit a wide range of speeds. This makes them ideal for use in applications where the speed requirements can change, such as in variable-speed drives.4. Long life: Screw gears are very durable and can last for many years under normal operating conditions. This is due to the fact that the helical teeth are self-lubricating and do not require frequent lubrication.Overall, screw gears are a versatile and reliable type of gear that can be used in a wide variety of applications. Their low noise operation, high efficiency, wide speed range, and long life make them an excellent choice for many applications.

▍Screw Gear Vs Worm Gear

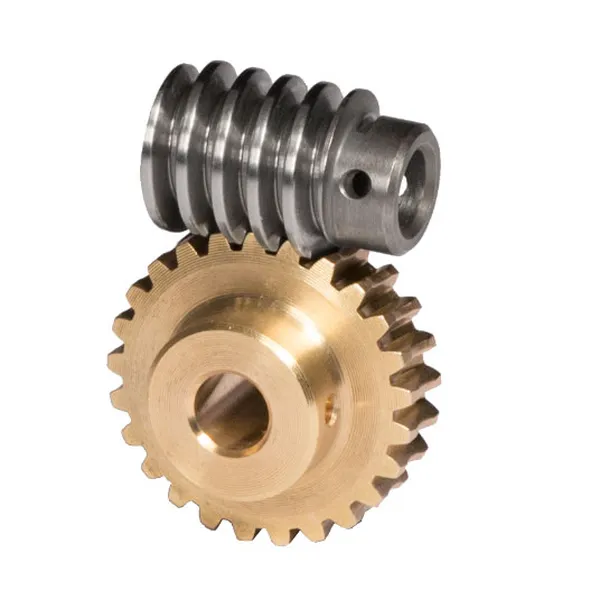

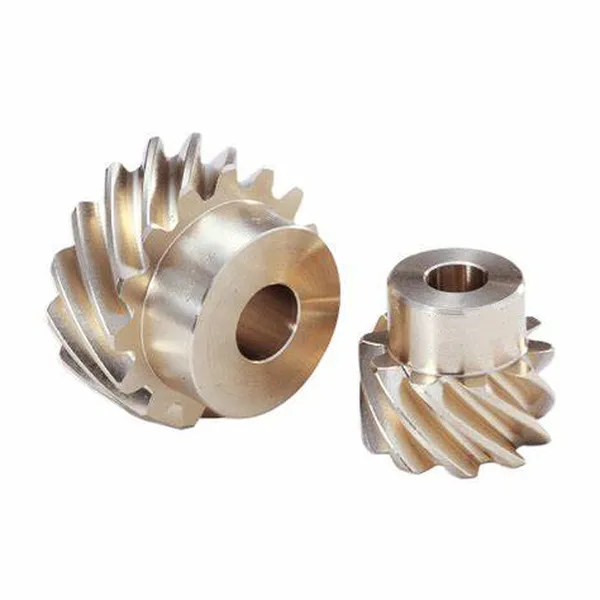

Screw Gear	Worm Gear

As you can see, screw gears and worm gears are very similar in design. The main difference is that a screw gear has teeth, while a worm gear has a spiral thread. This difference in design leads to some key differences in the performance of the two types of gears.Screw gears are more efficient than worm gears, but they cannot transmit as much torque. This makes them better suited for light-duty applications, such as clocks and toys. Worm gears, on the other hand, are less efficient, but they can transmit much more torque. This makes them better suited for heavy-duty applications, such as hoists and winches.Another important difference between screw gears and worm gears is their speed reduction ratio. Screw gears can only achieve a low-speed reduction ratio, while worm gears can achieve a high-speed reduction ratio. This is because the teeth on a screw gear create a point contact with the teeth on the mating gear, while the spiral thread on a worm gear creates a line contact.The line contact on a worm gear allows it to transmit more torque, but it also reduces its efficiency. The point contact on a screw gear is more efficient, but it cannot transmit as much torque.The choice of whether to use a screw gear or a worm gear depends on the specific application. If efficiency is more important than torque capacity, then a screw gear is the better choice. If torque capacity is more important than efficiency, then a worm gear is the better choice.Here is a table comparing screw gears and worm gears:

▍Applications of Screw Gears

Screw gears are a type of gear that uses a screw-shaped gear to mesh with a helical gear. This type of gear train is often used to transmit power between non-intersecting shafts or to create a large reduction in speed. Screw gears are also used in a variety of other applications, including:(1) Steering systems: The steering systems of many cars and trucks use worm gear and helical gear to convert the rotation of the steering wheel into the movement of the front wheels.(2) Machine tools: Screw gears are used in a variety of machine tools, such as lathes, mills, and grinders. They are used to transmit power from the motor to the cutting tool and to provide a means of precise positioning of the tool.(3) Robotics: Screw gears are used in a variety of robotic applications, such as arm joints and grippers. They are used to provide precise motion control and to transmit high torques.(4) Conveyors: Screw gears are used in a variety of conveyor systems, such as those used to transport food, materials, and other products. They are used to move the product along the conveyor at a controlled speed.(5) Lifts and elevators: Screw gears are used in a variety of lifts and elevators, such as those used in buildings and on ships. They are used to raise and lower the platform at a controlled speed.

▍We Also Offer Other Types of Gears

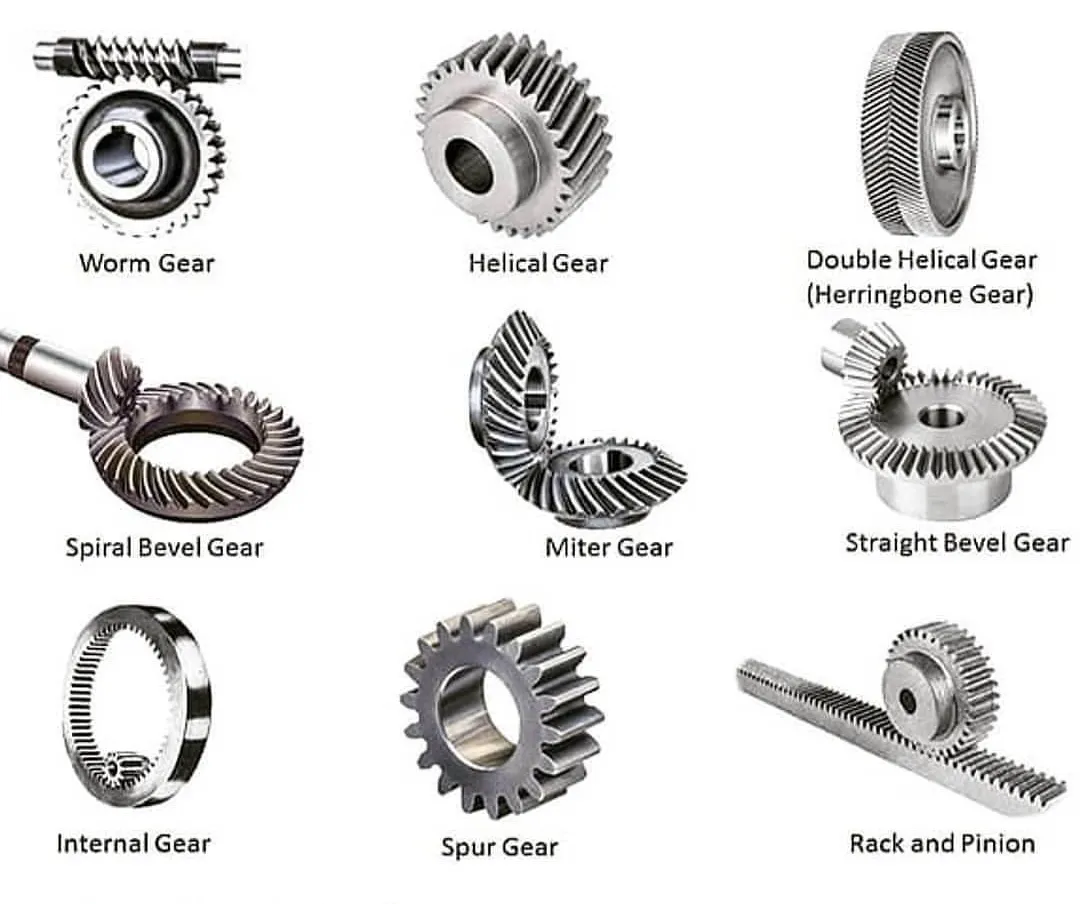

As a dedicated gear manufacturer, we carry the industry’s largest inventory of gear. By putting together a range of various materials, shapes, and pitches, we are able to provide gears that perfectly fit your applications. We carry nearly every type of gear imaginable. Even if our stock gears do not meet the requirements of a customer, we can accommodate any request with our custom gears. Our gears are all manufactured under strict quality control standards.Our gear products include worm gear, helical gear, spiral bevel gear, straight bevel gear, miter gear, spur gear, herringbone gear, internal gear, rack and pinion, planetary gear, plastic gears, etc. Gears can be modified according to your individual specifications. This makes it possible to accommodate precise customer specifications not possible with conventional stock gears.
