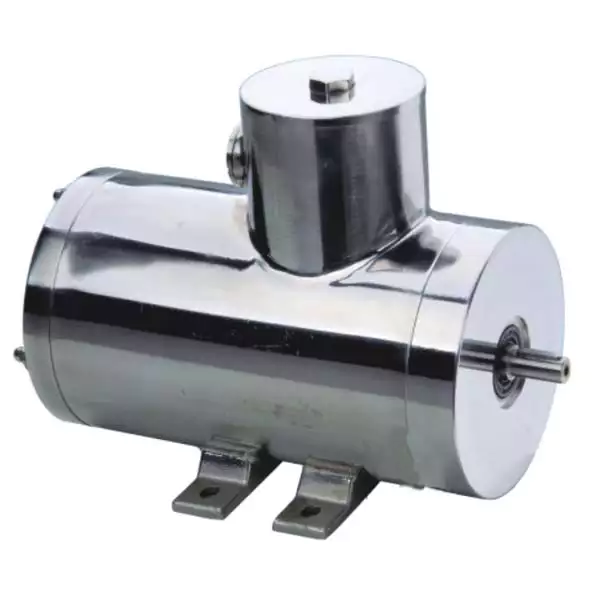

IEC Stainless Steel Motor B3 Foot Mounted-TENV

IEC Stainless Steel Motor B3 Foot Mounted-TENV

Description Of Stainless Steel Motor

The AQUA-TECH SERIES of stainless steel motor, which have special feat performance and value, top-notch features make AQUA-TECH SERIES products the be a worldwide influence. It includes NEMA and IEC standard motors which have per differ manufacturer standard

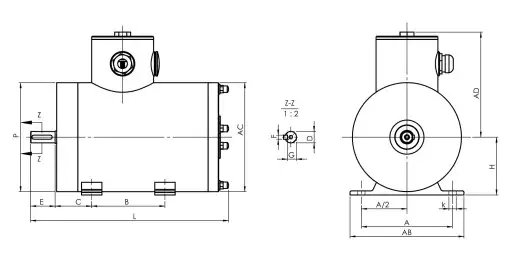

Frame Type	Poles	A	A/2	B	C	D	E	F	G	H	K	P	Shaft Hole	AB	AC	AD
63	2, 4	100	50	80	40	11	23	23	8.5	63	7	114	M4	125	114	117
71	2,4,6	112	56	90	45	14	30	30	11	71	7	134	M5	140	134	129
80		125	62.5	100	50	19	40	40	15.5	80	10	144	M6	150	144	135
90S		140	70	100	56	24	50	50	20	90	9	164	M8	164	164	147

Specifications of IEC Stainless steel motor

Frame	KW	Mounting	IP
63	0.18	B3, B5, B14, B34, B35	IP55
71	0.25， 0.37
80	0.55， 0.75
90	1.1， 1.5
100	2.2， 3.0
112	4.0
1332	5.5， 7.5

It is also available if you have any special requirements for the motor.

Features of IEC Stainless steel motor

▎Stainless steel servo motor, static torque 0.45 to 20nm, peak torque 64nm▎Stainless steel servo reduction motor with planetary gear or bevel gear▎The shell adopts stainless steel V2a 1.4301 (AISI 304) or V4A 1.4404 (AISI 316L) or an anodized aluminum shell▎Surface and flange installation (imb5, IMB14)▎Protection grade up to ip66k / ip69k under flushing conditions▎Large speed regulation range▎Ul/CSA certification▎EHEDG certification is pending (expected in 2022)▎Feedback using a resolver or preface, EnDat, or drive clip encoder▎Single cable technology (OCT)▎Braking options▎AC servo motor, DC servo motor, and AC asynchronous motor▎Decentralized servo motor with integrated servo controller▎Delivered with servo controller or frequency converter▎Custom design

Other stainless steel motors

Stainless steel permanent magnet motor	Water-cooled stainless steel motor	Food industry electric motor	Stainless steel motor
IEC emulsified food machinery AC motor	NEMA 56C asynchronous motor	IEC stainless steel AC motor	IEC all stainless steel high-efficiency motor
Chicken and duck depilation equipment motor	NEMA food-grade stainless steel motor	Food-grade IEC stainless steel motor

Stainless Steel Motor Manufacturer

To ensure reliable consumer protection, the design requirements for food and pharmaceutical machinery have always been high. All components in the machine must also meet these requirements.Since its establishment,hzpt has continuously developed stainless steel servo motors, gear motors, and torque motors with hygienic designs. A comprehensive range of products can be used with corrosive and effective cleaners and disinfectants as well as high-pressure cleaners to achieve CIP.
