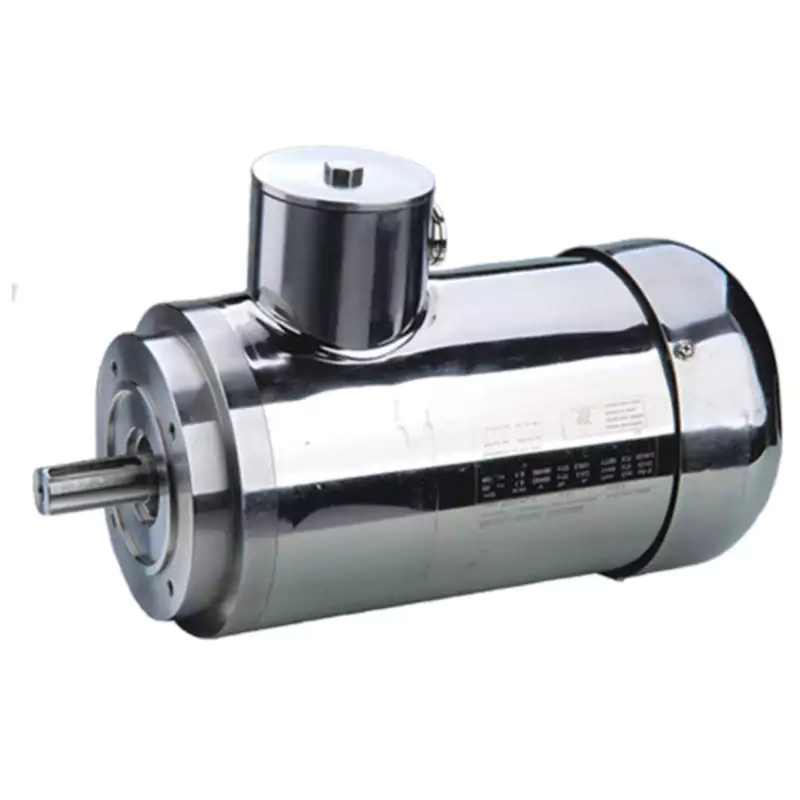

B14 Face Mounted Stainless Steel Motor TEFC

B14 Face Mounted Stainless Steel Motor TEFC

To ensure reliable consumer protection, the design requirements for food and pharmaceutical machinery have always been high. All components in the machine must also meet these requirements.Since its establishment, hzpt has continuously developed stainless steel servo motors, gear motors, and torque motors with hygienic designs. A comprehensive range of products can be used with corrosive and effective cleaners, disinfectants, and high-pressure cleaners to achieve CIP.Raydafon's high-quality and efficient stainless steel motor has ip69k grade, which can be completely waterproof, dustproof, and oilproof. Other features include 1/3 to 20 horsepower ratings, circular welded junction boxes with epoxy encapsulated conductors, 304 stainless steel frames, end brackets, junction boxes, and hardware. These continuous working, high-efficiency motors are ideal for use in food and chemical processing plants, pharmaceutical applications, and other environments that require corrosion-resistant, waterproof motors.

Frame Type	Flange type	Poles	D	E	F	G	M	N	P	R	S	T	Flange hole	shaft hole	AC	AD
71	FT85	2, 4, 6	14	30	5	11	85	70	105	0	M6	2.5	4	M5	134	129
80	FT100	2, 4, 6	19	40	6	15.5	100	80	120	0	M6	3	4	M6	144	135
90	FT115	2, 4, 6	24	50	8	20	115	95	140	0	M8	3	4	M8	176	147
100	FT130	2, 4, 6	28	60	8	24	130	110	160	0	M8	3.5	4	M10	203	169
112	FT130	2, 4, 6	28	60	8	24	130	110	160	0	M8	3.5	4	M10	218	174
132	FT165	2, 4, 6	38	80	10	33	165	130	200	0	M10	3.5	4	M12	256	192

Feature of Our Stainless Steel Motor

▍Stainless steel servo motor, static torque 0.45 to 20nm, peak torque 64nm▍Stainless steel servo reduction motor with planetary gear or bevel gear▍The shell adopts stainless steel V2a 1.4301 (AISI 304) or V4A 1.4404 (AISI 316L) or an anodized aluminum shell▍Surface and flange installation (imb5, IMB14)▍Protection grade up to ip66k / ip69k under flushing conditions▍Large speed regulation range▍Ul/CSA certification▍EHEDG certification is pending (expected in 2022)▍Feedback using a resolver or preface, EnDat, or drive clip encoder▍Single cable technology (OCT)▍Braking options▍AC servo motor, DC servo motor, and AC asynchronous motor▍Decentralized servo motor with integrated servo controller▍Delivered with servo controller or frequency converter▍Custom design

Solve Cases of Stainless Steel Motor

A processing plant uses a standard AC aluminum motor on its industrial hair puller production line. Still, there are problems with their standard engine in the process of use: in addition to health problems, the service life of the standard motor is only 6/8 weeks, and if it exceeds 6/8 weeks, it needs to be disassembled and replaced with a new motor.Raydafon electric company provides them with stainless steel sanitary motors and special seals for customers. Now the stainless steel motor has been running continuously for 12 months. Since the installation, the processing plant has saved a lot of costs, labor time, downtime, and the cost of replacing new aluminum motors every 6/8 weeks. The processing plant saves tens of thousands of yuan by replacing only one motor... Imagine how much money all 24 motors installed on this production line will save. When you encounter similar problems, please email us. We are also glad to find a cost-effective motor solution for you.
