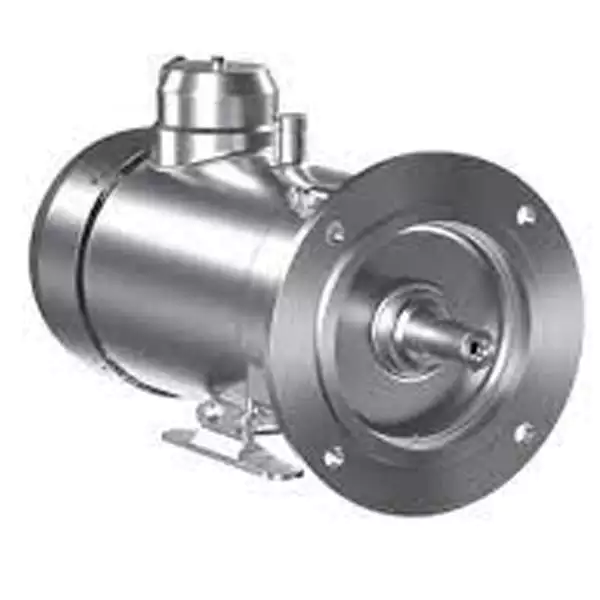

IEC B5 Flange Mounted Stainless Steel Motor -TENV

IEC B5 Flange Mounted Stainless Steel Motor -TENV

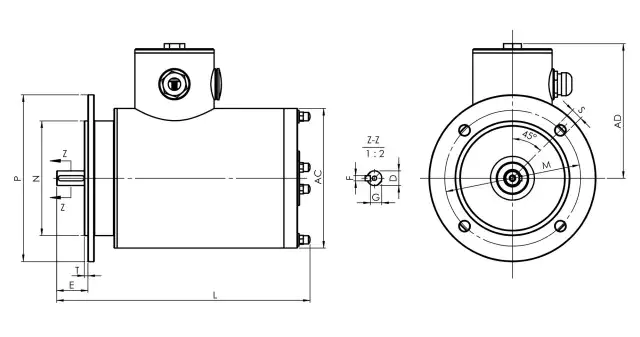

Description Of Flange Mounted Stainless Steel Motor

Frame Type	Flange type	Poles	D	E	F	G	M	N	P	R	S	T	Flange Hole	Shaft Hole	AC	AD
63	FT115	2,4	11	23	4	8.5	115	95	140	0	10	2.5	4	M4	114	117
71	FT130	2.4.6	14	30	5	11	130	110	160	0	10	2.5	4	M5	134	129
80	FT165	2.4.6	19	40	6	15.5	165	130	200	0	12	3.5	4	M6	144	135
90	FT165	2.4.6	24	50	8	20	165	130	200	0	12	3.5	4	M8	164	147

Specifications of Flange Mounted Stainless Steel Motor

Frame	KW	Mounting	IP
63	0.18	B3, B5, B14, B34, B35	IP55
71	0.25， 0.37
80	0.55， 0.75
90	1.1， 1.5
100	2.2， 3.0
112	4.0
1332	5.5， 7.5

It is also available if you have any special requirements for the motor.Stainless steel motorStainless steel motor is the most comprehensive motor. Because of its diversity, it can be used in all possible environments. Its advantages are clear at a glance:▎IP68 waterproof and dustproof▎Clean room classification ISO 1 according to DIN 14644▎ATEX certification for ATEX zone 1▎Acid and chemical resistance▎Hydrogen peroxide can be used for sterilization▎Efficient and powerful▎Technical data and recommendationsThe technical data of our motor can be obtained here. We are happy to advise you on your personal application. If you need to contact our experts directly, please click here.Example applications:● Food processing machinery● packer machines● Filling plant and production line, brewery● Bakery machine● Chocolate blender● Milk collection technology● Milk processing● Machines in dusty environments, such as flour dust● Plant and bulk material transportation system
