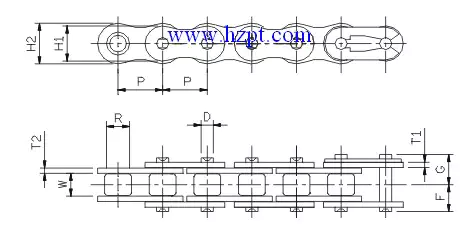

CHAIN NO. | Pitch | Width | Roller | Plate | Pin | Average ?Ultimate Strength kgf | Approx Weightkg/m | ||||||
P | W | Dia | Height | Thickness | Dia | Lengths | |||||||
inch | mm | mm | R | H1 | H2 | T1 | T2 | D | F | G | |||
| 08BH | 0.5" | 12.70 | 7.75 | 8.50 | 11.20 | 12.20 | 2.00 | 2.00 | 4.44 | 9.30 | 10.70 | 2400 | 0.85 |
| 10BH | 0.625"" | 15.875 | 9.65 | 10.16 | 13.00 | 14.60 | 2.00 | 2.00 | 5.06 | 10.10 | 11.65 | 3100 | 1.01 |
| 12BH | 0.75" | 19.05 | 11.68 | 12.07 | 16.00 | 16.00 | 2.40 | 2.40 | 6.12 | 12.30 | 13.80 | 4500 | 1.42 |
