KA Series Keyed Hollow Shaft Output Helical Bevel Gearbox

Discover the KA Series Keyed Hollow Shaft Output Helical Bevel Gearbox by Raydafon Group, engineered for high-torque industrial applications. This durable gearbox excels in material handling, conveyors, and heavy machinery, offering efficient power transmission, smooth operation, and a compact design. Its superior construction reduces maintenance needs and enhances reliability, ideal for engineers and manufacturers seeking peak performance. Experience seamless integration and long-lasting results, setting Raydafon Group apart with precision engineering that solves complex mechanical challenges. Elevate your equipment's efficiency today.

Send Inquiry

Product Description

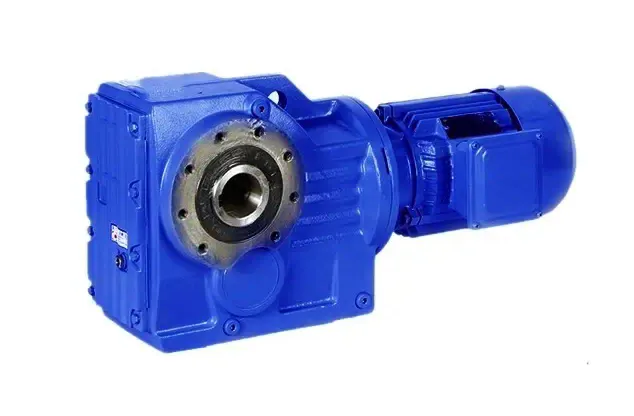

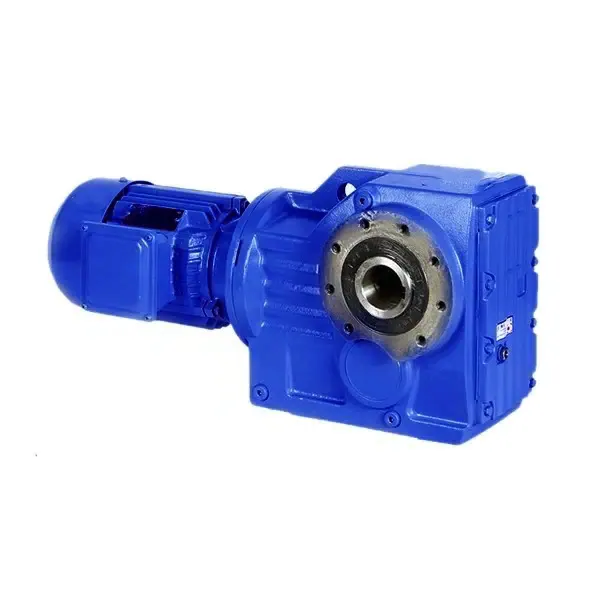

KA Series Keyed Hollow Shaft Output Helical Bevel Gearbox

KA series helical gearbox is a type of keyed hollow shaft output helical bevel gearbox. KA series helical bevel gearbox adopts serialization and modularization design ideas, it has features such as compact structure, large transmission torque, stable operation, low noise, long life, and wide adaptability. Moreover, the KA series helical bevel gearbox has a very large number of motor combinations, installation positions, and structural schemes, and users can choose any speed and various structural forms according to the transmission needs.Based on high-quality rigid cast iron housing, the hardness and impact performance of the box body have been greatly improved. Also, the surfaces of all transmission gears of the gearbox undergo high-frequency heat treatment, which greatly enhances the hardness and wear resistance of the gears. KA series helical bevel gearboxes are widely used in industrial metallurgical equipment, the building materials industry, chemistry, mining, petroleum, transportation, paper, sugar, construction machinery, and other fields. KA Series Keyed Hollow Shaft Output Helical Bevel Gearbox

KA Series Hollow Shaft Helical Gearbox Specifications:

Product name:	KA series helical bevel gearbox
Model:	KA37/47/57/67/77/87/97/107/127/157/167/187
Mounting ways:	Foot mounted and flange mounted
Input ways:	Motor input, AM (IEC) flange input, and shaft input
Output way:	Solid shaft output or hollow shaft output
Efficiency:	over 95%
Housing material:	HT250 high-strength cast iron
Gear material:	20CrMnTi
Surface hardness of gears:	HRC58-62
Input/Output shaft:	40Cr steel
Heat treatment:	Carburizing and quenching
Bearing:	C&U or another brand
Oil seal:	NAK or another brand
Lubricating oil:	Gear oil
Packing:	Pywood case

KA Series Hollow Shaft Helical Bevel Gearbox Parameters:

Size	37	47	57	67	77	87	97	107	127	157	167	187
Structure	K KA KF KAF KAZ KAT KAB
Input power(kW)	0.18-3.0	0.18-3.0	0.18-5.5	0.18-5.5	0.37-11	0.75-22	1.1-30	3-45	7.5-90	11-160	00	18.5
Ratio	5.36-106.38	5.81-131.87	6.57-145.14	7.14-144.79	7.24-192.18	7.19-197.37	8.95~176.05	8.74-141.46	8.68-146.07	12.65-150.41	17.28-163.91	17.27-180.78
Permissible torque(N.m)	200	400	600	820	1550	2700	4300	8000	13000	18000	32000	50000

Features of KA Series Hollow Shaft Helical Bevel Gearbox

1. It realized serialization and modularization with a compact structure and a wide range of transmission ratios. The transmission efficiency reaches up to 96%.2. The gear is processed by Carburizing, Nitriding & Grinding.3. High efficiency, superior performance with less energy consumption4. High precision gear, steady transmission, low noise, large load capacity, long service life.5. Has various installation methods.

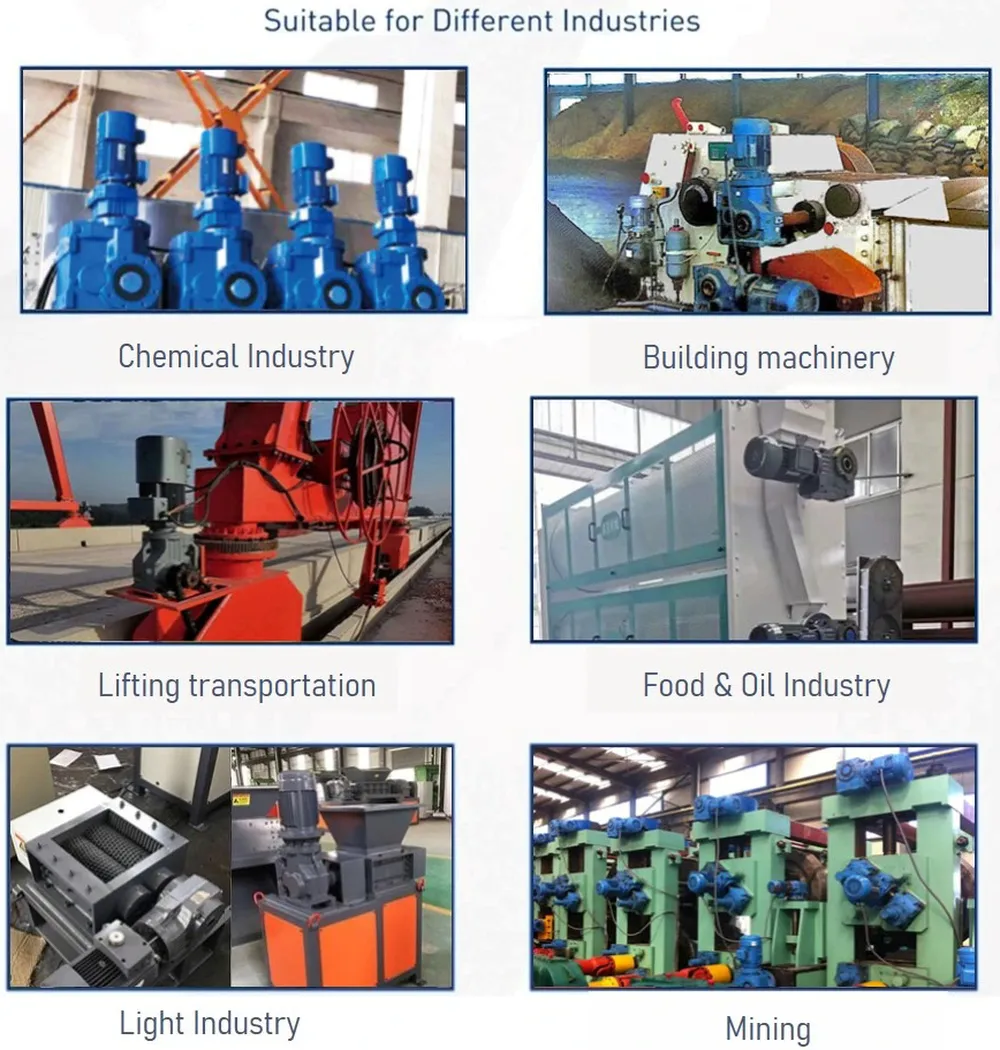

Applications of KA Series Hollow Shaft Helical Gearbox

(1) Conveyor & Material handling	(5) Transport & Packaging
(2) Mining & Quarry	(6) Food processing & Beverage
(3) Crusher & Cement	(7) Construction & Metal processing
(4) Automatic production line	(8) Plastic & Chemical industry

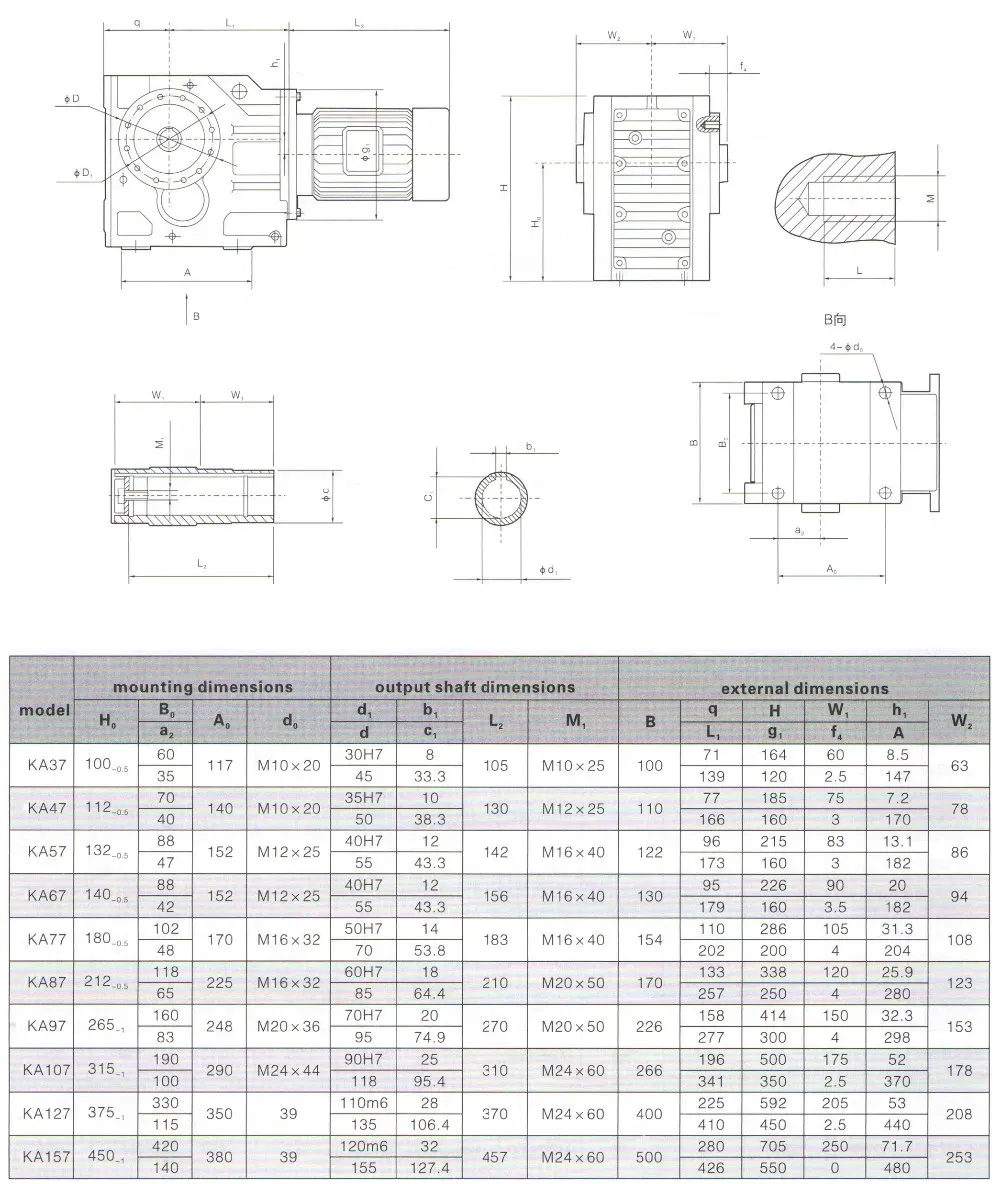

KA Series Helical Bevel Gearbox Mounting Dimensions:

Helical Gear Reducer Selection and Use Matters:

(1) The biggest advantage of the helical gear reducer lies in its high work efficiency, small size, lightweight, large transmission torque, stable starting, and the connection method and installation position can be customized according to user needs.

(2) The wear between the gears and the gears of the helical gear reducer, and the wear between the gears and the bearings are the main reason that affects its life. Therefore, the choice of materials determines the life of the helical gear reducer. Generally speaking, regular manufacturers will choose Wear-resistant materials, so we try to buy products from big manufacturers when choosing helical gear reducers.

(3) The helical gear reducer should be smooth and flat between the gear and the bearing, which can reduce unnecessary frictional stress and prolong the service life of the reducer.

(4) Regularly check the amount of lubricating oil in the helical gear reducer. When the amount of oil is insufficient, add lubricating oil of the same brand and type in time.

(5) When assembling the helical gear reducer, operate it according to the requirements in the manual, and try to avoid the reducer running in an environment with high humidity and corrosive gas.

Helical Bevel Gearboxes Packing and Transportation

●Packaging: In order to ensure the integrity of product appearance, we will choose cartons, wooden pallets, and wooden pallets according to customer needs.●Delivery time: Each reducer is manufactured and tested in accordance with strict and fixed procedures to ensure that the quality is correct before leaving the factory and delivery on time.●Transportation mode: We will choose the most suitable mode of transportation for our customers according to the weight and size of the goods. We can also choose the mode of transportation according to the needs of our customers.●Receiving and after-sales service: After receiving the goods, please check whether they are in good condition. We will provide customers with perfect after-sales service. KA Series Keyed Hollow Shaft Output Helical Bevel Gearbox

Helical Gearbox Manufacturer in China

Our company is located in the city of Ningbo, Zhejiang Province of China. We handle the products of power transmission, and our lines mainly cover series products in speed reducers, RV series worm gearboxes, WP series worm gearboxes, S/R/K/F series helical gearboxes, X/B series cycloidal gearboxes, HB series helical gearboxes, ZY series parallel shaft helical gearboxes, ATA series shaft mounted gearboxes, SMR series shaft mounted gearboxes, associated electric motors, and other power transmission accessories. Based on their versatile functions, our products can be utilized in many fields: machines of wastewater treatment, dredgers, the chemical industry, cranes, metalworking mills, conveyors, the paper industry, the cement industry, cableways, and so on. With excellent quality and reasonable prices, our products enjoy a good reputation from customers and peers all over the world.Furthermore, the R&D investment is annually increasing for the purpose of better meeting the new demands of our customers and adapting to the new tendency of the industry. Depending on the principles of honestly operating and mutual benefit, We sincerely look forward to cooperating with you. KA Series Keyed Hollow Shaft Output Helical Bevel Gearbox

FAQ

Q1: Are you a trading company or a manufacturer?A: We are a manufacturer in Zhejiang Province, China. Our company owns the ability of manufacturing, processing, designing and R&D. We welcome your visit.Q2: How do we select models and specifications?A: According to the specific details of the demands from the part of the inquiry, we will recommend the products’ models upon synthesizing the factors of the field of product usage, power, torque arm, and ratio…Q3: How is your price? Can you offer any discount?A: Our prices are always competitive. If the customer can place a large order, we surely will allow a discount.Q4: How long should I wait for the feedback after I send the inquiry?A4: We will reply as soon as possible, 12 hours at most.Q5: What is your product warranty period?A: We have the certifications of ISO9001, CE, and SGS.Q6: What industries are your helical gearboxes being used in?A: Our helical gearboxes are widely applied to metallurgical equipment, mining equipment, automation equipment, food machinery, packaging equipment, tobacco equipment, and so on.
