KHBS Series SAE Flange Ball Valves

KHBS Series SAE Flange Ball Valves

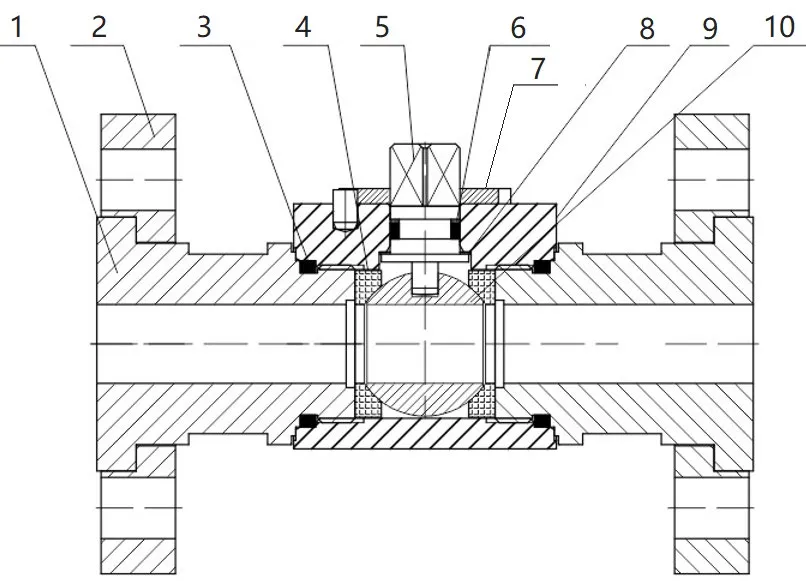

KHBS Series SAE Flange Ball Valve Materials of Construction:

	Item	Name	Material
			Stainless Steel	Carbon Steel
	1	Fittings	SS 316 / SS 304	A105 / 45#
	2	Flange	SS 316 / SS 304	A105 / 45#
	3	O-ring	FKM	NBR
	4	Packing	POM / PEEK	POM
	5	Stem	SS 316 / SS 304	A105 / 45#
	6	O-ring	FKM	NBR
	7	stop Pin	SS 316 / SS 304	A105 / 45#
	8	Washer	SS 316 / SS 304	A105 / 45#
	9	Body	SS 316 / SS 304	A105 / 45#
	10	Ball	SS 316 / SS 304	A105 / 45#

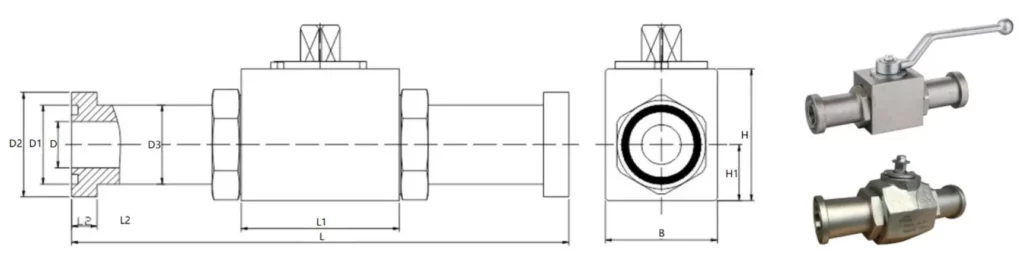

KHBS Series SAE Flange Ball Valve Dimensions:

KHBS Series SAE Flange Ball Valves (3000 PSI)

PartNO.		FlangeSize	DN	Dimension(mm)
				D	D1	D2	D3	L	L1	L2	B	H	H1	O-RING
KHBS-F3-13		1/2”	13	13	25.4	30.2	24	151	48	6.7	34	40	17	18.7*3.53
KHBS-F3-20		3/4”	20	19	31.8	38.1	32	162	60	6.7	48	56	24	25.0*3.53
KHBS-F3-25		1”	25	24	39.6	44.4	38	178	64	8	58	63	29	32.9*3.53
KHBS-F3-32		1.1/4”	32	30	44.5	50.8	43	190.5	72	8	68	75	34	37.7*3.53
KHBS-F3-40		1.1/2”	40	38	53.7	60.3	50	231	80	8	80	86	40	47.2*3.53
KHBS-F3-50		2”	50	46	63.3	71.4	62	232	96	9.5	96	102	48	56.7*3.53

KHBS Series SAE Flange Ball Valves (6000 PSI)

Part NO.		Flange Size	DN	Dimension(mm)
				D	D1	D2	D3	L	L1	L2	B	H	H1	O-RING
KHBS-F6-13		1/2”	13	13	25.4	31.7	24	151	48	7.7	34	40	17	18.7*3.53
KHBS-F6-20		3/4”	20	19	31.8	41.3	32	174	60	8.8	48	56	24	25.0*3.53
KHBS-F6-25		1”	25	24	39.6	47.6	38	198	64	9.5	58	63	29	32.9*3.53
KHBS-F6-32		1.1/4”	32	30	44.5	54	44	223	72	10.3	68	75	34	37.7*3.53
KHBS-F6-40		1.1/2”	40	38	53.7	63.5	51	281	80	12.6	80	86	40	47.2*3.53
KHBS-F6-50		2”	50	46	63.3	79.4	67	316	96	12.6	96	102	48	56.7*3.53

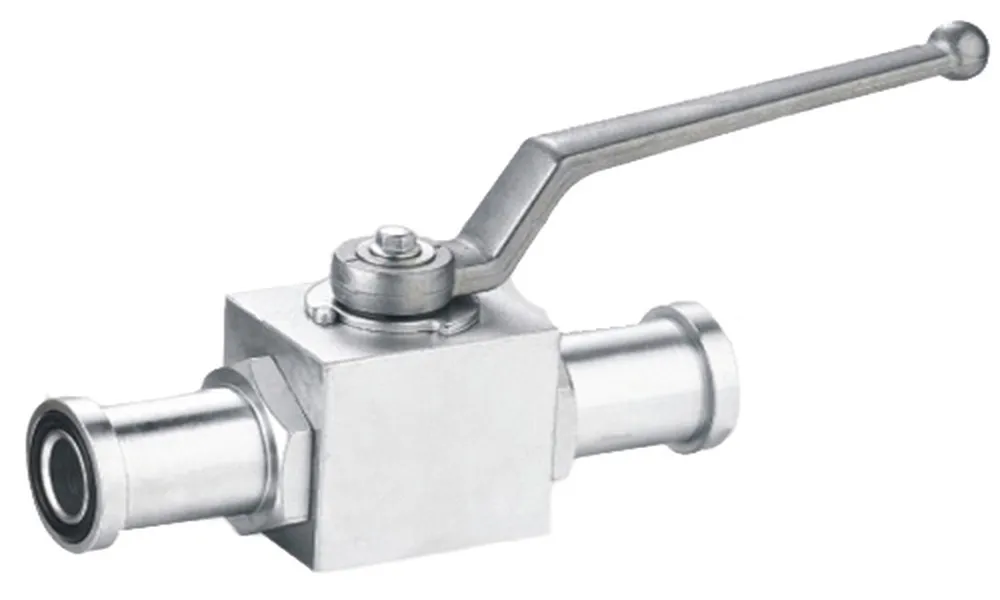

Features of KHBS Series SAE Flange Ball Valves:

The KHBS Series SAE flange ball valves offer several advantages that make them a preferred choice in hydraulic systems. Here are some of the key features of these flange ball valves:1. Secure and Leak-Free Connection: The SAE flange connection ensures a secure and leak-free connection between the valve and other SAE flanged components in the hydraulic system. This eliminates the risk of fluid leakage, which can lead to system inefficiencies, contamination, and potential safety hazards.2. Easy Installation and Maintenance: The standardized SAE flange design simplifies the installation process of KHBS Series SAE Flange Ball Valves. The valves can be easily mounted and connected to other SAE flanged components without the need for complex adapters or modifications. Additionally, their design allows for easy maintenance, such as inspection, cleaning, and replacement, if required.3. Reliable and Durable Construction: KHBS Series SAE Flange Ball Valves are built with durable materials such as stainless steel or carbon steel. This ensures their reliability and long service life, even in demanding operating conditions. The robust construction makes them resistant to corrosion, wear, and damage, increasing their overall durability and reducing the need for frequent replacements.4. Precise Flow Control: The ball valve design of the KHBS Series enables precise control over the flow of fluids in the hydraulic system. The 90-degree rotation of the ball allows for quick and accurate shut-off or regulation of flow, providing operators with precise control over the system's performance. This level of control is essential in applications where fluid flow needs to be precisely adjusted or completely stopped.5. Minimal Pressure Drop: The full bore design of KHBS Series SAE Flange Ball Valves ensures minimal pressure drop across the valve, allowing for efficient fluid flow through the system. This design reduces energy losses and maintains the desired pressure levels, optimizing the overall performance and efficiency of hydraulic systems.6. Wide Range of Applications: KHBS Series SAE Flange Ball Valves are versatile and find applications in various industries that rely on hydraulic systems. They can be used in construction machinery, agricultural equipment, industrial processes, and more. The compatibility with SAE flanged components makes them suitable for integration into existing hydraulic systems or for designing new systems.7. High Pressure and Temperature Resistance: These KHBS Series SAE Flange Ball Valves are designed to handle high-pressure applications commonly encountered in hydraulic systems. They can withstand substantial pressure and temperature variations without compromising their performance or integrity. This makes them suitable for use in demanding environments where hydraulic systems operate under extreme conditions.
