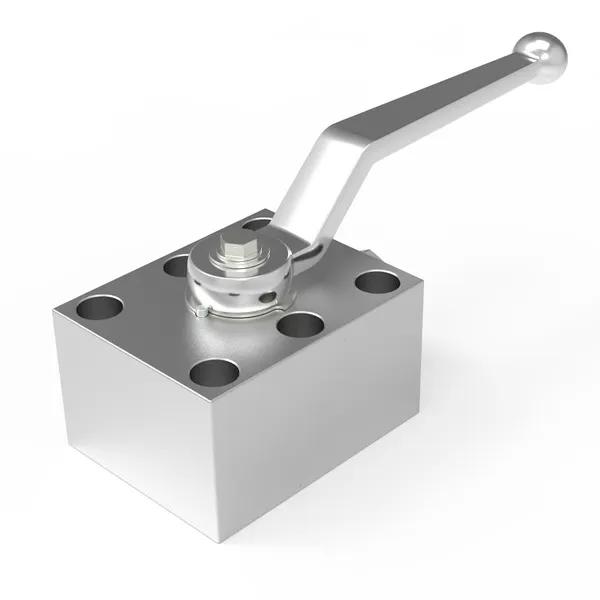

KHP Series Plate Type Ball Valves

KHP Series Plate Type Ball Valves

KHP Series Plate Type Ball Valves are a type of industrial valves specifically designed for high-pressure applications. These valves are commonly used in various industries such as oil and gas, petrochemical, power generation, and chemical processing.The KHP Series Plate Type Ball Valve features a unique design that incorporates a flat, circular plate with a hole or port in the center. This plate functions as the ball of the valve and is responsible for controlling the flow of fluid through the valve. The plate is connected to a rotating stem, which allows for precise control of the valve's opening and closing.One of the key advantages of KHP Series Plate Type Ball Valves is their ability to handle high-pressure conditions. These valves are typically designed to withstand pressures ranging from several hundred to several thousand pounds per square inch (psi). The robust construction and high-quality materials used in their manufacturing make them suitable for demanding environments where safety and reliability are crucial.Another notable feature of KHP Series Plate Type Ball Valves is their excellent sealing capability. The flat plate design ensures a tight seal when the valve is closed, preventing any leakage or loss of fluid. This feature is especially important in high-pressure applications where even small leaks can be detrimental.KHP Series Plate Type Ball Valves are also known for their low torque operation. The unique design reduces friction and allows for smooth and effortless operation, even under high-pressure conditions. This feature makes the valves easy to operate and minimizes wear and tear on the valve components.In addition to their high-pressure capabilities, KHP Series Plate Type Ball Valves are available in various sizes and materials to suit different application requirements. They can be constructed from materials such as stainless steel, carbon steel, and exotic alloys, depending on the specific needs of the process.

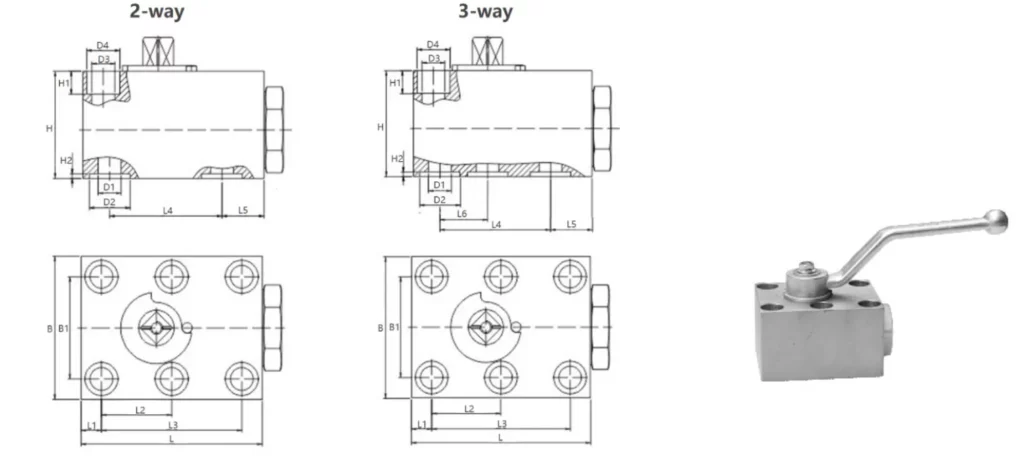

KHP Series Plate Type Ball Valve Dimensions:

Part NO.	DN	Dimension(mm)
		L	L1	L2	L3	L4	L5	L6	D1	D2	D3	D4	B	B1	H	H1	H2
KHP-06	6	59	8.5	17.5	35	35	15.5	17.5	6	11	6.5	11	42	27	38	7	1.3
KHP-10	10	71	8	27.5	55	44	16.5	19	10	16	9	13	56	40	42	9	1.8
KHP-16	16	100	8.5	41.5	83	58	25	26.5	15	25	9	13	63	45	50	9	1.8
KHP-20	20	117	10	48.5	97	69	28	32	19	30	11	16.5	71	51	60	10.5	2
KHP-25	25	137	11	57.5	115	81	31	38	24	35	11	16.5	82	60	67	10.5	2
KHP -32	32	165	12	68	136	96	40	46	30	40	13	19	102	78	75	13	2.4
KHP-40	40	180	28.5	56	112	112	39.5	56	38	50	17	26	130	95	85	17	2.4
KHP-50	50	220	38	68	136	136	46	68	46	56	22	33	150	112	105	22	2.7

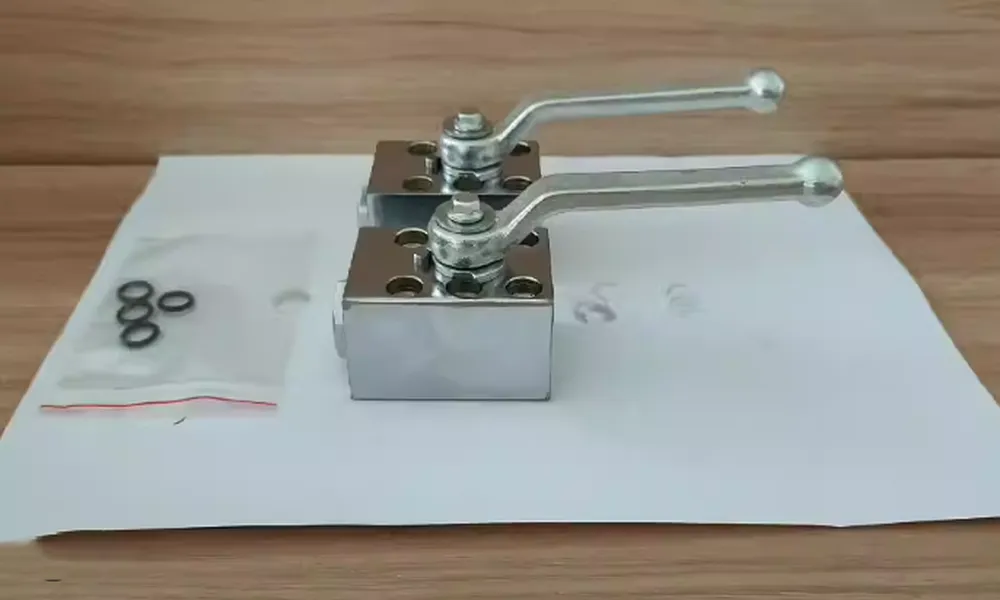

How Does the KHP Series Plate Type Ball Valve Work?

The KHP series plate type ball valve is a high-pressure ball valve that is typically used in hydraulic systems. It is a two-way valve, meaning that it can control the flow of fluid in both directions.

The KHP series plate type ball valve has a spherical ball with a hole bored through the center. The ball is held in place by two seat seals. When the valve is closed, the hole in the ball is aligned with the seat seals, blocking the flow of fluid. When the valve is opened, the ball is rotated so that the hole in the ball is aligned with the inlet and outlet ports of the valve, allowing fluid to flow through.

The KHP series plate type ball valve is operated by a handle that is attached to the ball stem. The handle is turned 90 degrees to open or close the valve.

The KHP series ball valve is made of high-quality carbon steel and is designed to withstand high pressures and temperatures. It is also corrosion-resistant and easy to maintain.

Here is a step-by-step explanation of how the KHP series plate type ball valve works:

1. The valve is closed when the hole in the ball is aligned with the seat seals. This blocks the flow of fluid.
2. To open the valve, the handle is turned 90 degrees. This rotates the ball so that the hole in the ball is aligned with the inlet and outlet ports of the valve.
3. Fluid can now flow through the valve.
4. To close the valve, the handle is turned 90 degrees in the opposite direction. This rotates the ball back to its original position, blocking the flow of fluid.

KHP series plate type ball valves are used in a wide variety of hydraulic applications, including:

• Industrial machinery
• Construction Equipment
• Agricultural equipment
• Mining equipment
• Oil and gas equipment
• Power generation equipment

They are also used in some commercial and residential applications, such as heating and cooling systems.
