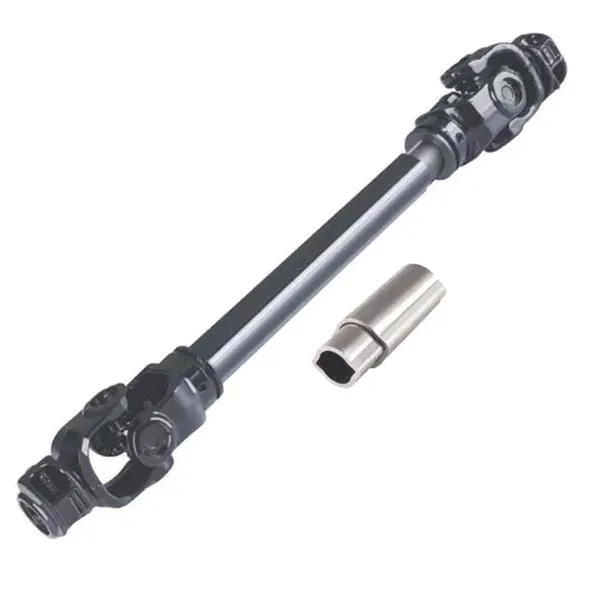

The L series PTO (Power Take-Off) shaft is a type of PTO drive shaft manufactured that specializes in agricultural and industrial power transmission systems. The L series PTO shaft has a thicker wall than standard PTO shafts and utilizes a tri-lobe design in its profile. This design provides greater durability, superior torque transmission, and improved torsional capacity than standard PTO shafts. It is designed to withstand high torque and power requirements, making it an ideal choice for heavy-duty applications.The L series PTO shaft is available in various sizes and lengths to fit different agricultural and industrial equipment requirements. They also come with a range of additional features such as telescoping, quick release, and overrunning clutch options. Overall, L series PTO shafts are designed to provide superior performance, reliability, and safety, making them a popular choice among farmers, contractors, and manufacturers around the world.

L Series Lemon PTO Shaft Sizes Table

Choose the Right PTO Shaft Size ImportanceRegardless of what job you’ll be using a PTO shaft to complete, it’s important that you have the right size. The manufacturer should provide length recommendations to help you get an idea. When measuring a PTO shaft, use a tape measure and measure from the outside of each yoke to obtain the closed length. The series size should correspond with the amount of horsepower your tractor has. There are two different speeds used most commonly with tractor PTO shafts, the 540 rpm PTO shaft and the 1000 rpm PTO shaft.

Series	540 tr./min			1000 tr./min			MP(NM)
	Kw	Pk	Nm	Kw	Pk	Nm
L1	12	16	210	18	25	172	320
L2	15	21	270	23	31	220	450
L3	22	30	390	35	47	330	640
L4	26	35	460	40	55	380	780
L5	35	47	970	54	74	520	1050
L6	47	64	830	74	100	710	1450
L32	39	53	695	61	83	580	1200

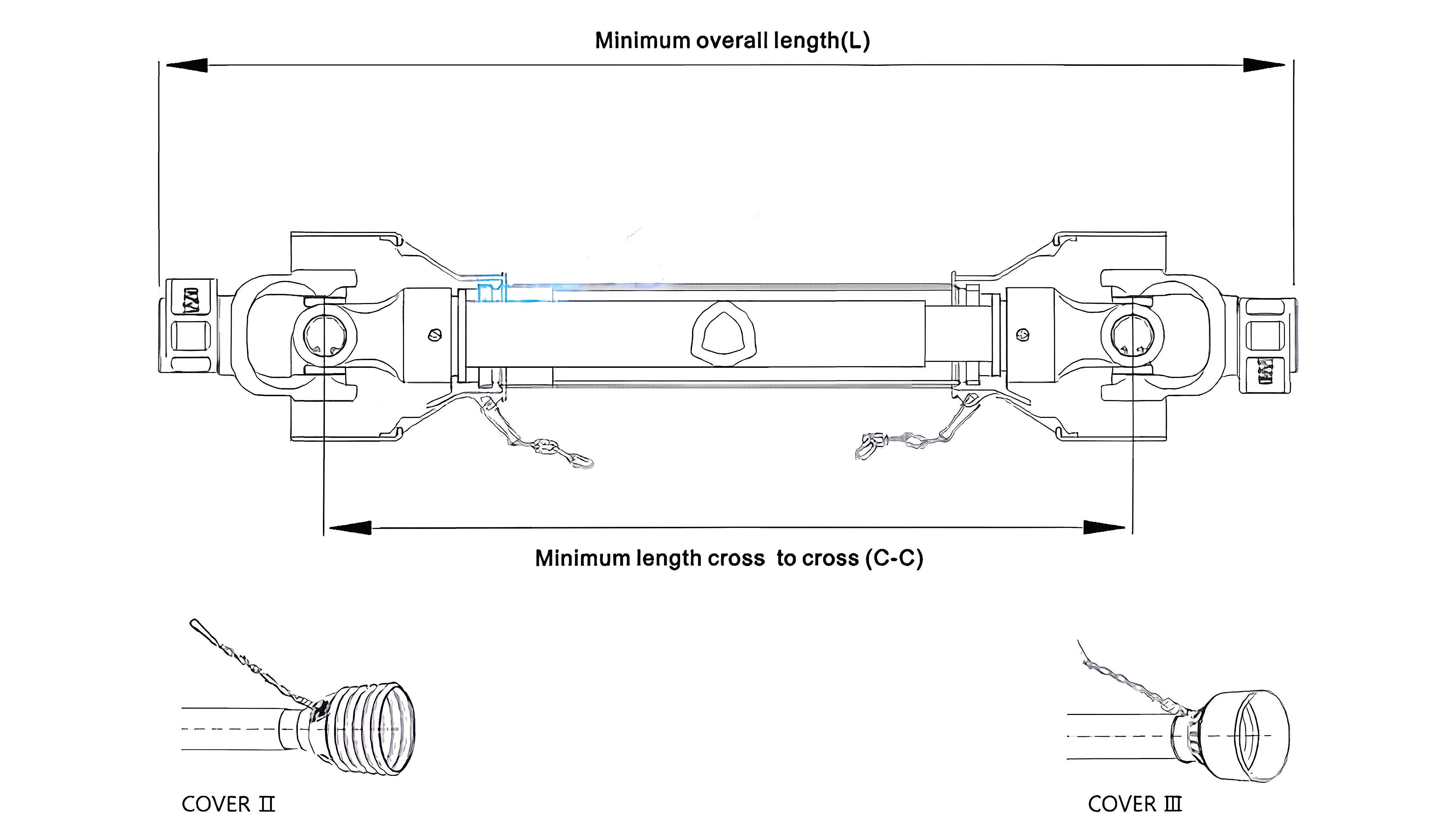

L Series Lemon PTO Shaft Parts

PTO shafts are a critical part of many agricultural operations. They provide a reliable and efficient way to power implements that are used to harvest and manage crops. The main components of a lemon PTO (Power Take-Off) Shaft are as follows:PTO Shaft Yoke: This is the connector that joins the PTO shaft to the tractor or the equipment being operated. It is usually designed in a specific way to fit the tractor or the equipment's PTO shaft. Yokes come in various sizes and can be either male or female.Cross Kit: The cross kit is the component that transfers power from one end of the PTO shaft to the other. It is commonly made up of four bearings and four bearing cups, which fit inside the yokes.Lemon Tubing: The lemon tubing is the outer part of the PTO shaft, which covers the cross kit and protects it from external elements. The lemon PTO shaft tubing can be made of aluminum or steel material, depending on the application.Safety Shields: The safety shields are used to cover the rotating parts of the PTO shaft to prevent injury or damage. There are two types of safety shields, the inner shield which closely fits around the cross kit, and the outer shield covers the entire PTO shaft.Friction Clutch: A friction clutch is an optional part of a PTO shaft that helps protect the machine from damage due to sudden stops or overloading. It allows the shaft to disengage from the equipment in case of an emergency.It is essential to maintain and regularly lubricate PTO shafts to keep them working smoothly, prolong their lifespan, and prevent accidents or injuries.

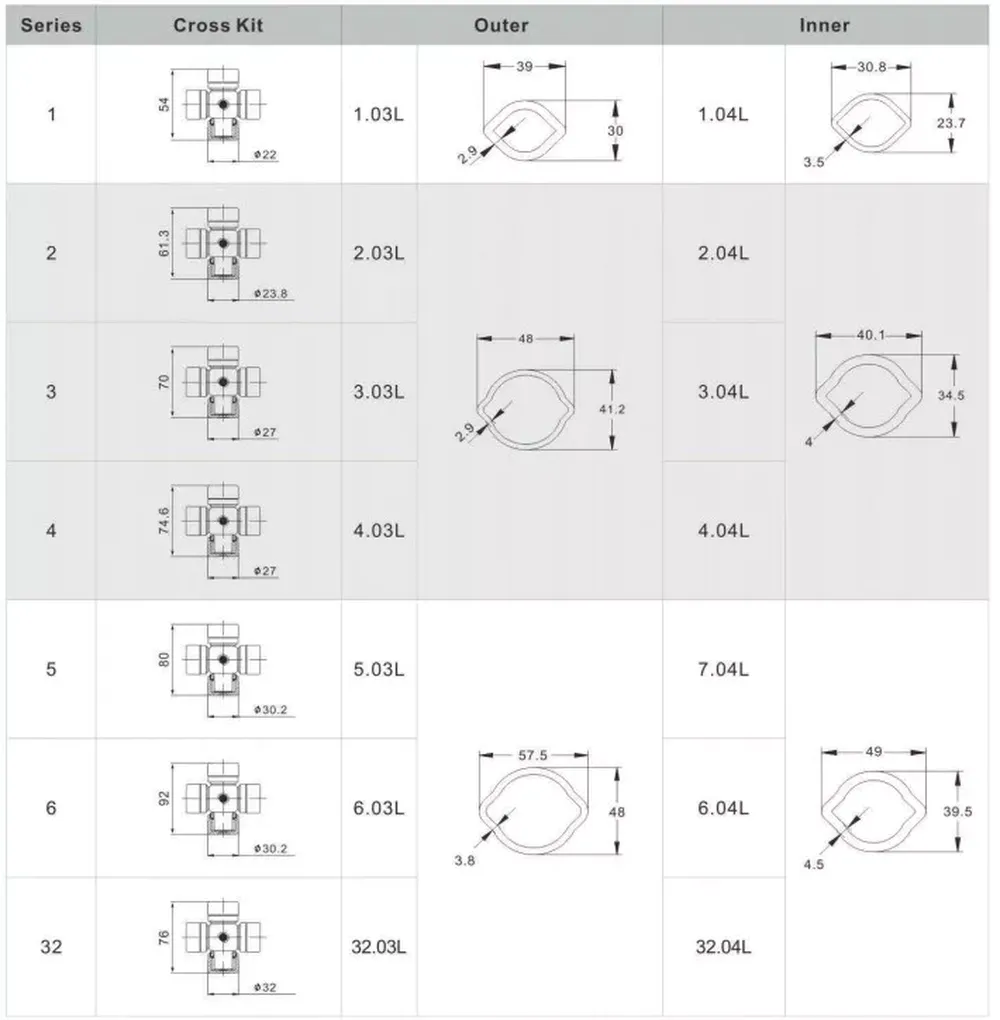

Series	Cross	Joint simple		Splined yoke	Tube yoke		Tube
		Outer	Inner		Outer	Inner	Outer	Inner
	1	2	3	4	5	6	7	8
L1	1.01(22*54)	1.0505B+1.01+1.06L	1.0505B+1.01+1.07L	1.0505B	1.06L	1.07L	1.03L	1.04L
L2	2.01(23.8*61.3)	2.0505B+2.01+2.06L	2.0505B+2.01+2.07L	2.0505B	2.06L	2.07L	4.03L	4.04L
L3	3.01(27*74.6)	3.0505B+3.01+3.06L	3.0505B+3.01+3.07L	3.0505B	3.06L	3.07L
L4	4.01(27*74.6)	4.0505B+4.01+4.06L	4.0505B+4.01+4.07L	4.0505B	4.06L	4.07L
L5	5.01(30.2*80)	5.0505B+5.01+5.06L	5.0505B+5.01+5.07L	5.0505B	5.06L	5.07L	6.03L	6.04L
L6	6.01(30.2*92)	6.0505B+6.01+6.06L	6.0505B+6.01+6.07L	6.0505B	6.06L	6.07L
L32	32.01(32*76)	32.0505B+32.01+32.06L	32.0505B+32.01+32.07L	32.0505B	32.06L	32.07L

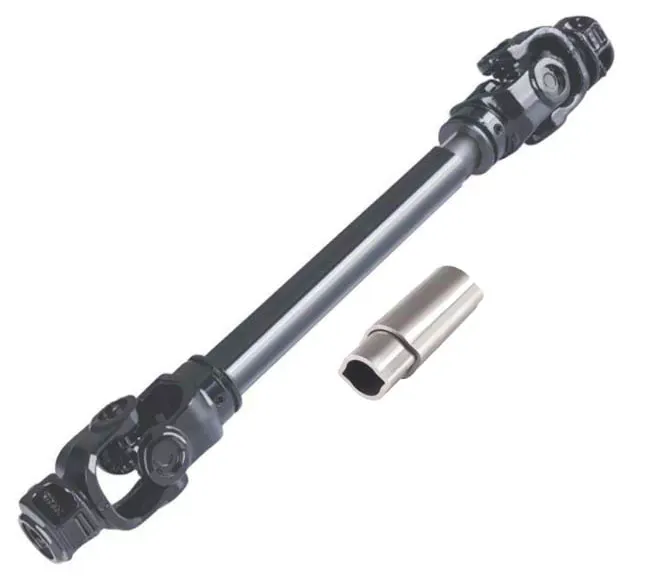

L Series PTO Shaft Lemon Tubing

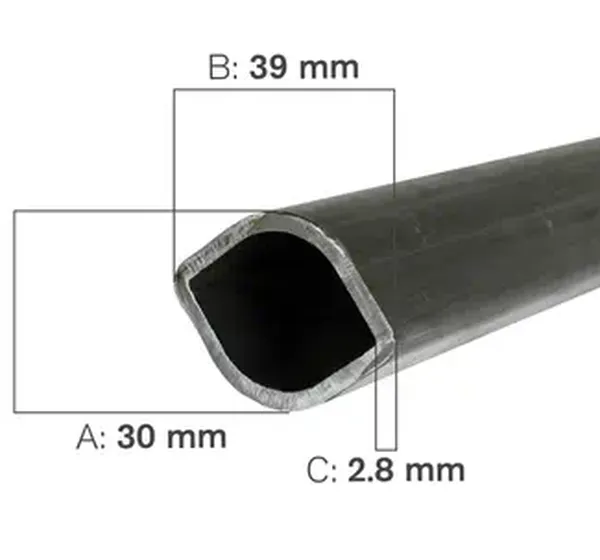

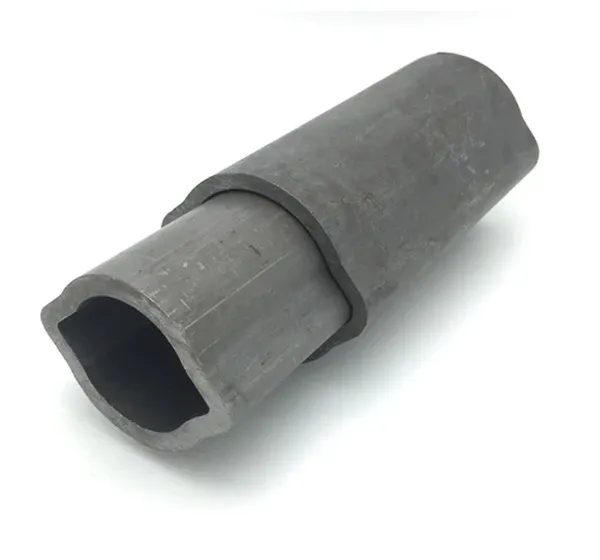

PTO shaft lemon tubing is a type of tubing that is used to protect the power take-off (PTO) shaft on a tractor. The tubing is made of strong, durable material, such as steel or aluminum, and it has a lemon-shaped cross-section. The tubing helps to protect the PTO shaft from damage from dirt, debris, and other objects. It also helps to reduce vibration and noise.PTO shaft lemon tubing is typically installed on tractors that are used for agricultural purposes. The tubing is attached to the PTO shaft and to the implement that is being powered by the PTO. The tubing helps to ensure that the PTO shaft is properly aligned and that it is not damaged during operation.PTO shaft lemon tubing is a critical part of many agricultural operations. It helps to protect the PTO shaft and to ensure that it is properly aligned. This helps to prevent injuries and damage to equipment.

How Does a Tractor PTO Shaft Work?

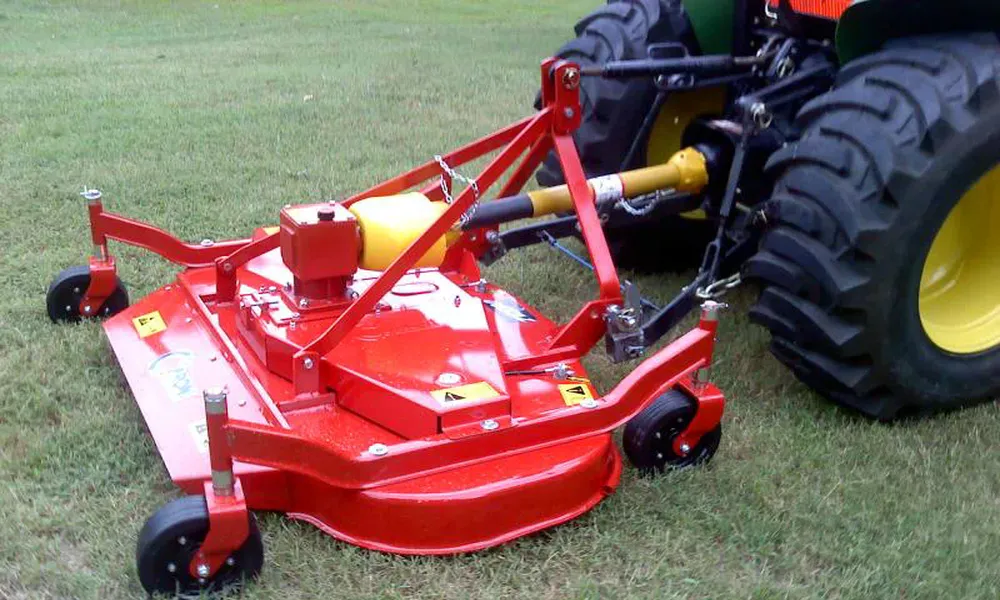

A tractor Power Take Off (PTO) shaft is designed to transfer power from the tractor's engine to an implement or attachment. The PTO shaft consists of a shaft with splines on one end and a yoke on the other end. The spline end of the shaft is inserted into the tractor's PTO driveline and secured with a locking pin or collar. The yoke end is connected to the implement or attachment, typically via a universal joint.When the tractor's engine is running, rotational power is transmitted along the PTO shaft to the implement, causing it to operate. The speed of the PTO shaft is usually standardized to either 540 rpm or 1000 rpm, depending upon the tractor and equipment's size and design.It is essential to note that PTO shafts can be hazardous if not used correctly. Careful attention and adherence to operating instructions and safety guidelines are essential. PTO shafts must be correctly shielded and guarded to prevent entanglement or injury to the operator or bystander. It is recommended to follow manufacturer guidelines for maintenance and lubrication to ensure optimal performance, safety, and longevity.

How to Choose the Right PTO Shaft for a Tractor?

Choosing the right PTO shaft for your tractor requires considering several factors, including:(1) Power requirements: Determine the horsepower and torque requirements of the equipment you intend to operate with the PTO shaft. Choose a PTO shaft that can handle the maximum power and torque demands of the equipment.(2) Shaft type: Choose the correct PTO shaft type based on your tractor's size and speed. Standard PTO shafts have a 6-spline connection and operate at 540 rpm, while higher-powered tractors may require a 1000 rpm shaft. There are also constant velocity (CV) shafts that can handle higher horsepower demands and operate at a consistent speed.(3) Shaft length: Choose the length of the tractor PTO shaft that is appropriate for the equipment you intend to operate. Measure the distance between the PTO driveline and implement and select a PTO shaft that can bridge the gap while still providing proper clearance.(4) Safety: Choose a PTO shaft with safety features such as shields and guards to prevent entanglement and injury.(5) Quality: Choose a high-quality PTO shaft from a reputable manufacturer or dealer. Look for a PTO shaft that is made from durable materials, properly balanced, and features quality components.It is essential to follow manufacturer guidelines and industry safety standards when selecting a PTO shaft. If you are uncertain about the appropriate PTO shaft for your equipment, consult with a reputable manufacturer or dealer for guidance.

How to Shorten a PTO Shaft?

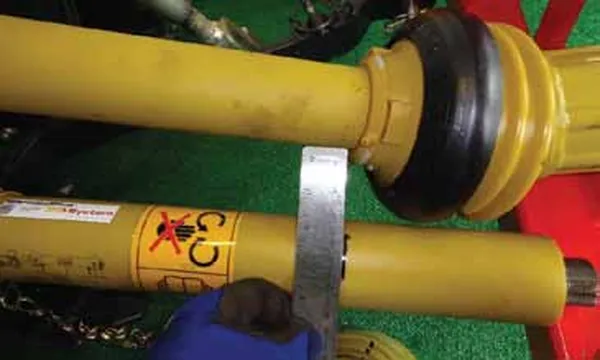

Shortening a PTO (power take-off) shaft is a process that requires some knowledge and skill in working with metal. Here are the steps to follow:1. Mark the shaft: Measure and mark the length to which you need to shorten the PTO shaft, making sure to account for the overlap between the shaft sections.2. Disassemble the shaft: Remove the metal retaining rings that secure the PTO shaft yokes to the shaft's splined ends. Slide the yokes off the PTO shaft’s ends.3. Cut the shaft: Use a metal cutting saw to make a clean, straight cut at the marked location.4. Deburr the edges: The cut edges will typically have sharp edges or burrs. Use a metal file to smooth out those edges.5. Reassemble the shaft: Slide the yokes back onto the shortened PTO shaft and install the retaining rings.6. Balancing the Shaft: Have the shortened PTO shaft balanced to prevent vibration, which can cause damage to the equipment or harm the operator.It's essential to remember that shortening a PTO shaft can impact its balance and potentially cause damage. If you're not confident in your ability to cut and balance the shaft properly, you should consider consulting with a professional mechanical shaft service.

We Also Offer Agricultural Gearboxes for PTO Shaft

An agricultural gearbox is a component that connects the tractor's output shaft to an implement through a PTO shaft. It is designed to transmit power from the engine to the implement, allowing the equipment to perform work in the field.When selecting an agricultural gearbox for use with a PTO shaft, there are several factors to consider:Capacity: Determine the maximum horsepower and torque rating needed to power the implement effectively.Speed: Select an agricultural gearbox that can operate at the proper speed for the PTO shaft type, whether it be 540 RPM or 1000 RPM.Ratio: Choose the right gear ratio that provides the required output speed from the input shaft.Mounting: Ensure the agricultural gearbox is designed to fit onto the equipment or tractor and can be secured appropriately.Seals: Consider if the agricultural gearbox has protective seals to prevent contamination from the environment and ensure long-lasting performance.When choosing an agricultural gearbox, it's also important to choose a reputable manufacturer that provides proper installation, maintenance, and safety instructions to avoid damage to the equipment or injury to the operator. Additionally, it is critical to follow the recommended maintenance schedule for the gearbox and PTO shaft to keep them in good working condition.
