Large Round Baler Agricultural Hay Baling
  • Large Round Baler Agricultural Hay BalingLarge Round Baler Agricultural Hay Baling

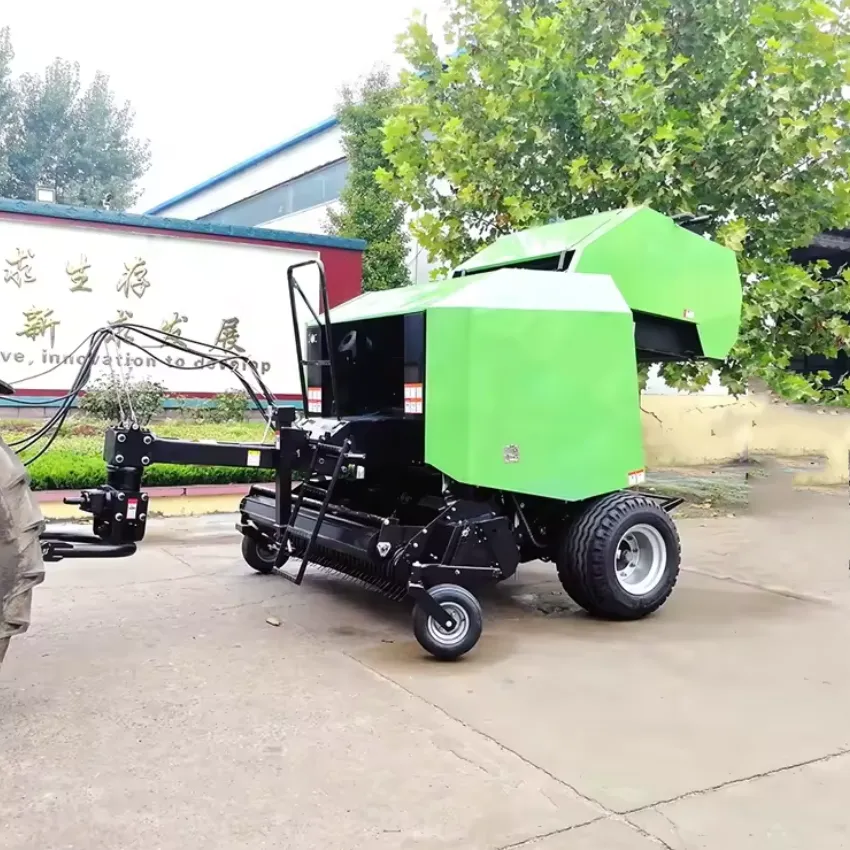

Large Round Baler Agricultural Hay Baling

Raydafon Group's Large Round Baler streamlines hay baling for increased farm productivity, featuring durable construction and efficient technology for superior round bales. Ideal for farmers and agricultural professionals, it simplifies harvesting and enhances storage. Experience reliable performance that saves time and effort, setting it apart with innovative design and consistent quality.
[embed]https://youtu.be/XPTUMj6cOqw[/embed] Introducing the large round baler, a crucial piece of machinery for farms around the world. Our baler is a brand new, low noise level product designed for the efficient pickup and baling of crops. With a dimension of 4290x2830x2400 and a weight of 2700 KG, this robust baler is power-packed. The core components of this baler include bearing and gearbox, which are covered under a 1-year warranty. The baler uses a net binding method and requires a matched power of 100HP for smooth operation. Equipped with a pickup width of 2.1m, our green baler is designed for efficiency and reliability. Large round balers are essential agricultural machines used in hay baling operations. They are designed to efficiently collect and compact large quantities of hay or other forage crops into dense, easily manageable round bales. These bales are then used for various purposes, such as livestock feed, bedding, or for sale in the market. The process of hay baling involves several steps, starting with the cutting of the forage crop in the field. Once the crop has been cut and allowed to dry to an appropriate moisture level, it is ready for baling. Large round balers are typically attached to tractors and pulled through the field as they pick up the dried forage material. The baler has a pickup mechanism consisting of tines or augers that gather the cut crop from the ground and feed it into the baling chamber. Inside the chamber, the forage material is rolled and compressed into a cylindrical shape, forming a round bale. The baler uses belts or chains to rotate the bale chamber and apply pressure to compact the hay tightly. Large Round Baler Agricultural Hay Baling

Advantages of Our Large Round Baler

Large round balers offer several advantages for hay baling compared to other types of balers. Here are some of the key advantages:
  1. Increased Efficiency: Large round balers are designed to handle significant amounts of hay, allowing farmers to bale more hay in less time. These balers have wide pickups and large bale chambers, enabling them to gather and process more hay with each pass. This results in improved efficiency and increased productivity.
  2. Time-Saving: Large round balers can quickly form large bales, reducing the time required for baling operations. The bale chambers in these balers are specifically designed to create dense and tightly packed bales, which means fewer bales need to be formed to store the same amount of hay compared to smaller balers. This saves time both during baling and when it comes to transporting and storing the bales.
  3. Reduced Labor Requirements: With their high capacity, large round balers can significantly reduce the labor required for baling. Fewer bales need to be handled and transported, resulting in less manual labor. Additionally, these balers often have automated features such as automatic tying or wrapping systems, further reducing the need for manual intervention.
  4. Improved Bale Quality: Large round balers are known for producing well-formed, dense bales. The bale chambers in these balers exert high pressure on the hay, creating tightly packed bales that retain their shape and integrity during handling and storage. This leads to improved bale quality, reduced spoilage, and minimized loss of hay.
  5. Versatility: Large round balers can handle various types of hay, including grasses, legumes, and straw. They are capable of baling hay that is still slightly moist, reducing the risk of spoilage. This versatility allows farmers to efficiently bale different types of hay and maximize their yield.

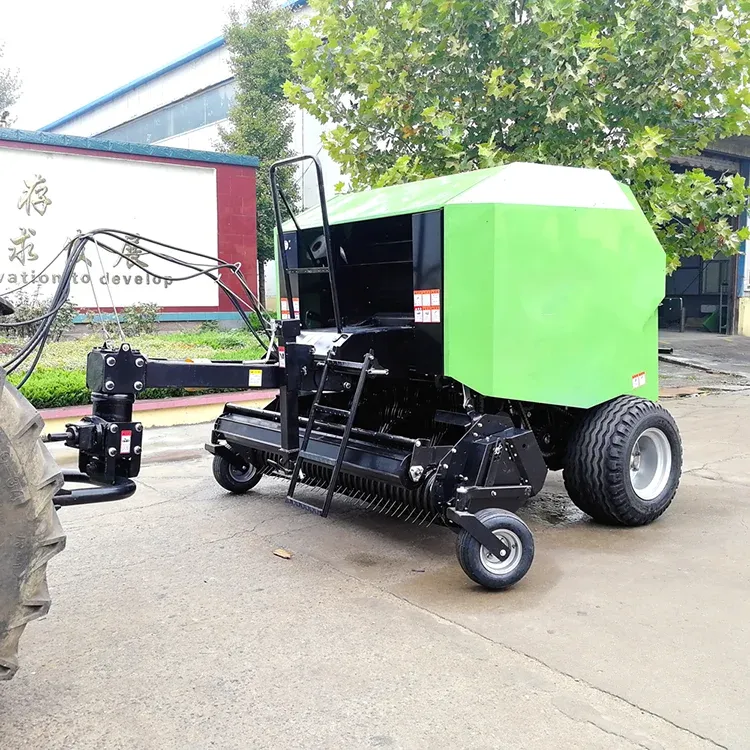

Large Round Baler Agricultural Hay Baling

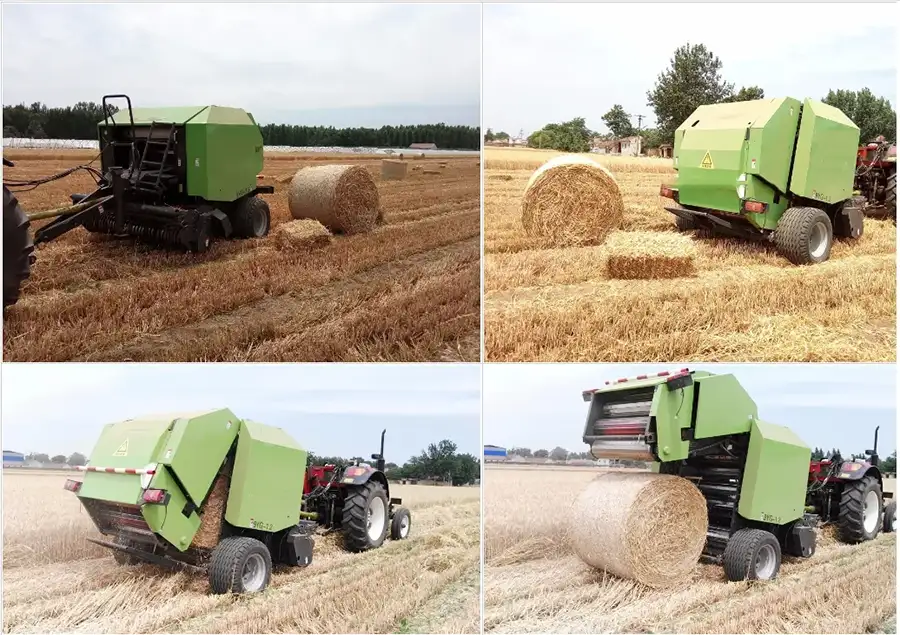

Applications of Our Large Round Baler

Our large round baler finds its application in various farming activities:
  • Baling of hay, straw, and silage for easy handling, transport, and storage.
  • Efficient collection and baling of crops in large farms and agricultural fields.
  • Useful in livestock farming for creating feedstock.
  • Effective in waste management for compacting recyclable materials.
  • Suitable for commercial farming operations for bulk baling requirements.
  • Applicable in landscaping services for handling and disposal of garden waste.

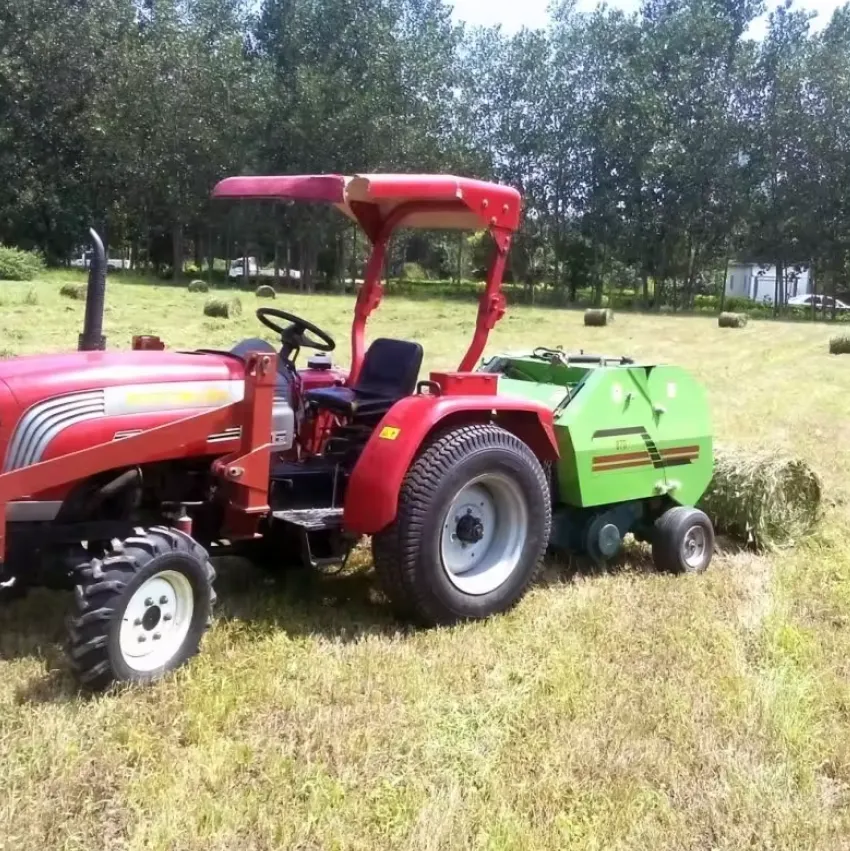

Large Round Baler Agricultural Hay Baling

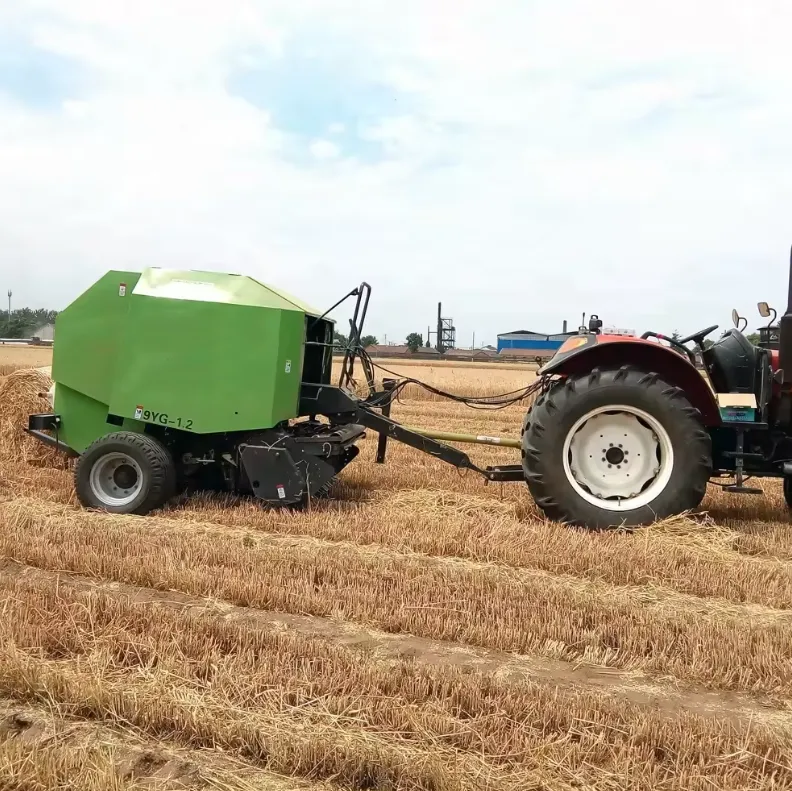

How Does the Tractor Mounted Large Round Baler Work?

A tractor-mounted large round baler is a machine that is attached to a tractor and operated using the tractor's PTO. It is the agricultural equipment used to compress cut crops, such as hay, straw, or silage, into compact, large round bales that are easy to handle, transport, and store. Here's a step-by-step overview of how it works:
  1. Attachment to the Tractor: The large round baler is connected to the tractor using a three-point hitch or a drawbar hitch. The hitch ensures a secure connection between the baler and the tractor, allowing them to work together.
  2. Collection of Hay: The baler is equipped with a pickup mechanism, usually located at the front or side of the machine. The pickup mechanism consists of rotating tines or augers that gather the loose hay from the ground and feed it into the baling chamber. The pickup width can vary depending on the model.
  3. Feeding into the Baling Chamber: As the pickup mechanism collects the hay, it transfers it to the baling chamber. The hay is guided into the chamber, where it starts to accumulate.
  4. Bale Formation: Inside the baling chamber, the baler has belts or rollers that rotate, compacting the hay and forming it into a cylindrical bale. The pressure exerted by the belts or rollers creates a tightly packed bale.
  5. Bale Size Adjustment: Most large round balers allow for the adjustment of bale size. This can be done by changing the settings on the baler, which control the length and density of the bale. The operator can set the desired bale size based on their specific requirements.
  6. Bale Wrapping: Once the bale reaches the desired size, the baler applies twine or net wrap around the bale to secure it. Twine or net wrap is fed into the baler and is automatically wrapped around the bale as it rotates within the baling chamber. This ensures that the bale remains intact and prevents it from unraveling.

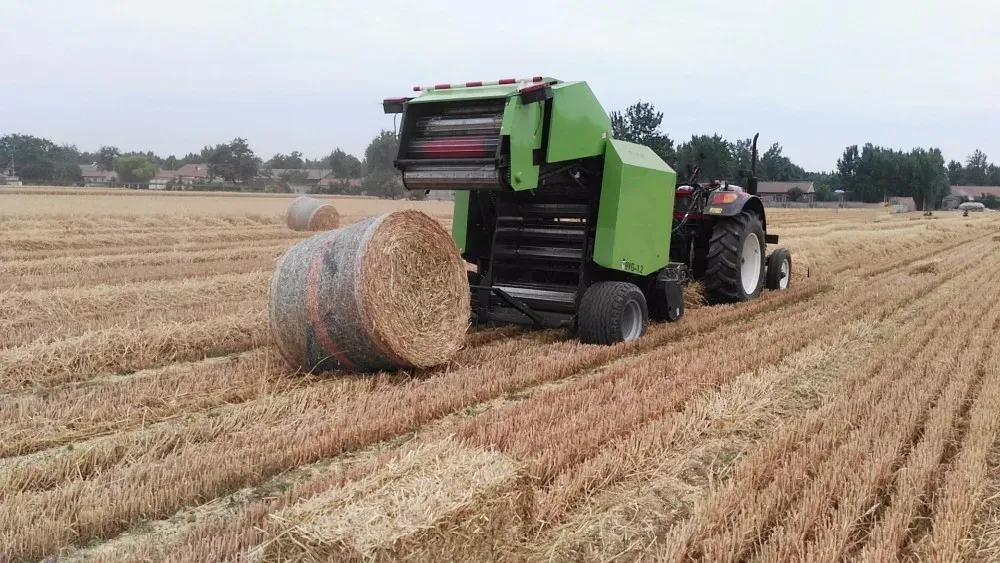

  7. Bale Ejection: Once the bale is wrapped, it is ready to be ejected from the baling chamber. The baler either drops the bale onto the ground, where it can be manually handled, or it may have a built-in bale ramp that allows for controlled unloading directly onto a bale wagon or trailer.
Large Round Baler Agricultural Hay Baling

How to Install the Large Round Baler to a Tractor?

Installing a large round baler to a tractor involves several steps to ensure a secure and proper attachment. Here's a general guide on how to install a large round baler to a tractor:
  1. Position the Tractor and Align the Baler: Park the tractor on a level surface and engage the parking brake. Ensure the tractor is turned off and the PTO is disengaged for safety. Position the large round baler behind the tractor, ensuring it is aligned with the hitch. The baler should be centered and directly behind the tractor for proper balance and stability.
  2. Attach the Baler to the Tractor: For a three-point hitch connection, align the tractor??s three-point hitch with the baler??s hitch points. Lift the hitch and secure the baler using the locking pins. For balers that connect via a drawbar, align the drawbar of the tractor with the hitch on the baler. Insert the hitch pin and secure it with a linchpin or locking device.
  3. Connect the PTO Shaft: Align the PTO shaft from the baler with the PTO stub on the tractor. Ensure that the shaft splines are aligned correctly and slide the shaft onto the stub until it locks into place. Ensure that the PTO shaft is the correct length. The shaft should have enough slack to accommodate turns but not so much that it could become entangled or disengage.
  4. Check the Attachment: Ensure that all hitch connections are secure and properly locked in place. Shake the baler gently to check for any excessive movement or looseness. If everything is properly attached, there should be minimal play between the tractor and the baler.
  5. Verify Clearance: Check the clearance between the tractor and the baler, ensuring that there is enough space for the baler to operate smoothly without interference from the tractor's components.
  6. Test the Connection: Once the baler is attached, start the tractor and engage the PTO. Verify that the PTO shaft on the tractor aligns with the PTO input on the baler. Make sure there is a smooth and proper rotation between the two. After the test run, conduct a final inspection to check for any issues or unusual wear. Ensure that all safety features of the baler are operational.
Large Round Baler Agricultural Hay Baling Large Round Baler Agricultural Hay Baling

Common Troubleshooting of Large Round Baler

Troubleshooting common issues with a tractor-mounted large round baler is essential for maintaining its efficiency and prolonging its operational life. Here??s a guide to identifying and resolving some frequent problems:
  • Baler Not Starting or Operating: Power Take-Off (PTO) Issue, ensure the PTO is properly engaged. Check the PTO shaft connection between the tractor and baler for correct alignment and secure attachment. Verify that any electrical connections are secure and intact. Inspect fuses and wiring for damage.
  • Irregular Bale Shape: Pickup Issues, ensure the pickup mechanism is not clogged with debris and is rotating freely. Check for bent or broken tines. Inadequate or uneven pressure in the baling chamber can cause misshapen bales. Too fast or too slow tractor speed during baling can affect bale formation. Adjust speed to recommended levels.
  • Bale Density Issues: Tension Adjustment, check and adjust the tension or pressure settings on the baler to ensure proper bale density. Uneven or insufficient material feed into the baler can result in density issues. Ensure uniform feeding.
  • Baler Knotting Problems: Twine or Net Wrap Issues, check the twine or net wrap feed for jams or entanglement. Ensure the spools are loaded correctly and that there is sufficient twine/net wrap available. Inspect the knotter mechanism for cleanliness and proper operation. Clean and lubricate as necessary. Adjust the knotter settings if knots are not being tied correctly.
  • Excessive Vibration: Driveline Misalignment, ensure the driveline between the tractor and baler is straight and correctly attached. Check the PTO shaft for damage or bending. Inspect moving parts, including bearings, chains, and gears, for wear or damage. Replace worn components as necessary.
Large Round Baler Agricultural Hay Baling

Why Choose Raydafon's Large Round Baler for Hay Baling?

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery, such as PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Our company has more than 100 employees, among which there are 20 technical technical staff and five senior R&D personnel. Besides, we have abundant financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system. Our production technology is strong and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding. We have accumulated more than ten years of experience in production, and mainly produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China. Our main products are PTO shafts, agricultural gearboxes, rotary hay rakes, corn seeder, drum mowers, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, large round baler, mini round baler, PTO wood chipper, diesel wood chipper, log splitter, front end loader, backhoe, snow blower, road sweeper, etc. The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round. Large Round Baler Agricultural Hay Baling We uphold the business philosophy of "quality first, customer first, honesty and trustworthiness", and strive to provide high-quality products and excellent service to our customers. We are committed to creating a win-win situation with our customers, and we are willing to cooperate with friends from all walks of life to create a better future! Author: Yjx
Hot Tags: Large Round Baler Manufacturer, Hay Baling Equipment Supplier, Agricultural Baler Customization
