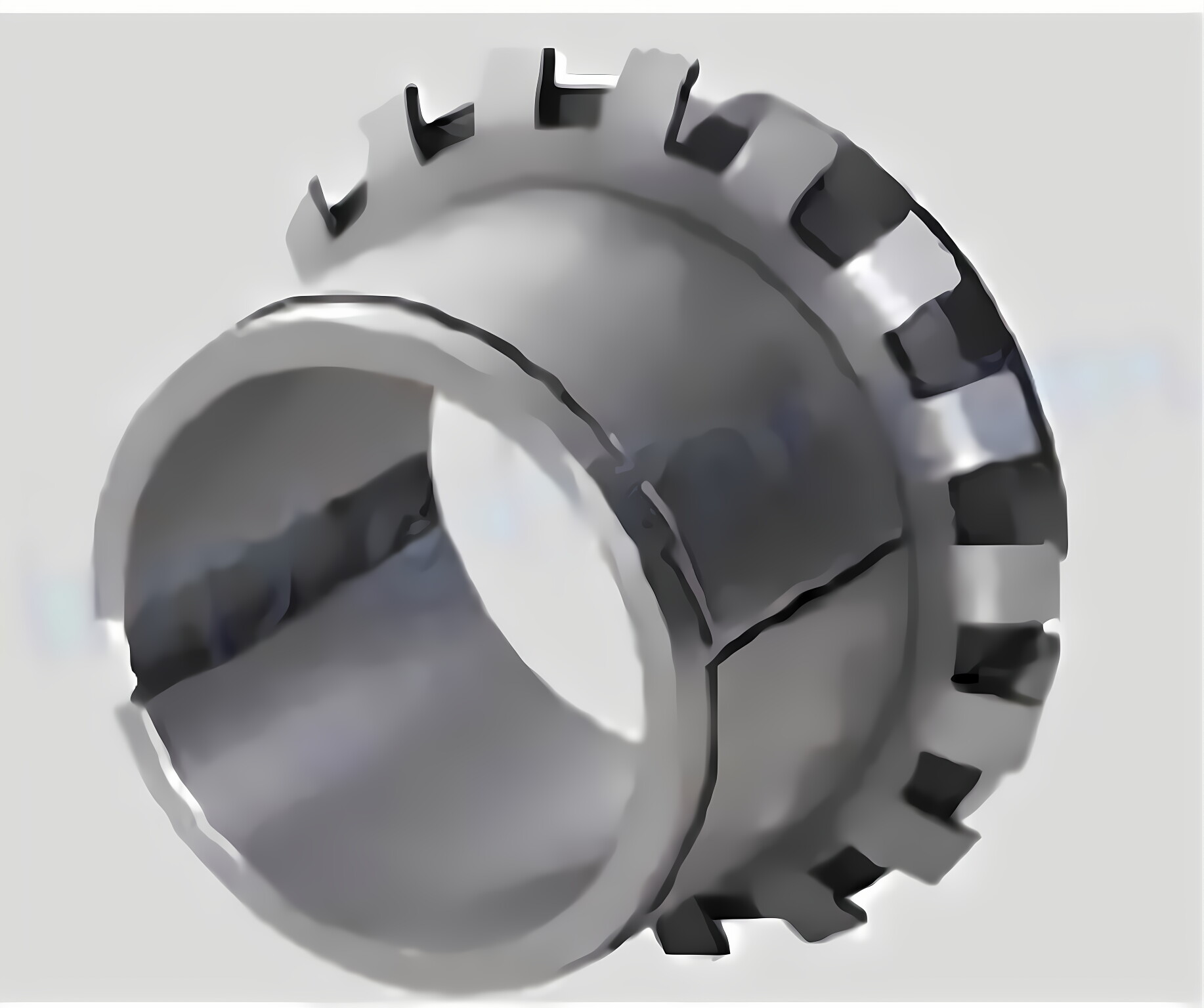

Locking Assembly WA Series Power Locks

WA Series Locking Assembly

Features of WA Series Locking Assembly

• Low torque
• Self-centering
• Self-locking
• Suited for restricted hub diameter
• Axial movement during clamping

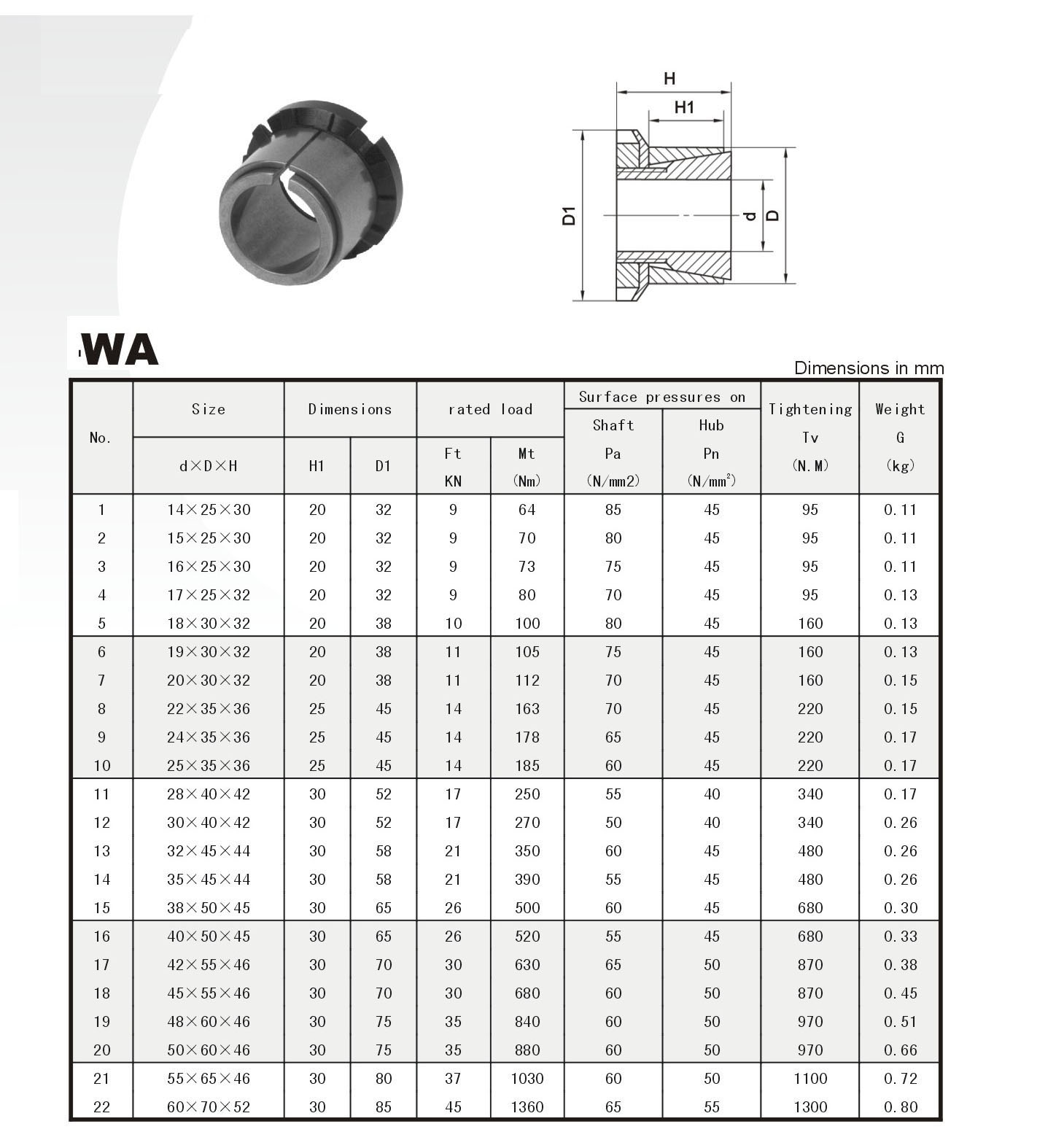

Technical Qualification of WA Series Locking Assembly

Advantages of Locking Assembly

• The use of locking assemblies makes the manufacture and installation of host parts simple. The processing of the shaft and hole for mounting the locking assembly does not require high-precision manufacturing tolerances like interference fit. No heating, cooling or pressurizing equipment is required for the installation of the locking device, and the bolts must be tightened to the required torque. The hub can be easily adjusted to the desired position on the shaft. The keyless shaft locking devices can also be used to join parts with poor weldability.
• The locking assembly features with long service life and high strength. The keyless shaft locking assemblies rely on friction transmission, there is no keyway weakening to the coupled parts, and there is no relative motion, so there is no wear and tear in work.
• When the locking assembly is overloaded, it will lose the coupling effect, which can protect the equipment from damage.
• The keyless locking shaft coupling can withstand multiple loads, and its structure can be made into a variety of patterns. According to the size of the installed load, more than one locking assembly can be used in series.
• The locking assembly is easy to disassemble and has good interchangeability. As the locking assembly can combine the shaft and hub with a large clearance, the bolt will be loosened when disassembling so that the coupled parts can be easily disassembled. When the expansion is tightened, the contact surface is closely fitted without rusting, and it is also easy to disassemble.
