MB Type Spherical Roller Bearings

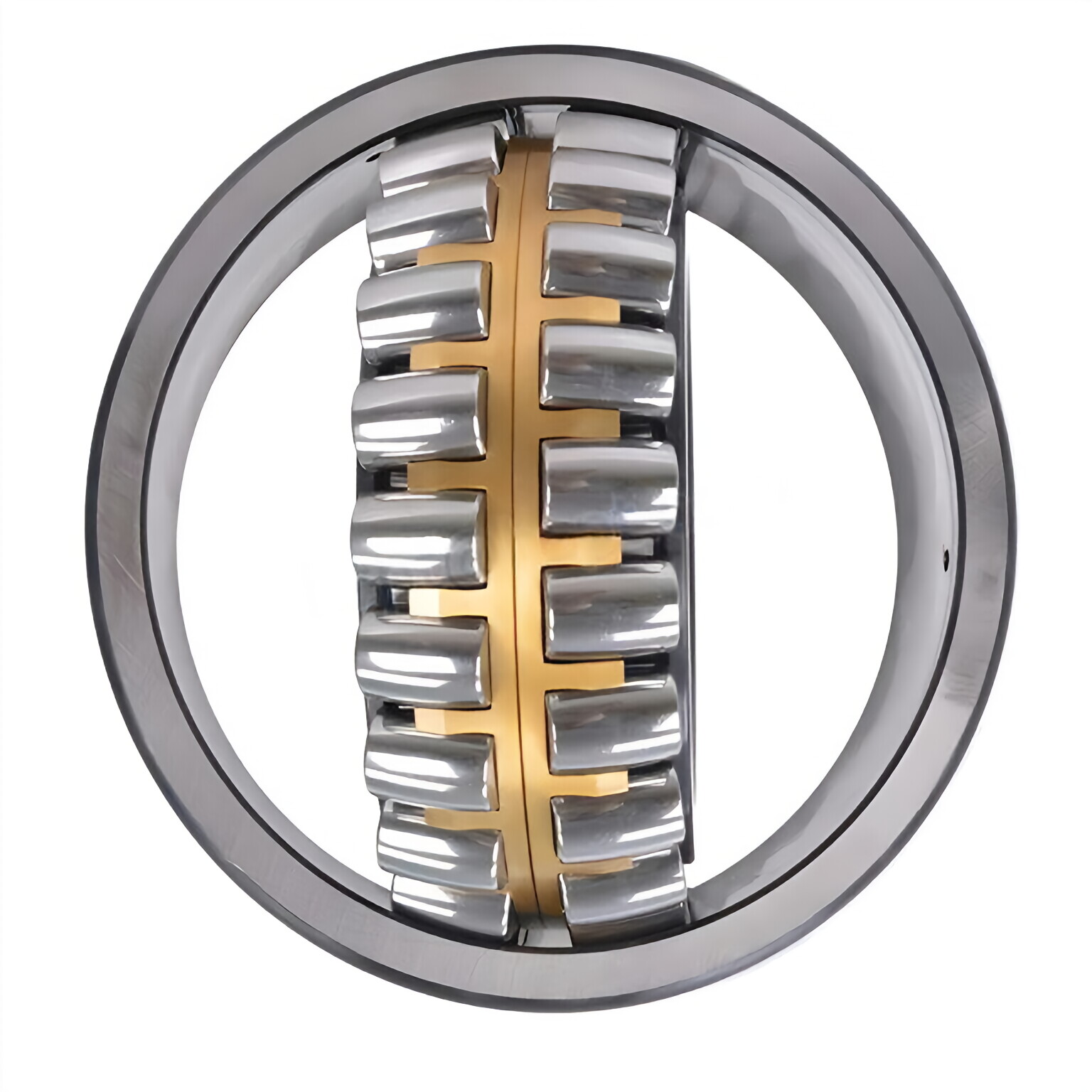

MB Type Spherical Roller BearingsMB type spherical roller bearings have two precision-machined brass cages, a fixed middle rib on the inner ring, and the use of reinforced symmetrical rollers so that the bearing load capacity reaches the C-type design level, a substitute for traditional products. It can have a longer life in applications.

Product parameter

Boundary dimensions(mm)			Load ratings(KN)		Limiting speeds(r/min)		Mass(kg)	Bearing NO.
d	D	B	Cr	Cor	Grease	oil		Raydafon
130	200	52	382	615	1300	1700	6.2	23026-MB
130	200	52	382	615	1300	1700	6.2	23026-K-MB
130	230	64	582	839	1500	1900	11.2	22226-MB
130	230	64	582	839	1500	1900	11.2	22226-K-MB
130	280	93	986	1356	1100	1500	29	22326-MB
130	280	93	986	1356	1100	1500	29	22326-K-MB
140	210	53	434.2	731.9	1100	1600	6.7	23028-MB
140	210	53	434.2	731.9	1100	1600	6.7	23028-K-MB
140	225	68	523	862	1000	1400	10.9	23128-MB
140	225	68	523	862	1000	1400	10.9	23128-K-MB
140	250	68	653	911	1400	1800	14.5	22228-MB
140	250	68	653	911	1400	1800	14.5	22228-K-MB
140	300	102	1082	1566	1000	1400	36	22328-MB
140	300	102	1082	1566	1000	1400	36	22328-K-MB
150	225	56	463	781	1000	1300	8.14	23030-MB
150	225	56	463	781	1000	1300	8.14	23030-K-MB
150	250	80	726	1198	900	1200	16.1	23130-MB
150	250	80	726	1198	900	1200	16.1	23130-K-MB
150	270	73	801	1101	1300	1700	18.5	22230-MB
150	270	73	801	1101	1300	1700	18.5	22230-K-MB

Differences between CA and CC type spherical roller bearing

Spherical roller bearings can be divided into CA-type spherical roller bearings, CC-type spherical roller bearings, and MB-type spherical roller bearings according to the cage type.The primary structures of CA type and CC type are mainly distinguished by whether the inner ring has ribs or not, and the cage is a car-made entity or a stamped frame type.CA type self-aligning roller bearing: one-piece brass machined cage, the inner ring has no middle rib, the end has two small ribs, and the rollers are symmetrical. CA-type spherical roller bearings are widely used. Large and extra-large bearings (generally with inner diameter below 600MM) are used more often. The main applications are coal mills, wind generators, textile machinery, continuous casting equipment, etc...CC type spherical roller bearings: the rollers are symmetrical, the inner ring has no middle ribs and no end ribs, the cage is divided, the material is a stamped steel frame cage, and the rollers are designed between the rollers with the movable intermediate ring, its function can effectively reduce the internal friction of the bearing, can effectively assist the rolling elements in the force zone to enter the load zone correctly, and also increase the limit speed of the bearing.Because the CC structure design occupies less internal space of the bearing than the CA structure design, the increase in the number of rolling elements and the change of the outer dimensions of the rolling elements can improve the radial bearing capacity of the bearing to a certain extent, so it can withstand more than CA The structural design has greater axial bearing capacity.

Features of MB type spherical roller bearing

• Accommodate misalignment.
• High load-carrying capacity.
• Long service life.
• Low friction.
• Robust.

Applications of MB type spherical roller bearing

The inner ring of the MB-type spherical roller bearing has two fixed ribs, and its structure is characterized by the use of asymmetric spherical rollers and the inner circle to select the middle ribs. The bearing of this structure also has its unique advantages. It can realize pure rolling and is suitable for running under high-speed conditions. Here are examples of applications in which spherical roller bearings might be used:​

• Wind energy
• Mining, mineral processing, and cement
• Material handling
• Pulp and paper
• Industrial transmission
• Metals
• Marine
