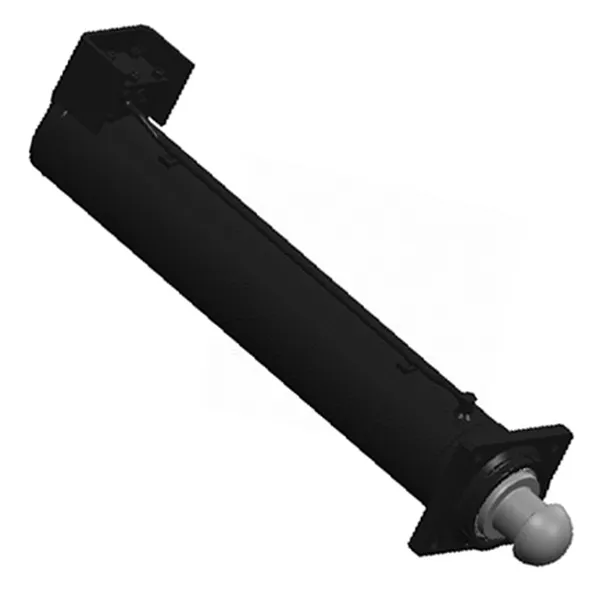

Mobile Crane Outrigger Cylinder

Mobile Crane Outrigger Cylinder

A mobile crane outrigger cylinder is a crucial component of a mobile crane's stabilizing system. Mobile cranes are heavy-duty lifting machines used in construction, industrial, and other applications to lift and move heavy loads. These cranes are designed with outriggers, which are extendable legs that provide stability and prevent tipping during lifting operations.The mobile crane outrigger cylinder is specifically responsible for extending and retracting the outrigger legs. It consists of a hydraulic cylinder, which is a mechanical actuator that converts hydraulic energy into linear force and motion. The cylinder is typically made of high-strength steel and designed to withstand the heavy loads and pressures encountered during crane operations.The mobile crane outrigger cylinder is connected to the crane's chassis and extends horizontally to support the crane's weight. It is equipped with a hydraulic system that enables precise control of the outrigger leg extension and retraction. The hydraulic system consists of a pump, valves, hoses, and a control system that allows the crane operator to manipulate the outrigger cylinder from the crane's cab.During crane setup, the mobile crane outrigger cylinder extends the outrigger legs to the required length, ensuring the crane's stability on the ground. Once the outrigger legs are properly positioned, they provide a wide and stable base for lifting operations, allowing the crane to safely handle heavy loads without tipping over.Mobile crane outrigger cylinders are designed to withstand significant loads and operate reliably under challenging conditions. They undergo rigorous testing and adhere to industry standards and safety regulations to ensure their performance and durability.In summary, the mobile crane outrigger cylinder is a fundamental component of a mobile crane's stabilizing system. It enables the extension and retraction of the outrigger legs to provide stability during lifting operations, ensuring safe and efficient crane use in various industries.

Mobile Crane Outrigger Cylinder Specifications:

Product Name	Mobile Crane Outrigger Cylinder
Features:	Support the weight of the entire equipment when the crane is lifting
Bore diameter:	70mm～360mm
Rod diameter:	45mm～320mmStroke≤800mm
Pressure:	Maximum 42MPa
Outrigger Cylinder Applications:	Mobile Crane

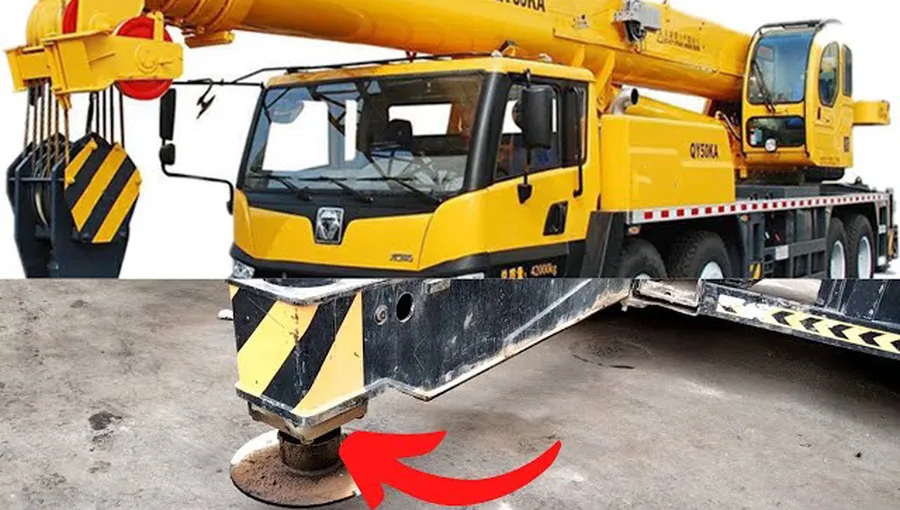

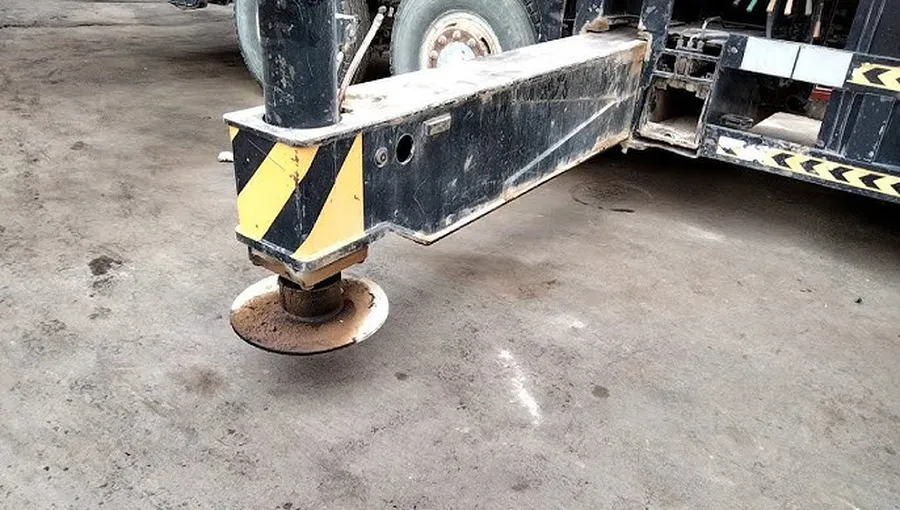

Mobile Crane Outrigger Cylinder Working Principle:

The working principle of a mobile crane outrigger cylinder is based on hydraulics. Hydraulics is the science of using liquid under pressure to transmit power. In the case of a mobile crane outrigger cylinder, the liquid is hydraulic oil.

The mobile crane outrigger cylinder has two pistons, one on each end. The pistons are connected to a rod that extends and retracts the cylinder. When hydraulic oil is pumped into the cylinder, it pushes on one piston, which in turn pushes on the rod. This causes the cylinder to extend. When the oil is pumped out of the cylinder, the piston returns to its original position.

The amount of force that the mobile crane outrigger cylinder can exert is determined by the pressure of the hydraulic oil and the area of the pistons. The greater the pressure and the larger the area, the more force the cylinder can exert.

The mobile crane outrigger cylinder is controlled by a hydraulic pump and a directional control valve. The pump creates the pressure of the hydraulic oil, and the directional control valve controls the direction of flow of the oil.

To extend the outrigger cylinder, the operator opens the directional control valve to allow oil to flow into the cylinder. The oil pushes on the piston, which in turn pushes on the rod. This causes the cylinder to extend.

To retract the outrigger cylinder, the operator closes the directional control valve. This stops the flow of oil into the cylinder. The spring inside the cylinder then pushes the piston back to its original position.

The mobile crane outrigger cylinders are an important part of a mobile crane. They help to stabilize the crane and prevent it from tipping over. The cylinders are also used to support the crane when it is lifting a load.

Here are some of the factors that affect the working of a mobile crane outrigger cylinder:

• The pressure of the hydraulic oil: The higher the pressure, the more force the cylinder can exert.
• The area of the pistons: The larger the area, the more force the cylinder can exert.
• The length of the cylinder: The longer the cylinder, the more force it can exert.
• The type of oil used: The type of oil used can affect the viscosity of the oil, which can affect the performance of the cylinder.
• The condition of the cylinder: The cylinder should be regularly inspected and maintained to ensure that it is in good working condition.

The working principle of a mobile crane outrigger cylinder is a simple one, but it is essential for the safe operation of the crane. By understanding how the cylinder works, operators can ensure that they are using it properly and safely.

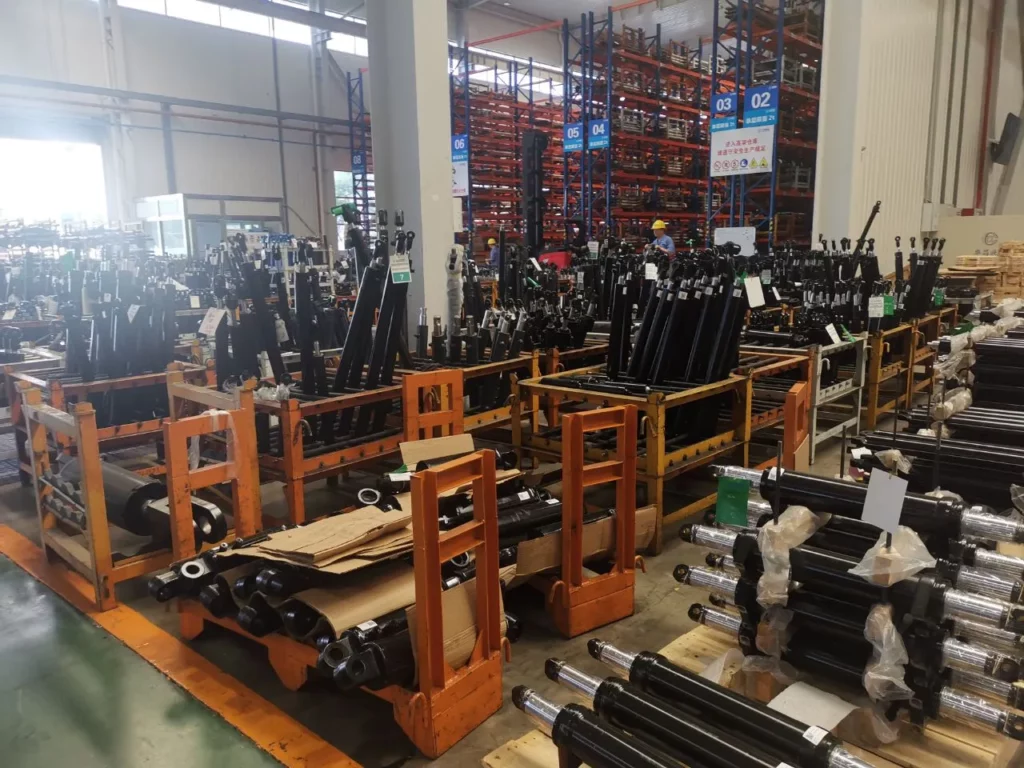

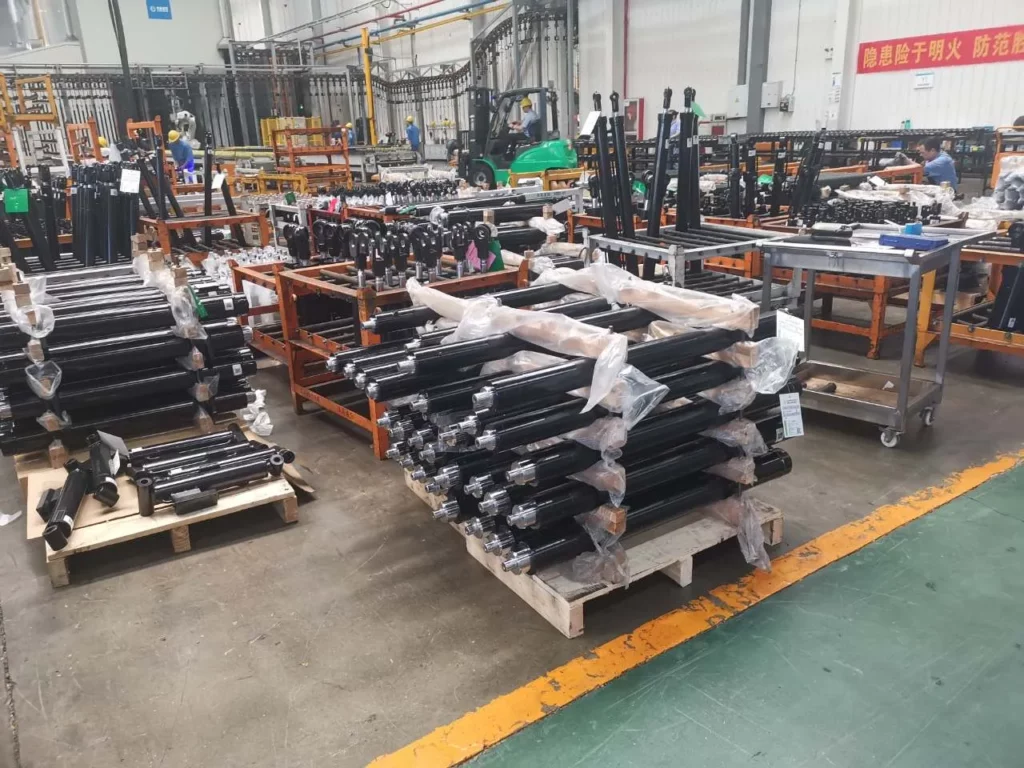

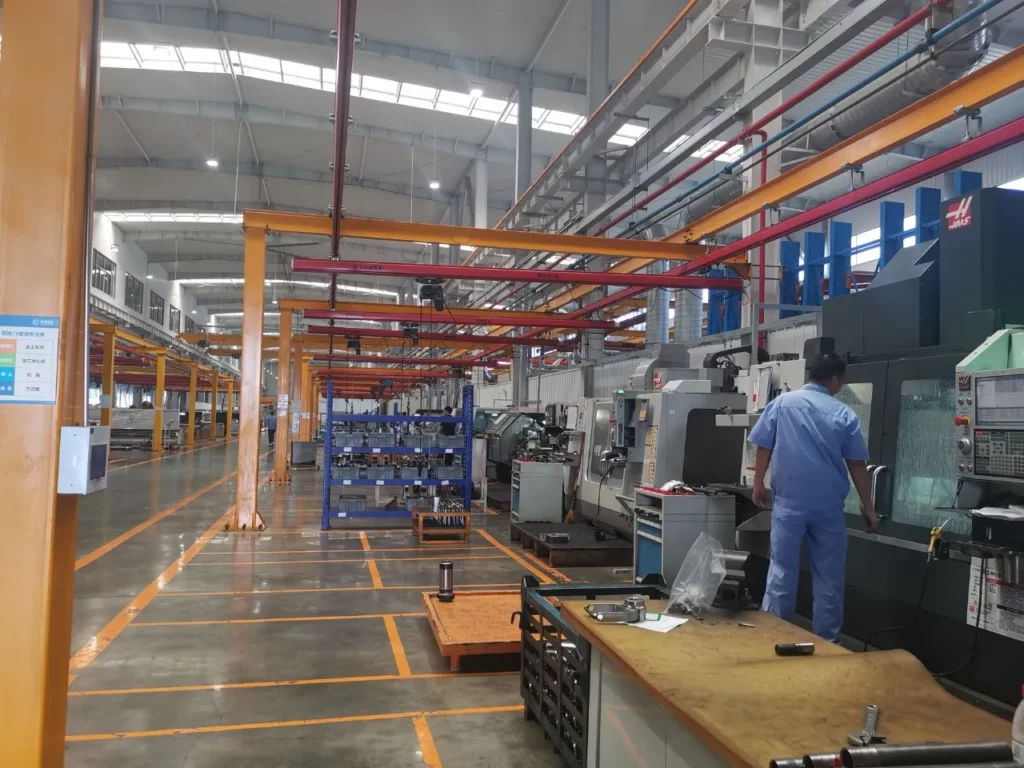

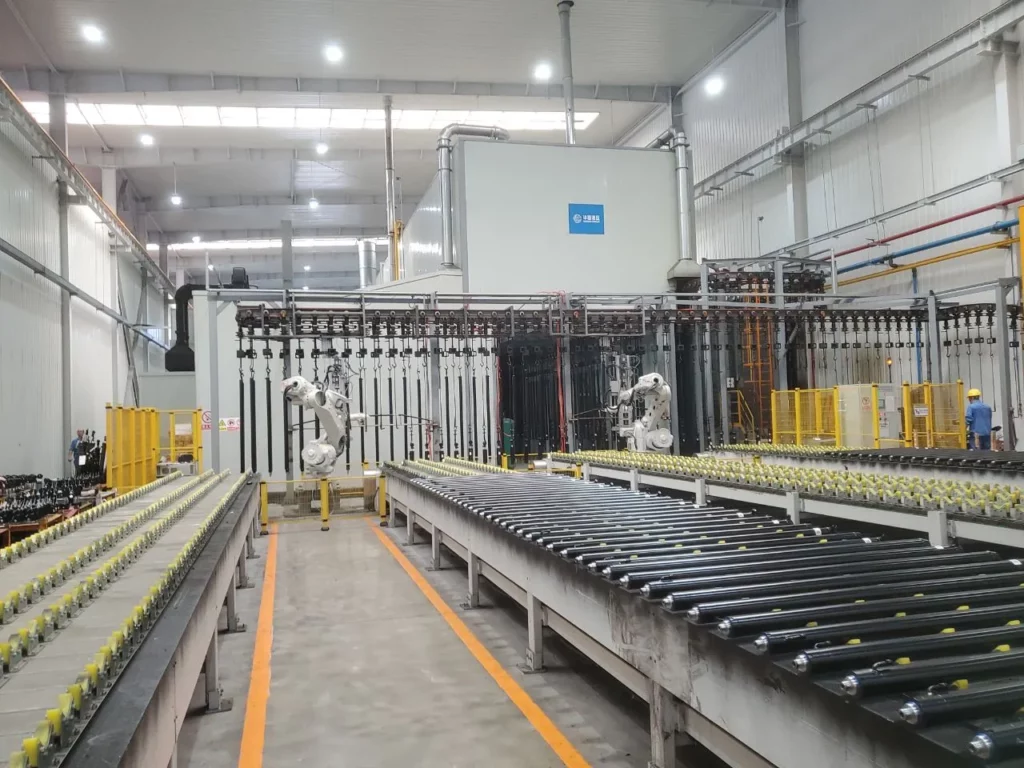

China Mobile Crane Cylinder Manufacturers

In 30 years of focusing on innovation, Raydafon has reached the forefront of the world’s hydraulic industry in terms of both production scale and technical level. Meanwhile, Raydafon is now a widely recognized benchmarking enterprise in the domestic hydraulic industry. Headquartered in Ningbo, Raydafon has founded five hydraulic R&D centers in China, Germany, the United States, Japan, and Mexico, and ten manufacturing bases worldwide. Raydafon the establishment of a high-precision foundry and a pump & valve factory, Raydafon has mastered the key to developing and manufacturing more advanced hydraulic transmission and control components to supply high-pressure cylinders, hydraulic pump valves, motors, precision castings, and the complete hydraulic system. Well sold in over 20 countries and regions, the products are widely applied in various fields such as mobile machinery, agricultural machinery, industrial engineering, offshore, energy technology, and tunnel boring machines.Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce industrial vehicle hydraulic cylinders, aerial work vehicle hydraulic cylinders, small excavator bucket cylinders, construction machinery hydraulic cylinders, forklift hydraulic cylinders, crane luffing hydraulic cylinders and sanitation machinery hydraulic cylinders. Hydraulic cylinder is a non-standard product and all products are independently developed by ourselves.Raydafon is committed to providing customers with efficient hydraulic technology solutions and products, maintaining strong partnerships with customers, and leading the development of China’s hydraulic industry through more scientific solutions. Raydafon aims to make more contributions to the sustainable development of society, the construction of green cities, and building a better future.
