The mobile crane steering cylinder is a vital component of a mobile crane's steering system. It plays a crucial role in allowing the crane to maneuver and change direction effectively. The steering cylinder is responsible for converting hydraulic pressure into linear motion, which enables the crane to turn left or right.Typically, a mobile crane features multiple steering cylinders, each connected to the crane's steering mechanism. These cylinders are usually hydraulic, utilizing the power of pressurized hydraulic fluid to generate the necessary force for steering.The mobile crane steering cylinder consists of a cylindrical barrel, a piston, and a piston rod assembly. The barrel is the outer casing that houses the internal components and provides structural support. Within the barrel, the piston moves back and forth, driven by hydraulic pressure.The piston rod extends from the piston and connects to the crane's steering mechanism. When hydraulic fluid is supplied to one side of the piston, it pushes the piston to the opposite side, causing the piston rod to extend or retract. This movement translates into the turning action of the crane, allowing it to navigate and position itself correctly.To ensure smooth and precise steering, the mobile crane steering cylinder is designed with seals and bearings that minimize friction and prevent leaks. Robust construction and high-quality materials are used to ensure durability and withstand the heavy loads and demanding conditions encountered in crane operations.Mobile crane steering cylinders are typically controlled by hydraulic valves and a steering control system operated by the crane operator. By manipulating the controls, the operator can direct the flow of hydraulic fluid to the steering cylinders, enabling precise and controlled steering of the crane.

Mobile Crane Steering Cylinder Specifications:

Product Name	Mobile Crane Steering Cylinder
Features:	Steering system for crane chassis tires
Bore diameter:	63mm～200mm
Rod diameter:	36mm～140mmStroke≤1000mm
Pressure：	Maximum 35MPa
Telescopic Cylinder Applications:	Mobile Crane

Benefits of Using the Mobile Crane Steering Cylinder:

The mobile crane steering cylinder is a hydraulic cylinder that is used to steer the wheels of a mobile crane. It is a vital component of the crane's steering system, and it provides a number of benefits, including:

1. Smooth and precise steering: The mobile crane steering cylinder uses hydraulic fluid to provide smooth and precise steering. This allows the crane operator to make small, incremental adjustments to the direction of the crane, which is essential for safe and efficient operation.2. Increased maneuverability: The mobile crane steering cylinder helps to increase the maneuverability of the crane. This is important for maneuvering the crane in tight spaces, such as construction sites or city streets.3. Reduced wear and tear: The mobile crane steering cylinder helps to reduce wear and tear on the crane's wheels and axles. This is because the hydraulic fluid absorbs some of the shock and vibration that is generated when the crane is steered.4. Improved safety: The mobile crane steering cylinder helps to improve the safety of the crane operation. This is because it makes it easier for the crane operator to control the direction of the crane, which can help to prevent accidents.

Overall, the mobile crane steering cylinder is a vital component of the crane's steering system. It provides a number of benefits that help to make the crane safer, more maneuverable, and easier to operate.

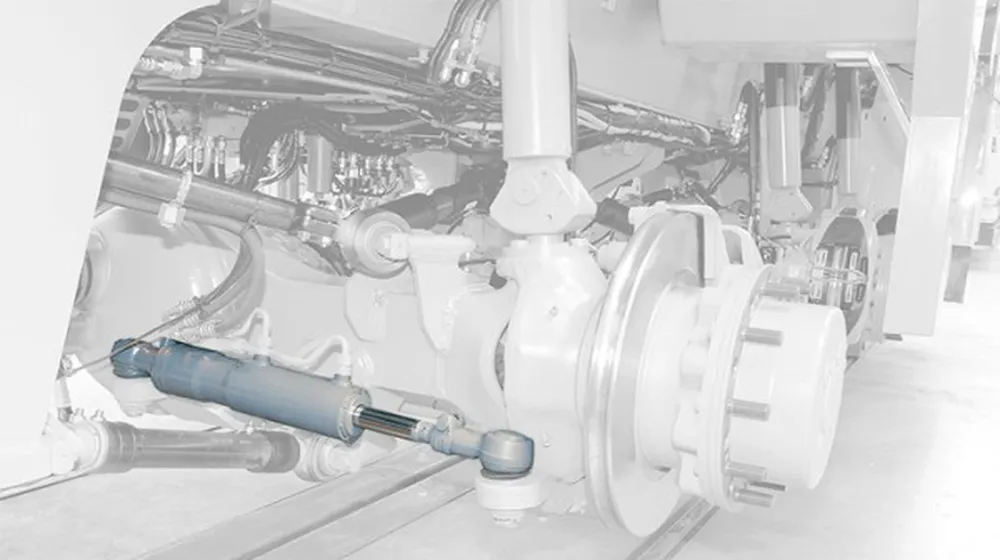

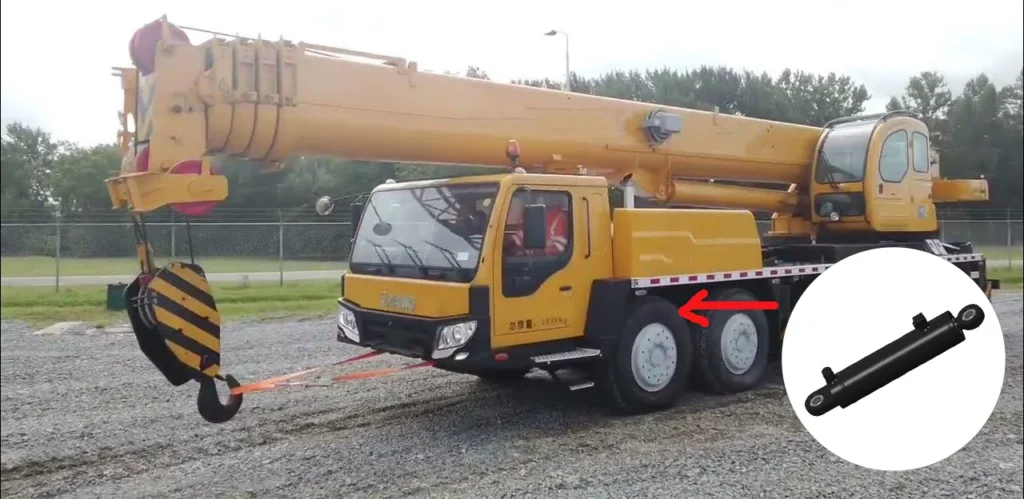

How Does the Mobile Crane Steering Cylinder Work?

A mobile crane steering cylinder is a hydraulic cylinder that allows the crane operator to steer the crane's chassis. It is typically located on the front of the chassis and is connected to the steering linkage.

The mobile crane steering cylinder works by using hydraulic fluid to move a piston. When the operator turns the steering wheel, a valve in the hydraulic system opens, allowing hydraulic fluid to flow into the cylinder. This causes the piston to move, which in turn moves the steering linkage and turns the wheels.

The amount of hydraulic fluid that flows into the hydraulic cylinder is controlled by the operator's steering input. The more the operator turns the steering wheel, the more hydraulic fluid flows into the cylinder, and the more the wheels turn.

The mobile crane steering cylinder is a vital part of the mobile crane's steering system. It allows the operator to precisely control the direction of the crane, which is essential for safe operation.

Here are the steps on how a mobile crane steering cylinder works:

1. The operator turns the steering wheel.
2. A valve in the hydraulic system opens, allowing hydraulic fluid to flow into the cylinder.
3. The piston in the cylinder moves, which in turn moves the steering linkage.
4. The steering linkage turns the wheels.
5. The wheels move the crane in the desired direction.

The mobile crane steering cylinder is a simple but effective mechanism that allows mobile cranes to be safely and precisely maneuvered.
