Mobile Crane Counterweight Cylinder

Mobile Crane Counterweight Cylinder

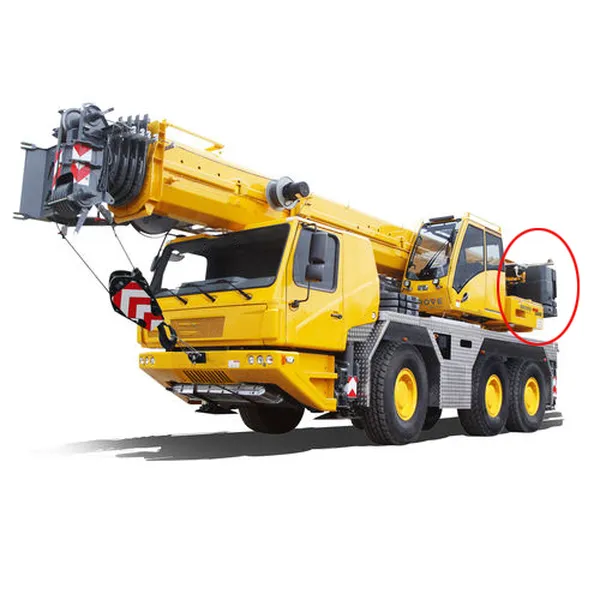

A mobile crane counterweight cylinder is a hydraulic cylinder that is used to hold the counterweight on a mobile crane. The counterweight is a weight that is attached to the crane to balance the weight of the load that the crane is lifting. The counterweight cylinder extends and retracts to move the counterweight, which in turn balances the load and prevents the crane from tipping over.

The mobile crane counterweight cylinder is a critical safety component of a mobile crane. It must be able to withstand the weight of the counterweight and the forces that are applied to it when the crane is lifting a load. The cylinder must also be able to operate smoothly and reliably to ensure the safe operation of the crane.

The mobile crane counterweight cylinder is typically made of steel and is filled with hydraulic fluid. The cylinder has a piston that moves back and forth within the cylinder bore. The piston is connected to the counterweight by a rod. When the hydraulic fluid is pumped into the cylinder, the piston moves forward, extending the cylinder and moving the counterweight up. When the hydraulic fluid is pumped out of the cylinder, the piston moves backward, retracting the cylinder and moving the counterweight down.

The mobile crane counterweight cylinder is controlled by a hydraulic pump and a valve. The pump provides the pressure that is needed to move the piston, and the valve controls the flow of hydraulic fluid into and out of the cylinder. The valve is typically operated by a lever or a joystick.

The mobile crane counterweight cylinder is an essential safety component of a mobile crane. It helps to prevent the crane from tipping over and protects the operator and others from injury.

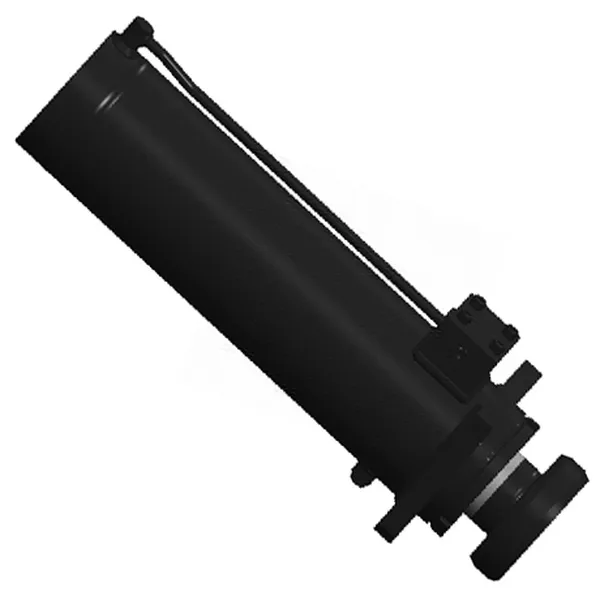

Mobile Crane Counterweight Cylinder Specifications:

Product Name	Mobile Crane Counterweight Cylinder
Features:	For the installation of counterweights,
Bore diameter:	85mm～320mm
Rod diameter:	55mm～180mmStroke≤1500mm
Pressure：	Maximum 35MPa
Telescopic Cylinder Applications:	Mobile Crane

Mobile Crane Counterweight Cylinder Working Principle:

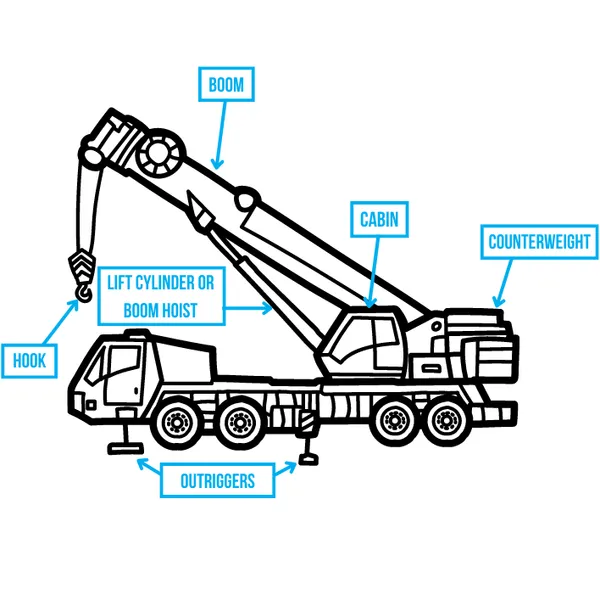

The working principle of a mobile crane counterweight cylinder is to provide stability and balance to the crane during lifting operations. The counterweight cylinder is a hydraulic device that is typically mounted on the rear of the crane's upper structure and connected to the counterweight assembly.Here are the key components and the working principle of a mobile crane counterweight cylinder:1. Cylinder: The counterweight cylinder consists of a cylindrical chamber with a piston inside. It is usually a double-acting cylinder, which means it can exert force in both directions.2. Piston: The piston is a solid, cylindrical component that separates the cylinder into two chambers: the rod side and the cap side. It is connected to a rod that extends out of one end of the cylinder.3. Hydraulic Fluid: The counterweight cylinder operates using hydraulic fluid, usually oil, which is stored in a reservoir and circulated through a hydraulic system.4. Control Valves: The hydraulic system includes control valves that regulate the flow of hydraulic fluid into and out of the counterweight cylinder.Crane Counterweight Working Principle:(1) Extension Phase: When the crane needs to extend the counterweight, hydraulic fluid is pumped into the rod side of the counterweight cylinder, which pushes the piston and extends the rod. As the rod extends, the counterweight moves away from the crane's upper structure, increasing the moment arm and providing counterbalancing force.(2) Retraction Phase: When the counterweight needs to be retracted, hydraulic fluid is pumped into the cap side of the counterweight cylinder, which pushes the piston in the opposite direction. This retracts the rod and brings the counterweight closer to the crane's upper structure, reducing the moment arm and decreasing the counterbalancing force.(3) Control and Stability: The flow of hydraulic fluid into and out of the crane counterweight counterweight cylinder is controlled by the crane operator using hydraulic control valves. By regulating the flow rate and direction of the hydraulic fluid, the operator can fine-tune the counterweight position and adjust the crane's stability during lifting operations.The crane counterweight counterweight cylinder plays a crucial role in maintaining the stability and balance of the mobile crane by adjusting the position of the counterweight. It allows the crane to safely lift and move heavy loads while minimizing the risk of tipping or overloading.

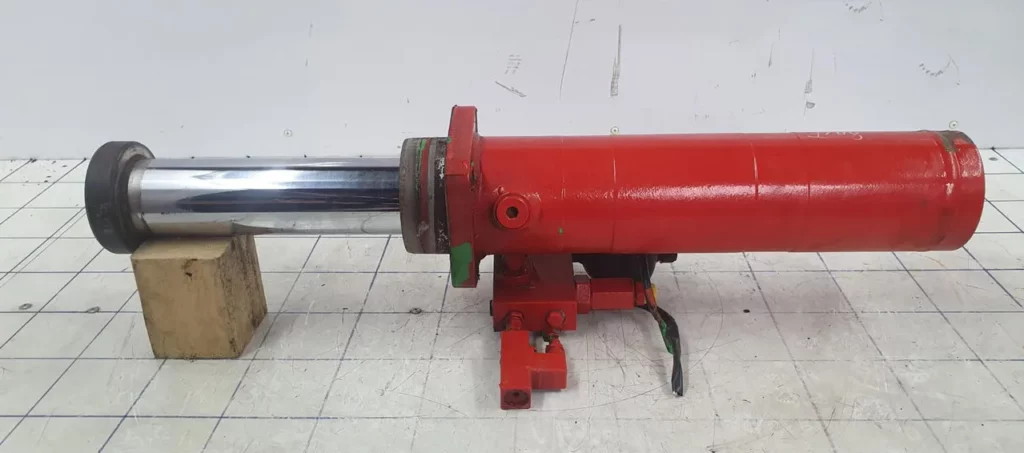

Mobile Crane Counterweight Cylinder Maintenance:

Proper maintenance of the mobile crane counterweight cylinder is essential to ensure its reliable performance and extend its service life. Here are some important maintenance practices for the counterweight cylinder:Regular Inspection: Perform visual inspections of the counterweight cylinder to check for any signs of damage, leaks, or wear. Look for cracks, dents, hydraulic fluid leaks, or loose connections. Inspect the cylinder rod for any signs of corrosion or scoring. If any issues are detected, they should be addressed promptly.Hydraulic Fluid: Check the hydraulic fluid level regularly and ensure that it is at the recommended level. Monitor the fluid quality and look for contamination or discoloration. If the fluid appears dirty or contaminated, it should be drained and replaced with fresh fluid according to the manufacturer's specifications.Lubrication: Lubricate the hydraulic cylinder rod and other moving parts as per the manufacturer's guidelines. Use the recommended lubricant to ensure smooth operation and prevent excessive wear.Seals and Gaskets: Inspect the seals and gaskets of the counterweight cylinder for any signs of damage or deterioration. Replace worn-out seals or gaskets to prevent hydraulic fluid leaks and maintain proper functioning.Pressure Testing: Periodically conduct pressure testing to verify the integrity and strength of the counterweight cylinder. This helps to identify potential issues and ensure safe operation. Follow the manufacturer's guidelines for pressure testing procedures and frequency.Cylinder Alignment: Check the alignment of the counterweight cylinder with the crane's upper structure. Ensure that it is properly positioned and securely bolted. Misalignment can lead to uneven stress distribution and premature wear.Professional Servicing: It is recommended to have the counterweight cylinder serviced by trained professionals at regular intervals or as per the manufacturer's recommendations. They can perform more detailed inspections, disassemble the cylinder if necessary, and carry out repairs or replacements as needed.

China Mobile Crane Cylinder Manufacturers

In 30 years of focusing on innovation, Raydafon has reached the forefront of the world’s hydraulic industry in terms of both production scale and technical level. Meanwhile, Raydafon is now a widely recognized benchmarking enterprise in the domestic hydraulic industry. Headquartered in Ningbo, Raydafon has founded five hydraulic R&D centers in China, Germany, the United States, Japan, and Mexico, and ten manufacturing bases worldwide. Raydafon the establishment of a high-precision foundry and a pump & valve factory, Raydafon has mastered the key to developing and manufacturing more advanced hydraulic transmission and control components to supply high-pressure cylinders, hydraulic pump valves, motors, precision castings, and the complete hydraulic system. Well sold in over 20 countries and regions, the products are widely applied in various fields such as mobile machinery, agricultural machinery, industrial engineering, offshore, energy technology, and tunnel boring machines.Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce industrial vehicle hydraulic cylinders, aerial work vehicle hydraulic cylinders, small excavator bucket cylinders, construction machinery hydraulic cylinders, forklift hydraulic steering cylinders, crane luffing hydraulic cylinders, and sanitation machinery hydraulic cylinders. Hydraulic cylinder is a non-standard product and all products are independently developed by ourselves.Raydafon is committed to providing customers with efficient hydraulic technology solutions and products, maintaining strong partnerships with customers, and leading the development of China’s hydraulic industry through more scientific solutions. Raydafon aims to make more contributions to the sustainable development of society, the construction of green cities, and the building of a better future.
