Mobile Crane Suspension Cylinder

Mobile Crane Suspension Cylinder

A mobile crane suspension cylinder is a crucial component of a mobile crane's lifting mechanism. It plays a vital role in providing stability, support, and controlled movement for the crane during lifting operations. The suspension cylinder is typically located near the boom pivot point and is responsible for managing the vertical movement of the crane's boom.The primary function of the mobile crane suspension cylinder is to counterbalance the load being lifted by the crane. It acts as a hydraulic shock absorber, absorbing the weight of the load and distributing it evenly to the crane's chassis or outriggers. By doing so, it prevents the crane from tipping over due to the imbalanced weight distribution caused by the lifted load.The mobile crane suspension cylinder consists of a sturdy hydraulic cylinder, which contains a piston and a rod. The cylinder is connected to the crane's chassis or outriggers, while the rod is attached to the crane's boom. When the crane lifts a load, the suspension cylinder extends or retracts, depending on the weight and position of the load, to maintain balance and stability.The hydraulic system within the crane controls the movement of the mobile crane suspension cylinder. It utilizes hydraulic fluid and a pump to generate the necessary force for extending or retracting the cylinder. The hydraulic system is typically operated by the crane operator, who uses controls in the crane's cabin to manage the lifting operations and adjust the suspension cylinder as needed.Overall, the mobile crane suspension cylinder is a critical component that ensures safe and efficient lifting operations. Its ability to counterbalance loads, absorb shocks, and maintain stability is essential for the smooth functioning of a mobile crane, enabling it to handle heavy loads with precision and safety.

Mobile Crane Suspension Cylinder Specifications:

Product Name	Mobile Crane Suspension Cylinder
Features:	Damping system for crane chassis
Bore diameter:	85mm～180mm
Rod diameter:	50mm～100mmStroke≤300mm
Pressure:	Maximum 35MPa
Suspension Cylinder Applications:	Mobile Crane

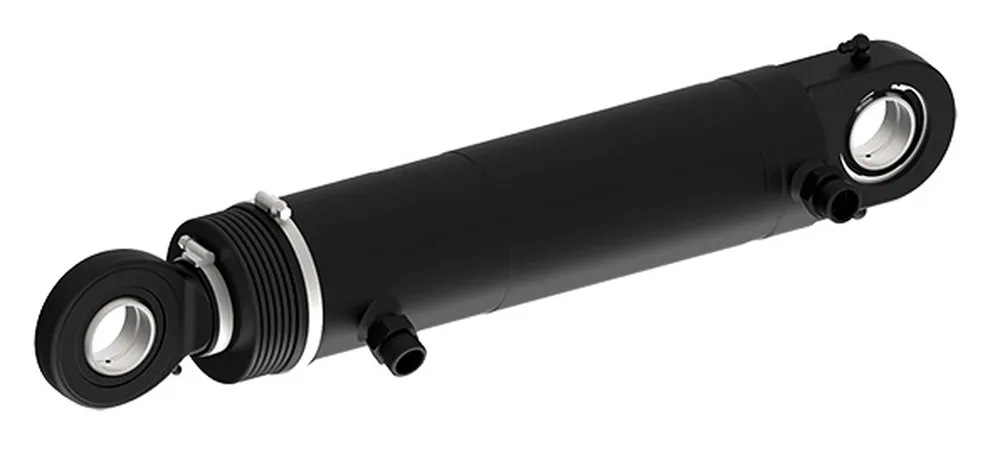

Features of Mobile Crane Suspension Cylinder:

The suspension cylinder in a mobile crane is a hydraulic cylinder that is used to absorb the shock and vibration of the crane's chassis as it travels over uneven terrain. It is located between the chassis and the outriggers, and it works by extending and retracting as the crane moves. The main features of a mobile crane suspension cylinder are:1. Robust Construction: Mobile crane suspension cylinders are typically built to withstand heavy loads and harsh operating conditions. They are constructed using high-strength materials such as steel to ensure durability and longevity.2. Hydraulic Control: Mobile crane suspension cylinders are operated using hydraulic systems. They rely on hydraulic fluid, pumps, and valves to control the extension and retraction of the cylinder, allowing for precise and controlled movement.3. Load Capacity: Mobile crane suspension cylinders are designed to handle specific load capacities based on the crane's lifting capacity. Different models of suspension cylinders will have different load ratings, and it's important to select a cylinder that matches the crane's requirements.4. Stroke Length: The stroke length refers to the distance that the mobile crane suspension cylinder can extend or retract. The stroke length is an important consideration, as it determines the range of vertical movement that the crane's boom can achieve.5. Adjustable Damping: Some mobile crane suspension cylinders feature adjustable damping mechanisms. These mechanisms allow operators to control the rate at which the cylinder extends or retracts, providing greater control over the lifting operation and minimizing any potential load swinging or bouncing.6. Safety Features: Mobile crane suspension cylinders often incorporate safety features to ensure the stability and reliability of the lifting operation. These may include overload protection systems, pressure relief valves, and locking mechanisms to prevent unintended movement or failure under excessive loads.

China Mobile Crane Cylinder Manufacturers

In 30 years of focusing on innovation, Raydafon has reached the forefront of the world’s hydraulic industry in terms of both production scale and technical level. Meanwhile, Raydafon is now a widely recognized benchmarking enterprise in the domestic hydraulic industry. Headquartered in Ningbo, Raydafon has founded five hydraulic R&D centers in China, Germany, the United States, Japan, and Mexico, and ten manufacturing bases worldwide. Raydafon the establishment of a high-precision foundry and a pump & valve factory, Raydafon has mastered the key to developing and manufacturing more advanced hydraulic transmission and control components to supply high-pressure cylinders, hydraulic pump valves, motors, precision castings, and the complete hydraulic system. Well sold in over 20 countries and regions, the products are widely applied in various fields such as mobile machinery, agricultural machinery, industrial engineering, offshore, energy technology, and tunnel boring machines.Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce industrial vehicle hydraulic cylinders, aerial work vehicle hydraulic cylinders, small excavator bucket cylinders, construction machinery hydraulic cylinders, forklift hydraulic steering cylinders, crane luffing hydraulic cylinders, and sanitation machinery hydraulic cylinders. Hydraulic cylinder is a non-standard product and all products are independently developed by ourselves.Raydafon is committed to providing customers with efficient hydraulic technology solutions and products, maintaining strong partnerships with customers, and leading the development of China’s hydraulic industry through more scientific solutions. Raydafon aims to make more contributions to the sustainable development of society, the construction of green cities, and the building of a better future.
