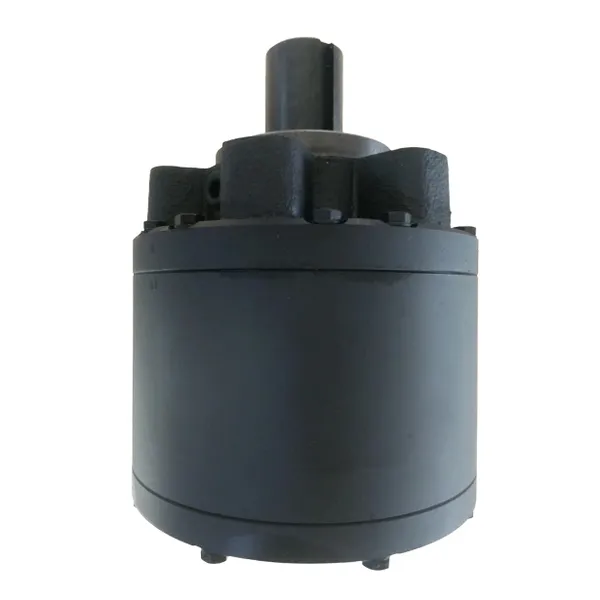

Model 3 Shaft Output Drives Planetary Gearbox

Model 3 Shaft Output Drives Planetary Gearbox Replacement of Auburn Gear Model 3 Planetary Gearbox

The Model 3 series shaft output drives planetary gearbox is a compact, high-torque planetary gearbox that is designed for conveyors, augers, and mixers applications. It is available in a variety of gear ratios and output shaft configurations, making it a versatile and adaptable solution for a wide range of requirements. If you are looking for a compact, high-torque planetary gearbox for your mobile or industrial application, the Model 3 series shaft output drives planetary gearbox is a good option to consider.Some of the key features of the Model 3 series shaft output drives planetary gearbox include:

• Compact and lightweight design
• High torque capacity
• Wide range of gear ratios available
• Variety of output shaft configurations
• Durable construction
• Long service life

▍Model 3 Shaft Output Drives Planetary Gearbox Specifications:

output torque(N.m)		Ratio (i)		Recommend Hydraulic Motor pilot/hubs and input spline	Max. input speed(rpm)	Brake torque(N.m)	Brake work pressure(bar)
normal	Max. Intermittent
950	2200	3.54	Single reduction	SAE A motor pilot/hubs13T - 16/32 Spline15T - 16/32 Spline1” - 6B Spline14T - 12/24 Spline	3500	370	34-50
		12.19	Double reduction			120	12-50

* Input rotates, and output rotates in the same direction.* Other ratios and other input types can be special designs.* For other output shaft options or output spindle options.

▍Model 3 Shaft Output Drives Planetary Gearbox Parameter:

Model 3 Series Shaft Output Drives Planetary Gearbox
Options	Description	Order Number	Use Option Order Codes to Build Order Number
Model Series	Model 3	3T	3T
Motor Pilot/Hubs	SAE A2	A2
	SAE A4	A4		A4
Motor Input Spline or Shaft Input Options	13T - 16/32	13
	15T - 16/32	15
	1” - 6B	6B
	14T - 12/24	14			14
	Shaft Input 1.5” Round	1.5R
Ratio Options	3.54	03				03
	12.19	12
Output Options	2.56” Round	A2					A2
	2.00” Hex	H1
	F1 Spindle	F1
	F14 Spindle	F14
Brake	120Nm	B1
	370Nm	B2
	Without Brake	WO						WO
Example of complete order code:			3T	A4	14	03	A2	WO

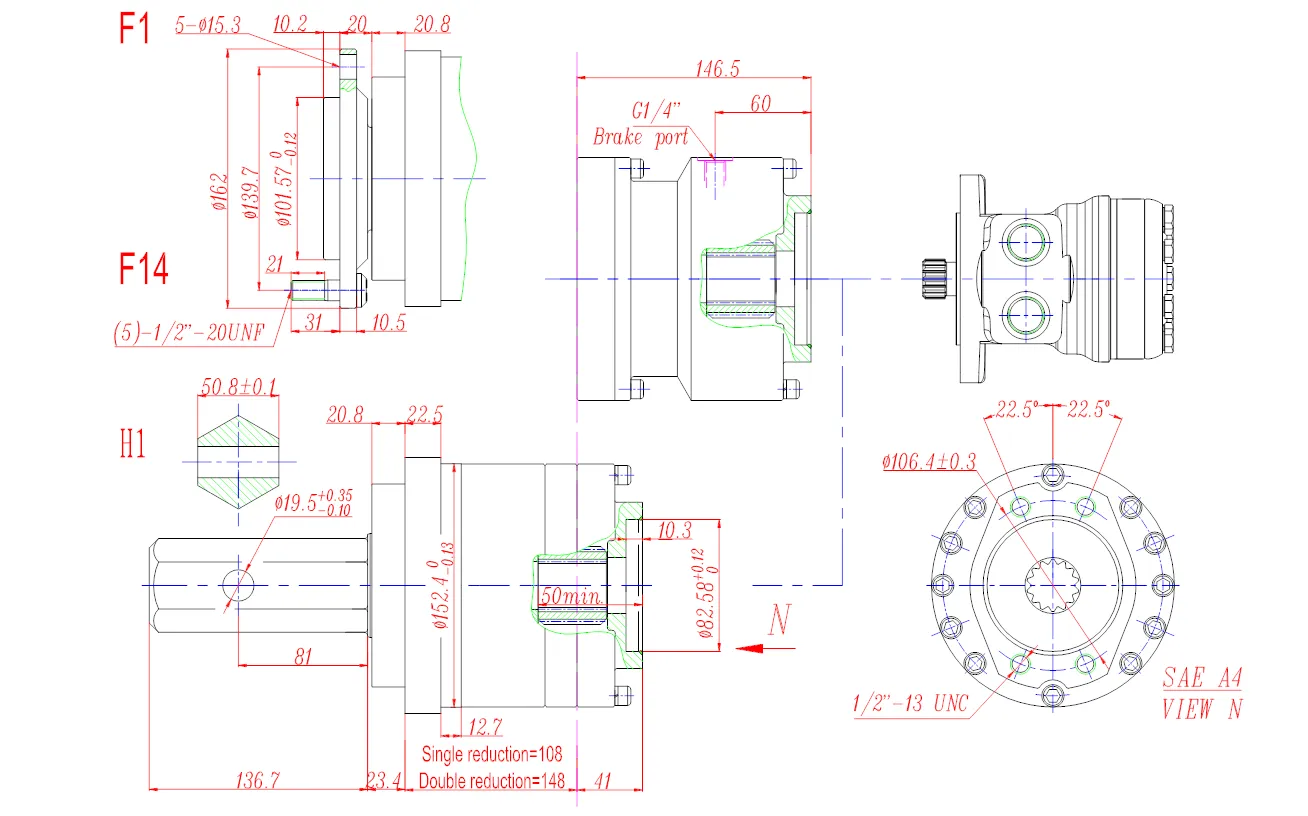

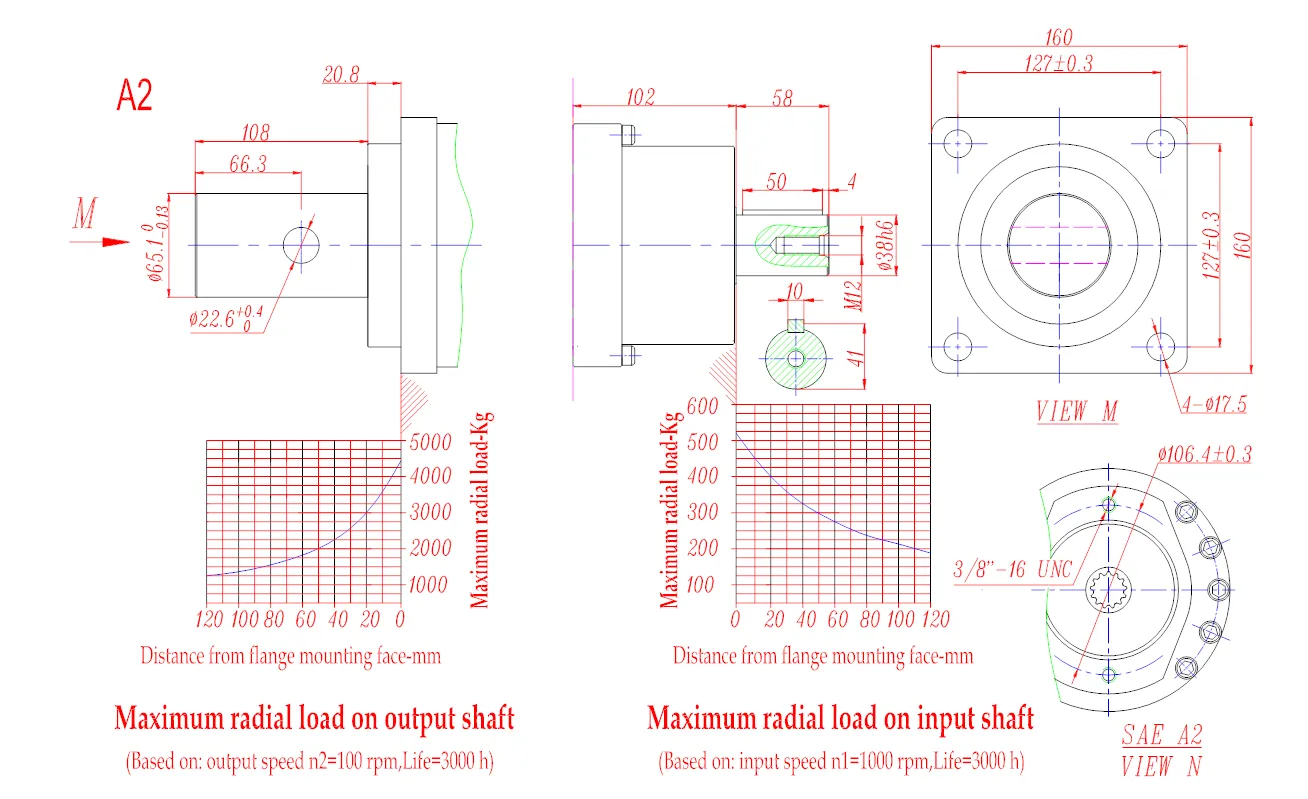

▍Model 3 Shaft Output Drives Planetary Gearbox Dimensions:

▍Model 3 Shaft Output Drives Planetary Gearbox Advantages:

The Model 3 shaft output drives planetary gearbox has a number of advantages, including:1. Compact and lightweight design: The Model 3 shaft output drives planetary gearbox is designed to be as compact and lightweight as possible, making it ideal for applications where space and weight are limited.2. High torque capacity: The Model 3 shaft output drives planetary gearbox can transmit high torque, making it ideal for applications that require a lot of power.3. Wide range of gear ratios available: The Model 3 shaft output drives planetary gearbox is available in a wide range of gear ratios, allowing you to select the perfect ratio for your application.4. Variety of output shaft configurations: The Model 3 shaft output drives planetary gearbox is available with a variety of output shaft configurations, making it compatible with a wide range of machines and equipment.5. Durable construction: The Model 3 shaft output drives planetary gearbox is made from high-quality materials and components, making it durable and reliable.6. Long service life: The Model 3 shaft output drives planetary gearbox is designed to provide a long service life, even in demanding applications.

▍Model 3 Shaft Output Drives Planetary Gearbox Applications:

The Model 3 shaft output drives planetary gearbox is a versatile gearbox that can be used in a variety of applications. Some of the most common applications include:(1) Off-road vehicles: The compact and lightweight design of the Model 3 shaft output drives planetary gearbox makes it ideal for installation in off-road vehicles, such as ATVs, UTVs, and 4x4s. The high torque capacity of the gearbox also makes it ideal for these vehicles, which often need to be able to transmit a lot of power to the wheels.(2) Construction equipment: The wide range of gear ratios available makes the Model 3 shaft output drives planetary gearbox ideal for a variety of construction applications, such as excavators, bulldozers, and cranes. The variety of output shaft configurations also makes the gearbox compatible with a wide range of construction equipment.(3) Agricultural machinery: The durable construction of the Model 3 shaft output drives planetary gearbox makes it ideal for use in harsh environments, such as those found on farms and ranches. The long service life of the gearbox also means that it can be used for many years without the need for major repairs.(4) Material handling equipment: The Model 3 shaft output drives planetary gearbox can be used in a variety of material handling applications, such as conveyors, hoists, and winches. The high torque capacity of the gearbox makes it ideal for these applications, which often need to be able to lift or move heavy loads.(5) Marine applications: The Model 3 shaft output drives planetary gearbox can be used in a variety of marine applications, such as boats, yachts, and offshore drilling platforms. The compact and lightweight design of the gearbox makes it ideal for installation in these applications, where space is often limited.(6) Industrial automation: The Model 3 shaft output drives planetary gearbox can be used in a variety of industrial automation applications, such as robotic arms, machine tools, and packaging equipment. The high torque capacity of the gearbox makes it ideal for these applications, which often need to be able to operate with high precision.

▍China Shaft Output Drives Planetary Gearbox Manufacturers

Hzpt is a leading designer and manufacturer of custom-engineered wheel drive planetary gearboxes, shaft output drives planetary gearboxes, flanged output drives planetary gearboxes, swing drives planetary gearboxes, and solutions for diverse mobile equipment applications. Through its expansive product portfolio of planetary gearboxes, electric drive systems, driveline systems, and differentials, Hzpt offers more than 120 base product models covering over 3,200 application solutions that transfer power and torque to wheels, axles, booms, augers, winches, and platforms.Hzpt serves distributor and original equipment manufacturer (“OEM”) customers that rely on the Company for its unmatched custom engineering and design support, optimized application performance and efficiency, rapid speed-to-market, and the shortest lead times in the industry. With a focus on accounts requiring custom engineering, the Company has built long-standing and collaborative relationships with distributor and OEM customers serving the agriculture, construction, specialty vehicle, aerial work platform, material handling, forestry, mining, oil, marine, military, airport support and automotive/truck end markets.
