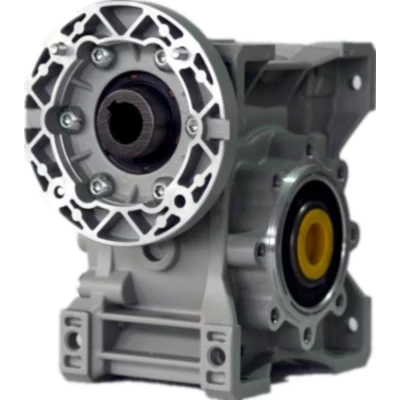

MRV050 Worm Gear Reducer for Optical Instruments

The MRV050 Worm Reducer is an advanced worm gear reducer that is designed specifically for applications in optical instruments. This series offers a high cost-performance ratio, wide applicability, and improved installation convenience and flexibility compared to other models on the market. With supporting motor power ranging from 0.25kw to 0.75kw, and matching flanges, the MRV050 Worm Reducers meet a broad spectrum of customer needs.

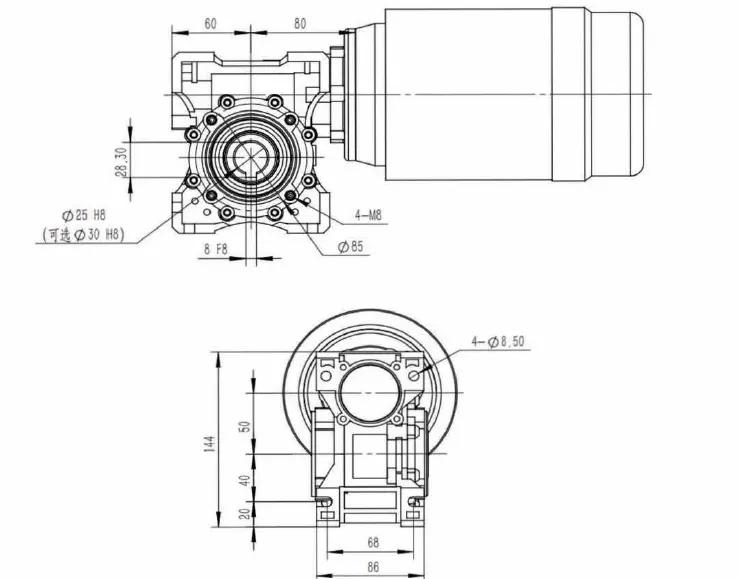

Technical Parameters of MRV050 Worm Reducer

Type	Ratio	Flange	Power
MRV050	5     7.5  10     12  15     20  30     40  50     60  80    100	71B14	0.06KW 0.09KW 0.12KW 0.18KW 0.20KW 0.25KW 0.37KW 0.55KW 0.75KW 1.1KW 1.5KW 2.2KW 3KW 4KW 5.5KW 7.5KW
		80B14

Type	i	n2/r/min	Mn2/Nm	Fr2/N	Motor	P1/kw	L/mm
MRV050	5	280	17	1577	7134	0.55	180
		280	23	1577	8024	0.75	205
	7.5	187	25	1805	7134	0.55	180
		187	34	1805	8024	0.75	205
	10	140	22	1987	7124	0.37	180
		140	32	1987	7134	0.55	180
		140	44	1987	8024	0.75	205
	12	117	26	2016	7124	0.37	180
		117	33	2016	7134	0.55	205
		117	48	2016	8024	0.75	205
	15	93	31	2274	7124	0.37	180
		93	46	2274	7134	0.55	180
		93	63	2274	8024	0.75	205
	20	70	27	2503	7114	0.25	180
		70	40	2503	7124	0.37	180
		70	59	2503	7134	0.55	180
		70	81	2503	8024	0.75	205
	25	56	32	2696	7114	0.25	180
		56	48	2696	7124	0.37	180
		56	71	2696	7134	0.55	180
	30	47	37	2865	7114	0.25	180
		47	55	2865	7124	0.37	180
		47	81	2865	7134	0.55	180
	40	35	33	3153	7114	0.25	180
		35	46	3153	7124	0.37	180
		35	68	3153	7134	0.55	180
	50	28	54	3397	7114	0.25	180
		28	72	3397	7124	0.37	180
		28	80	3397	7134	0.55	180
	52	27	55	3482	7114	0.25	180
		27	73	3482	7124	0.37	180
		27	82	3482	7134	0.55	180
	60	23	60	3610	7114	0.25	180
		23	75	3610	7124	0.37	180
		23	84	3610	7134	0.55	180
	80	18	64	3973	7114	0.25	180
		18	77	3973	7124	0.37	180
		18	89	3973	7134	0.55	180
	100	14	68	4280	7114	0.25	180
		14	79	4280	7124	0.37	180
		14	93	4280	7134	0.55	180

Key Features of the MRV050 Worm Reducer

The MRV050 Worm Reducer is distinguished by several key features that contribute to its superior performance and versatility in a wide range of applications. These features include:

• Modular flange and other component options, universal mounting configurations
• A large ratio range to suit varying needs
• IP Grade that can reach IP67, adapting to most spraying conditions
• A compact body that can fit most equipment structures
• Full-Synthetic Oil lubrication (with the choice of 320/220 viscosity)
• The housing material is ADC12 with powder painting, offering superior anticorrosive properties and aesthetics
• Sealing with NOK oil seal (NBR), providing good sealability

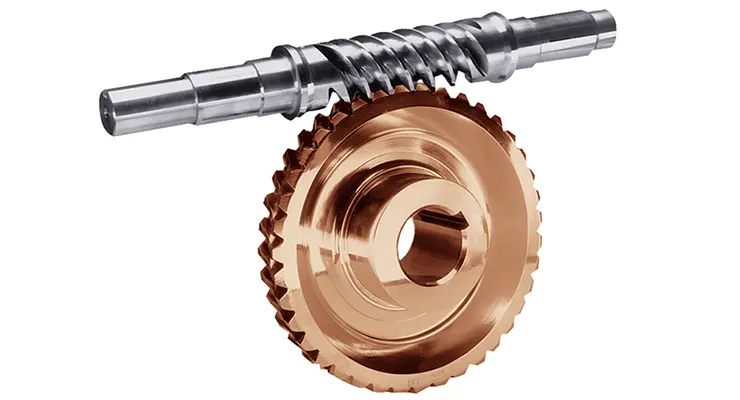

• Worms material is 20CrMnTi with carburizing and quenching, thickness 0.25-0.45mm, HRCSS-62
• Wheels material is QT450+GcuSn12, ensuring high wear resistance

Why Choose MRV050 for Optical Instruments?The MRV050 Worm Reducer is specifically designed to offer high precision and stability, making it ideal for use in optical instruments. Its high cost-performance ratio and wide applicability make it an excellent choice for a range of applications. Additionally, its compact body allows it to fit into most equipment structures, further increasing its versatility.

Motors for Worm Gear Reducers

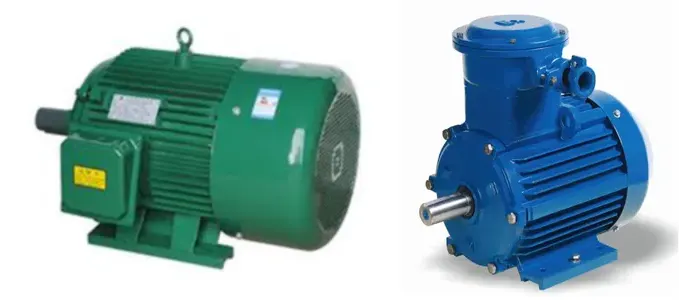

The performance of a worm gear reducer is directly linked to the motor it is paired with. The right motor can significantly enhance the performance and efficiency of the reducer. We also provide a range of high-quality electric motors that are perfectly suited to our worm gear reducers.

Motor Dimensions

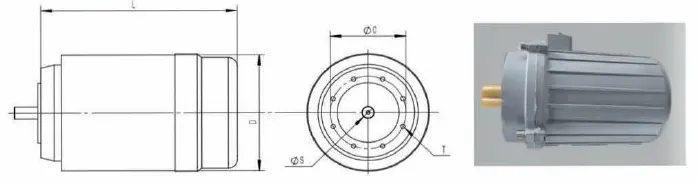

IP67 Motor DimensionIP67 Motor Dimension

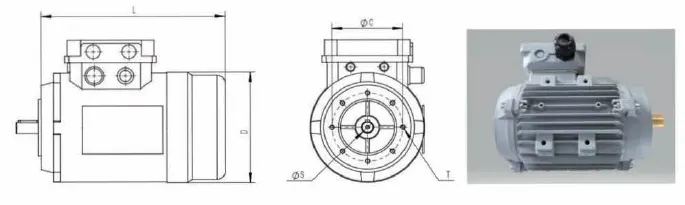

Type	IP56 Motor					IP67 Motor
RV/De	L	D	ΦC	ΦS	T	L	D	ΦC	ΦS	T
71B14	190	140	85	14	M6	180	120	85	14	M6
80B14	215	158	100	19	M6	205	135	100	19	M6

About Raydafon

We are a leading manufacturer of transmission equipment, offering a comprehensive range of products including the MRV series worm gear reducer. With over 15 years of experience, we serve customers across the globe, delivering high-quality, high-energy-efficiency, and high-stability products at competitive prices.Explore our extensive range of products and contact us today to find out how our solutions can meet your specific needs.
