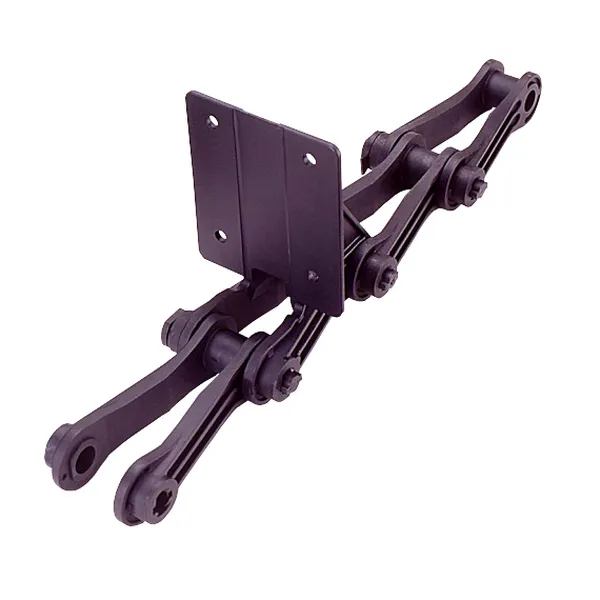

MS720S Wastewater Treatment Chain

MS720S Wastewater Treatment Chain

The MS720S Wastewater Treatment Chain is a heavy-duty pintle chain that is specifically designed for use in wastewater treatment applications. It is manufactured with a full cast link and hardened carbon steel pins for ultimate strength while maintaining a lightweight design. The MS720S chain also features an average ultimate strength of 42,000 LBS.

The MS720S Wastewater Treatment Chain is a part of the 700-Class series pintle chain and is a common in-stock item. It is available in either riveted or cottered construction, and it can be supplied with attachments already assembled onto the chain in any configuration needed.

The MS720S Wastewater Chain is primarily used in wastewater applications such as rectangular clarifiers, as well as other conveying applications. It is also commonly used in other industries such as mining, construction, and agriculture.

Here are some of the key benefits of using the MS720S Wastewater Treatment Chain:

• Extreme strength and durability: The MS720S Wastewater Treatment Chain is manufactured with high-quality materials and is designed to withstand the harshest wastewater environments.
• Lightweight design: The MS720S Wastewater Chain is lightweight, which makes it easy to install and maintain.
• Corrosion resistance: The MS720S Wastewater Treatment Chain is corrosion resistant, which helps to extend its lifespan.
• Versatility: The MS720S Wastewater Chain can be used in a variety of wastewater applications, as well as other industries.

If you are looking for a heavy-duty and reliable wastewater treatment chain, the MS720S chain is a great option. It offers superior strength, durability, and corrosion resistance, making it ideal for even the most challenging applications.

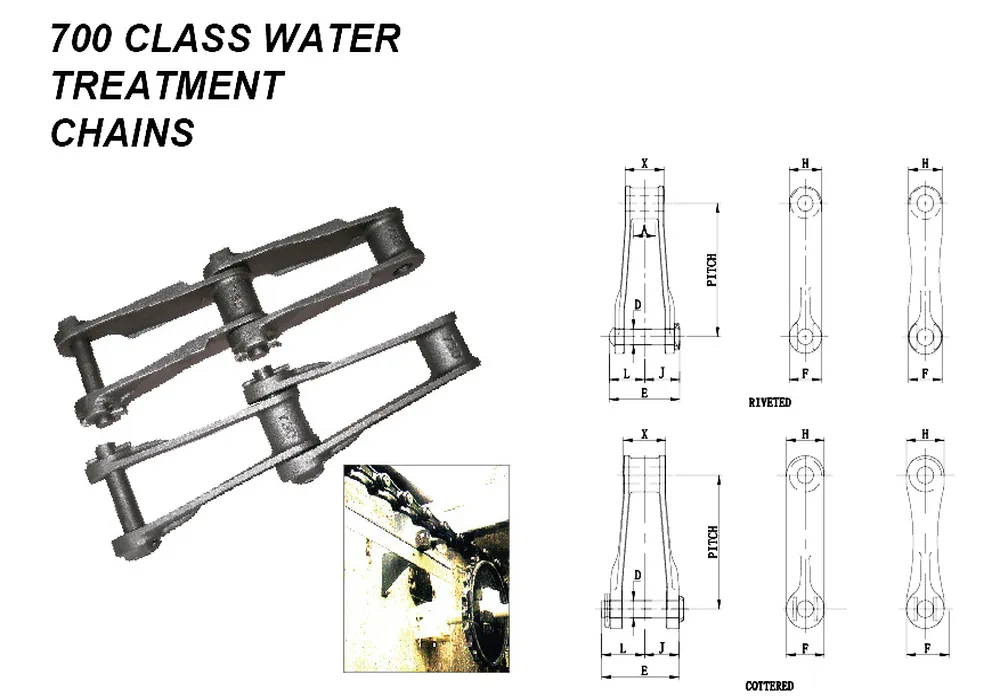

MS720S Wastewater Treatment Chain Dimensions:

Chain No.	Pitch in Inches	Weight Per Foot LBS.	Average Ultimate Strength LBS.	Maximum Working Load LBS.	A	C	D	E	F	H	X	Available Attachments
MS720S	6.000	6.20	41000	4200	1.12	3.81	0.75	3.69	1.56	1.44	1.88	A2,A42,F2,F22-6,F22-8,K2,M1

MS720S Wastewater Treatment Chain Attachment:

MS720S Wastewater Treatment Chain is manufactured with a full cast link and hardened carbon-steel pins for ultimate strength while maintaining a lightweight and features an average ultimate strength of 42,000 LBS. It is apart of the 700-Class series pintle chain and is a common in-stock item. Raydafon has a premium MS720S pintle chain in either riveted or cottered construction. Something special about this chain is the T-head pins that eliminate pin rotation while at the same time preventing the entrance of dirt and or grit. As a drive chain, the MS720S chain is designed to travel in just one direction (the direction of their barrel ends). This chain is primarily used in wastewater applications such as rectangular clarifiers, as well as other conveying applications. Attachments available for MS720S pintle chain are: A2, A42, F2, F226, F228, K2, M1, as well as custom attachments upon request. We can supply the chain with attachments already assembled onto the chain in any configuration needed, and within a fast assembly time.

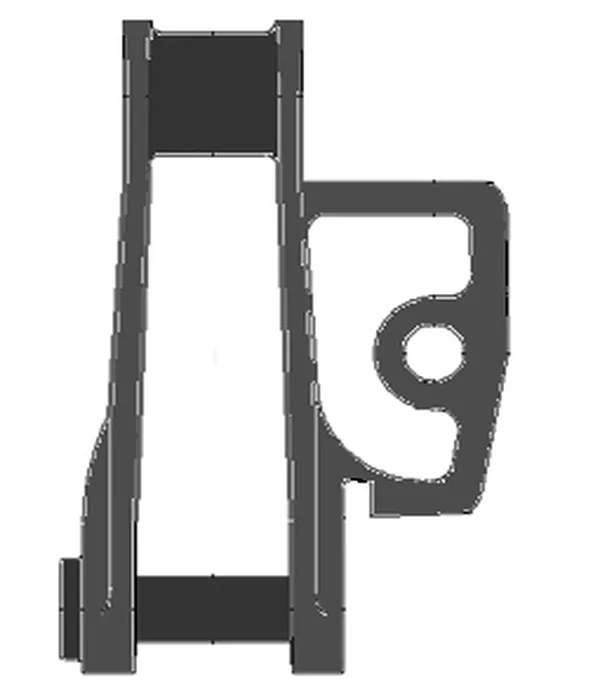

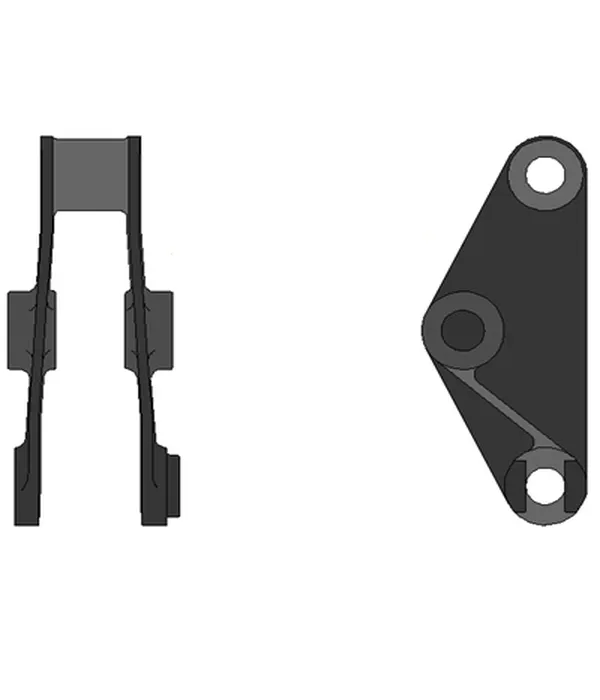

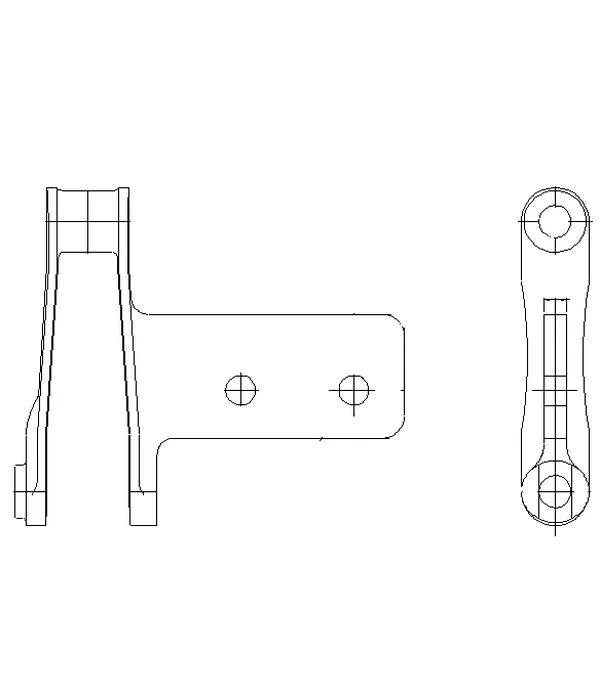

MS720S Wastewater Chain A42 Attachment	MS720S Wastewater Chain M1 Attachment	MS720S Wastewater Chain AD474 Attachment

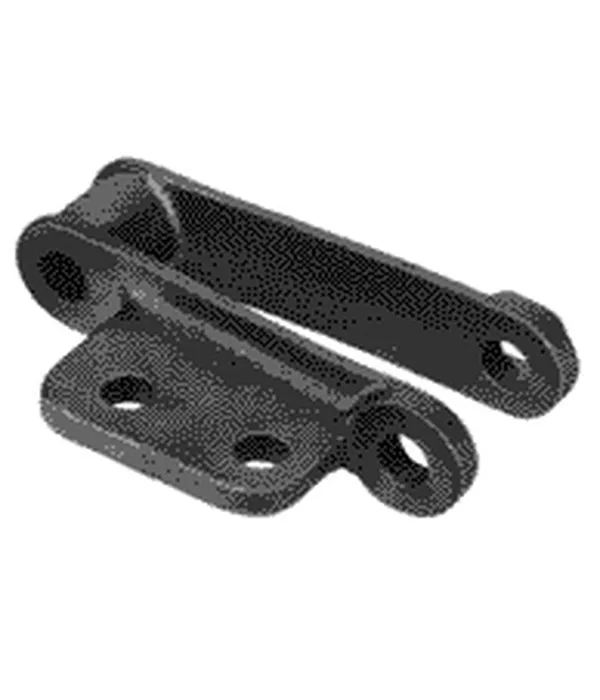

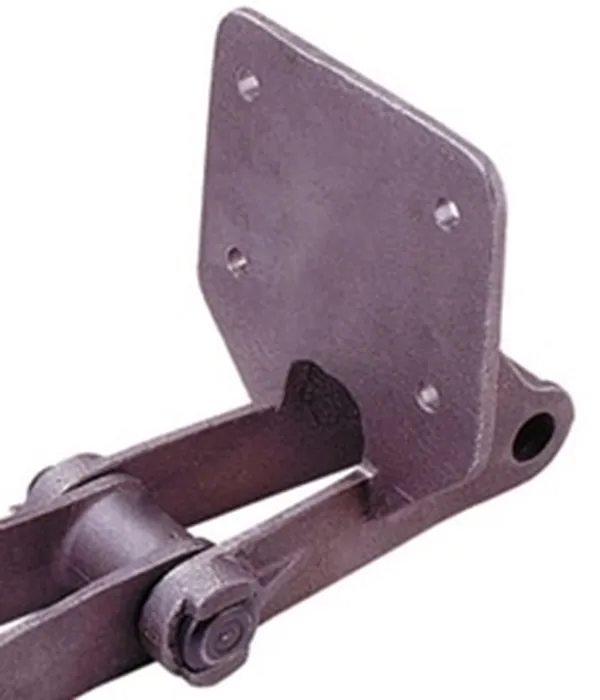

MS720S Wastewater Chain F226 Attachment	MS720S Wastewater Chain A2 Attachment	MS720S Wastewater Chain F228 Attachment

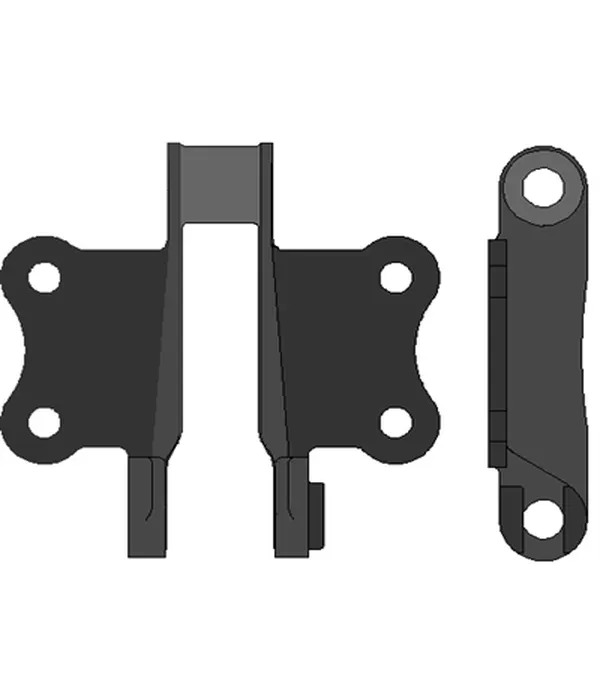

MS720S Wastewater Chain K2 Attachment

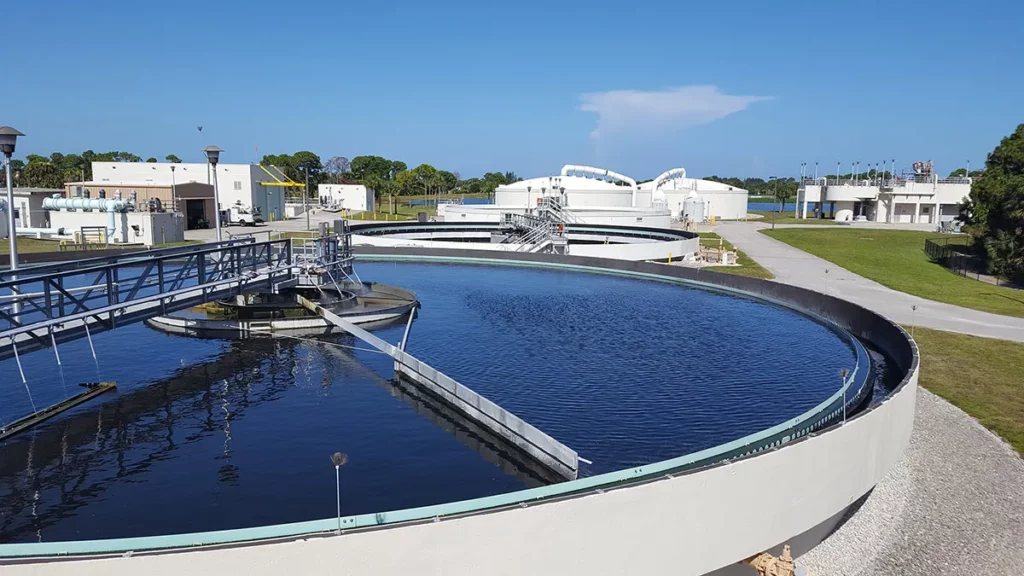

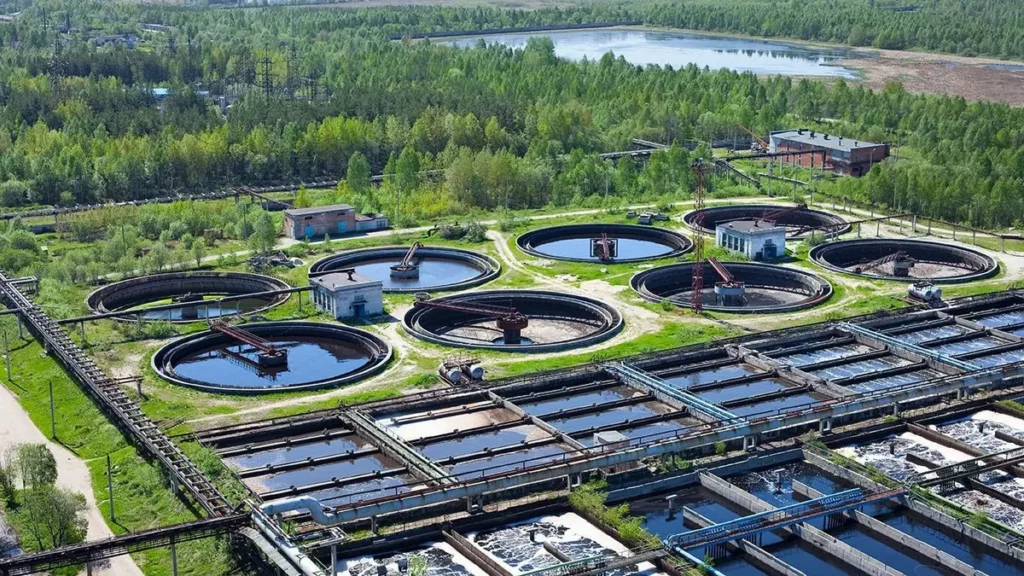

Applications of MS720S Wastewater Treatment Chain:

MS720S Wastewater Treatment Chain is a heavy-duty chain that is specifically designed for use in wastewater treatment facilities. It is made of high-strength stainless steel, which makes it resistant to corrosion and wear. This chain is also designed to operate in a wide range of temperatures and environments.

Here are some specific examples of how the MS720S Wastewater Treatment Chain is used in wastewater treatment facilities:

• Rectangular clarifiers: The MS720S Wastewater Treatment Chain is commonly used as a conveyor chain in rectangular clarifiers. In this application, the chain is equipped with flights that scrape the bottom of the clarifier to remove sludge. The sludge is then transported to a sludge hopper for further processing.
• Sludge thickeners: The MS720S Wastewater Chain can also be used as a conveyor chain in sludge thickeners. Sludge thickeners are used to concentrate sludge by removing water. The chain is equipped with flights that convey the sludge through the thickener, where the water is removed. The thickened sludge is then discharged from the thickener for further processing.
• Grit removal systems: The MS720S Wastewater Treatment Chain can also be used as a conveyor chain in grit removal systems. Grit removal systems are used to remove sand, gravel, and other heavy materials from wastewater. The chain is equipped with flights that convey the grit through the system, where it is washed and removed from the wastewater.
• Mixers: The MS720S Wastewater Chain can also be used as a drive chain for mixers in wastewater treatment facilities. Mixers are used to keep solids in suspension and to promote chemical reactions. The chain is used to drive the mixer paddles, which mix the wastewater.
• Pumps: The MS720S Wastewater Treatment Chain can also be used as a drive chain for pumps in wastewater treatment facilities. Pumps are used to move wastewater throughout the treatment process. The chain is used to drive the pump impeller, which moves the wastewater.
• Aerators: The MS720S Wastewater Chain can also be used as a drive chain for aerators in wastewater treatment facilities. Aerators are used to add oxygen to wastewater to promote the growth of beneficial bacteria. The chain is used to drive the aerator rotor, which mixes the wastewater and air.

MS720S Wastewater Treatment Chain is a versatile and durable chain that is well-suited for a variety of applications in wastewater treatment facilities. It is made of high-strength stainless steel, which makes it resistant to corrosion and wear. This chain is also designed to operate in a wide range of temperatures and environments.

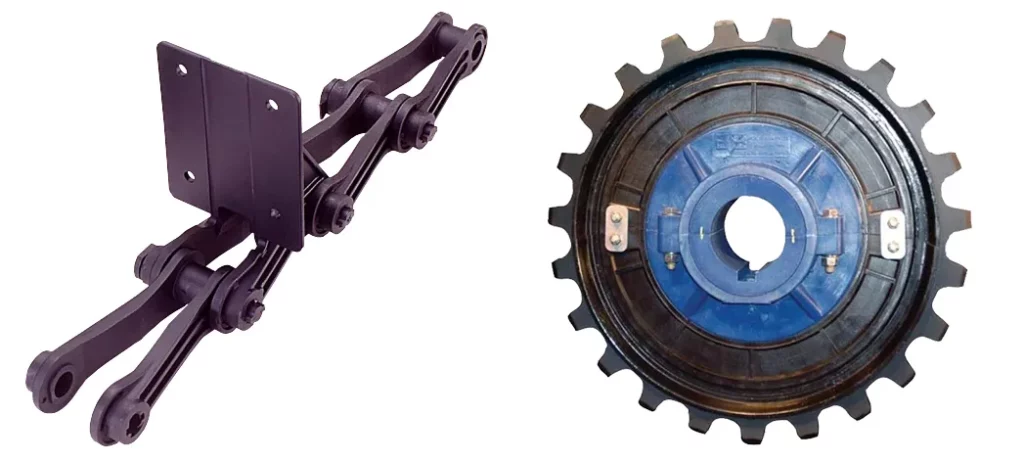

700 Series Wastewater Chain Sprockets for 700 Class Wastewater Chain:

The 700 series wastewater chain sprockets are designed specifically for use with the 700 class wastewater chain. These sprockets are used in wastewater treatment plants and other applications where heavy-duty chains are required to handle the demands of wastewater treatment processes.The 700 class wastewater chain typically refers to a specific chain size or type that is commonly used in wastewater treatment applications. The sprockets for this chain are designed to match its size and specifications, ensuring proper engagement and smooth operation.When selecting 700 series wastewater chain sprockets, it's important to consider the following factors:

1. Chain Size: Ensure that the sprocket is compatible with the 700 class wastewater chain size. Chains and sprockets must have matching tooth profiles and pitch dimensions for proper engagement.
2. Material: Look for chain sprockets made from durable materials that can withstand the harsh conditions of wastewater treatment, including corrosion, abrasion, and chemical exposure. Stainless steel or other corrosion-resistant alloys are commonly used.
3. Tooth Profile: The tooth profile should match the chain type to provide efficient power transmission and minimize wear. Consult the chain manufacturer's specifications to ensure compatibility.
4. Number of Teeth: The number of teeth on the sprocket determines the speed ratio and engagement characteristics. Choose a sprocket with the appropriate number of teeth based on your specific application requirements.
5. Mounting Configuration: Consider the mounting configuration of the sprocket, such as hub type, bolt-hole pattern, and shaft size. Ensure that it is compatible with your equipment and installation requirements.
