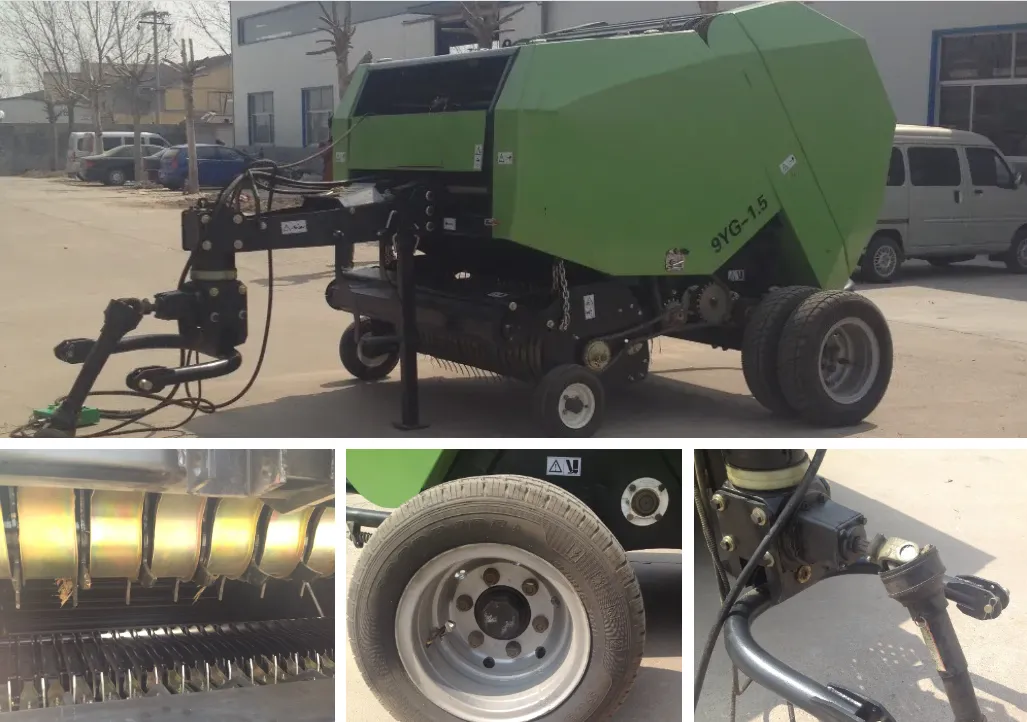

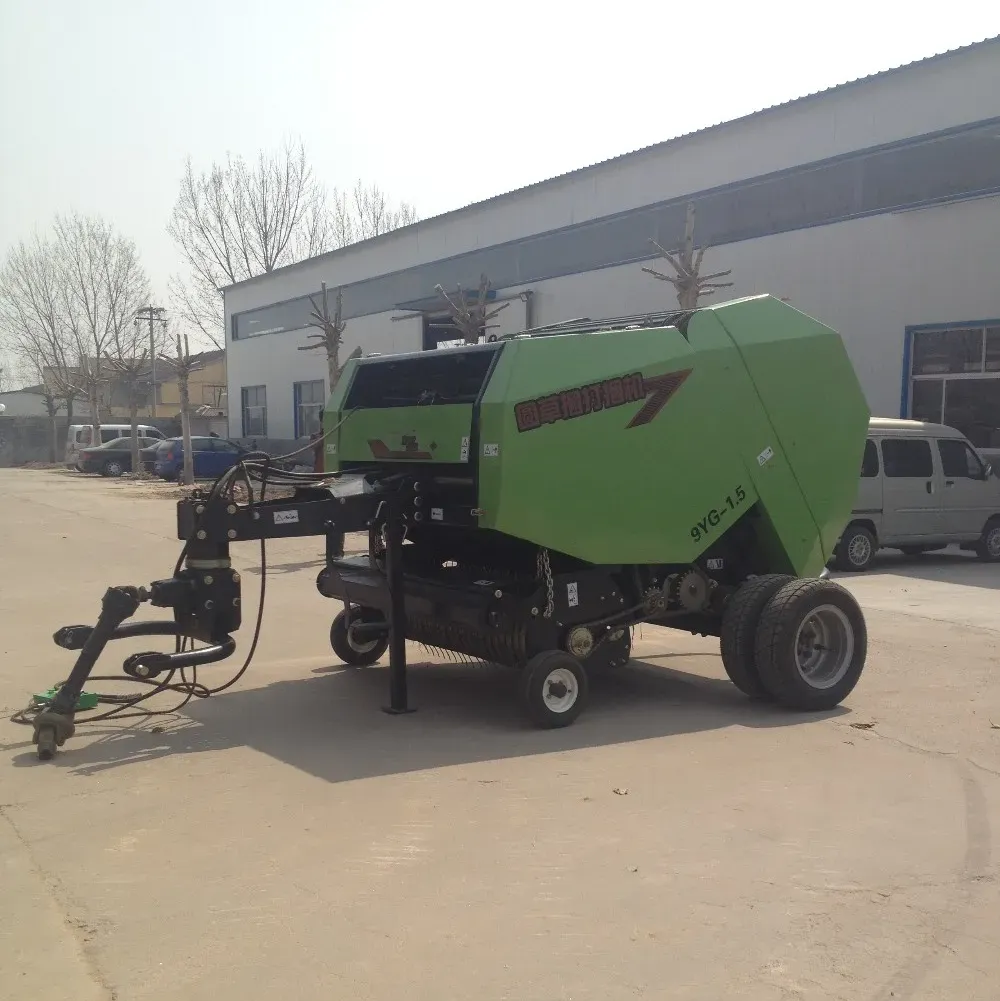

Multifunctional Long Service Life Walking Mini Round Sugarcane Bagasse Silage Round Hay Balers

Designed specifically for farming industries, this high-accuracy, multifunctional round baler boasts a long service life and is perfect for baling hay, alfalfa, wheat, and rice. Its compact dimensions (4200x2880x2300mm) and manageable weight (3020 kg) make it easy to operate and transport. The baler has a capacity of 12-30 bales/hour and each bale weighs between 200-400kgs. The reliability of this product is ensured with a one-year warranty and after-sales service, including video technical support, spare parts provision, and overseas support.

Advantages of the Multifunctional Round Baler

1. High Accuracy: The baler ensures precise baling, which results in uniform bale size and weight.2. Multi-function: It can bale a variety of crops, including hay, alfalfa, wheat and rice.3. Long Service Life: Built with robust materials, it is designed for durability and can withstand regular use on farms.4. High Capacity: It can produce 12-30 bales per hour, making it an efficient choice for large-scale farming operations.5. Compact Size: Despite its capabilities, the baler is compact, making it easy to transport and store.6. Excellent After-Sales Service: The one-year warranty and overseas third-party support provide peace of mind for users.

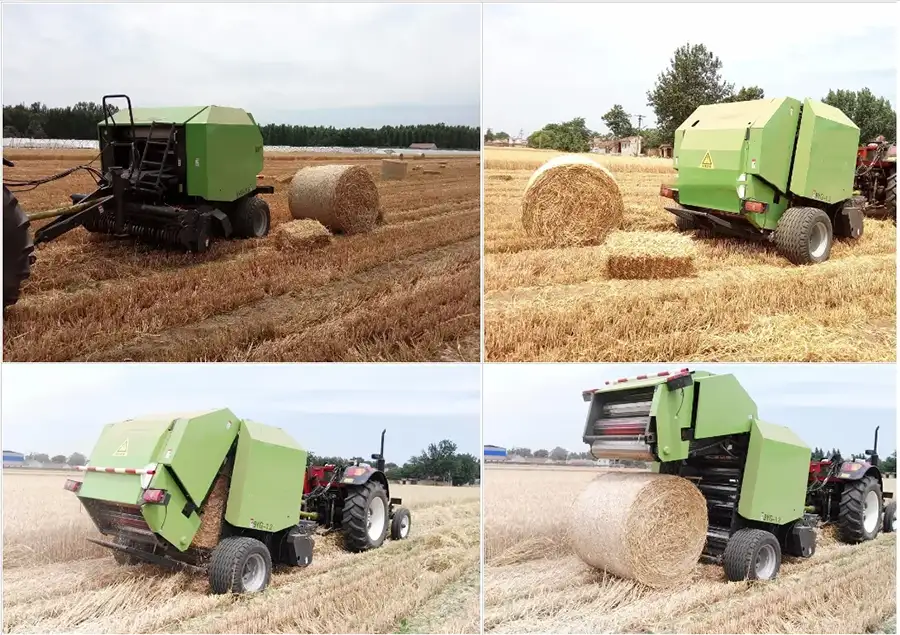

Applications of the Multifunctional Round Baler

1. Hay Baling: The baler is perfect for compacting hay into round, transportable bales.2. Alfalfa Baling: It can effectively compress alfalfa, which is crucial for preserving its nutritional value.3. Wheat Straw Baling: After wheat harvest, the baler can be used to bale the straw for use as animal bedding or compost.4. Rice Straw Baling: The baler is also useful for compacting rice straw, which can be used for mushroom cultivation or biofuel production.5. Sugarcane Bagasse Baling: It can compact sugarcane bagasse into bales for easy handling and transport.6. Silage Baling: The baler can compress silage, which is essential for cattle feeding.

How Does the Tractor Mounted Large Round Baler Work?

A tractor-mounted large round baler is a machine that is attached to a tractor and operated using the tractor's PTO. It is the agricultural equipment used to compress cut crops, such as hay, straw, or silage, into compact, large round bales that are easy to handle, transport, and store. Here's a step-by-step overview of how it works:1. Attachment to the Tractor: The large round baler is connected to the tractor using a three-point hitch or a drawbar hitch. The hitch ensures a secure connection between the baler and the tractor, allowing them to work together.2. Collection of Hay: The baler is equipped with a pickup mechanism, usually located at the front or side of the machine. The pickup mechanism consists of rotating tines or augers that gather the loose hay from the ground and feed it into the baling chamber. The pickup width can vary depending on the model.3. Feeding into the Baling Chamber: As the pickup mechanism collects the hay, it transfers it to the baling chamber. The hay is guided into the chamber, where it starts to accumulate.4. Bale Formation: Inside the baling chamber, the baler has belts or rollers that rotate, compacting the hay and forming it into a cylindrical bale. The pressure exerted by the belts or rollers creates a tightly packed bale.5. Bale Size Adjustment: Most large round balers allow for the adjustment of bale size. This can be done by changing the settings on the baler, which control the length and density of the bale. The operator can set the desired bale size based on their specific requirements.6. Bale Wrapping: Once the bale reaches the desired size, the baler applies twine or net wrap around the bale to secure it. Twine or net wrap is fed into the baler and is automatically wrapped around the bale as it rotates within the baling chamber. This ensures that the bale remains intact and prevents it from unraveling.7. Bale Ejection: Once the bale is wrapped, it is ready to be ejected from the baling chamber. The baler either drops the bale onto the ground, where it can be manually handled, or it may have a built-in bale ramp that allows for controlled unloading directly onto a bale wagon or trailer.

How to Install the Large Round Baler to Tractor?

Installing a large round baler to a tractor involves several steps to ensure a secure and proper attachment. Here's a general guide on how to install a large round baler to a tractor:1. Position the Tractor and Align the Baler: Park the tractor on a level surface and engage the parking brake. Ensure the tractor is turned off and the PTO is disengaged for safety. Position the large round baler behind the tractor, ensuring it is aligned with the hitch. The baler should be centered and directly behind the tractor for proper balance and stability.2. Attach the Baler to the Tractor: For a three-point hitch connection, align the tractor??s three-point hitch with the baler??s hitch points. Lift the hitch and secure the baler using the locking pins. For balers that connect via a drawbar, align the drawbar of the tractor with the hitch on the baler. Insert the hitch pin and secure it with a linchpin or locking device.3. Connect the PTO Shaft: Align the PTO shaft from the baler with the PTO stub on the tractor. Ensure that the shaft splines are aligned correctly and slide the shaft onto the stub until it locks into place. Ensure that the PTO shaft is the correct length. The shaft should have enough slack to accommodate turns but not so much that it could become entangled or disengage.4. Check the Attachment: Ensure that all hitch connections are secure and properly locked in place. Shake the baler gently to check for any excessive movement or looseness. If everything is properly attached, there should be minimal play between the tractor and the baler.5. Verify Clearance: Check the clearance between the tractor and the baler, ensuring that there is enough space for the baler to operate smoothly without interference from the tractor's components.6. Test the Connection: Once the baler is attached, start the tractor and engage the PTO. Verify that the PTO shaft on the tractor aligns with the PTO input on the baler. Make sure there is a smooth and proper rotation between the two. After the test run, conduct a final inspection to check for any issues or unusual wear. Ensure that all safety features of the baler are operational.

Common Troubleshooting of the Multifunctional Round Baler

Troubleshooting common issues with a tractor-mounted large round baler is essential for maintaining its efficiency and prolonging its operational life. Here??s a guide to identifying and resolving some frequent problems:1. Baler Not Starting or Operating: Power Take-Off (PTO) Issue, ensure the PTO is properly engaged. Check the PTO shaft connection between the tractor and baler for correct alignment and secure attachment. Verify that any electrical connections are secure and intact. Inspect fuses and wiring for damage.2. Irregular Bale Shape: Pickup Issues, ensure the pickup mechanism is not clogged with debris and is rotating freely. Check for bent or broken tines. Inadequate or uneven pressure in the baling chamber can cause misshapen bales. Too fast or too slow tractor speed during baling can affect bale formation. Adjust speed to recommended levels.3. Bale Density Issues: Tension Adjustment, check and adjust the tension or pressure settings on the baler to ensure proper bale density. Uneven or insufficient material feed into the baler can result in density issues. Ensure uniform feeding.4. Baler Knotting Problems: Twine or Net Wrap Issues, check the twine or net wrap feed for jams or entanglement. Ensure the spools are loaded correctly and that there??s sufficient twine/net wrap available. Inspect the knotter mechanism for cleanliness and proper operation. Clean and lubricate as necessary. Adjust the knotter settings if knots are not being tied correctly.5. Excessive Vibration: Driveline Misalignment, ensure the driveline between the tractor and baler is straight and correctly attached. Check the PTO shaft for damage or bending. Inspect moving parts, including bearings, chains, and gears, for wear or damage. Replace worn components as necessary.

Why Choose Raydafon's Large Round Baler for Hay Baling?

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery, such as PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Our company has more than 100 employees, among which there are 20 technical staff and five senior R&D personnel. We have abundant financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system.Our production technology is strong and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding. We have accumulated more than ten years of experience in production, and mainly produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China.Our main products are PTO shafts, agricultural gearboxes, rotary hay rakes, corn seeder, drum mowers, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, large round baler, mini round baler, PTO wood chipper, diesel wood chipper, log splitter, front end loader, backhoe, snow blower, road sweeper, etc.The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.[embed]https://youtu.be/XPTUMj6cOqw[/embed]Author: Yjx.
