MYD Series 120KW Induction Heating Equipment for Pipeline Coating Preheat

MYD Series 120KW Induction Heating Equipment for Pipeline Coating Preheat

MYD series 120kw induction heating equipment is a type of heating equipment that uses the principle of electromagnetic induction to generate heat within a metal material. It has a power capacity of 120KW and can be used for a variety of applications such as annealing, hardening, forging, welding, and melting of various metals such as steel, copper, and aluminum. The MYD series 120kw induction heating equipment consists of an induction heating power supply, a water-cooled inductor, and a cooling system. The power supply generates high-frequency electrical currents that flow through the inductor, creating a strong magnetic field. The metal material is placed inside the inductor, and the magnetic field induces eddy currents within the metal, generating heat.The induction heating equipment is designed for ease of use and safety, with features such as overvoltage and overcurrent protection, water temperature control, and fault detection. It is also energy-efficient, with a high power factor and low energy consumption. Overall, the MYD series 120kw induction heating equipment is a versatile and reliable solution for various metal heating applications.

MYD Series 120KW Induction Heating Equipment Specifications

Model	MYD-40KW		MYD-50KW		MYD-60KW		MYD-80KW		MYD-100KW	MYD-120KW
Input Power	3*380VAC (Default), 3*220VAC (Optional), 3*440VAC (Optional)
Output Frequency	2KHZ ~ 30KHZ
Output Power	40KW	50KW				60KW		80KW	100KW		120KW
Input Current	60A	75A				90A		120A	150A		180A
Air Cooling	Heating size:¢100-1500mm							Size: 800*560*1350mm
DSP control	Max:900℃; Heating   Speed: 5-400℃/min							Packing size:900*660*1560mm
6 Channels   control	10 curves recorder			Net weight: 120kg				Gross weight with parts: 155-260kg
Main parts	Induction coil			K Thermocouple				R-1006 Temperature Recorder
	Connection   cable			Insulation   Blanket				Thermocouple Connection cable

High Frequency Induction Heating Equipment Model

Model	Output Power	Input Current	Weight	Input Voltage	Frequency
MYD-30KW Induction Heater	1 ~ 30KW	45A	110KG	380V 3 phase, 4 wire,50/60Hz (220V, 440V)Option	2~ 40 KHZ
MYD-40KW Induction Heater	1 ~ 40KW	60A	120KG
MYD-50KW Induction Heater	1 ~ 50KW	75A	130KG
MYD-60KW Induction Heater	1 ~ 60KW	90A	135KG
MYD-80KW Induction Heater	1 ~ 80KW	120A	145KG
MYD-100KW Induction Heater	1 ~ 100KW	150A	168KG
MYD-120KW Induction Heater	1 ~ 120KW	180A	280KG

High Frequency Induction Heating Equipment Technical Parameter

Heating Type	Induction Heating
Heating Tamp Range	0ºC ~ 1100ºC
Heating Speed	5ºC~ 400ºC per minute
Cooling Type	Air Cooling
Thermocouple	K Type
Temperature Recorder	Digital Recorder with 6 Channel
Induction coil	Soft Induction coil & clamp induction coil

The Option Parts of the induction Heating System

●  Induction heating power●   Induction coil (Clamp induction coil) or (Soft induction coil)●  Connection cable for the convenience of linking the coil and the heating power●  Temperature controller●  PLC touchscreen●   Temperature recorder with the printer●  K type thermocouple&connection cable●  Insulation Blanket●  And other parts.

MYD Series 120KW Induction Heating Equipment Uses

1. Onshore pipeline coating heat2. Pipeline coating preheat3. Offshore pipeline coating preheat

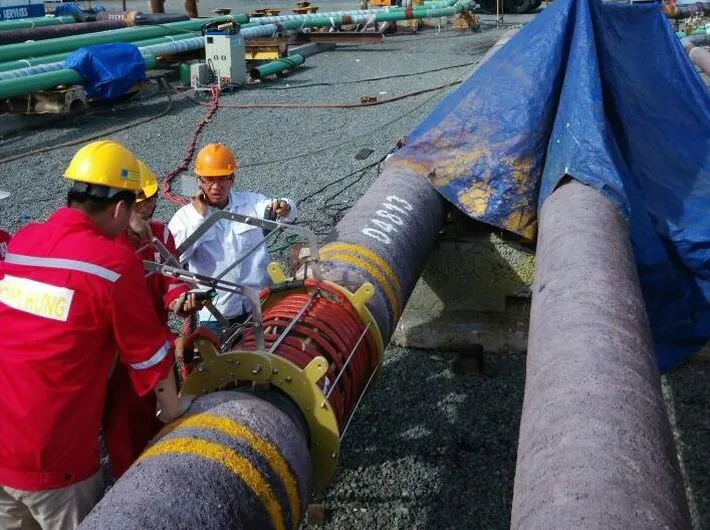

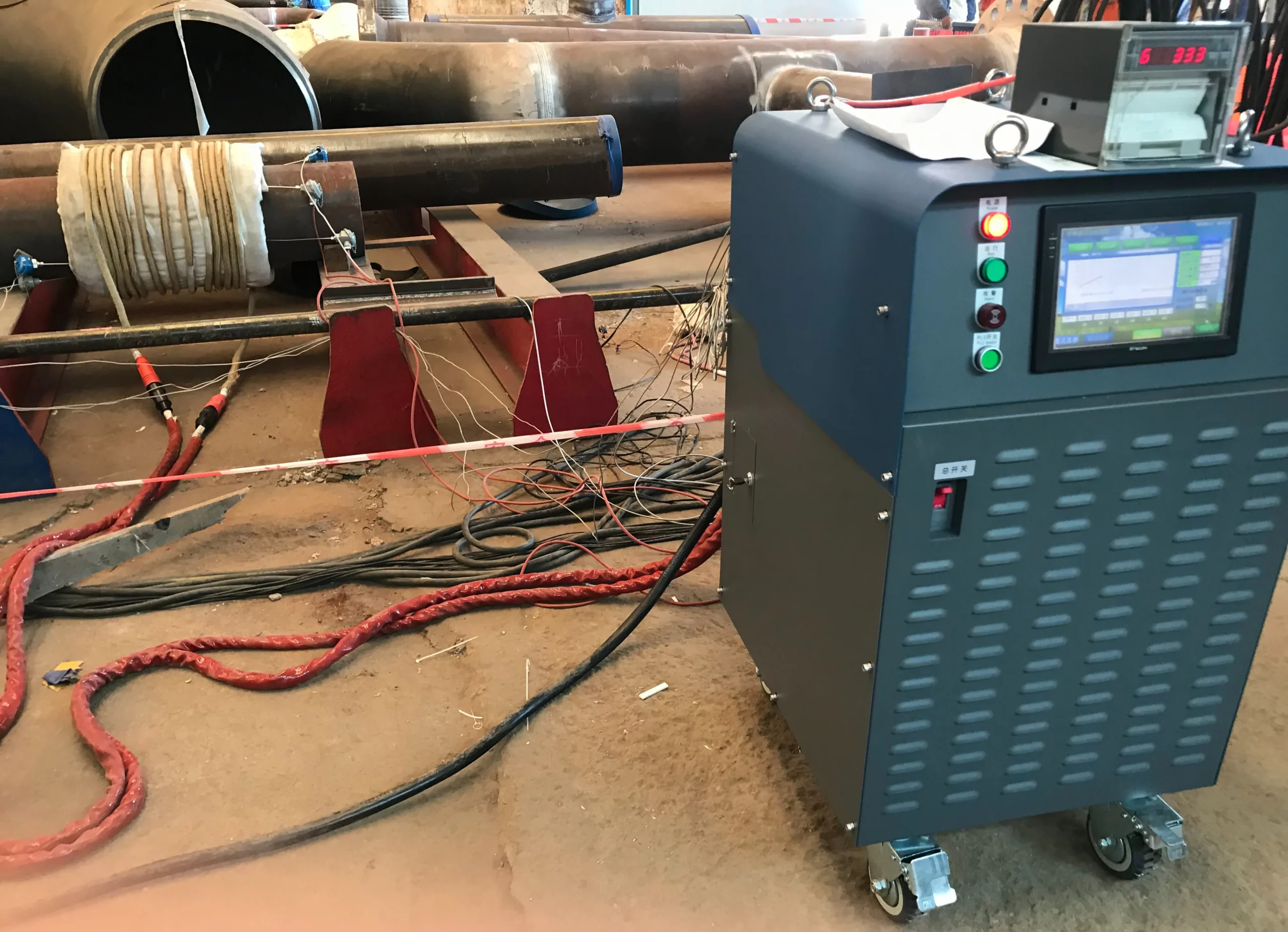

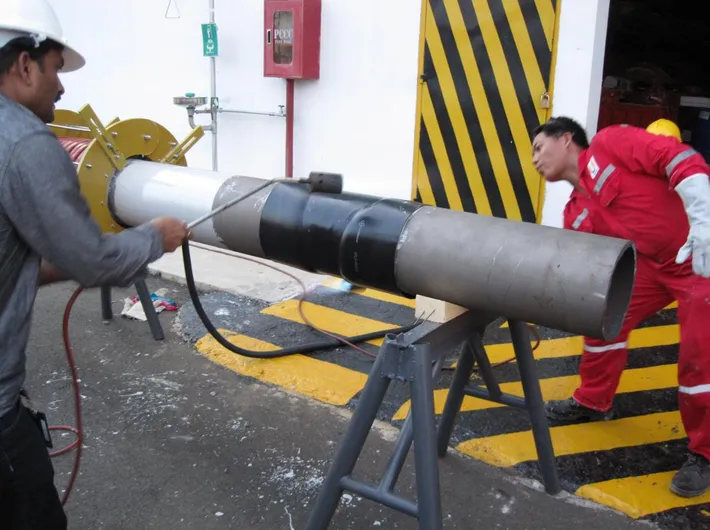

Induction Heating Equipment for Offshore Pipeline Coating Preheat	Induction Heating Equipment for Pipeline Coating Preheat

MYD Series 120KW Induction Heating Equipment Features:

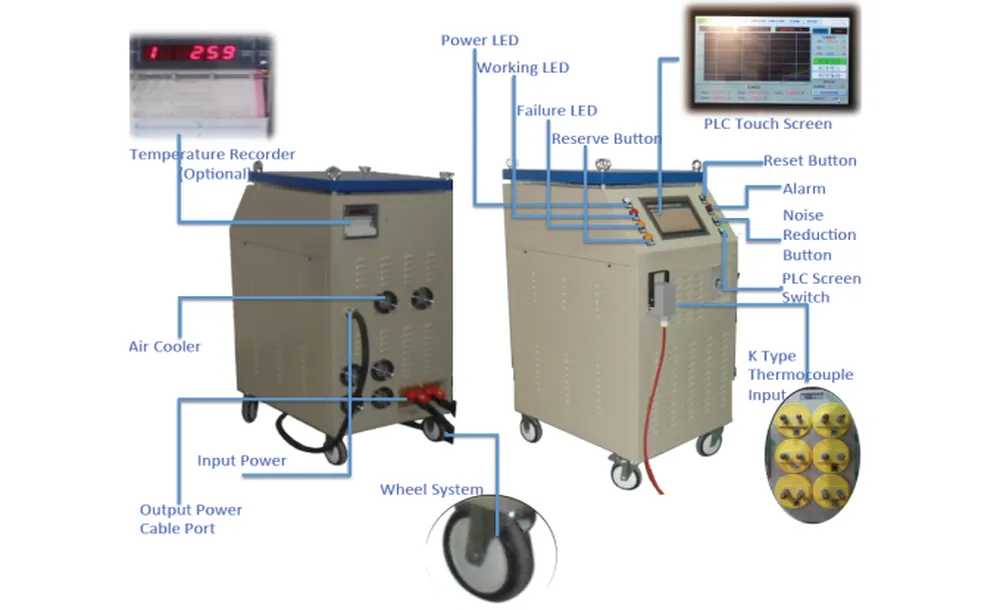

1. All operations are micro-computed and controlled through a PLC touch screen.2. High efficiency: Electric power is converted directly to heat power with low loss.3. Digital display and adjust the parameters, like the output power and temperature.4. Failure alerts: once an operation error occurs, a sounding alarm is activated, and an error message box pops out on the touch control screen.5. Accurate measurement for temperature: multi-points to detect the temperature; 6 channels for temperature control with ± 3°C tolerance; evenly heating.6. Digital recorder with an optional printer is able to record the temperature data and create chart trends of the heating progress.7. Air-cooled system allows system work at ultra circumstances: -30°C ~ 50°C.8. Integrated module design makes the system more stable and low-cost for maintenance.9. Safe to the operator: automatically protect against power failure; IP 25 Class.10. Easy for installation: quick-release coupling.11. Easy to move or relocate through lifting eyes or wheel system.12. The advanced IGBT technology is adapted and applied.13. Universal connector: waterproof, insulation.

Induction Heating Equipment Manufacturers & Suppliers

WLY has been a professional manufacturer of induction heater company in Ningbo City, China, since 1999. Our induction heating equipment specializes in Metal Weld Heating, Post Weld Heat Treatment(PWHT), Thermal Assembly, Fluid Heating, and Non-ferrous Metal Melting Furnace design and manufacture. Our main induction heater(induction heating equipment) product used for Pre-heating: for coating, bending, fitting, unfitting, and welding. Post-welding heat treatment: tank, boiler or other metal jobs. Heating: mold heating, shipboard, zinc bath, and large & irregular metal parts. Pipeline heating: pipeline oil, pipeline gas, pipeline water, pipeline petrochemical.The induction heater using fields involved are petrochemical, oil and gas pipelines, aerospace, shipbuilding, steel, tanks, boilers, vessels, pressure vessels, cylinders, metal structure, spatial structure, railway bridges, electricity water, mine construction, vehicle manufacturing, nuclear power, mining, plastics processing, energy saving process, casting, mold, screw barrel industries, etc. We supply heat calculation, scheme design, heating machine and coil ODM, and OEM service. We have sold our induction heating equipment machine to many countries and used it very well. Such as the USA, Germany, Japan, Russia, India, Italy, South Korea, Indonesia, Malaysia, and Singapore.
