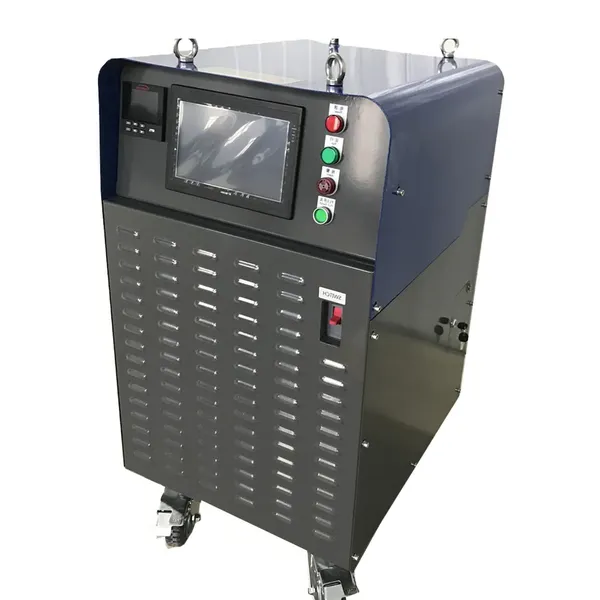

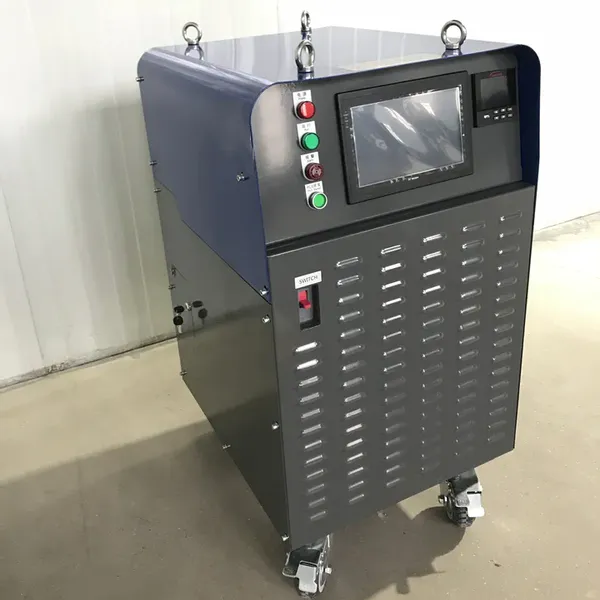

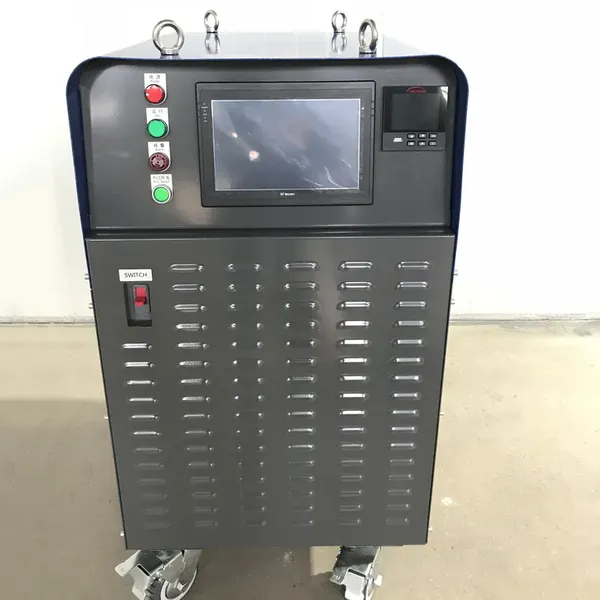

MYD Series 100KW Induction Heating Equipment for Liquid Heating and Reactor Heating

MYD Series 100KW Induction Heating Equipment for Liquid Heating and Reactor Heating

MYD series 100kw induction heating equipment, or called induction heat treatment equipment, is a method of heating conductive materials such as metals. It is mainly used for metal hot induction forging, induction heat treatment, induction welding, and induction melting. As the name implies, induction heating uses the electromagnetic induction method to heat the material to generate electricity inside, relying on the energy of these eddy currents to achieve the induction heating purpose. The basic composition of an induction heating system includes an induction coil, AC induction heating power supply, and workpiece. The coils can be made into different shapes depending on what is being heated. The coil is connected to an induction heating power supply, which provides alternating current to the coil. The alternating current flowing through the coil creates an alternating magnetic field through the workpiece, which generates eddy currents to heat the workpiece.

MYD Series 100KW Induction Heating Equipment Technical Parameter

Model:	MYD-100KW Induction Heater
Input Voltage:	380V, 3 phase, 50/60HZ
Output Frequency:	2KHZ ~ 36KHZ
Output Power:	4KW ~ 100KW
Cooling:	Air-cooled
Heating Speed:	5-400°C per minute
Heating temperature range:	-10°C-1100°C
Heating parts size range:	10-6000mm or equal
Induction coil:	10-45meters long high-temperature cable with air-cooled
Temperature recorder:	1-4 Channels for temperature controlling, 5-12s Channel for show
Thermocouple:	K Type (5-45 Meters long link cable)
Size:	800*560*1350mm
Net weight:	120kg;
Packing size:	900*660*1560mm
Gross weight:	155kg

MYD Series 100KW Induction Heating Equipment Features:

Air cooling: working well at -30°C-50°C. Avoid the inconvenience of water cooling in low temperatures.In induction heating power: Electric Power is converted directly to heat.Temperature Recorder: Record the heating process, and generate the heating curve automatically.Temperature Controller: Control the whole heating process with ±5°C tolerance.Multi-output can select single, dual, triple, or quad output as needed.LCD Display and Adjust parameters, like output power and temperature.High Efficiency: Electric converts directly into heat with low power consumption.Failure Alert: Once a failure operation occurs, an alarm is sounded, and an error box is shown on the PLC screen.Integrated Module Design: System is much more stable and has a low maintenance cost.IGBT Module: Advanced IGBT Technology is adapted.Smart Control: All operation is micro computerized and controlled through a PLC touch screen.Easy to Install: Quick-release coupling.Easy to move: Through Lifting Eye or Wheel System.Safe: Automatic Protect for Power Failure.Universal Connector: Water-proof; Insulation.

Application & Using Fields of Induction Heating System:

Our MYD series induction heating system is air-cooled induction heating equipment with a DSP system. Their main applications are pipeline heating, pre-welding heating, post-welding heat treatment, stress relief, injection mold heating, annealing, etc.

• Pre-heating: for coating, bending, fitting&unfitting, and welding.
• Post-welding heat treatment: tank, boiler, or other metal jobs
• Heating: mold heating, shipboard, zinc bath, large& irregular metal part
• Pipeline heating: pipeline oil, pipeline gas, pipeline water, pipeline petrochemical, and other pipeline material

The induction heating equipment using fields involved are petrochemical, oil and gas pipelines, aerospace, shipbuilding, steel, tanks, boilers, vessels, pressure vessels, cylinders, metal structure, spatial structure, railway bridges, electricity water, mine construction, vehicle manufacturing, nuclear power, mining, plastics processing, energy saving process, mold, screw barrel industries, etc.

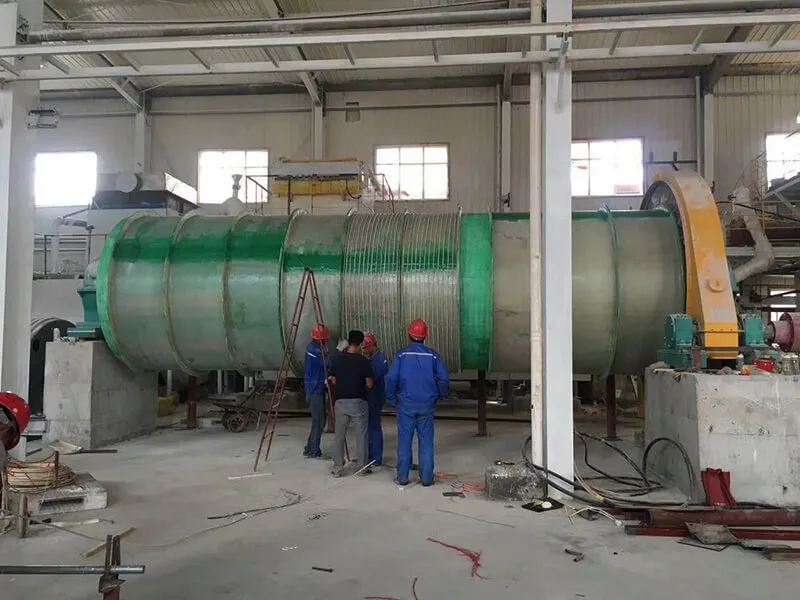

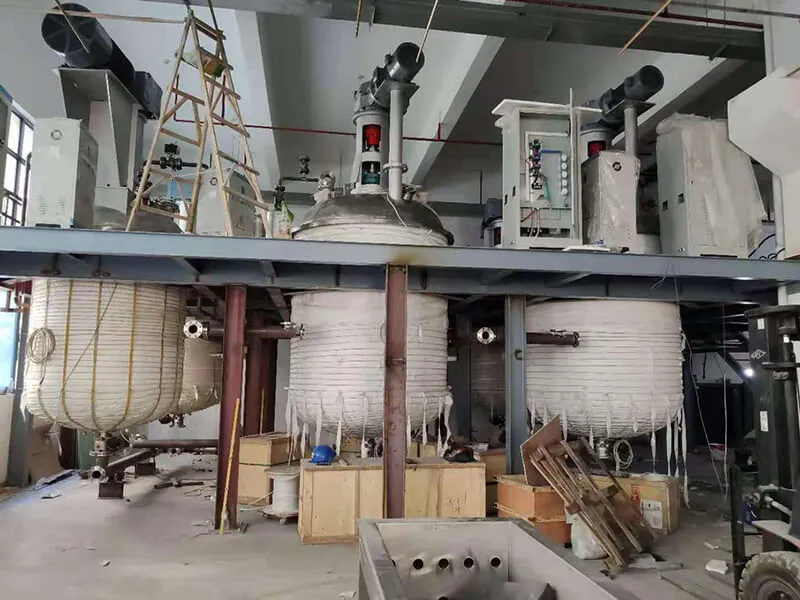

Induction Heating Equipment for Reactor Heating:

1. Rubber oil refining reaction kettle heating2. Oil and gas chemical reaction kettle heating-Explosion-proof chassis

The Advantage of Induction Heating Equipment for Reactor Heating:

1. Quickly heating speed with a high heating effect	9. Low running costs
2. No physical contact between the induction coil and the heated vessel wall	10. Low or high temperature
3. Instant start-up and shut-down; no thermal inertia	11. Simple and flexible to operate
4. Low heat loss	12. Minimum maintenance
5. Precision product and vessel wall temperature control without overshoot	13. Consistent product quality
6. High energy input, ideal for automatic or microprocessor control	14. Heater   is self-contained with a minimum floor space requirement
7. Safe hazard area or standard industrial operation at line voltage	15. Safty and stable for 24 hours working &More than ten years working life
8. Pollution-free uniform heating at high efficiency

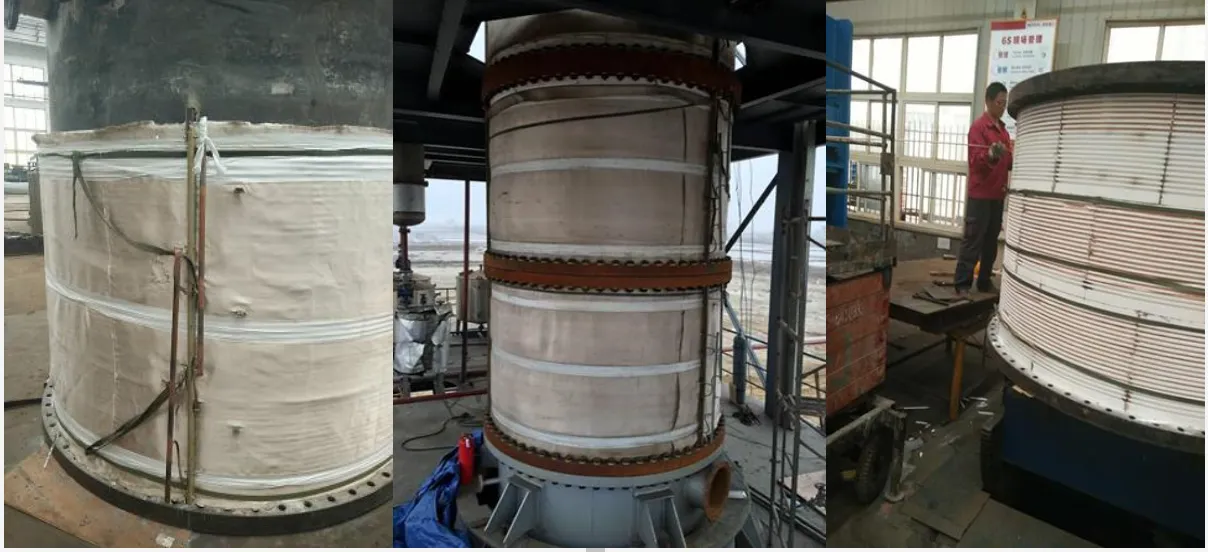

Induction Heating Equipment for Liquid Heating

1. Industrial water heating and insulation - factory warm heating2. Reaction gas pipeline heating3. Boiler pipeline material heating and insulation4. Industrial oil tank heating and heat preservation5. Drinking water heating and insulation in food processing company

Induction Heating Equipment Manufacturers & Suppliers

WLY has been a professional manufacturer of induction heater company in Ningbo City, China, since 1999. Our induction heating equipment specializes in Metal Weld Heating, Post Weld Heat Treatment(PWHT), Thermal Assembly, Fluid Heating, and Non-ferrous Metal Melting Furnace design and manufacture. Our main induction heater(induction heating equipment) product used for Pre-heating: for coating, bending, fitting, unfitting, and welding. Post-welding heat treatment: tank, boiler, or other metal jobs. Heating: mold heating, shipboard, zinc bath, and large & irregular metal parts. Pipeline heating: pipeline oil, pipeline gas, pipeline water, pipeline petrochemical.The induction heater using fields involved are petrochemical, oil and gas pipelines, aerospace, shipbuilding, steel, tanks, boilers, vessels, pressure vessels, cylinders, metal structure, spatial structure, railway bridges, electricity water, mine construction, vehicle manufacturing, nuclear power, mining, plastics processing, energy saving process, casting, mold, screw barrel industries, etc. We supply heat calculation, scheme design, heating machine and coil ODM, and OEM service. We have sold our induction heating equipment machine to many countries and used it very well. Such as the USA, Germany, Japan, Russia, India, Italy, South Korea, Indonesia, Malaysia, and Singapore.

FAQ

Q: Why choose our Company?A: We are a manufacturer that has been in this field for nearly 20 years.No matter the quality, price, service, or delivery time, we all have large advantage.

Q: How to choose suitable induction heating equipment?A: You can tell us your application, need forging, hardening, welding, melting, or other, pass me the workpiece material & size, Temperature requirement, and heating time requirement. Then we will recommend a fit machine for your reference.

Q: How about the machine delivery time?A: Small induction heating equipment delivery time is 3~7 workdays.Big induction heating equipment delivery time 15~25 workdays.

Q: How about the induction heating equipment warranty?A: Our goods support one year warranty, not for personal purposes, and support technical service all life.During the warranty, if the induction heating equipment has a problem and needs to change spare parts, we can replace it for you charge-free.
