MYD Series 80KW Induction Heating Equipment for Post Weld Heat Treatment (PWHT)

MYD Series 80KW Induction Heating Equipment for Post Weld Heat Treatment (PWHT)

MYD series 80kw induction heating equipment is a key piece of equipment used in all forms of induction heating. Induction heating is a process that is used to bond, harden or soften metals or other conductive materials. An important feature of the induction heating process is that the heat is generated inside the object itself instead of by an external heat source via heat conduction. Thus objects can be heated very rapidly. In addition, there need not be any external contact. For many modern manufacturing processes, induction heating offers an attractive combination of speed, consistency, and control.Induction heating equipment allows the targeted heating of an applicable item for applications, including surface hardening, melting, welding, annealing, forging, brazing and soldering, and heating to fit. Normally, iron and its alloys respond best to induction heating due to their ferromagnetic nature.

MYD Series 80KW Induction Heating Equipment Technical Parameters

Model	MYD-80KW Induction Heater
Input Power	3*380VAC (Default), 3*220VAC (Optional), 3*440VAC (Optional)
Output Frequency	2KHZ ~ 30KHZ
Output Power	80KW
Input Current	120A
Air Cooling	Heating size:¢100-1500mm							Size: 800*560*1350mm
DSP control	Max:900℃; Heating   Speed: 5-400℃/min							Packing size:900*660*1560mm
6 Channels   control	10 curves recorder			Net weight: 120kg				Gross weight with parts: 155-260kg
Main parts	Induction coil			K Thermocouple				R-1006 Temperature Recorder
	Connection   cable			Insulation   Blanket				Thermocouple Connection cable
Cooling	air-cooled
Heating Speed	5-400℃ per minute
Heating temperature range	-30℃-900℃
Heating parts size range	¢100-1500mmor equal
Induction coil	10-45meters long high-temperature cable with air-cooled
Temperature recorder	6 Channels for temperature controlling
Thermocouple	K Type (5-45 Meters long link cable)

MYD Series 80KW Induction Heating Equipment Features

1. Air cooling: Avoiding low ambient temperatures, and inconvenience caused by water cooling2. Fast speed: Direct heating of metal workpieces, unlike resistance and flame heat transfer to metal.3. High efficiency: The thermal conversion efficiency is up to 96%, and the metal is heated across the insulation material to increase the thermal energy utilization rate.4. Simple operation: PLC touch screen operation, start heating. Temperature controller control is more accurate. Record and save the curve.

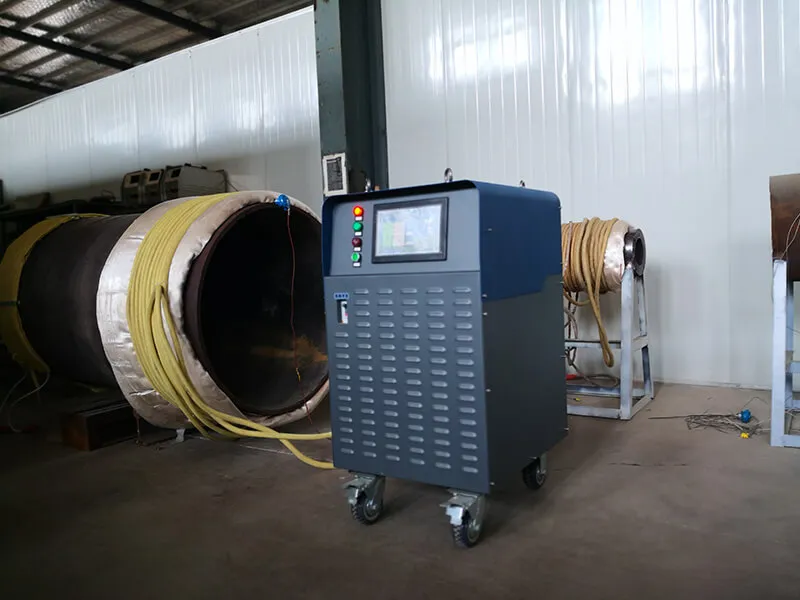

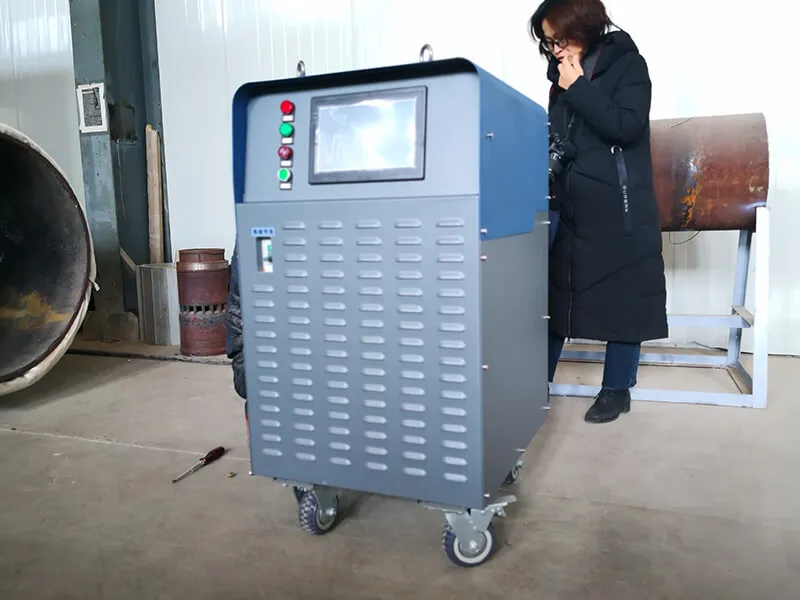

MYD Series 80KW Induction Heating Equipment Configuration:

1. Temperature control system to control the heating process2. PLC touch screen to operate the heater and set the heating data3. Temperature recorder to print the curve4. Connectors are easy to connect5. 6pcs K type thermocouple to test the temperature6. Soft air cooling cable coil or clamp coil for high-speed preheat7. Soft water cooling cable coil for a long time and high-temperature heat treatment8. The extended cable to meet the distance between the coil and the heater

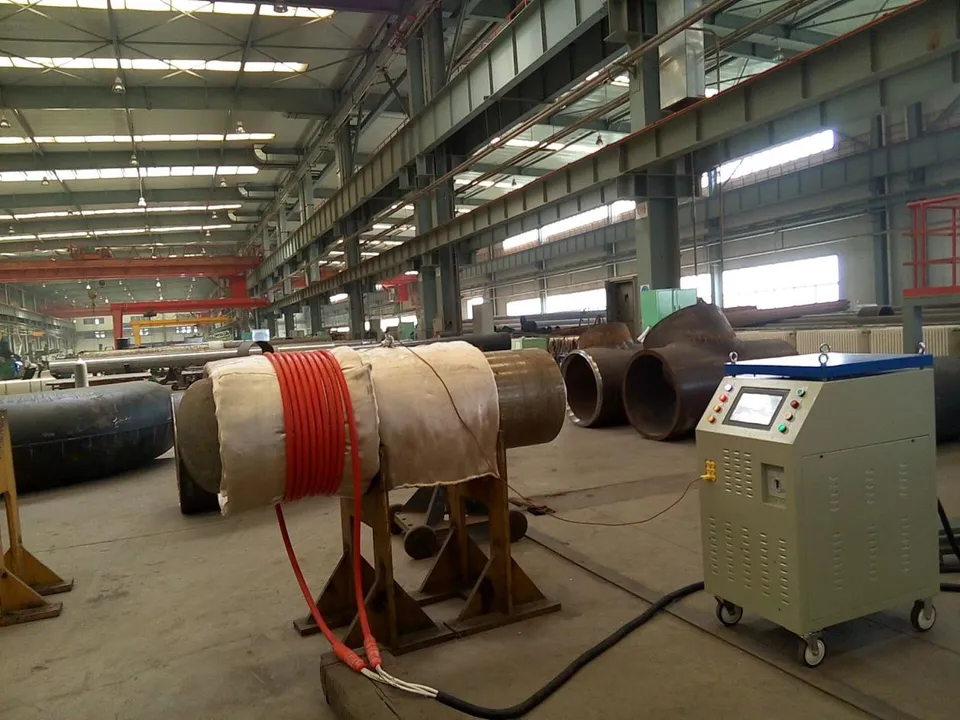

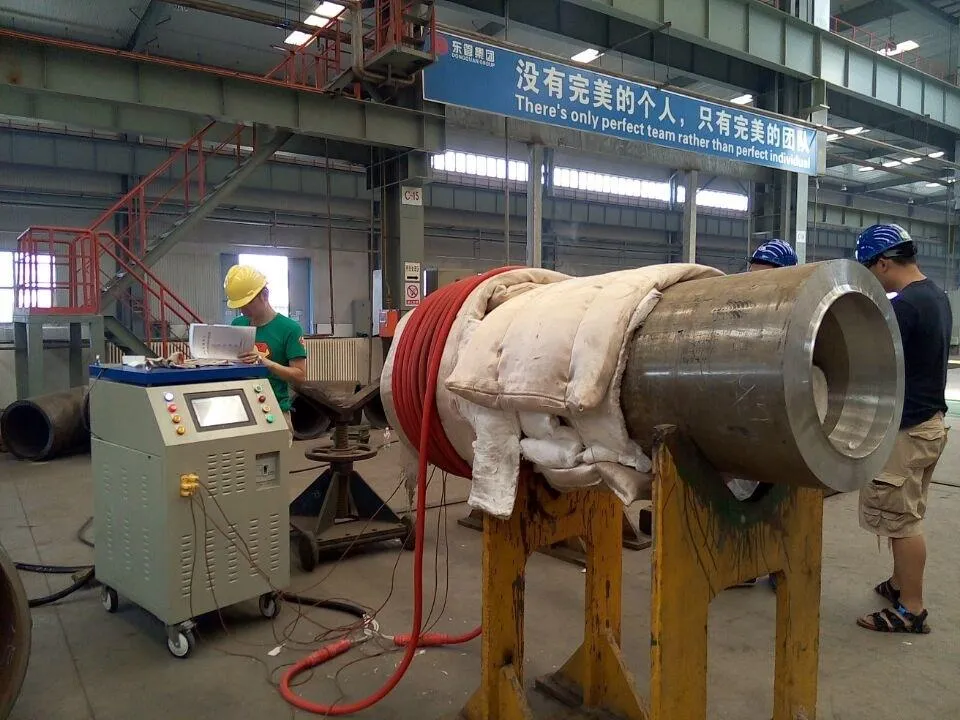

Applications of Induction Heating Equipment for Post Weld Heat Treatment

1.  Steel sheet weld preheating & post weld heat treatment2. Post weld heat treatment of electric power pipeline3. Petroleum Pipeline post weld heat treatment4. Rack plate weld preheat & post weld heat treatment5. Hydrogen and stress removal after welding of boiler6. Press vessel weld preheat and post weld heat treatment7. Pipe flange weld joint heat treatment8. Roll surfacing weld preheat and heat treatment9. Valve surfacing post weld heat treatment

Custom MYD Series Induction Heating Equipment

(1) Confirm the needs of customers.Our high-quality and thoughtful service enables our customers to witness the strength of the company.(2) Organize technical seminarsAfter we receive the specifications and parameters required by the customer, we will hold a technical seminar.(3) QuoteWe will make a quotation according to the products that customers need.(4) Deliver the samplesWe will provide samples to the customer for confirmation.(5) Commence mass productionAfter the customer confirms the sample, we will start mass production of the products that the customer needs.(6) Start packaging and shippingWe will strictly guarantee the quality before shipment and ensure on-time delivery.

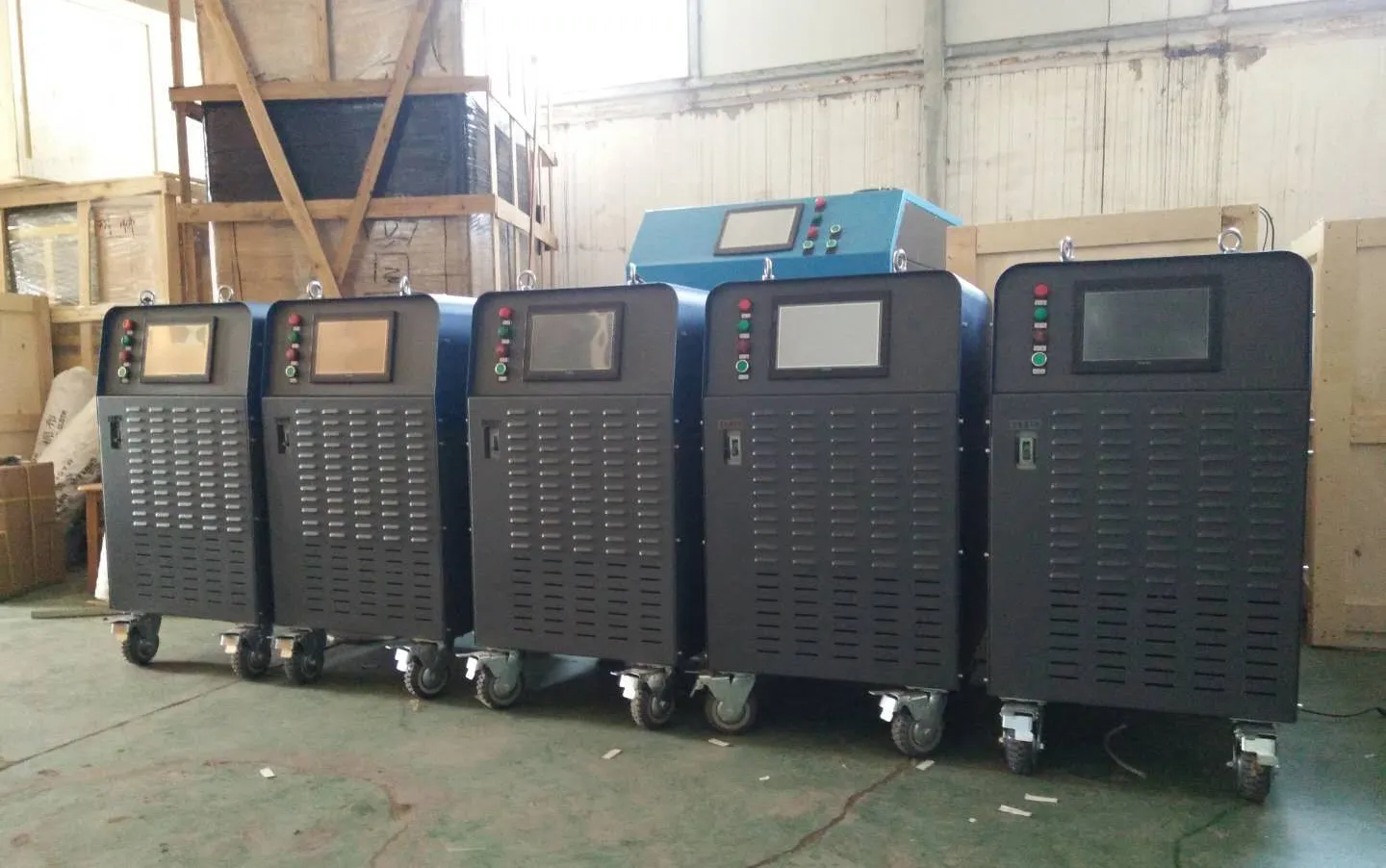

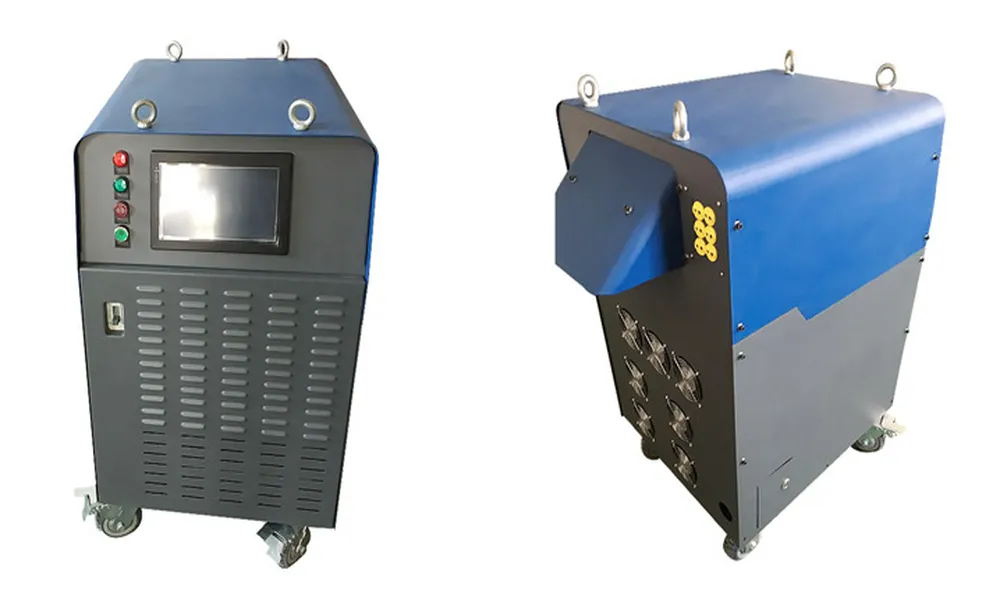

Induction Heating Equipment Manufacturers & Suppliers

WLY has been a professional manufacturer of induction heater company in Ningbo City, China, since 1999. Our induction heating equipment specializes in Metal Weld Heating, Post Weld Heat Treatment(PWHT), Thermal Assembly, Fluid Heating, and Non-ferrous Metal Melting Furnace design and manufacture. Our main induction heater(induction heating equipment) product used for Pre-heating: for coating, bending, fitting, unfitting, and welding. Post-welding heat treatment: tank, boiler or other metal jobs. Heating: mold heating, shipboard, zinc bath, and large & irregular metal parts. Pipeline heating: pipeline oil, pipeline gas, pipeline water, pipeline petrochemical.The induction heater using fields involved are petrochemical, oil and gas pipelines, aerospace, shipbuilding, steel, tanks, boilers, vessels, pressure vessels, cylinders, metal structure, spatial structure, railway bridges, electricity water, mine construction, vehicle manufacturing, nuclear power, mining, plastics processing, energy saving process, casting, mold, screw barrel industries, etc. We supply heat calculation, scheme design, heating machine and coil ODM, and OEM service. We have sold our induction heating equipment machine to many countries and used it very well. Such as the USA, Germany, Japan, Russia, India, Italy, South Korea, Indonesia, Malaysia, and Singapore.
