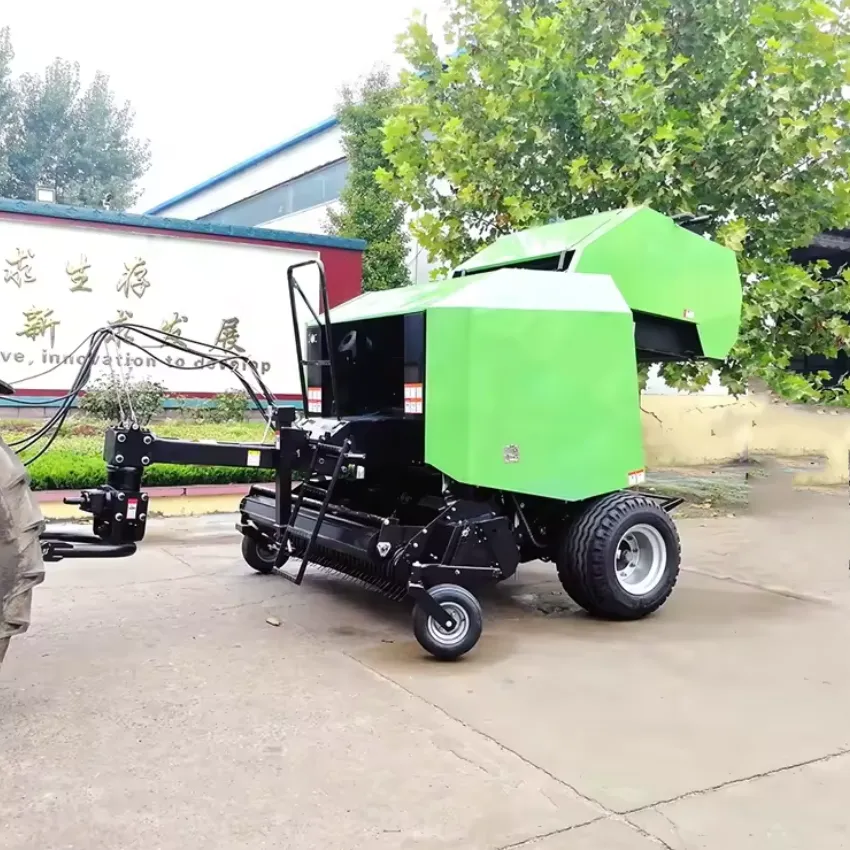

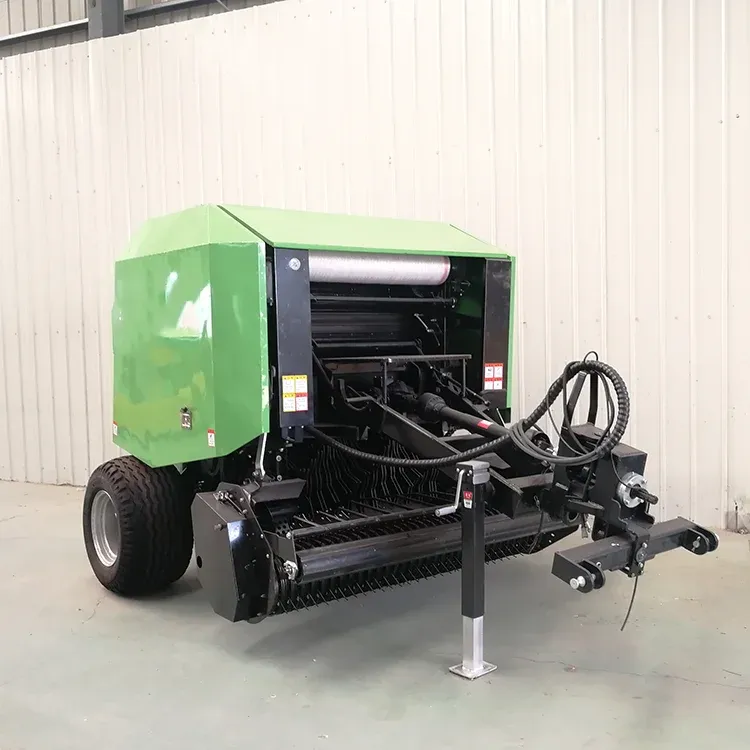

Netwrap Round Baler for Agricultural Hay Baling

[embed]https://youtu.be/XPTUMj6cOqw[/embed] A large netwrap round baler is a specialized machine used in agricultural operations for hay baling. It is designed to efficiently and effectively bundle cut hay into cylindrical bales, making it easier to handle, transport, and store. The netwrap round baler consists of several key components, including a pickup mechanism, a bale chamber, netwrap dispensing system, and a wrapping mechanism. Large netwrap round balers offer numerous advantages in hay baling operations. They can handle higher volumes of hay, leading to increased productivity. The tight wrapping provided by the netwrap helps preserve the quality of the hay by reducing moisture absorption and preventing spoilage. Additionally, the cylindrical shape of the bales allows for efficient stacking and transportation.

Netwrap Round Baler Specifications

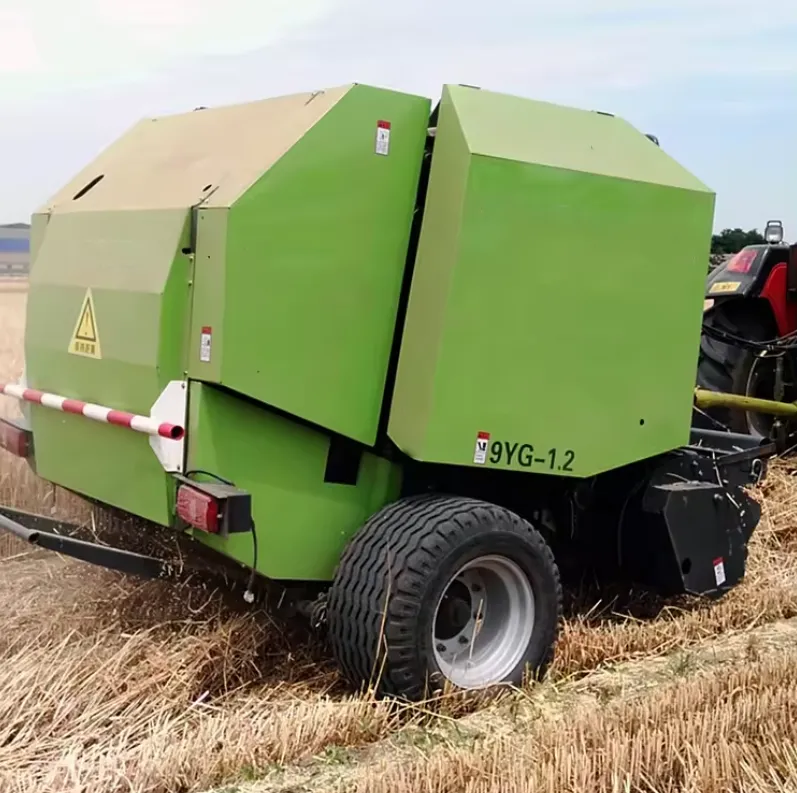

Model	9YG-1.2
Pickup width	2100mm
Feeding open	1200mm
Roller speed	124r/min
Roller number	16
Cutting device	16 blades
Bale method	net
Bale weight	200-400kgs
Bale size	Φ1300x1200
Overall size	4290x2830x2400
weight	3000kgs

Superior Features of the Netwrap Round Baler

Our Netwrap Round Baler offers a plethora of advantages that sets it apart in the agricultural machinery market. Here are its six standout features:

• High Productivity: With a capacity of 12-30 bales per hour and a bale weight between 200-400kgs/bale, this baler ensures maximum output.
• Core Components: The motor and pump, the core components of the baler, are designed for robust performance and longevity.
• Warranty: A 1-year warranty is provided for the baler, with a 3-year warranty for core components, ensuring peace of mind for our customers.
• After-sales Service: Our comprehensive after-sales service includes overseas third-party support, video technical support, and online support.
• Versatile Applications: The baler is suitable for a wide variety of crops, including hay, alfalfa, wheat, and rice.
• Dimensions and Weight: With a dimension of 4200x2880x2300mm and a weight of 3020 kg, the baler is compact yet powerful.

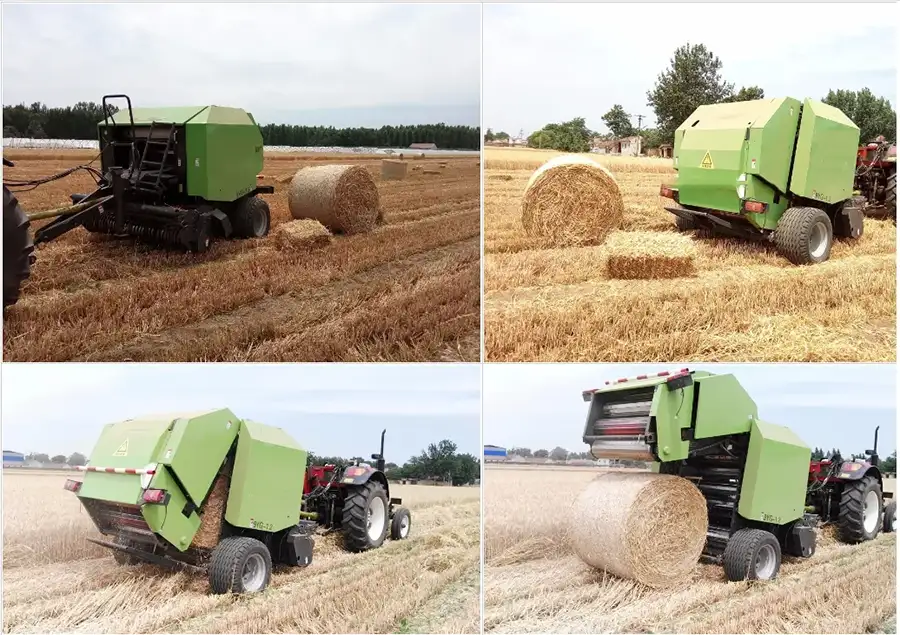

Netwrap Round Baler Common Applications

The versatility of the Netwrap Round Baler allows it to be used for various agricultural applications. Here are six key applications:

1. Hay Baling: The baler is perfect for compressing hay into compact, easy-to-handle round bales.
2. Alfalfa Baling: Alfalfa, a key feed crop for livestock, can be efficiently baled using this machinery.
3. Wheat Straw Baling: The baler is capable of baling wheat straw, making it easier to store and transport.
4. Rice Straw Baling: Rice straw, often left as agricultural waste, can be conveniently baled for easier disposal or use in other applications.
5. Silage Baling: The baler is suitable for baling silage for livestock feeding during winter or drought conditions.
6. Other Crop Residues: Other crop residues can also be baled using this machine, aiding in waste management on farms.

Working Principle of the Tractor Mounted Large Round Baler

A tractor-mounted large round baler is a machine that is attached to a tractor and operated using the tractor's PTO. It is the agricultural equipment used to compress cut crops, such as hay, straw, or silage, into compact, large round bales that are easy to handle, transport, and store.

1. Attachment to the Tractor: The large round baler is connected to the tractor using a three-point hitch or a drawbar hitch. The hitch ensures a secure connection between the baler and the tractor, allowing them to work together.
2. Collection of Hay: The baler is equipped with a pickup mechanism, usually located at the front or side of the machine. The pickup mechanism consists of rotating tines or augers that gather the loose hay from the ground and feed it into the baling chamber. The pickup width can vary depending on the model.
3. Feeding into the Baling Chamber: As the pickup mechanism collects the hay, it transfers it to the baling chamber. The hay is guided into the chamber, where it starts to accumulate.
4. Bale Formation: Inside the baling chamber, the baler has belts or rollers that rotate, compacting the hay and forming it into a cylindrical bale. The pressure exerted by the belts or rollers creates a tightly packed bale.
5. Bale Size Adjustment: Most large round balers allow for the adjustment of bale size. This can be done by changing the settings on the baler, which control the length and density of the bale. The operator can set the desired bale size based on their specific requirements.
6. Bale Wrapping: Once the bale reaches the desired size, the baler applies twine or net wrap around the bale to secure it. Twine or net wrap is fed into the baler and is automatically wrapped around the bale as it rotates within the baling chamber. This ensures that the bale remains intact and prevents it from unraveling.

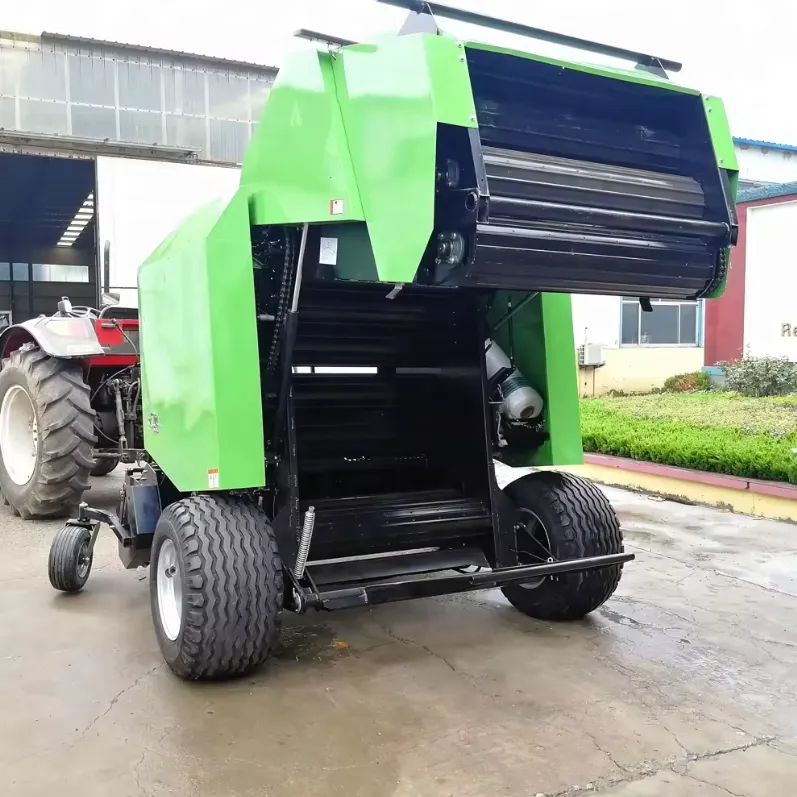

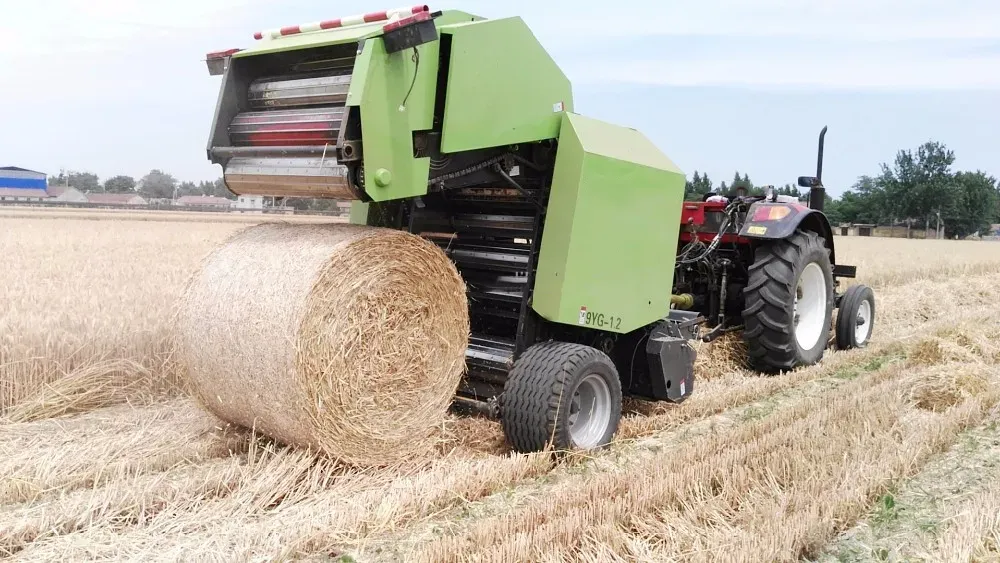

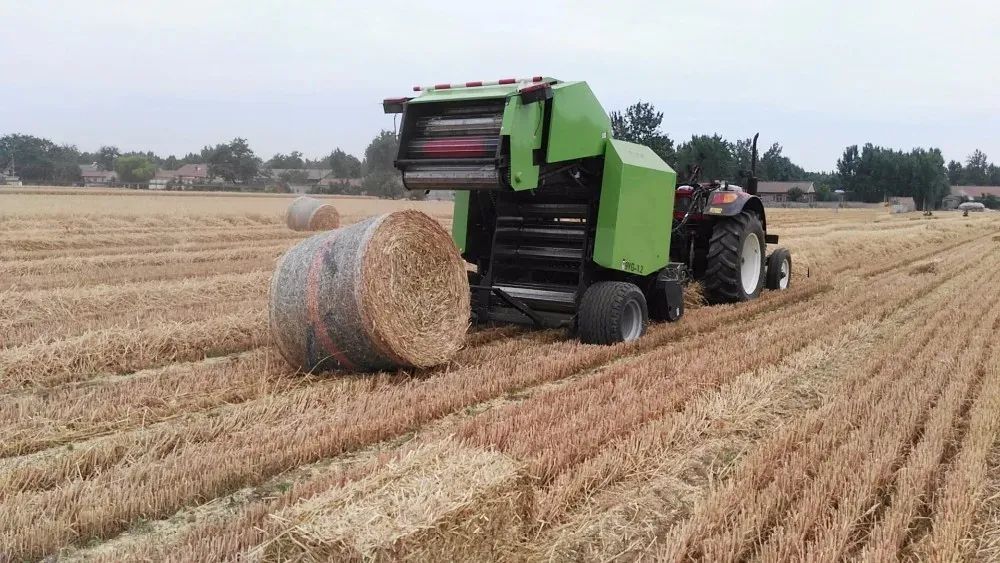

7. Bale Ejection: Once the bale is wrapped, it is ready to be ejected from the baling chamber. The baler either drops the bale onto the ground, where it can be manually handled, or it may have a built-in bale ramp that allows for controlled unloading directly onto a bale wagon or trailer.

How to Install the Large Round Baler to Tractor?

Installing a large round baler to a tractor involves several steps to ensure a secure and proper attachment. Here's a general guide:

1. Position the Tractor and Align the Baler: Park the tractor on a level surface and engage the parking brake. Ensure the tractor is turned off and the PTO is disengaged for safety. Position the large round baler behind the tractor, ensuring it is aligned with the hitch. The baler should be centered and directly behind the tractor for proper balance and stability.
2. Attach the Baler to the Tractor: For a three-point hitch connection, align the tractor??s three-point hitch with the baler??s hitch points. Lift the hitch and secure the baler using the locking pins. For balers that connect via a drawbar, align the drawbar of the tractor with the hitch on the baler. Insert the hitch pin and secure it with a linchpin or locking device.
3. Connect the PTO Shaft: Align the PTO shaft from the baler with the PTO stub on the tractor. Ensure that the shaft splines are aligned correctly and slide the shaft onto the stub until it locks into place. Ensure that the PTO shaft is the correct length. The shaft should have enough slack to accommodate turns but not so much that it could become entangled or disengage.
4. Check the Attachment: Ensure that all hitch connections are secure and properly locked in place. Shake the baler gently to check for any excessive movement or looseness. If everything is properly attached, there should be minimal play between the tractor and the baler.
5. Verify Clearance: Check the clearance between the tractor and the baler, ensuring that there is enough space for the baler to operate smoothly without interference from the tractor's components.
6. Test the Connection: Once the baler is attached, start the tractor and engage the PTO. Verify that the PTO shaft on the tractor aligns with the PTO input on the baler. Make sure there is a smooth and proper rotation between the two. After the test run, conduct a final inspection to check for any issues or unusual wear. Ensure that all safety features of the baler are operational.

Netwrap Round Baler Common Troubleshooting

Troubleshooting common issues with a tractor-mounted large round baler is essential for maintaining its efficiency and prolonging its operational life. Here is a guide to identifying and resolving some frequent problems:

• Baler Not Starting or Operating: If the baler is not starting or operating, check the Power Take-Off (PTO). Ensure the PTO is properly engaged. Check the PTO shaft connection between the tractor and baler for correct alignment and secure attachment. Verify that any electrical connections are secure and intact. Inspect fuses and wiring for damage.
• Irregular Bale Shape: If the bales are not forming properly, inspect the pickup mechanism. Ensure the pickup mechanism is not clogged with debris and is rotating freely. Check for bent or broken tines. Inadequate or uneven pressure in the baling chamber can cause misshapen bales. Too fast or too slow tractor speed during baling can affect bale formation. Adjust speed to recommended levels.
• Bale Density Issues: If the bales are not dense enough or too dense, check the tension or pressure settings on the baler. Adjust the settings to ensure proper bale density. Uneven or insufficient material feed into the baler can result in density issues. Ensure uniform feeding.
• Baler Knotting Problems: If the baler is not tying knots properly, check the twine or net wrap feed. Ensure there are no jams or entanglement. Ensure the spools are loaded correctly and that there??s sufficient twine/net wrap available. Inspect the knotter mechanism for cleanliness and proper operation. Clean and lubricate as necessary. Adjust the knotter settings if knots are not being tied correctly.
• Excessive Vibration: If the baler is vibrating excessively, check the driveline. Ensure the driveline between the tractor and baler is straight and correctly attached. Check the PTO shaft for damage or bending. Inspect moving parts, including bearings, chains, and gears, for wear or damage. Replace worn components as necessary.
