NK100-2B Standard Bore Sprocket

NK100-2B Standard Bore Sprocket

What is a standard bore sprocket?

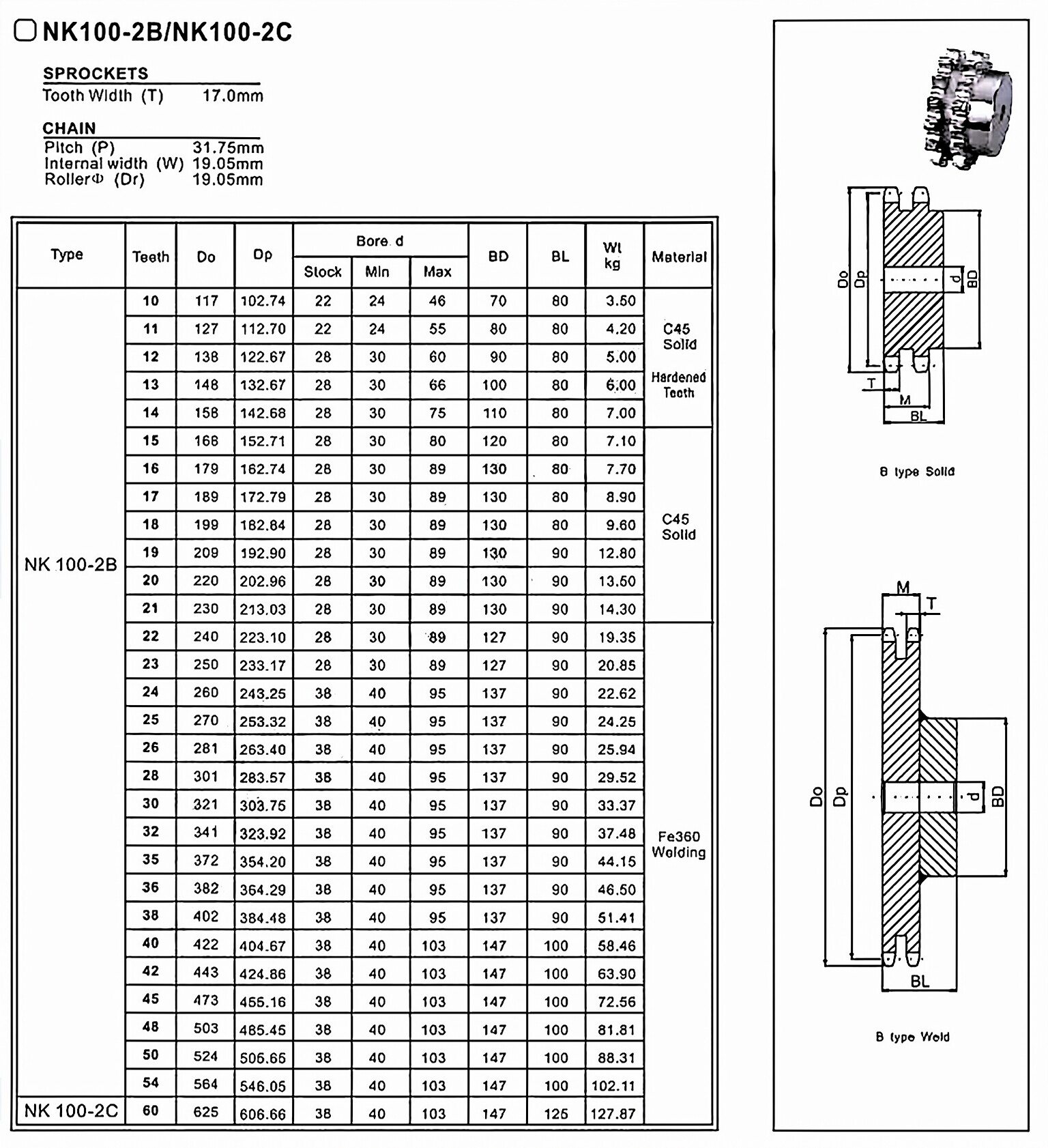

A standard bore sprocket is a type of sprocket that is designed with a standard-sized bore. It is commonly used in power transmission systems to transfer motion and torque between rotating shafts and chains. The selection table below shows the various options available for the NK100-2B sprocket:

Basic Structure and Customization of Sprockets

To customize a sprocket, several factors need to be determined, including material, tooth profile, number of teeth, dimensions, center bore, keyway, and surface treatment. Here's a detailed explanation of each point:1. Material: The sprocket can be made from high carbon steel, alloy steel, or stainless steel, depending on the specific application requirements.2. Tooth Profile: The shape of the sprocket teeth can vary, such as involute, trapezoidal, or special profiles, to ensure efficient power transmission.3. Number of Teeth: The number of teeth on the sprocket determines the speed ratio and torque transmission capability.4. Dimensions: The dimensions of the sprocket, including outer diameter, pitch diameter, and hub diameter, need to be specified for proper fitment.5. Center Bore: The center bore is the hole in the center of the sprocket that fits onto the shaft. It needs to be accurately sized to ensure a secure connection.6. Keyway: If required, a keyway can be added to the sprocket to provide additional stability and prevent rotation on the shaft.7. Surface Treatment: The sprocket can undergo various surface treatments, such as heat treatment, quenching, tempering, and surface hardening, to enhance its durability and resistance to wear and corrosion.

Materials and Manufacturing Processes

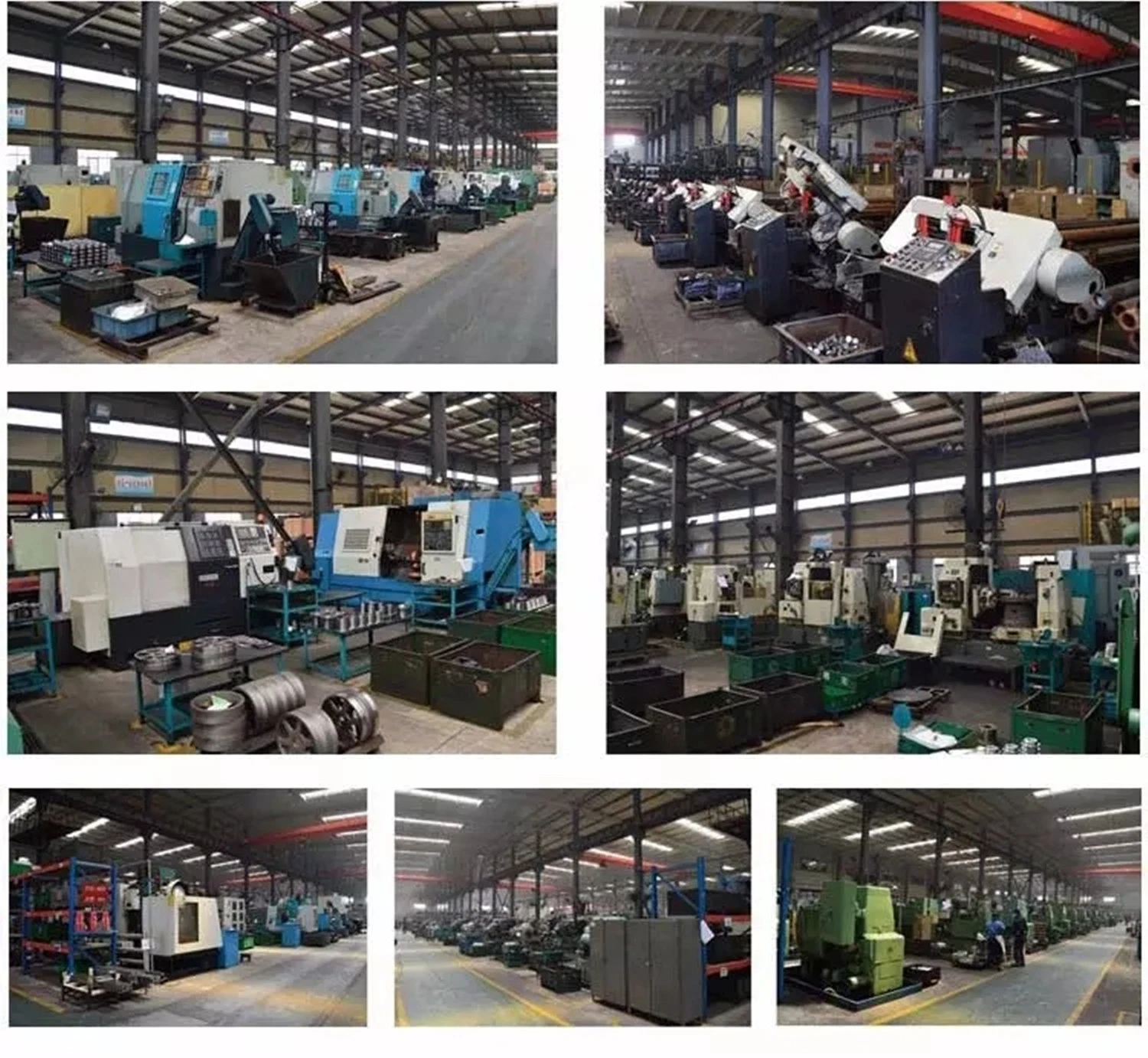

Our sprockets are manufactured using high-quality materials and advanced manufacturing processes. Here's an explanation of the materials and processes involved:1. Material: We utilize high carbon steel, alloy steel, or stainless steel, depending on the specific requirements of the sprocket.2. Manufacturing Processes: The sprocket manufacturing process includes material selection, cutting, stamping, forging, machining (turning, milling, drilling), heat treatment (quenching, tempering), surface hardening, surface treatment (anti-rust coating), and quality testing.

Applications

Sprockets find applications in various industries and environments, including:1. Heavy Machinery and Equipment: Sprockets are used in heavy machinery and equipment to transfer power and motion efficiently.2. Food Processing and Packaging: Sprockets are employed in food processing and packaging machinery to ensure smooth and reliable operation.3. Chemical and Pharmaceutical: Sprockets are utilized in chemical and pharmaceutical manufacturing processes for efficient material handling and production.4. Assembly Lines: Sprockets play a crucial role in assembly line systems to synchronize and control the movement of components.5. Logistics and Warehousing: Sprockets are used in conveyor systems for efficient material transportation and storage.

Maintenance and Troubleshooting

To ensure optimal performance and longevity of the sprocket, regular maintenance and troubleshooting are essential. Here are the key points to consider:1. Daily Inspection: Regularly inspect the sprocket for signs of wear, damage, or misalignment.2. Cleaning: Clean the sprocket to remove dirt, debris, and grease buildup.3. Lubrication: Apply lubrication to the sprocket to reduce friction and prevent premature wear.4. Adjustment and Calibration: Periodically adjust and calibrate the sprocket to maintain proper tension and alignment.5. Common Issues and Solutions: Some common problems include tooth skipping, breakage, wear, excessive noise, and chain slippage. Each issue has its corresponding solution, which should be implemented promptly to avoid further damage.

Other Types of Sprockets

In addition to the NK100-2B Standard Bore Sprocket, we also offer other types of sprockets, such as platewheel sprockets, idler sprockets, QD sprockets, and taper lock sprockets. These sprockets are designed to cater to specific applications and requirements.

Author: Miya
