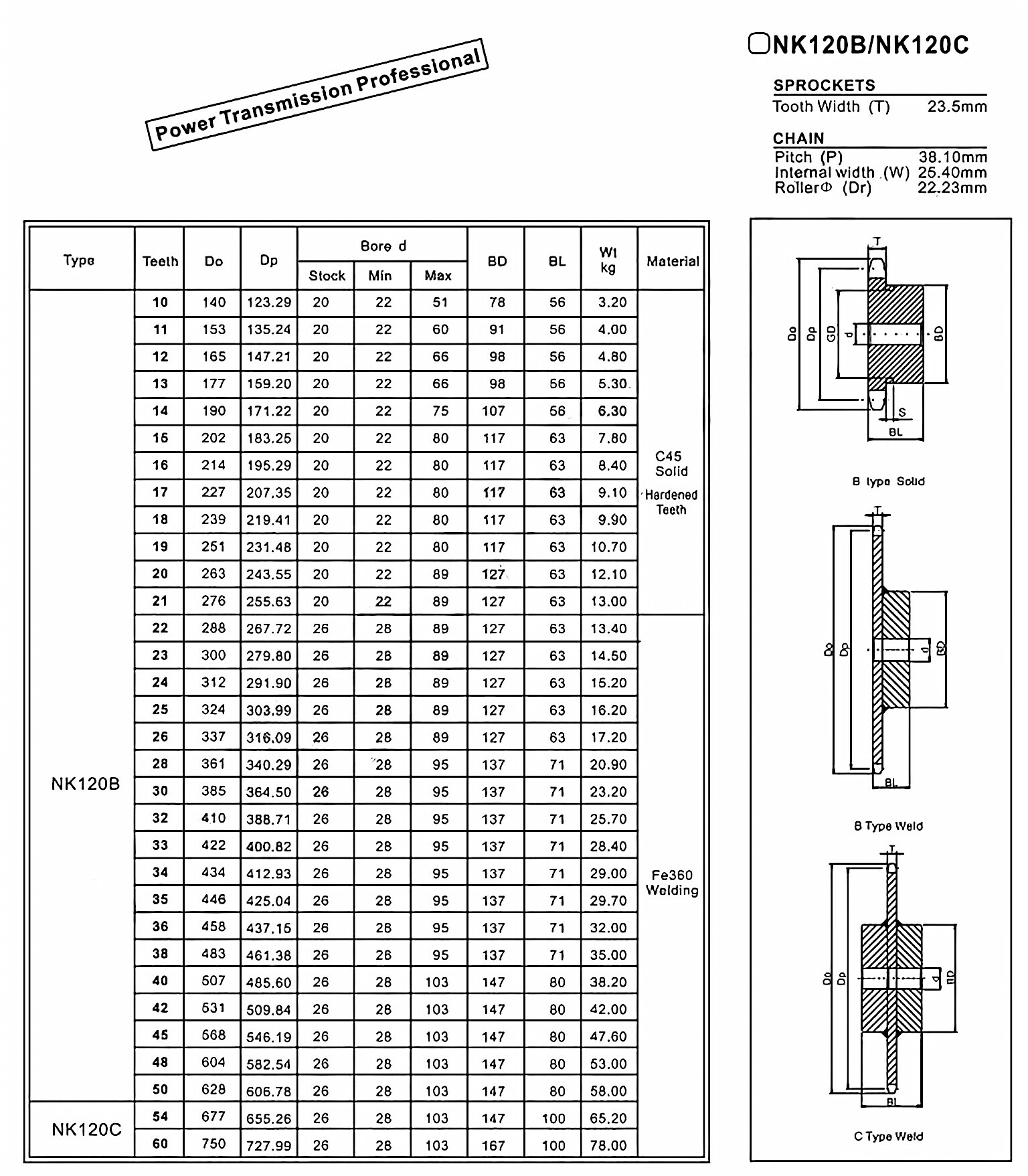

NK120C Standard Bore Sprocket

NK120C Standard Bore Sprocket

Introduction to Standard Bore Sprocket

A standard bore sprocket is a type of sprocket used in various mechanical systems. It is designed to transmit rotary motion between two shafts or components using a chain. The standard bore sprocket is commonly used in industries such as heavy machinery and equipment, food processing and packaging, chemical and pharmaceutical, assembly lines, logistics, and warehousing.

Structure of Sprocket

A standard bore sprocket consists of several essential components that need to be determined when customizing it:

• Material: The sprocket can be made of high carbon steel, alloy steel, or stainless steel, depending on the specific requirements of the application.
• Tooth Profile: The shape of the teeth on the sprocket determines the engagement with the chain.
• Number of Teeth: The number of teeth on the sprocket affects the ratio and speed of the motion transmitted.
• Dimensions: The overall size and diameter of the sprocket determine its compatibility with the system.
• Center Bore: The center hole of the sprocket is where it mounts onto the shaft.
• Keyway: The keyway is a groove in the center bore that allows for secure attachment to the shaft using a key.
• Surface Treatment: The sprocket can undergo surface treatments such as rust prevention to enhance its durability.

Materials and Manufacturing Process

Our sprockets are made from high-quality materials and undergo various manufacturing processes to ensure their reliability and performance:

• Material: We use high carbon steel, alloy steel, or stainless steel depending on the specific requirements of the application.
• Manufacturing Process: The manufacturing process involves material selection, cutting, stamping, forging, machining, heat treatment (quenching, tempering, and surface hardening), surface treatment (rust prevention), and quality testing.

Applications

Standard bore sprockets find applications in various industries:

• Heavy Machinery and Equipment
• Food Processing and Packaging
• Chemical and Pharmaceutical
• Assembly Lines
• Logistics and Warehousing

Maintenance and Care

To ensure the longevity and optimal functioning of the sprocket, regular maintenance and care are necessary:

• Daily Inspection: Regularly inspect the sprocket for wear, damage, or misalignment.
• Cleaning: Keep the sprocket clean from dirt, debris, and lubricant buildup.
• Lubrication: Properly lubricate the sprocket to reduce friction and wear.
• Adjustment and Calibration: Periodically adjust and calibrate the sprocket to maintain its proper positioning and alignment.

Common issues that may arise with sprockets include tooth skipping, breakage, wear, excessive noise, and chain detachment. Here are some solutions for these common problems:

• Tooth Skipping: Check for proper alignment and tension of the chain, and replace any worn or damaged components.
• Breakage: Inspect the sprocket for any signs of cracks or damage, and replace it if necessary.
• Wear: Regularly monitor the sprocket for signs of wear, and replace it when the teeth become excessively worn.
• Excessive Noise: Ensure proper lubrication and alignment of the sprocket, and check for any loose or damaged parts.
• Chain Detachment: Verify that the chain is properly tensioned and aligned, and replace any damaged or worn components.

Other Types of Sprockets

In addition to the NK120C Standard Bore Sprocket, we also offer various other types of sprockets:

• Platewheel Sprocket
• Idler Sprocket
• QD Sprocket
• Taper Lock Sprocket

Author: Miya
