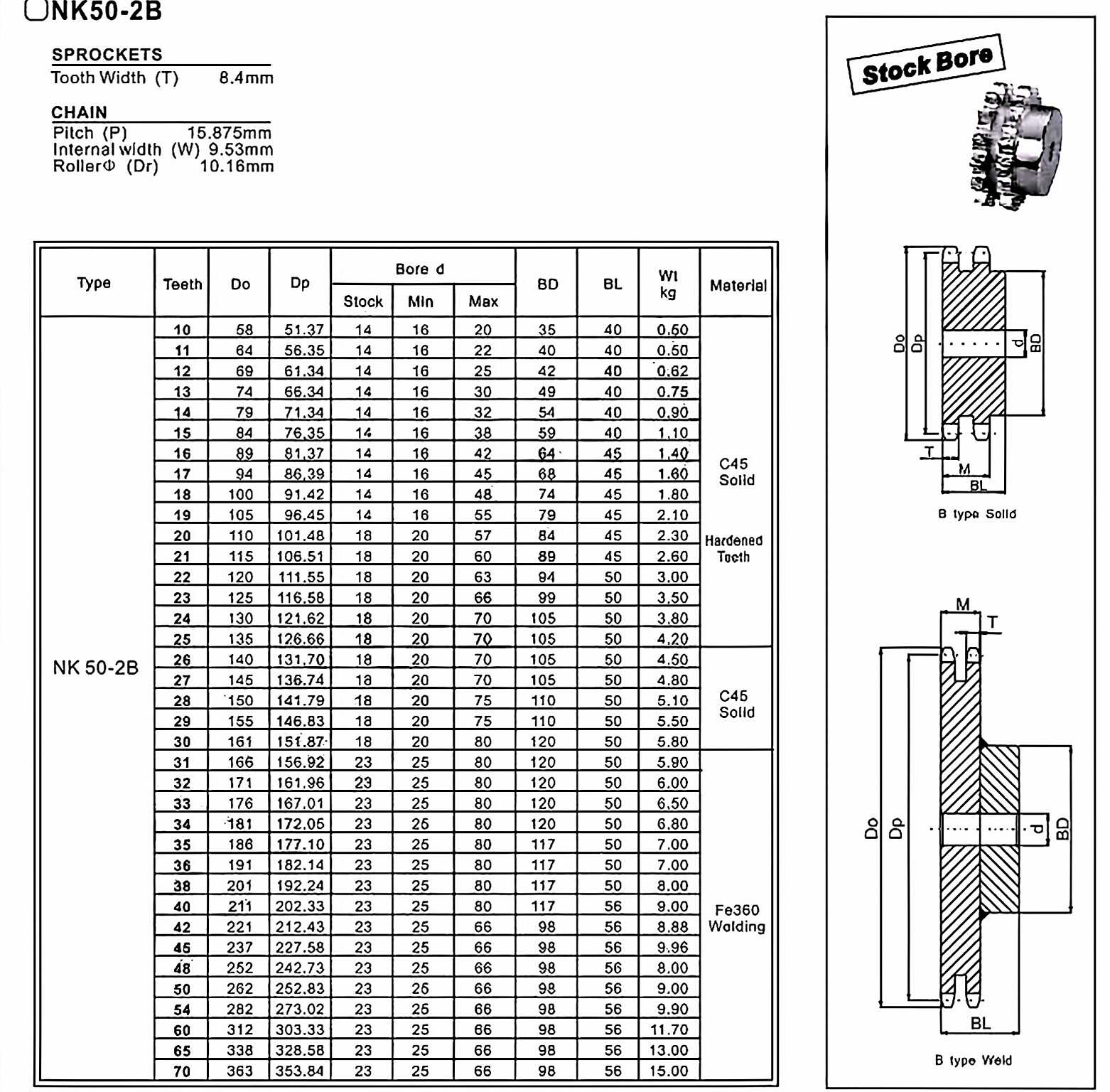

NK50-2B Standard Bore Sprocket

NK50-2B Standard Bore Sprocket

What is a standard bore sprocket?

A standard bore sprocket is a type of mechanical gear that is used in various applications to transmit motion between two shafts by means of a chain. It consists of a circular disc with teeth, which meshes with the chain to transfer rotational power. The standard bore sprocket is designed with a pre-drilled hole, known as the bore, to fit onto a specific shaft diameter.

Basic Structure and Customization of Sprockets

When customizing a sprocket, there are several factors to consider:

1. Material: The material used for the sprocket can vary depending on the specific application requirements. Common materials include high carbon steel, alloy steel, or stainless steel.
2. Tooth Profile: The tooth shape of the sprocket can be customized to optimize the chain engagement and improve performance.
3. Number of Teeth: The number of teeth on the sprocket determines the speed ratio and torque transmission capabilities.
4. Dimensions: The overall size of the sprocket, including its outer diameter and thickness, is crucial for proper fit and functionality.
5. Bore Size: The bore size should match the shaft diameter to ensure a secure fit and efficient power transfer.
6. Keyway: If necessary, a keyway can be added to the bore to provide extra stability and prevent rotational slip.
7. Surface Treatment: The sprocket can undergo various surface treatments, such as rust prevention, to enhance its durability and performance.

Materials and Manufacturing Process

Our sprockets are made from high-quality materials and undergo a precise manufacturing process:

1. Material: We use high carbon steel, alloy steel, or stainless steel, depending on the specific application requirements.
2. Manufacturing Process: The manufacturing process includes material selection, cutting, stamping, forging, machining (turning, milling, drilling), heat treatment (quenching, tempering), surface hardening, rust prevention, and quality testing.

Applications

Our sprockets are suitable for various applications:

• Heavy Machinery and Equipment
• Food Processing and Packaging
• Chemical and Pharmaceutical Industries
• Assembly Lines
• Logistics and Warehousing

Maintenance and Troubleshooting

Proper maintenance and troubleshooting are essential for the smooth operation of sprockets. Here are some key points:

1. Daily Inspection: Regularly check the sprocket for any signs of damage, wear, or misalignment.
2. Cleaning: Keep the sprocket clean to prevent dirt and debris from affecting its performance.
3. Lubrication: Apply appropriate lubricants to reduce friction and ensure smooth chain movement.
4. Adjustment and Calibration: Periodically adjust and calibrate the sprocket to maintain optimal chain tension and alignment.

Common Problems and Solutions:

1. Skipping Teeth: Check for worn-out or damaged teeth and replace the sprocket if necessary.
2. Breakage: Inspect the sprocket for any cracks or fractures and replace it immediately.
3. Wear: If the sprocket shows signs of excessive wear, replace it to prevent further damage to the chain and other components.
4. Excessive Noise: Noise can indicate a misalignment or lack of lubrication. Adjust and lubricate the sprocket accordingly.
5. Chain Disengagement: Ensure that the chain is properly tensioned and aligned with the sprocket. Replace any damaged or worn-out chain links.

Other Types of Sprockets and Chain Combinations

In addition to NK50-2B Standard Bore Sprockets, we also offer other types of sprockets:

• Platewheel Sprocket
• Idler Sprocket
• QD Sprocket
• Taper Lock Sprocket

We also provide a wide range of compatible chains for these sprockets.

Author: Miya
