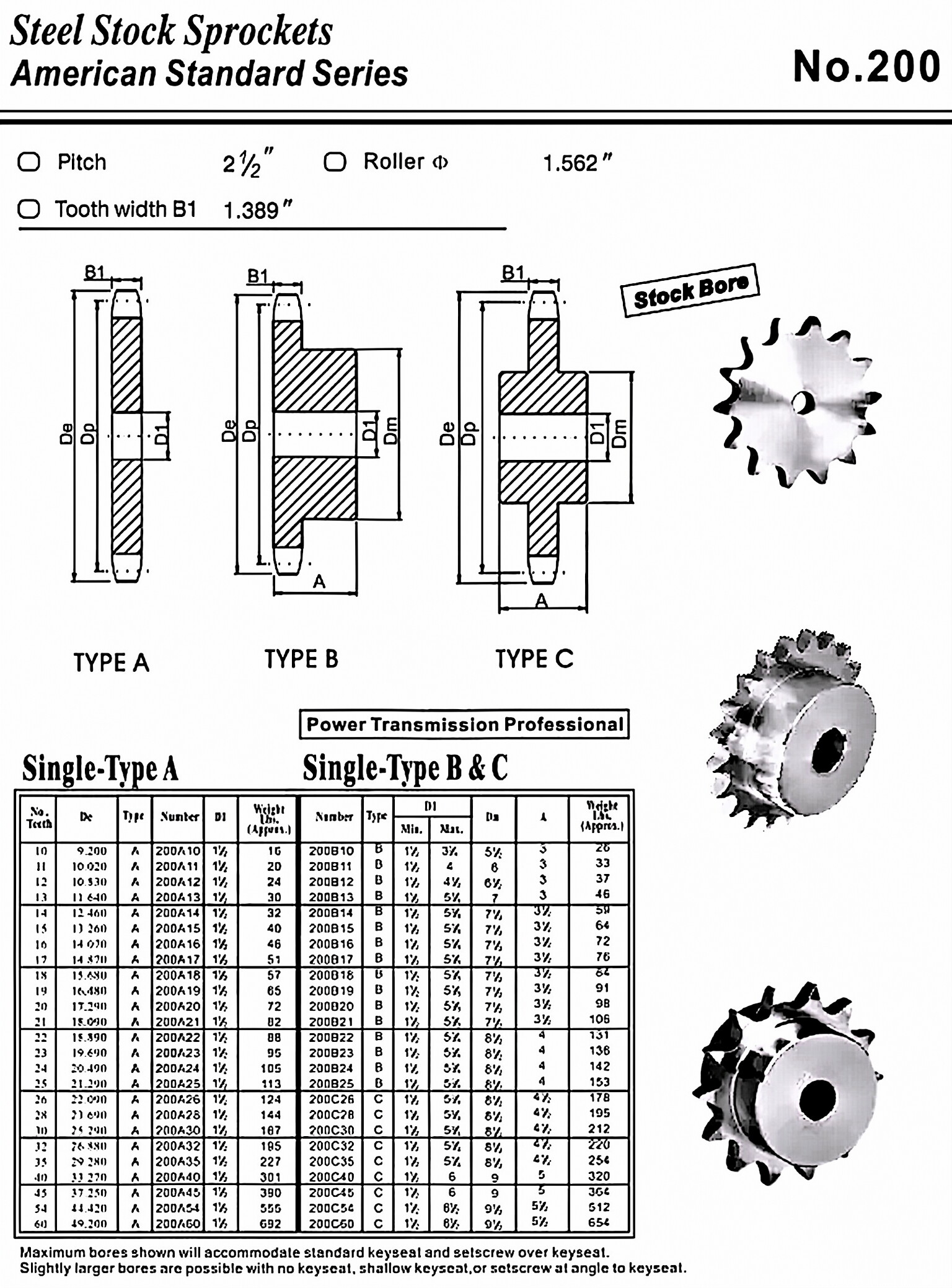

No.200 Standard Bore Sprocket

No.200 Standard Bore Sprocket

Introduction

A standard bore sprocket is a type of sprocket that is widely used in various industries. It is commonly used to transmit rotary motion between two shafts by means of a roller chain. The No.200 Standard Bore Sprocket is a specific type of standard bore sprocket that has its own unique specifications and characteristics.

Basic Structure and Customization

A standard bore sprocket consists of a circular disc with teeth that mesh with the links of a roller chain. In order to customize a standard bore sprocket, several factors need to be determined:

• Material: The material used for the sprocket can be high carbon steel, alloy steel, or stainless steel. Each material has its own advantages and suitability for different applications.
• Tooth Profile: The tooth profile of the sprocket determines how the chain engages with the sprocket. Common types of tooth profiles include involute, sprocket tooth, and hunting tooth.
• Number of Teeth: The number of teeth on the sprocket determines the speed ratio between the driving and driven shafts.
• Dimensions: The dimensions of the sprocket, such as the outer diameter and thickness, need to be specified based on the requirements of the application.
• Bore Size: The bore size refers to the diameter of the center hole of the sprocket, which needs to match the diameter of the shaft it will be mounted on.
• Keyway: The keyway is a slot on the bore of the sprocket that allows it to be securely attached to the shaft using a key.
• Surface Treatment: The surface of the sprocket can be treated to enhance its durability and resistance to corrosion. Common surface treatments include rust prevention coatings and hardening processes.

Material and Manufacturing Process

Our sprockets are made from high carbon steel, alloy steel, or stainless steel, depending on the specific requirements of the application. The manufacturing process involves various steps:

• Material Selection: The appropriate material is chosen based on factors such as strength, wear resistance, and corrosion resistance.
• Cutting and Stamping: The selected material is cut and stamped into the desired shape.
• Machining: The sprocket undergoes machining processes such as turning, milling, drilling, and tapping to achieve the required dimensions and tooth profile.
• Heat Treatment: The sprocket is heat treated through processes like quenching, tempering, and surface hardening to improve its hardness and strength.
• Surface Treatment: The sprocket's surface is treated with anti-rust coatings to protect it from corrosion.
• Quality Inspection: Each sprocket undergoes rigorous quality inspection to ensure its dimensional accuracy and mechanical properties.

Applications

The No.200 Standard Bore Sprocket finds applications in various industries, including:

• Heavy Machinery and Equipment: Sprockets are used in heavy machinery to transfer power and motion.
• Food Processing and Packaging: Sprockets are used in conveyors and packaging equipment in the food industry.
• Chemical and Pharmaceutical: Sprockets are used in chemical processing equipment and pharmaceutical machinery.
• Assembly Lines: Sprockets are essential components in assembly lines for manufacturing products.
• Logistics and Warehousing: Sprockets are used in conveyor systems for material handling and storage.

Maintenance and Troubleshooting

Proper maintenance and care are crucial for the optimal performance and longevity of sprockets. The following maintenance practices should be followed:

• Daily Inspection: Regularly inspect the sprocket for any signs of damage, wear, or misalignment.
• Cleaning: Keep the sprocket clean and free from dirt, debris, and lubricant build-up.
• Lubrication: Apply appropriate lubrication to the sprocket to reduce friction and prevent premature wear.
• Adjustment and Calibration: Periodically check and adjust the tension and alignment of the roller chain.

Common problems that may arise with sprockets include tooth skipping, breakage, wear, excessive noise, and chain disengagement. Here are possible solutions for each problem:

• Tooth Skipping: Check for misalignment or wear in the chain and sprocket. Replace any worn or damaged components.
• Breakage: Inspect the sprocket for cracks or signs of fatigue. Replace the sprocket if necessary.
• Wear: Regularly monitor the wear of the sprocket teeth and replace the sprocket when the wear exceeds acceptable limits.
• Excessive Noise: Examine the chain tension and alignment. Adjust or replace components as needed.
• Chain Disengagement: Ensure that the chain is properly tensioned and that all connections are secure.

Other Types of Sprockets

In addition to the No.200 Standard Bore Sprocket, we also offer a range of other sprockets, such as platewheel sprockets, idler sprockets, QD sprockets, and taper lock sprockets. These sprockets can be paired with compatible chains for various applications.

Author: Miya
