No.80-2 Standard Bore Sprocket

No.80-2 Standard Bore Sprocket

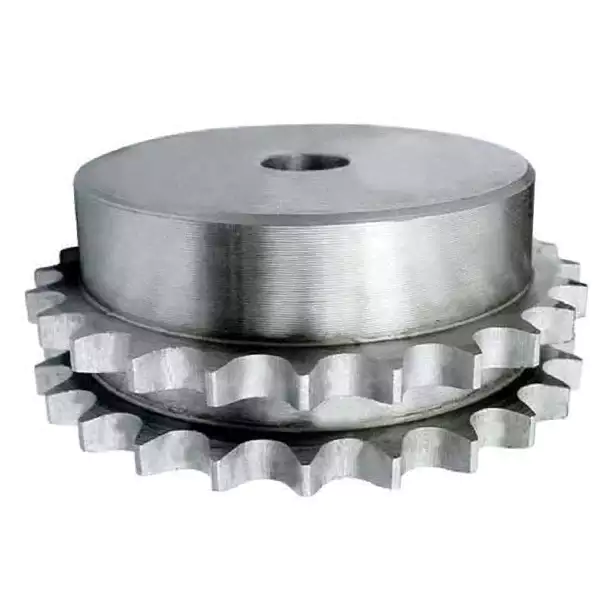

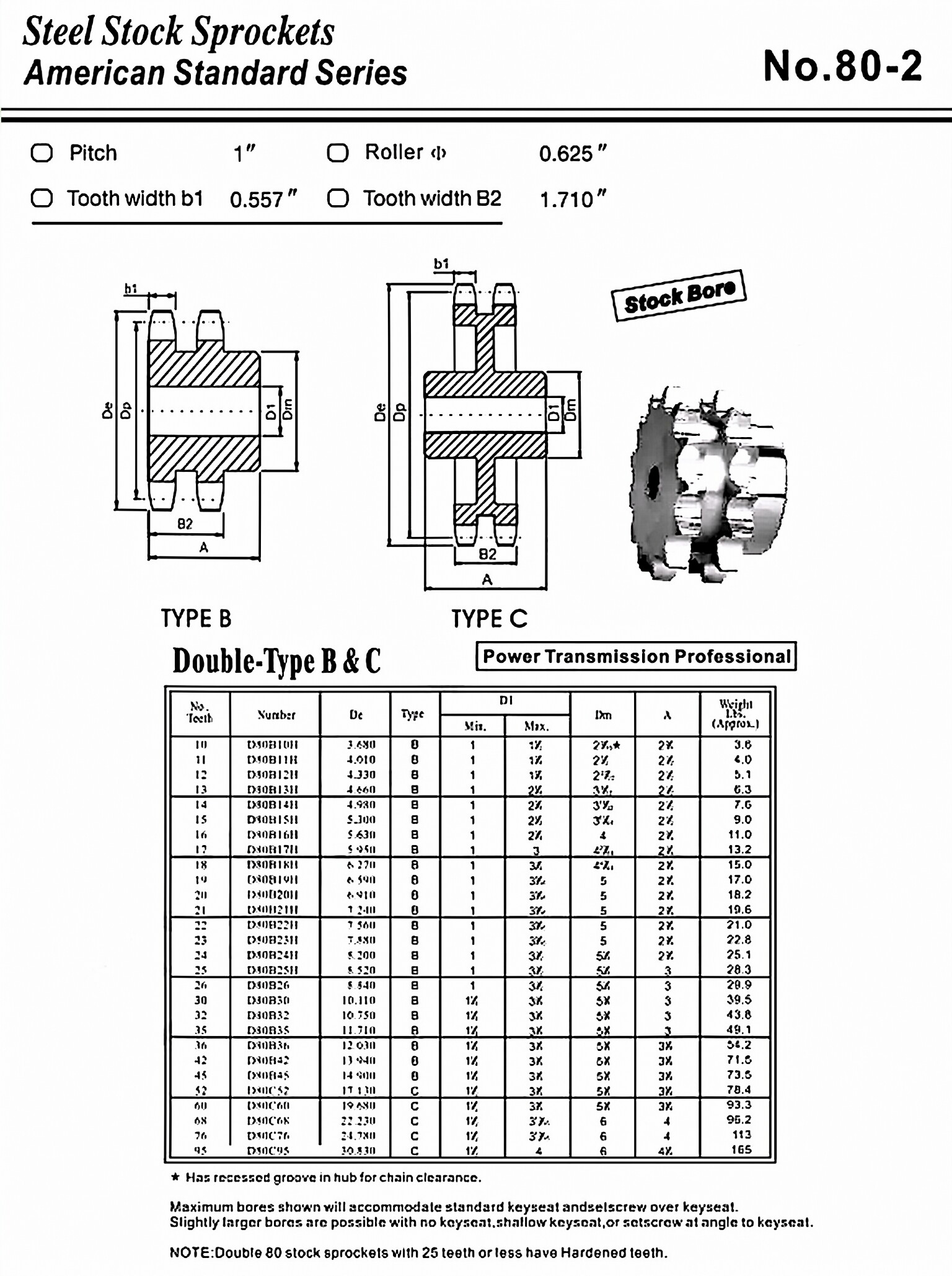

A standard bore sprocket is a mechanical wheel with teeth or cogs that interlock with the links of a chain in order to transmit power and motion between rotating shafts. The No.80-2 Standard Bore Sprocket is a type of standard bore sprocket that has a pitch of 1 inch, a double strand, and a bore diameter of 2 inches. It is commonly used in heavy-duty applications that require high strength and durability.

Basic Structure of a Sprocket

A sprocket consists of three main parts: the hub, the teeth, and the bore. The hub is the central part of the sprocket that connects it to the shaft. The teeth are the protruding parts of the sprocket that engage with the chain. The bore is the hole in the center of the sprocket that fits over the shaft.

When customizing a sprocket, several factors need to be determined, such as the material, tooth profile, number of teeth, dimensions, bore size, keyway, and surface treatment. Each of these factors is critical in ensuring the proper fit and function of the sprocket.

• Material: The No.80-2 Standard Bore Sprocket can be made from high carbon steel, alloy steel, or stainless steel.
• Manufacturing Process: The sprocket is produced by a series of processes including material selection, cutting, punching, forging, machining, heat treatment, surface hardening, surface treatment, and quality inspection.
• Tooth Profile: The shape of the teeth determines how well the sprocket can engage with the chain. The No.80-2 Standard Bore Sprocket has a standard tooth profile that is compatible with most chains.
• Number of Teeth: The number of teeth on the sprocket determines the speed and torque of the driven shaft.
• Dimensions: The dimensions of the sprocket need to be carefully chosen to match the chain and the application.
• Bore Size: The bore size of the sprocket should match the diameter of the shaft it will be mounted on.
• Keyway: The keyway is the slot in the bore of the sprocket that allows a key to be inserted to prevent the sprocket from rotating on the shaft.
• Surface Treatment: The surface treatment of the sprocket can include coatings, platings, or other treatments to improve corrosion resistance, wear resistance, or lubrication.

Applications

The No.80-2 Standard Bore Sprocket is used in a wide range of heavy-duty applications such as heavy machinery and equipment, food processing and packaging, chemical and pharmaceutical processing, assembly lines, and logistics and warehousing.

Maintenance and Troubleshooting

Proper maintenance and inspection are necessary to ensure the longevity and reliable operation of the sprocket. Here are some general tips for maintaining a sprocket:

• Daily Inspection: Check the sprocket for signs of wear, damage, or misalignment.
• Cleaning: Keep the sprocket clean and free of debris and contaminants.
• Lubrication: Apply the appropriate lubricant to the sprocket to reduce friction and wear.
• Adjustment and Calibration: Regularly adjust and calibrate the sprocket and chain to ensure proper tension, alignment, and engagement.

Common problems that can occur with a sprocket include tooth skipping, breakage, wear, noise, and chain disengagement. Each of these issues can have several root causes, but here are some general solutions:

• Tooth Skipping: Increase the tension of the chain or replace the sprocket if the teeth are damaged or worn.
• Breakage: Replace the sprocket if it is cracked, bent, or otherwise damaged.
• Wear: Replace the sprocket if the teeth are worn down or the bore is elongated or worn.
• Noise: Check the alignment and tension of the chain, and replace the sprocket if it is damaged or worn.
• Chain Disengagement: Check the tension and alignment of the chain, and replace the sprocket if it is damaged or worn.

Other Types of Sprockets

In addition to the No.80-2 Standard Bore Sprocket, we also offer other types of sprockets such as platewheel sprockets, idler sprockets, QD sprockets, taper lock sprockets, and more. We also provide matching chains for all our sprockets to ensure optimal performance and compatibility.

Author: Miya
