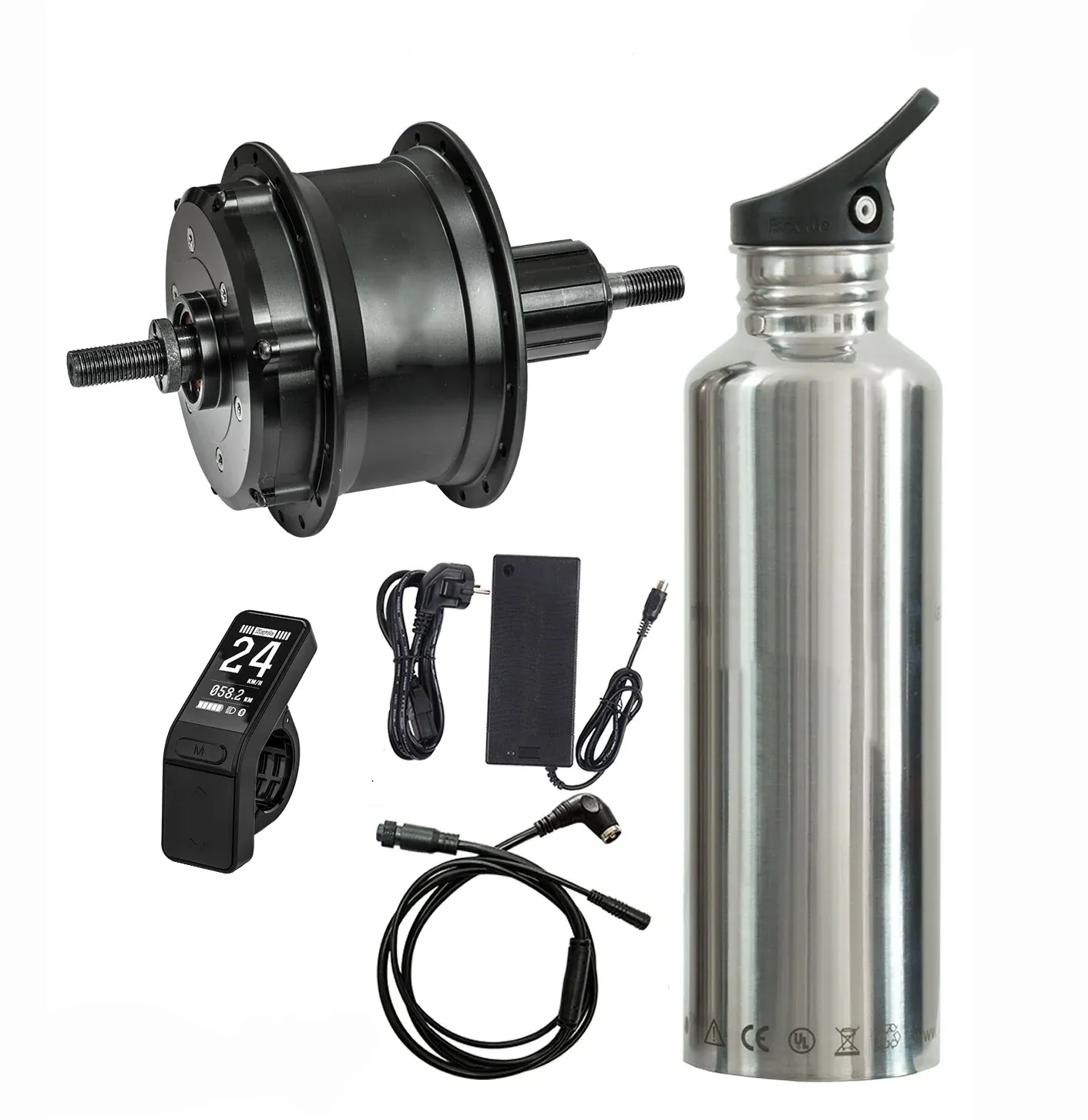

OLED130 Display for Electric Motor Kit

The OLED130 display for electric motor kit is a cutting-edge accessory designed to enhance your cycling experience. With its black color, OLED130 model number, and operating voltage of 33V/36V, this display is a critical part of any electric motor kit. Packaged in a carton box with bubble wrap for maximum protection, this product can be shipped from various ports including Shanghai, Ningbo, and Shenzhen.

Electric Bicycle OLED130 Display Specification

Specification	OLED130
Display Size (L×W×H mm)	75mm×47mm×35mm
Screen Size (inch)	1.3mm
Display Type	OLED
Holder Diameter (mm)	Φ22.2mm
Voltage (V)	24V / 33V/ 36V
Material	ABS/PA
Communication	UART
Show Info	PAS Level / Speed / Trip /ODO etc.
Error Info	Yes
Data Port	Wireless
Working Temperature (℃)	-20℃ ~ 60℃
Waterproof	IP65
Weight (g)	38g

Electric Bicycle OLED130 Display Dimension

Advantages of OLED130 Display

The OLED130 display comes with a host of benefits that make it an ideal choice for any electric bicycle enthusiast:

1. 1.3 inch OLED screen: The OLED screen is vibrant and offers excellent visibility, making it easy to read in various lighting conditions.
2. 2.5D shape craft: The 2.5D shape craft design gives this display a sleek, modern look that complements any bicycle design.
3. Minimalist style design: The OLED130 display has a minimalistic style that seamlessly blends with your bike's aesthetics.
4. Durable solid button: The display's button is solid and durable, designed to withstand frequent use.
5. Cycling data display: The OLED130 display provides a wide range of cycling data including speed, distance, time, battery life, and more.
6. Motor parameter setting: This feature allows cyclists to adjust the motor's parameters to suit their specific cycling needs.

Key Functions of the OLED130 Display

The OLED130 display is packed with a wide range of functions designed to enhance your cycling experience:

1. Easy operation: The OLED130 display features four buttons for easy operation.
2. Password Protected: To safeguard your settings, the OLED130 display requires a password to turn it on.
3. Km/miles: The display provides distance measurements in both kilometers and miles.
4. Speed display: The OLED130 display provides real-time, maximum, and average speed readings.
5. Power assist control: The display has six levels of power assist control, ranging from Level 0 to Level 5.
6. Battery BMS information: The display provides battery BMS information and under-voltage prompts.
7. Mileage display: The OLED130 display provides both total mileage (ODO) and subtotal mileage (TRIP).
8. Riding time display: The display shows the elapsed riding time (TRIP TIME).
9. UART communication port: The OLED130 display features a UART communication port (Micro USB) for system maintenance and parameter setting.
10. Error code indication: The OLED130 display provides error code indications for easy troubleshooting.

How Does the Electric Bike OLED Display Work?

1. OLED Structure: The OLED display is made up of several layers of organic materials sandwiched between two electrodes??an anode and a cathode.2. Electroluminescence: When an electric current is applied, light is emitted as a result of the collision of electrons and holes in the emissive organic layer.3. Organic Materials: These are carbon-based compounds that emit light when electrically stimulated, producing different colors of light.4. Pixel Arrangement: The OLED display consists of numerous tiny pixels, each of which can be controlled independently to create complex images and text.5. Electronic Control: A control circuit regulates the flow of electricity to each pixel, determining the brightness and color of the emitted light.6. Information Display: The display receives data from various sources and presents it to the rider in the form of numbers, icons, or graphs.7. User Interaction: The OLED display often incorporates touch-sensitive capabilities, allowing the rider to interact with the interface.

Choose the Right OLED Display for Electric Bicycle

When choosing the right OLED display for an electric bicycle, consider the following factors:1. Display Size: Choose a size that offers good visibility without obstructing your view while riding.2. Resolution: Higher resolution OLED displays provide sharper and more detailed images and text.3. Brightness and Contrast: Look for an OLED display with high brightness and contrast levels.4. Information and Features: Consider the type and amount of information you want the OLED display to provide.5. User Interface and Interaction: Evaluate the user interface and interaction options of the OLED display.6. Compatibility: Ensure that the OLED display is compatible with your electric bicycle's system.

Maintenance of OLED130 Display

To ensure the longevity and optimal performance of your OLED130 display, follow these maintenance practices:1. Clean the Display: Regularly clean the OLED display to remove dirt, dust, and smudges.2. Avoid Excessive Pressure: Avoid applying excessive pressure when cleaning or interacting with the OLED display.3. Protect from Impact: Take precautions to protect the OLED display from impacts or sudden shocks.4. Water and Moisture Resistance: Avoid prolonged exposure to water or heavy rain.5. Temperature Considerations: Avoid exposing the display to direct sunlight for prolonged periods.6. Firmware Updates: Check for firmware updates to improve performance, add features, or address any issues.

Why Choose Raydafon's Electric Bike OLED Display?

Raydafon Electric Technology Co Ltd. is a leader in the R&D, manufacturing, and worldwide marketing of high-end electric bicycle parts. Our products are designed and developed in-house and protected by a number of domestic and international intellectual property rights. With a complete quality management system, advanced production lines, and professional production and testing equipment, we ensure the reliability and quality of our products.We offer a wide range of products, including super-mini wireless motors, intelligent motors, water bottle battery, down tube battery, ALL-IN-ONE rear hub motors, P100/P110 rear hub motors, S100/S110 rear hub motors, ALL-IN-ONE front hub motors, P100/P110 front hub motors, S100/S110 front hub motors, ALL-IN-ONE rear hub motors, down tube battery, Wireless buttons, Wireless displays, and more. They are suitable for all kinds of bikes, providing electric power support while maximizing bicycles' original appearance and characteristics.At Raydafon, we are committed to fostering long-term and beneficial relationships with our customers, ensuring that we deliver quality products that meet and exceed their expectations.
