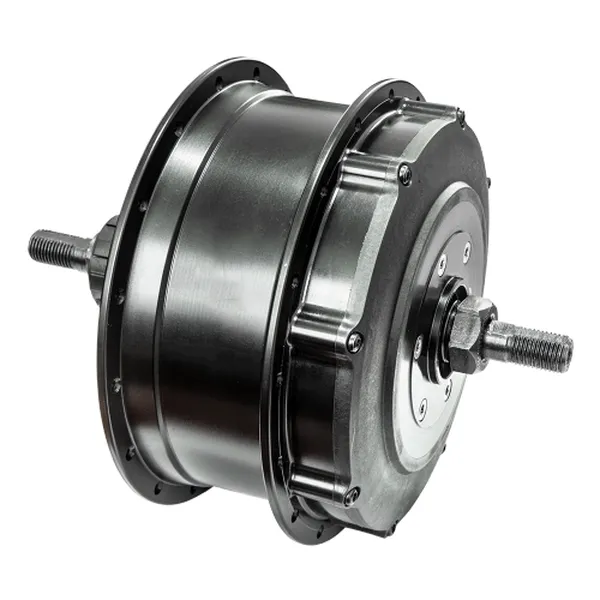

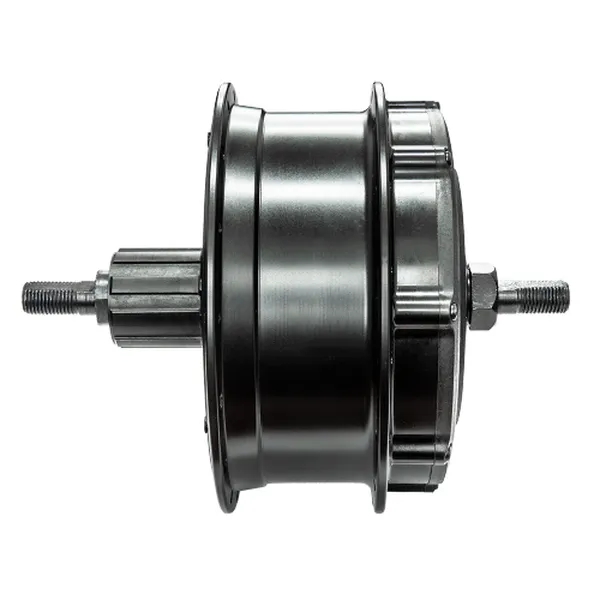

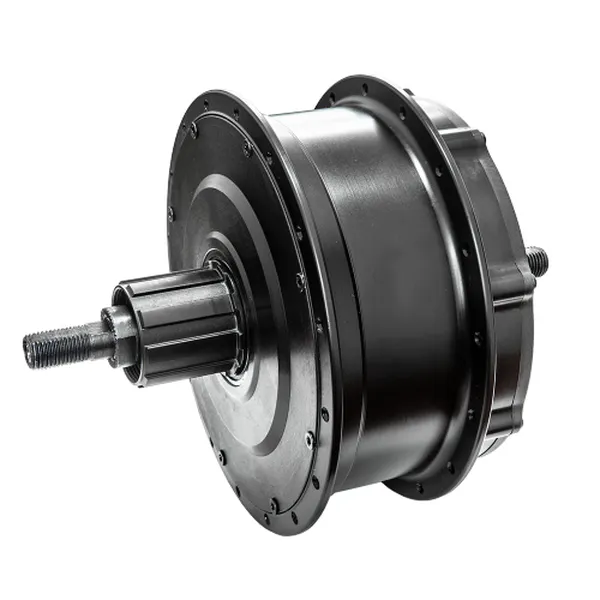

P130 ALL-IN-ONE Rear Hub Motor

P130 ALL-IN-ONE Rear Hub Motor

The P130 ALL-IN-ONE Rear Hub Motor is an advanced electric motor designed specifically for eBike systems. It is a compact and integrated solution that combines the motor, battery, controller, and sensors into a single unit, making it a convenient and efficient choice for electric bicycles.

P130 ALL-IN-ONE Rear Hub Motor Advantages:

P130 has the following advantages:1. The P130 motor is based on the P100 motor, with a built-in 210Wh battery, built-in controller and sensor.2. Built-in Bluetooth module, wireless connection, no need for any cables, easy installation.3. The dynamic torque sensing system is adapted to provide a better riding experience while ensuring riding safety.4. Ramp sensing system is used to optimize torque sensing. When going uphill, the electric motor automatically increases torque without pedaling hard.5. The work efficiency is as high as 90%, effectively reducing heat loss and increasing cruising range.6. All-in-one, but the weight is only 3.1kgs

P130 ALL-IN-ONE Rear Hub Motor Specification:

Item No.	P130SWXRDC30 / P130SWXRC30
Diameter	143mm±1mm
Width	135±2mm
Brake types	Disc brake/ V brake
Outlet position	No cable
Free-wheel types	Cassette & Whirl
Gears	1-12s
Spoke no.	20H，24H，28H，32H，36H
Spoke types	14g
Controller	Internal
Sensor	Internal
Battery	7Ah
Rated power	250W
Max. power	300W
Max. torque	30N·m
Rated voltage	30V
Rated input current	8.3A
Reduction ratio	1 : 13.5
Grade-ability	＞20%
Efficiency	＞90%
Revolution	160-260RPM
Applicable wheel diameter	14-29inch
Color	Black/Silver
Noise	＜50dB
Operation temperature	-20-45℃
Storage temperature	-20-45℃
Waterproof & Dust-proof	IP65
Weight	2.7KGS

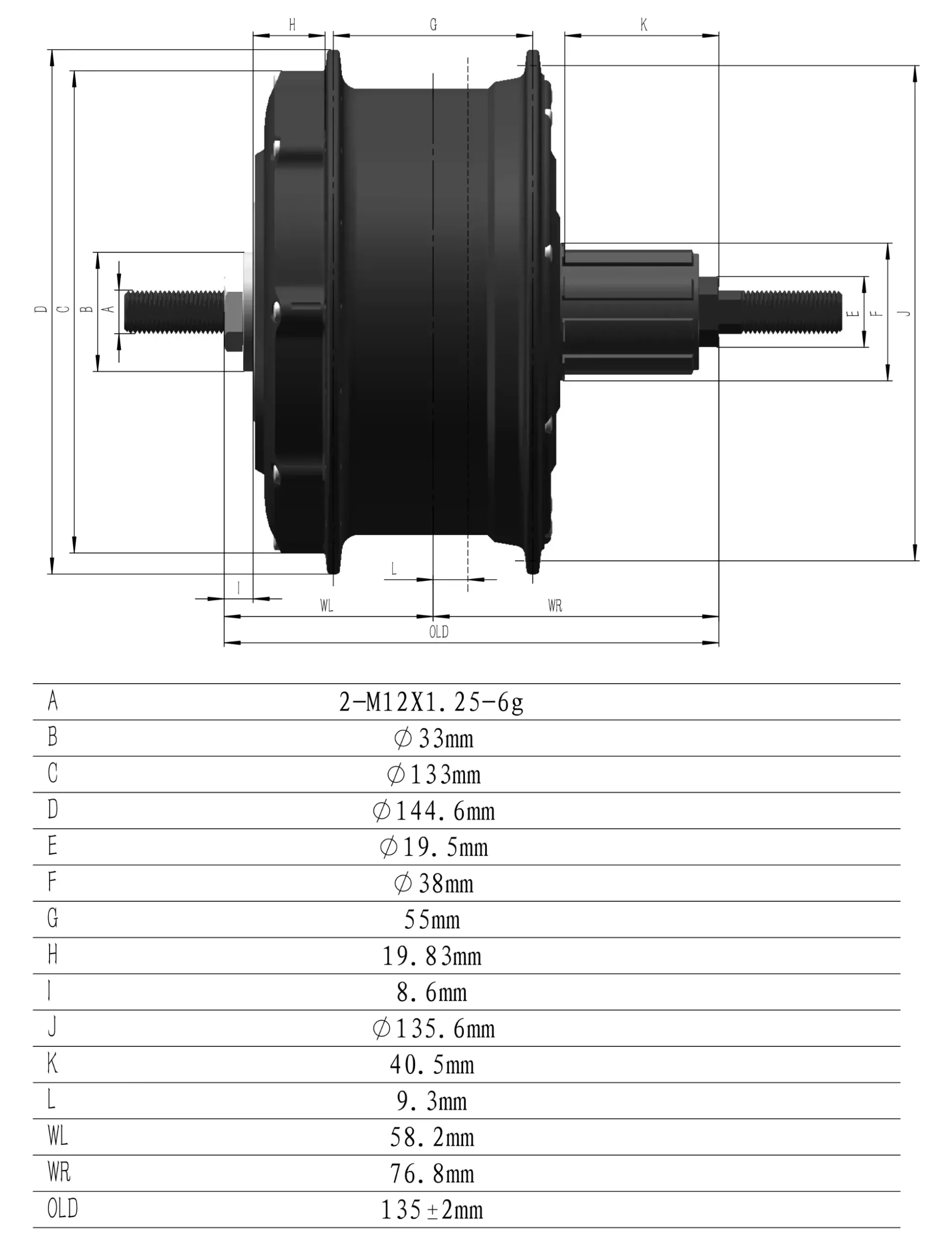

P130 ALL-IN-ONE Rear Hub Motor Dimension:

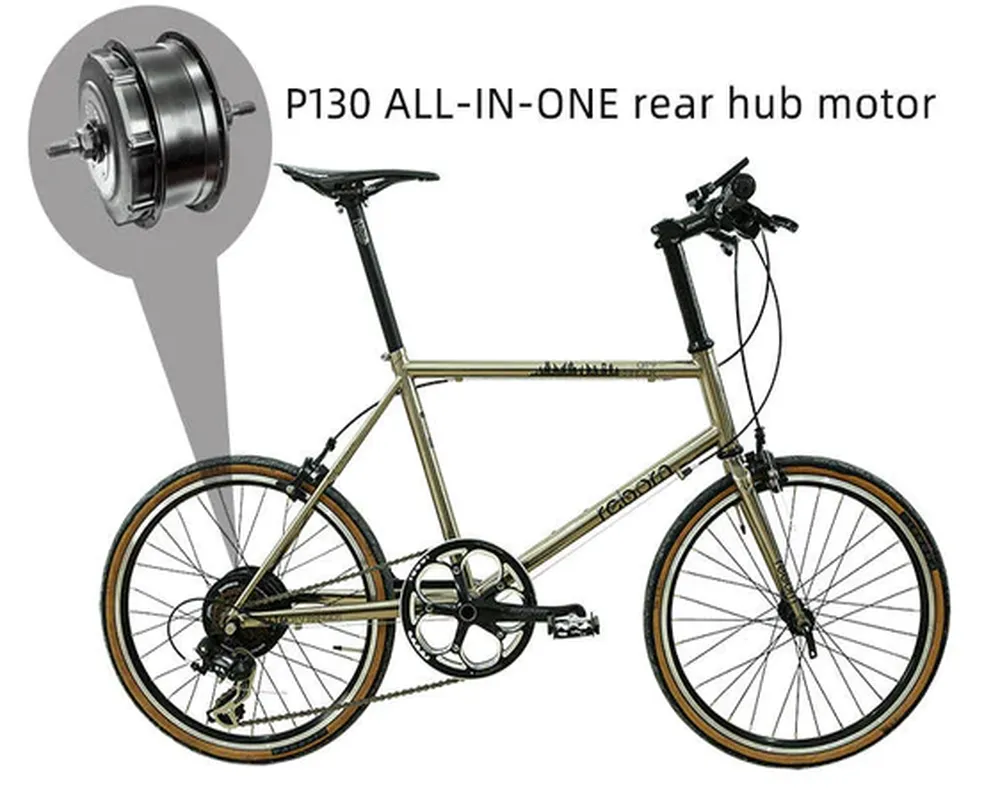

P130 ALL-IN-ONE Rear Hub Motor Features:

The P130 All-in-One Rear Motor - the perfect all-in-one solution for electric bicycle conversion kits. This new P130 motor is built with a compact and efficient design, integrating a built-in 210Wh battery, controller, sensor, and Bluetooth module for wireless connection, making it easy to install and use.The P130 All-in-One Rear Motor is based on the P100 motor and features a dynamic torque sensing system that provides a better riding experience while ensuring riding safety. The ramp sensing system optimizes torque sensing, automatically increasing torque without pedaling hard when going uphill. With a work efficiency of up to 90%, the motor effectively reduces heat loss and increases cruising range.This all-in-one rear hub motor by Raydafon is compatible with both disc brakes and V brakes and supports free-wheel types of cassette & whirl. It has a reduction ratio of 1:13.5 and a grade ability of over 20%. The motor is suitable for various wheel sizes ranging from 14-29 inches and is IP65 waterproof and dust-proof.With a rated power of 250W and a maximum power of 300W, the P130 All-in-One Rear Motor offers a maximum torque of 30N·m. It operates at a rated voltage of 30V and a rated input current of 8.3A, with a revolution of 160-260RPM. The motor is available in black/silver color and weighs only 3.1 kg.In summary, the P130 All-in-One Rear Motor is the perfect solution for those looking to convert their bicycle into an E-bike. With its compact and efficient design, wireless connectivity, and dynamic torque sensing system, it offers a high-performance riding experience. Whether you're looking for an all-in-one rear motor for your electric bicycle conversion kit or E-bike conversion kit, the P130 All-in-One Rear Motor is an excellent investment that you won't regret.

 How Does the P130 ALL-IN-ONE Rear Hub Motor Work?

The P130 ALL-IN-ONE Rear Hub Motor for eBike systems works by combining several components into a single integrated unit to provide electric assistance to the rider. Here is a general overview of how the motor operates:Motor Function: The P130 motor is an electric motor designed to generate torque and power. It is typically placed in the rear hub of the eBike, directly driving the rear wheel. When activated, the motor transfers power to the wheel, assisting the rider's pedaling or providing full electric propulsion.Battery Integration: The P130 motor incorporates a battery within the hub motor unit. The battery stores electrical energy and powers the motor. It is rechargeable and can be charged using a standard power outlet or specific charging equipment. The integrated battery eliminates the need for a separate battery pack, reducing weight and improving the overall aesthetics of the eBike.Controller System: The P130 motor includes an advanced controller system that regulates the motor's power output and manages the interaction between the motor, battery, and rider input. The controller receives information from various sensors and adjusts the assistance level accordingly to optimize performance and efficiency.Sensor Input: The P130 motor is equipped with intelligent sensors that gather data about the rider's input and the eBike's operating conditions. These sensors can include cadence sensors, torque sensors, and speed sensors. The sensors detect the rider's pedaling cadence, torque applied to the pedals, and the speed at which the eBike is traveling.Rider Input and Assistance Modes: The P130 motor's controller analyzes the sensor data and combines it with the rider's input to determine the level of assistance required. The motor's assistance can be adjusted through different modes or power levels, allowing the rider to choose the desired level of electric assistance based on their preference or the terrain they are riding on.Power Delivery: Once the controller determines the appropriate assistance level, it sends signals to the motor to deliver the required power to the rear wheel. The motor then generates torque and propels the eBike forward, augmenting the rider's pedaling efforts or providing full electric propulsion, depending on the assistance mode selected.User Interface: Many models of the P130 motor come with a user-friendly interface or display mounted on the handlebars. The interface provides real-time information to the rider, such as speed, battery level, distance traveled, and assistance mode. The rider can monitor these details and make adjustments as needed.

Why Choose Raydafon's P130 ALL-IN-ONE Rear Hub Motor?

Established in 1993, Raydafon Electric Technology Co Ltd. is dedicated to the R&D, manufacturing, and worldwide marketing of high-end electric bicycle parts. All our products are designed and developed in-house and protected by a number of domestic and international intellectual property rights. We have introduced professional production and testing equipment and advanced production lines and established a complete quality management system. We adhere to the enterprise spirit of "Technology Drives Healthy Life," adhere to the business philosophy of "Credit First, Quality First," and constantly develop new products to meet customer needs and market changes. All our products are CE-certified and protected by independent intellectual property rights. Our product is renowned for its reliable quality, exquisite craftsmanship, and stylish design. At present, our main products include super-mini wireless motors, super-mini intelligent motors, All-IN-ONE motors, water bottle Li-Ion batteries, Wireless buttons, Wireless displays etc. They are suitable for all kinds of bikes. Our products can provide electric power support for bicycles while maximizing bicycles' original appearance and characteristics, making riding more convenient, easy, and environmentally friendly.If you are seeking the high-end electrical components of electric bicycles. If you are still worried about traffic jams, and if you would like to contribute to environmental protection, Raydafon sincerely welcomes global distributors to visit and negotiate. We look forward to working with you to jointly promote the development of the electric bicycle industry and contribute to environmental protection.
