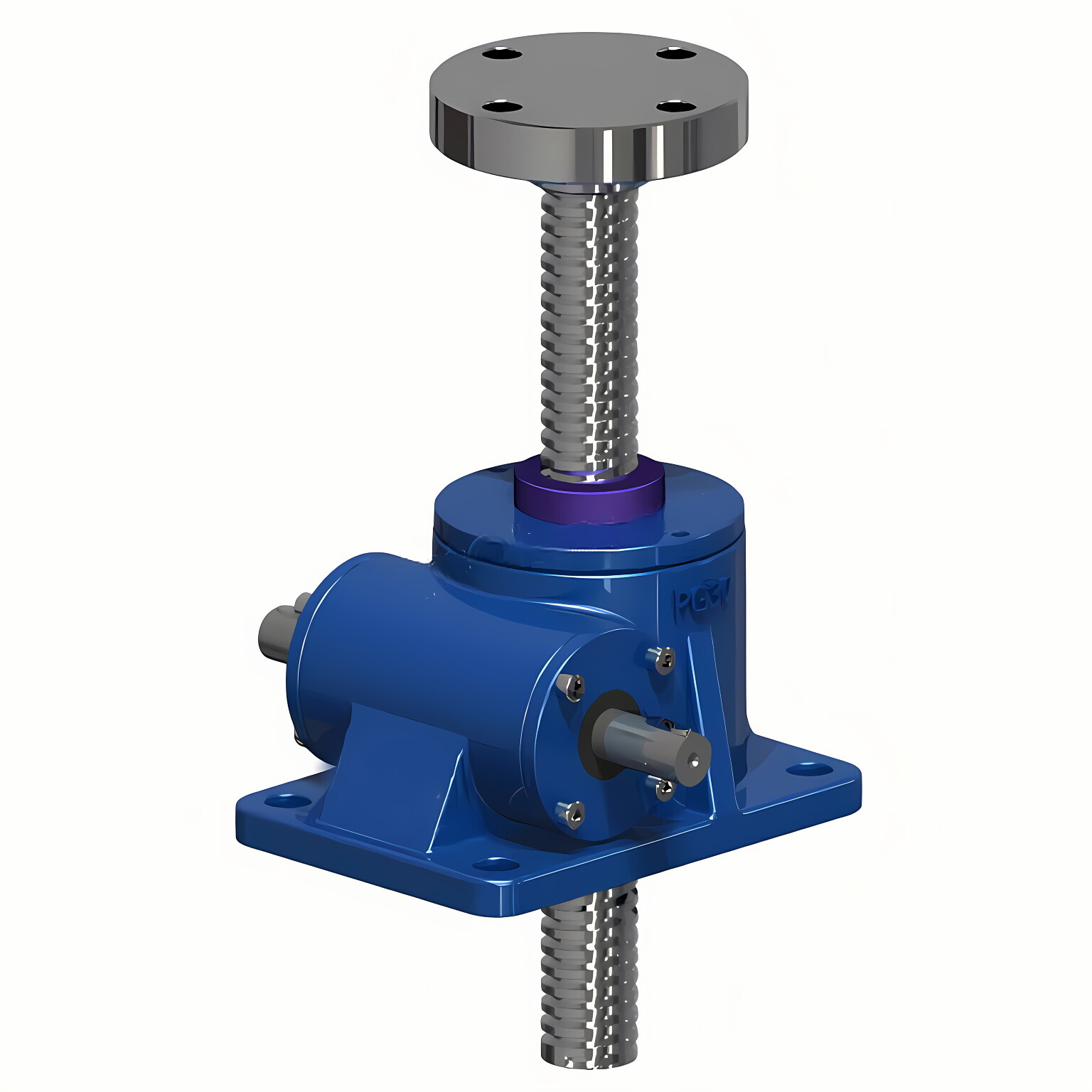

PG20-P3-F3-T-C-X-1500 Flange End High Gear Ratio Screw Jack For Platform Solar Eenergy Panels Lifting

Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Construction works, Energy & Mining
Weight (KG): 15 KG
Customized support: OEM, ODM, OBM
Gearing Arrangement: Worm
Output Torque: 50~2300Nm, 50~2300Nm
Input Speed: 300-1800Rpm, 300-1800Rpm
Output Speed: Customized
Ratio: 5-100
Certificate: ISO9001
Mounting Position: Foot Mounted or Flange mounted
Material: Cast Iron or Stainless Steel
Gearing Arrangement: Worm
Output Torque: 50~2300Nm, 50~2300Nm
Input Speed: 300-1800Rpm, 300-1800Rpm
Output Speed: Customized
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Construction works, Energy & Mining
Weight (KG): 15 KG
Customized support: OEM, ODM, OBM
Ratio: 5-100
Certificate: ISO9001
Mounting Position: Foot Mounted or Flange mounted
Material: Cast Iron or Stainless Steel
Packaging Details: Wooden box
Port: Shanghai/Ningbo

F3 Tpye Screw JackEver power has been producing industrial systems and equipment, offering its clients engineering services with 40 years of experience. Our screw jacks and powertrain products offer the best solution for linear motion applications with capacities ranging from 5kN to 1500kN. Our goal is to offer the most convenient design, the fastest and the most suitable solution while meeting the required need for the balance of performance, life and cost of the product. We have extensive range of screw jacks for wide range of applications providing services from mechanical and automotive to hardwood and defense industry.Screw jacks are used in lifting of any load, pulling of any piece, arrangement of working space of machinery, and in many rectilinear work. Screw jacks are also known as linear motor, linear actuator, jack screw, screw-operated jack and mechanical jack. To decide on the best product and fulfill all your needs.Dimension Table Load Capacity Table Warning: Manual or optional working speed of screw jacks is chosen according to the table above. As for screw jacks that will be used for motors or gearboxes, the progress pace, X and Y type, will be determined by our company according to the selected features Permissible Capacity Value Working principle of screw jacksT-Travelling Nut Type Main components of screw jacks are trapezoidal lifting screw, worm screw, lifting nut and gear housing. Worm screw is rotated manually or by motor. With the rotation of the gear, the screw that is inside the screw jack only makes rotation around it's axis. The flange, which is produced from the bronze material on the screw shaft moves linearly upwards or downwards. One of the purposes of using such systems is the lack of ducting or storage for the movement of the screw used in the ball screw type and ball wedge screw type. Furthermore, the screw does not go beyond the jack base. The linear motion of travelling nut depends on the turning speed, the number of teeth of the gears and the size of the screw pitch. C-TypeV and K types of screw jacks have cover pipe. Used to protect against external factors (water, dust, etc.). Cover pipe length should be equal to screw stroke length. Installation Examples Advantages of Screw JackScrew jacks offer several advantages that make them a popular choice for lifting and positioning heavy loads. Here are some key advantages of screw jacks:High Load Capacity: Screw jacks are designed to handle substantial loads, ranging from a few hundred kilograms to several tons. Their robust construction and mechanical advantage allow for lifting and supporting heavy objects with relative ease.Precise Positioning: Screw jacks provide precise and controlled vertical movement. The rotation of the screw allows for fine adjustments, making them suitable for applications that require accurate positioning of loads. This precision is particularly useful in industries such as manufacturing, construction, and assembly, where precise alignment and positioning are critical.Self-Locking Capability: Screw jacks are inherently self-locking, meaning they can hold the load in position without additional braking mechanisms. The friction between the screw and the nut prevents the load from descending when the screw is not being rotated. This self-locking feature enhances safety and stability in various applications.Versatility: Screw jacks are versatile and find application in a wide range of industries. They are used in lifting platforms, adjustable workbenches, stage setups, industrial machinery, and more. Screw jacks can be employed in both horizontal and vertical orientations, making them adaptable to different installation configurations and load requirements.Safety Features: Many screw jacks incorporate safety features to prevent accidents or damage due to overloading or excessive travel. These features can include limit switches, overload protection, or mechanical stops. Such safety mechanisms add an extra layer of protection and peace of mind during operation.Simple Installation and Operation: Screw jacks are relatively easy to install and operate. They typically have a straightforward design and require minimal setup or maintenance. This simplicity makes them accessible to a wide range of users and reduces the need for specialized expertise or complex installation procedures.Durability and Longevity: Screw jacks are generally built to withstand heavy loads, harsh environments, and repetitive use. They are made from durable materials such as steel or cast iron, which ensures their longevity and reliability in demanding applications.Cost-Effective: Screw jacks are often a cost-effective solution compared to other types of lifting and positioning mechanisms. They offer a good balance of performance, load capacity, and affordability, making them a popular choice for various industrial and commercial applications. For more types,Please click here! Application BENDING ROLLER STAGE LIFTING RADAR LOAD LIFTING SYSTEM LOAD LIFTING SYSTEM PLATFORM LIFTING TRIAXIAL LOAD LIFTING SYSTEM DAM SHUTTER SOLAR ENERGY PANELS LIFTING Our Company Production process of turbine screw elevator
Design: according to the user's needs and requirements, design a special turbine screw lift scheme, including the design of turbine, screw, nut, support structure, control system, etc. Material preparation: according to the design requirements, prepare corresponding materials, such as turbine, screw rod, nut, platform, etc., and the materials shall comply with relevant national standards and requirements. Turbine manufacturing: generally, turbine materials are made of high-quality cast iron, steel and other specially processed materials, which are processed and shaped by CNC processing equipment. Manufacturing screw rod and nut: according to the design requirements, the screw rod and nut shall be manufactured, and the surface polishing and heat treatment shall be carried out. Platform processing and manufacturing: according to the design drawings, select the corresponding materials and shapes, and carry out shearing, welding, polishing and other processes. System assembly: assemble the manufactured turbine, screw rod, nut, platform and other components, and install the control system for testing and quality inspection. Commissioning and acceptance: The equipment shall be commissioned and accepted by professional personnel to ensure that the equipment meets the design requirements and meets the safety and quality standards. Delivery and installation: packaging and logistics delivery shall be carried out for the accepted equipment, and installation and commissioning shall be carried out at the customer's site to ensure the normal operation of the turbine screw lift.In short, design, material preparation, manufacturing and assembly are all crucial to the production process of the turbine screw lift. Any problem in any link will seriously affect the performance and quality of the turbine screw lift produced.
