Planetary Gearbox for Cargo cranes

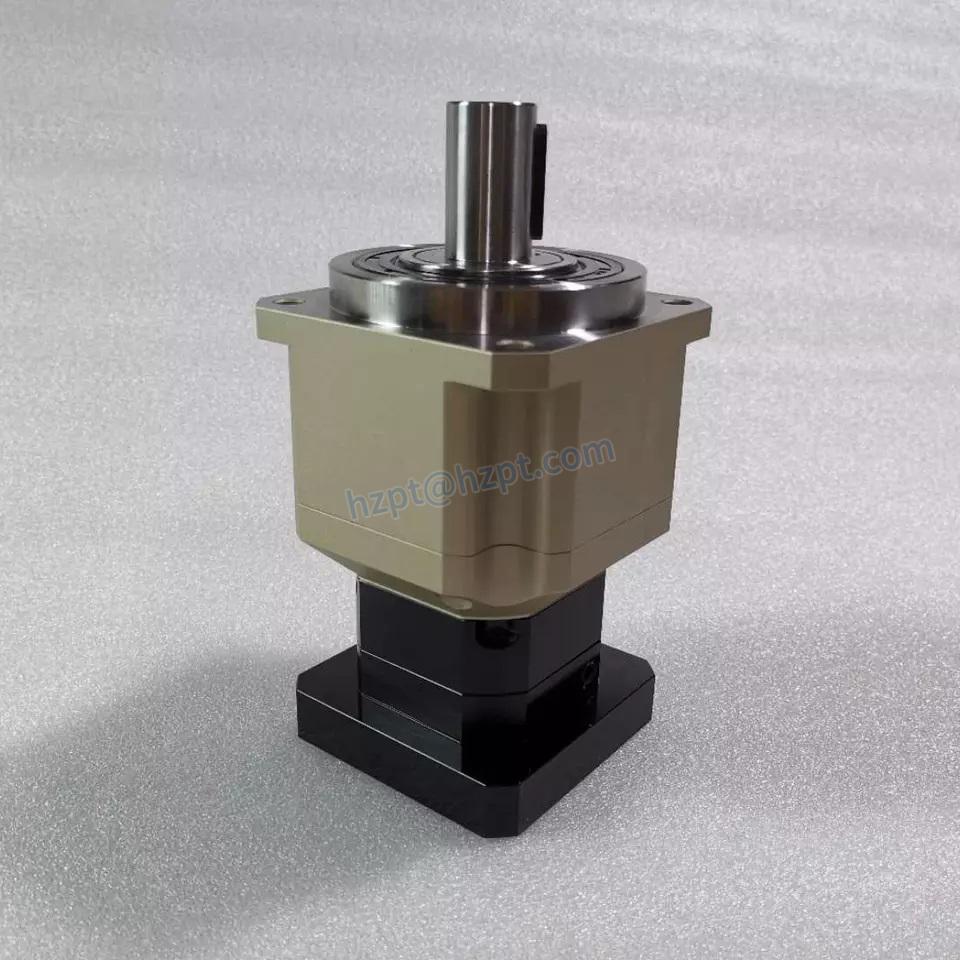

Planetary Gearbox for Winch Packing MachineOur company's high-precision planetary gearbox adopts the integrated design of the planet carrier and the output shaft to ensure maximum torque stiffness and stability. A variety of backlash types can be selected according to customer needs micro precision backlash (P0), precision backlash (P1), and standard backlash (P2). Thanks to the high-cost performance of the 3F PAB series planetary gearboxes, it is widely used in servo applications in the motion control industry. The 3F PAB precision gearbox has large torque, and the input diameter D4 can reach φ255mm, which greatly meets the needs of customers. Single-stage planetary gearboxes and two-stage gearboxes are available:●One-stage ratio : 3, 4, 5, 6, 7, 8, 9, 10●Two-stage ratio: 12, 15, 20, 25, 30, 35, 40, 50, 60, 70, 80, 90, 100Overview of Planetary Gearbox* Minimum backlash is 0-3 arcmin.* Has the advantages of high torque and high strength.* Suitable for any servo motor and stepper motor.* Start-stop positioning time is shorter.* High rigidity and high motor rotor inertia.* Due to the miniaturization of the motor power, the inertial load can be stabilized, and the vibration is small.

atio	40
Backlash	P2   ( ≤7arcmin )
Output Type	Shaft
Rated Output Torque	290   Nm
Rated Input Speed	3500 rpm
Efficiency	≥94%
Torsional Rigidity	25
Lubrication	Synthetic Grease
Operating Temperature	-15℃~+90℃
Protection Temperature	IP65
Mounting Position	Any Direction
Service Life	21000 hours



Why choose us

1. BROAD RANGE OF SPEED REDUCERS FOR SELECTIONWe offer the widest range of standard and custom solutions for applications in motion control and mechanical transmission. We offer precision inline planetary gearboxes and right angle planetary gearboxes, 90 degree right angle servo motor gearboxes, harmonic drive gearboxes, RV reducers for robotics, ground precision racks, and pinions, servo motors, stepper motors, brushless motors, etc. The company can also provide worm gear reducers, gear motors, screw jacks, steering gears, and other related reducer gearboxes and accessories. This means you can get what you want right here and benefit from our one-stop service, saving you time and money.2. ATTRACTIVE PRICE WITH TOP BRAND QUALITYAs a manufacturer-type sales company, we offer our customers attractive prices with high quality. Compared with other companies' gearboxes, 3F precision planetary gearboxes have the characteristics of low backlash (2-8 arcmin), high efficiency (≥95%), and low noise (60dBA). All servo gearboxes produced by 3F famous brands will be strictly inspected and tested before leaving the factory. In addition, we provide customers with a one-year warranty and lifetime after-sales service.3. ALL-ROUND PROFESSIONAL TECHNICAL SUPPORTDon't worry if you don't know how to choose the right transmission for your machine. We have a professional technical team to serve you. As long as you follow our steps, you'll know how to choose the right size. After selecting the matching gearbox for your motor, we will send you the corresponding CAD drawing for your inspection to avoid any errors. We also offer 24-hour technical support if you have any other issues that need urgent resolution.4. CUSTOMIZED SERVICE IS AVAILABLEIf you need a custom gearbox for a unique application, we can provide custom service according to your requirements. We will provide you with reliable, high-performance custom gearboxes from small to large output torques. Please tell our sales engineer your detailed requirements and all the necessary dimensions you want. The more information you provide us, the more suitable we can design a custom transmission for you.5. FAST DELIVERY TIMEFor most of the standard reducers, we have sufficient stock, which can be delivered to customers in a very short time, solve the problem of urgent replacement of damaged gearboxes on working machines, and save costs for customers. Also, if a customer needs a gearbox of a certain size urgently and we do not have it in stock, we can arrange priority production, especially for you.6. ALTERNATIVES TO BRAND SPEED REDUCERSMost of our precision gearboxes can perfectly match and replace Apex gearboxes, Dawn gearboxes, Shimpo gearboxes, Neugart gearboxes, SPG gearboxes, and Harmonic Drive gearboxes, Boston gearboxes, Replacement of Bonfiglioli gearboxes, etc. Product number. With high quality and low price, our reducers, especially planetary gearboxes and harmonic drive gears are warmly welcomed by customers all over the world.
