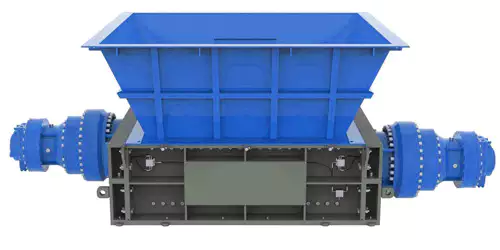

Planetary Gearbox for Double-Axle Shredder

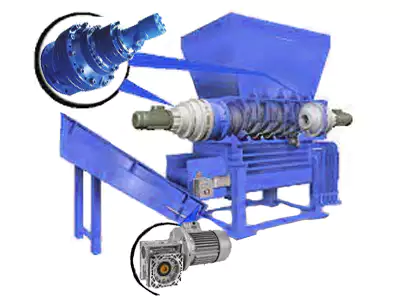

Where is Planetary Gearbox in Double-Axle Shredder?

The application of planetary gearbox in Double-Axle Shredder is mainly to achieve optimization of power transmission and speed adjustment. Planetary gearboxes are installed at key locations in the crusher drive system, usually connecting the motor and the main shaft of the crusher, or integrated directly into the drive shaft system.

How Planetary Gearbox works with Double-Axle Shredder？

• Torque amplification: The planetary gearbox can provide a high torque amplification ratio, which is crucial for twin-shaft crushers that require high torque output to crush hard materials (such as gangue, cinder, shale, etc.). Through the special arrangement of gears, even if the motor output speed is high, it can be converted into low-speed and high-torque power output, ensuring that the crusher cutter has enough power to penetrate and crush the material.
• Speed adjustment: The planetary gearbox can adjust the ratio of input speed to output speed, so that the crusher's operating speed can adapt to different materials and crushing requirements. This helps control the crushing process and improves crushing efficiency and finished product quality.
• Load balancing: The design of multiple planetary gears inside the planetary gearbox rotating around the sun gear can effectively disperse the load, make the transmission more stable, reduce single-point wear, and improve the stability and durability of the system.
• Compact design: With its small size and light weight, the planetary gearbox is conducive to the internal layout of the dual-shaft crusher with limited space, simplifying the overall design while maintaining efficient transmission performance.
• Noise and vibration mitigation: Good gear meshing design and built-in shock absorption mechanism help reduce noise and vibration when the equipment is running, improving the safety and comfort of the operating environment.

Different Installation Forms

Food MountedRight AngleIn-line

Features of Planetary Gearbox for Double-Axle Shredder

Design Features:

1. High torque density: Through its compact multi-stage reduction design, the planetary gearbox can achieve large torque output in a small volume, which is crucial for dual-shaft crushers that require strong crushing force.
2. High efficiency: The use of precision-made gears and optimized gear contact patterns reduces friction losses and improves energy transfer efficiency, helping to reduce energy consumption and operating costs.
3. Load balancing: The symmetrical distribution of the planetary gear mechanism evenly distributes the load on multiple gears, reducing single-point wear and increasing the stability and durability of the gearbox.
4. Adjustable speed ratio: By adjusting the number of planetary gears and the relative movement of the sun gear and the planet carrier, the reduction ratio can be flexibly changed to meet the speed and torque requirements for crushing different materials.
5. Modular design: Many planetary gearboxes adopt a modular design, which facilitates maintenance, upgrades and replacements, and reduces maintenance difficulty and time costs.
6. Strong structure: Using high-strength materials and solid box design, it can withstand impact loads and continuous vibrations during crushing operations.

Advantage:

• Compactness and lightweight: The compact design of the planetary gearbox allows it to be better integrated into the double-shaft crusher, saving space, while reducing the weight of the entire machine, making it easy to install and move.
• Low noise and low vibration: Good gear meshing and box sound insulation design reduce noise and vibration during operation, improve the working environment, and increase operational safety.
• Long life and low maintenance: The application of wear-resistant materials and sealing technology extends the service life of gears and bearings, reduces maintenance frequency, and improves equipment availability and economic benefits.

Special properties:

• Fast dynamic response: The small inertia characteristics of the planetary gearbox enable the dynamic response of the power system to be fast, helping the crusher to quickly adapt to load changes, especially when dealing with irregular or mixed materials.
• Overload protection: Some planetary gearboxes are designed with built-in overload protection mechanisms, such as slip clutches or shear pins, to protect the gearbox and crusher from damage under extreme operating conditions.
• Environmental adaptability: For double-shaft crushers outdoors or under harsh working conditions, the planetary gearbox may use special sealing and anti-corrosion treatments to ensure stable operation in dusty, humid or chemically corrosive environments.

Our Gearbox Can be Adapted to Most Double-Axle Shredders

Our high-performance planetary gearbox has been carefully designed and rigorously tested to perfectly adapt to the vast majority of twin-shaft crushers on the market. Thanks to their excellent compatibility and flexibility, our gearboxes are the ideal bridge between all types of crushing equipment and power sources. Whether you are using a mature model from a well-known brand or customized equipment for specific application needs, we can provide tailor-made solutions.There are many common twin-shaft crusher brands and models on the market, including but not limited to UNTHA's LR series, WEIMA's TH series, ERDWICH's RS series, SSI Shredding Systems' Pri-Max series, and Fibermaq's TF series, etc. These models are widely used in waste recycling, wood processing, plastic crushing and other fields. Each model has its own specific power requirements, torque output and installation interface standards.

Our Customized Services

1. Interface size: Whether your crusher uses an international standard flange interface, a special customized interface or a specific shaft diameter size, we can ensure that the gearbox is accurately connected to it and achieves seamless integration.
2. Power matching: From motor outputs of several kilowatts to hundreds of kilowatts, our gearboxes can ensure efficient and smooth transmission of power through precise speed ratio design to meet the power requirements of different crushing operations.
3. Torque requirements: For the high torque output required when crushing hard materials such as metal, stone or high-density plastics, we provide a variety of reduction ratio configurations to ensure that powerful crushing force can be exerted at low speeds.
4. Special environmental adaptability: For twin-shaft crushers operating in extreme temperatures, dusty or wet environments, we offer reinforced seals and special material coatings to enhance the weather resistance and corrosion protection of the gearbox.
