Planetary Gearbox for Reachstakers
  • Planetary Gearbox for ReachstakersPlanetary Gearbox for Reachstakers

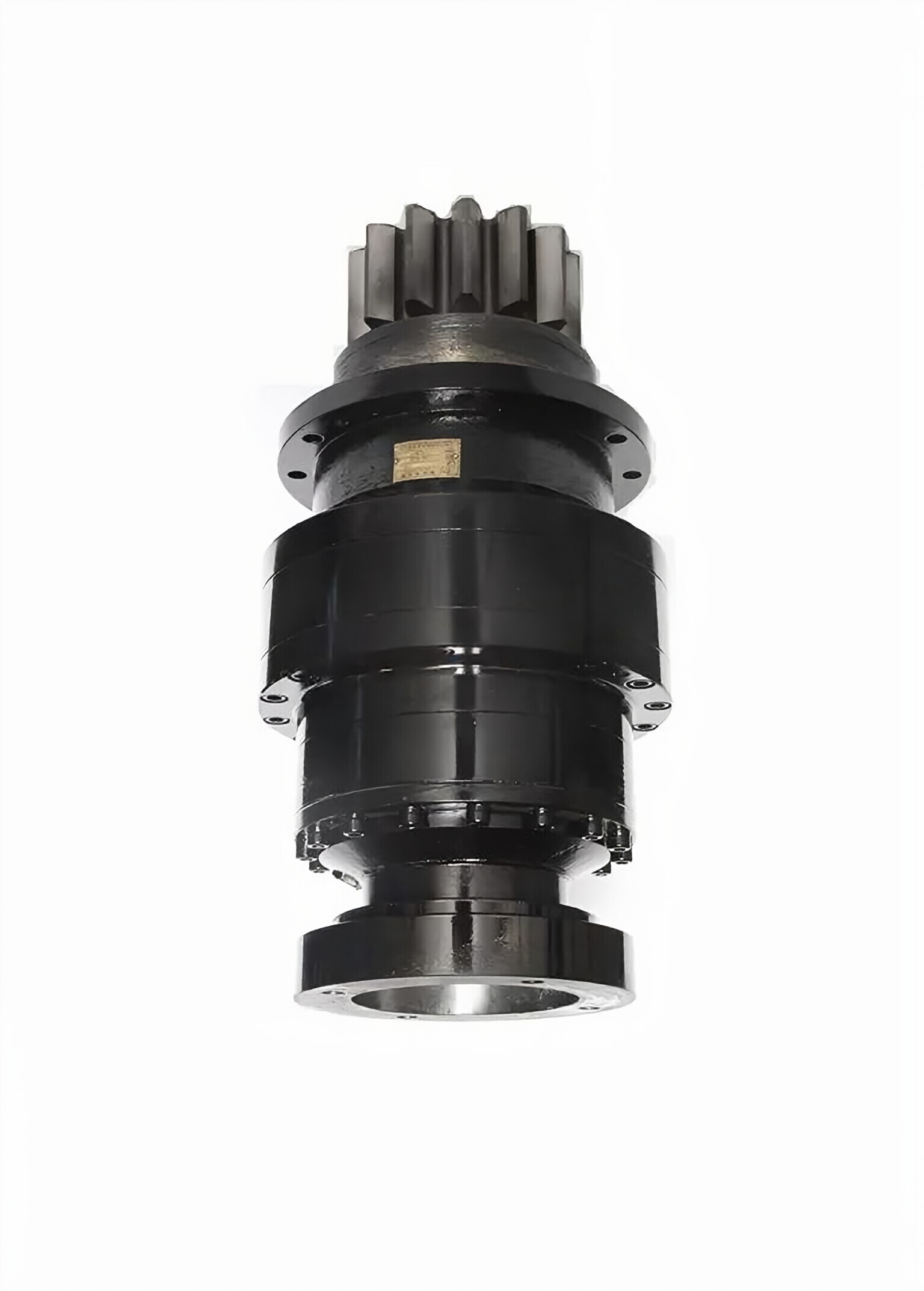

Planetary Gearbox for Reachstakers

Elevate your staking performance with Raydafon Group's Planetary Gearbox for Reachstakers. This precision-engineered gearbox ensures smooth, efficient power transmission, reducing wear and extending equipment life. Perfect for industrial operators and DIY enthusiasts in mining or construction, it delivers reliability that transforms workflow challenges into seamless operations. Unlike competitors, its compact design and advanced materials offer superior durability and ease of use. Feel the confidence of enhanced productivity today—choose Raydafon Group for gearboxes that set the standard.
Send Inquiry
Product Description

Planetary Gearbox

Efficiency

0.98

Housing material

42CrMo

Gear material

20CrMnTi

Surface hardness of gears

HRC58-62

Input / Output shaft material

40Cr

Machining precision of gears

6 Grade

Lubricating oil

Synthetic Grease

Heat treatment

Carbonize&quencher

Brand of oil seal

SKF

Noise (MAX)

55-70 dB

Temp. rise (MAX)

70℃

Oil Temp. rise (MAX)

40℃

Vibration

≤15μm

Wheel and track drives feature a variety of gear ratios that allow the powertrain to operate at optimum efficiency. The versatility of the planetary drive is guaranteed by the wide availability of the braking system, and thanks to the wide range of ratios available within the gearbox, there is a solution for almost any type of transmission or application.
Excellent Planetary Gearbox Slewing Reduction Drive Features:

1. Compact structure of level 2 or 3 planetary gear transmission2. Special structures can bear large radial load3. Simple  installation4. Convenient oil change5. Can configure hydraulic to open the multi-plate parking brake

Main Technical Parameters:

ModelRatio(i)Max OutputTorque(KN.m)Hydraulic MotorOutput GearParameters(m*z*x*b)Weight(KG)
ExcavatorCrane
XHZ09 T226 29 3339 4947A2FE28/328*14*0.5*7010*12*0.35*8555
 XHZ17 T227 33 3946 55 7.712A2FE45/61W-VZLA2FE56/61W-VZLA2FE63/61W-VZL8*14*0.5*7010*12*0.35*8512*13*0.5*85116
 XHZ17 T379891047.712A2FE45/61W-VZLA2FE56/61W-VZLA2FE63/61W-VZL8*14*0.5*7010*12*0.35*8512*13*0.5*85140
 XHZ24 T391 104122 13810.617.5A2FE28/32/45/568*14*0.5*7010*12*0.35*8512*13*0.5*85165
 XHZ26 T238 4451 631016.5A2FE56/61W-VZLA2FE63/61W-VZLA2FE80/61W-VZLA2FE90/61W-VZL10*15*0.5*10012*13*0.5*9012*16*0.5*12014*15*0.5*12016*12*0.5*100140
 XHZ36 T224 291626A2FE56/61W-VZLA2FE63/61W-VZLA2FE80/61W-VZLA2FE90/61W-VZL10*15*0.5*11012*13*0.5*9012*16*0.5*12014*15*0.5*12016*12*0.5*100160
XHZ36 T368 80 101118 1321626A2FE56/61W-VZLA2FE63/61W-VZLA2FE80/61W-VZLA2FE90/61W-VZL10*15*0.5*11012*13*0.5*9012*16*0.5*12014*15*0.5*12016*12*0.5*100180
 XHZ40 T2374249601829A2FE80/61W-VZLA2FE90/61W-VZLA2FE107/61W-VZLA2FE125/61W-VZL12*15*0.5*100 14*13*0.5*100210
 XHZ50 T31271482238A2FE80/61W-VZLA2FE90/61W-VZLA2FE107/61W-VZLA2FE125/61W-VZL12*15*0.5*100 14*13*0.5*100315
 XHZ60 T334402545A2FE80/61W-VZLA2FE90/61W-VZLA2FE107/61W-VZLA2FE125/61W-VZL16*13*0.5*9516*16*0.5*17018*14*0.5*17020*14*0.4*190420
 XHZ80 T3781001281511863766F2FE160/GW-VZLA2FE107/61W-VZLA2FE125/61W-VZLA2F107W2ZA2F160W2Z16*13*0.5*15018*14*0.5*19020*14*0.4*190700
 XHZ110 T31755293.3A2FE80/61W-VZLA2FE90/61W-VZLA6VM20016*13*0.5*15018*14*0.5*19020*14*0.4*190630
