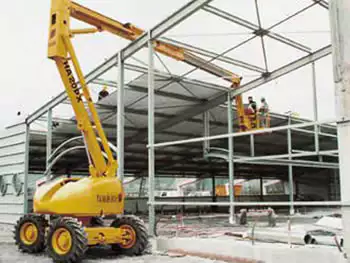

Planetary Gearboxes For Telescopic Boom Lifts (Wheel Drive & Slewing Drive)

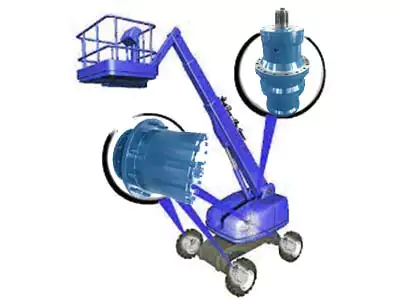

How Many Planetary Gearboxes are There in Telescopic Boom Lifts

The application of Planetary Gearboxes in Telescopic Boom Lifts is mainly focused on two key parts: wheel drive and Slewing drive.Planetary Gearboxes play a crucial role in Telescopic Boom Lifts. Through their application in wheel drive and rotary drive, they not only improve the operational efficiency and flexibility of the equipment, but also ensure the safety and accuracy of operations.

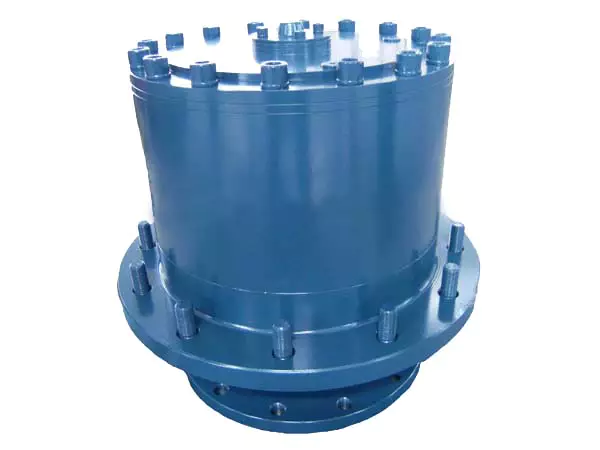

Wheel Drive Planetary Gearboxes

• Application location: Wheel Drive Planetary Gearboxes are usually installed in the wheel or track drive system of the telescopic arm high-altitude work platform, responsible for directly driving the machine's walking.
• Type description: This type of gearbox is designed to provide high torque output while maintaining a relatively small volume and weight for easy installation in limited space. They convert the output power of the engine or electric motor into the powerful driving force required for the driving wheels through efficient gear ratios, ensuring that the platform can move stably and efficiently under various ground conditions.
• Function: The main function is to provide sufficient traction, enabling the equipment to easily cope with complex road conditions such as slopes and uneven terrain, while also ensuring the platform's movement speed and direction control, improving operational flexibility and efficiency.

Slewing Drive Planetary Gearboxes

• Application location: Slewing Drive Planetary Gearboxes are used in the rotating mechanism part of the telescopic arm high-altitude work platform, responsible for controlling the rotation action of the platform body relative to the base.
• Type Description: Slewing Drive gearboxes are designed to withstand heavy loads, provide precise rotational motion, and angle control. They have high load bearing capacity and precise backlash control, ensuring smooth and precise operation during continuous or intermittent rotation.
• Function: The main function is to enable the work platform to freely rotate on a horizontal plane, expand the work range, and reach the target work position without moving the entire vehicle. In addition, it also ensures the smoothness and accuracy of operation during the rotation process, especially in high-altitude operations that require precise positioning, such as power line maintenance, external cleaning of buildings, etc.

Features of Planetary Gearboxes For Telescopic Boom Lift

• Compact design: The planetary gearbox is known for its compact structure, which can achieve high power density transmission in limited space. This is crucial for high-altitude work platforms with limited space, especially for gearboxes installed on vehicle chassis and rotating platforms, where the volume should be minimized as much as possible without increasing the overall size of the equipment.
• High torque output: The planetary gear mechanism rotates around the sun gear through multiple planetary gears, effectively dispersing the load and providing larger torque output in a smaller volume, meeting the powerful power requirements for the lifting, rotation, and vehicle drive of the telescopic arm.
• Efficient transmission: The transmission efficiency of planetary gearboxes is usually high, reducing energy loss, which is particularly important for electrically driven high-altitude work platforms, helping to extend battery life and reduce energy consumption.
• Load balancing: Due to the symmetrical distribution of planetary gears, the load distribution between gears is even, which can maintain stable operation and prolong service life even under heavy or unbalanced load conditions.
• Low noise and smooth operation: Planetary gearboxes are designed with precise gear meshing and bearings, resulting in low noise and vibration during operation, providing operators with a more comfortable working environment, especially suitable for noise sensitive workplaces.

Adapt to all of your Telescopic Boom Lift models

Our high-performance Planetary Gearboxes are carefully crafted to adapt to the vast majority of Telescopic Boom Lifts on the market, ensuring unparalleled compatibility and excellent performance. Whether you are operating mainstream models from industry-leading brands such as JLG, Genie, Hinowa, Skyjack, etc., such as JLG 600S, Genie S-65 XC, Hinowa Lightlift 33.17 Performance IIIS, Skyjack SJ63AJ, or special models with specific needs, we can provide a perfectly matched solution.

Customized services

• Interface Size Customization: We provide comprehensive interface size customization services for Telescopic Boom Lifts of different brands and models, from shaft diameter, flanges to special connection accessories, ensuring seamless connection between gearbox and your device, convenient installation, and smooth operation.
• Accurate matching of power and torque: Our engineering team conducts in-depth analysis of the motor or hydraulic system output of each lifting platform, accurately adjusts the gear ratio and structure of the gearbox, ensuring efficient power transmission and just right torque output. Whether it's dealing with heavy load challenges or pursuing delicate operations, it can meet your specific requirements.
• Environmental adaptability enhancement: For extreme working environments, we have specially optimized the sealing technology and material selection of gearboxes to enhance their corrosion resistance, high temperature resistance, dust and waterproof performance, ensuring long-lasting and stable performance in various climates and working conditions.
• Intelligent Control Compatibility: Considering the intelligent trend of modern high-altitude work platforms, our gearbox design fully considers the integration of electronic control systems, supports CAN bus communication or other intelligent control protocols, and achieves precise control and real-time status monitoring.

Why choose our gearbox?

By choosing our Planetary Gearboxes, you not only receive excellent transmission components, but also a commitment to professional customization, ultimate performance, and worry free service. We are well aware of the importance of efficiency and safety in high-altitude work platforms for our clients. Therefore, from standard models to complete customization, we strive for excellence in every aspect to ensure that your Telescopic Boom Lift can achieve maximum efficiency in any working condition, safely and efficiently completing every high-altitude work task
