Plastic Flat Top Chain Bevel Sideflexing Replacement Of System Plast 880

Discovering the Versatility of the Plastic Flat Top Chain

The world of conveyor systems has greatly evolved thanks to the introduction of the Plastic Flat Top Chain. This article aims to provide an in-depth understanding of this product, its advantages, customization options, and its role in various industries.

Introduction to the Plastic Flat Top Chain

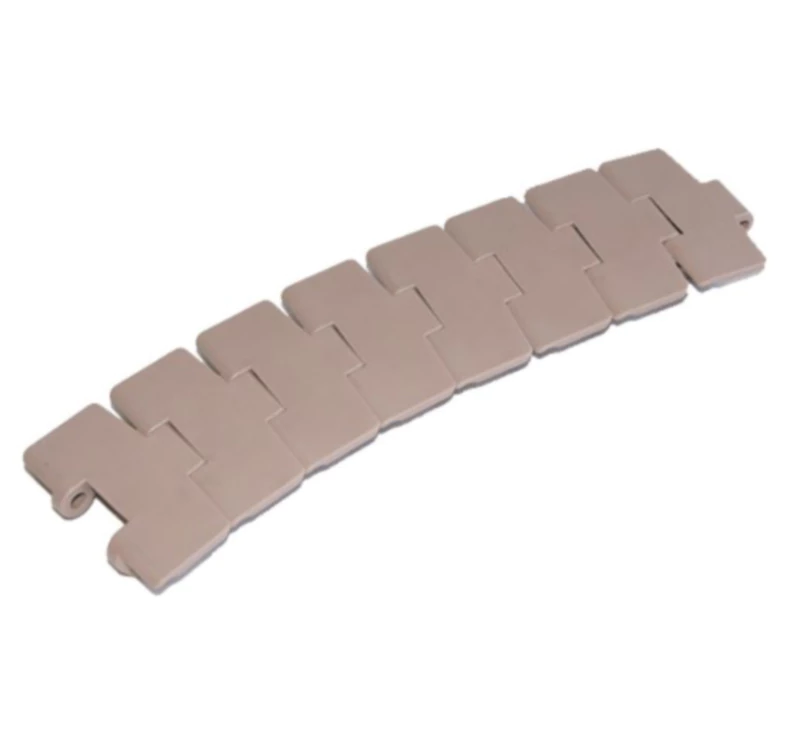

The Plastic Flat Top Chain is a remarkable product, usually made of high-quality engineering plastics such as polypropylene (PP), polyethylene (PE), and polyamide (PA). These materials lend the chain excellent corrosion resistance, wear resistance, and chemical stability, thus making it a preferred choice in various industrial applications.Mainly used for all kinds of food industry, such as beverage, bottle, can and other conveyors.The longest distance: 9MMax. speed: lubricant 90M/mindryness 60M/minWorking load: 2250NPin material: austenitic stainless steelPlate material: POM acetal(Temperature: -40 ~ 90℃)Packing: 10 feet = 3.048 M/box 26pcs/M

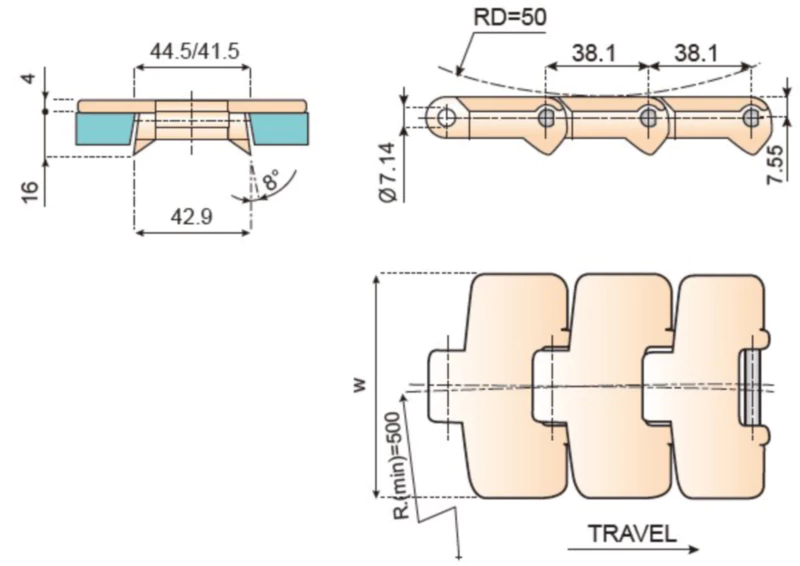

Structure of the Plastic Flat Top Chain

This chain comprises a series of flat chain plates connected by pins, rivets, or bolts. The flat conveying surface between the chain plates stabilizes the conveying of objects, ensuring smooth transportation. Depending on specific application requirements, the shape and size of the chain plate can be customized. The chain plate is typically rectangular or square in shape and can be designed according to the requirements of the conveying system.

Key Features and Technical Parameters of the Plastic Flat Top Chain

The Plastic Flat Top Chain boasts features such as maximum load capacity, operating temperature range, chemical resistance, tensile strength, and wear resistance. These technical parameters help potential customers understand the product's capabilities and applicability to their specific needs.

Industry Applications of the Plastic Flat Top Chain

The Plastic Flat Top Chain is popular in various industries such as automobile manufacturing, electronic product manufacturing, mechanical processing, food and beverage transportation, and material transportation. Its superior adaptability makes it indispensable in these fields.

Customization Options for the Plastic Flat Top Chain

Customization options for the Plastic Flat Top Chain include different sizes, shapes, and accessory options. This flexibility allows the chain to adapt to various conveyor systems, making it a versatile solution for diverse applications.

Installation and Maintenance of the Plastic Flat Top Chain

The Plastic Flat Top Chain requires less maintenance compared to metal chains due to its corrosion resistance and self-lubricating properties. However, proper installation methods, chain adjustments, and alignment requirements for gears or rollers are crucial for its performance and lifespan.

The Future of the Plastic Flat Top Chain

Emerging trends such as the use of advanced polymers or integrated intelligent technologies can potentially enhance the performance and capabilities of the Plastic Flat Top Chain, thus paving the way for increasing its applicability in the future.

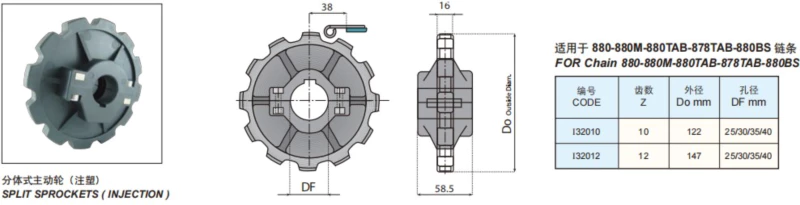

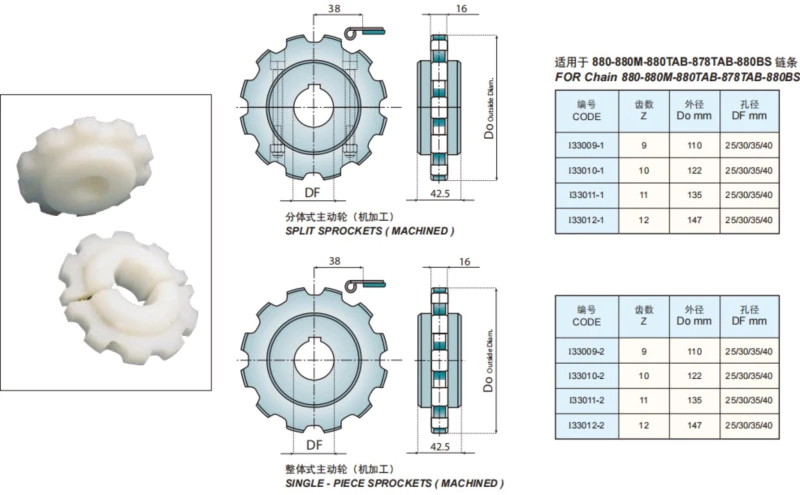

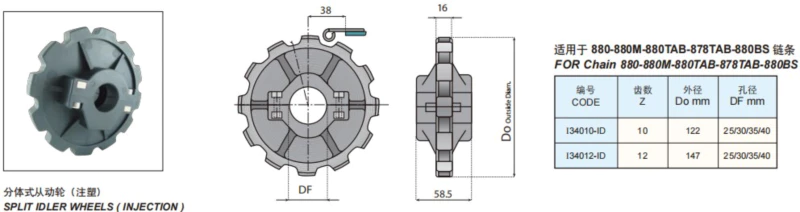

We also provide sprockets that match the chain.

Sprocket is a key component of chain power transmission. When the chain and sprocket are interlocked, the rotational motion of the sprocket transfers power to the chain, allowing it to move and drive. The design and size of the sprocket determine the torque and speed transmitted to the chain, directly affecting the operational efficiency and performance of the chain.

Additional Chain Products

In addition to the plastic flat top chain, Raydafon also offers other chain products including Plastic Chain, Stainless Steel Chain, agricultural chains, leaf chains, and Pintle Chain.

Raydafon: Your One-Stop Solution for Chain Products

Raydafon is a trusted name when it comes to providing sprockets that match the chain, highlighting the importance of both chains and sprockets in ensuring smooth operations. We boast advanced production and inspection equipment including CNC Gear grinding machine, gear measuring machine, CNC gear shaper, machine center, CMMS, and torque test system.

Why Choose Raydafon?

Choosing Raydafon means benefiting from our professionalism, international certifications, customized services, state-of-the-art production equipment, and excellent after-sales service. Our commitment to providing high-quality products and services has made us a preferred choice among customers. Choose Raydafon for a seamless and efficient solution to your chain product needs.
