Plastic Flat Top Chain Single Hinge Straight Replacement Of System Plast 520

Discover the Excellence of plastic flat top chain

Exploring the Plastic Flat Top Chain

The Plastic Flat Top Chain is an integral part of various industrial processes. It is primarily composed of high-quality engineering plastics such as polypropylene (PP), polyethylene (PE), and polyamide (PA). These materials offer remarkable corrosion resistance, wear resistance, and chemical stability, making them ideal for various applications.

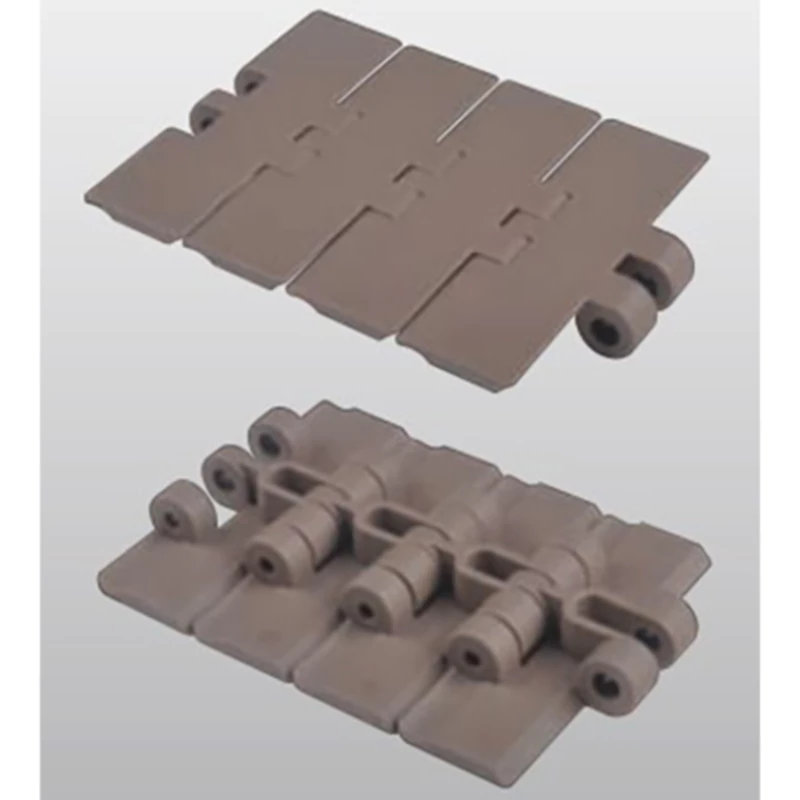

Structure of the Plastic Flat Top Chain

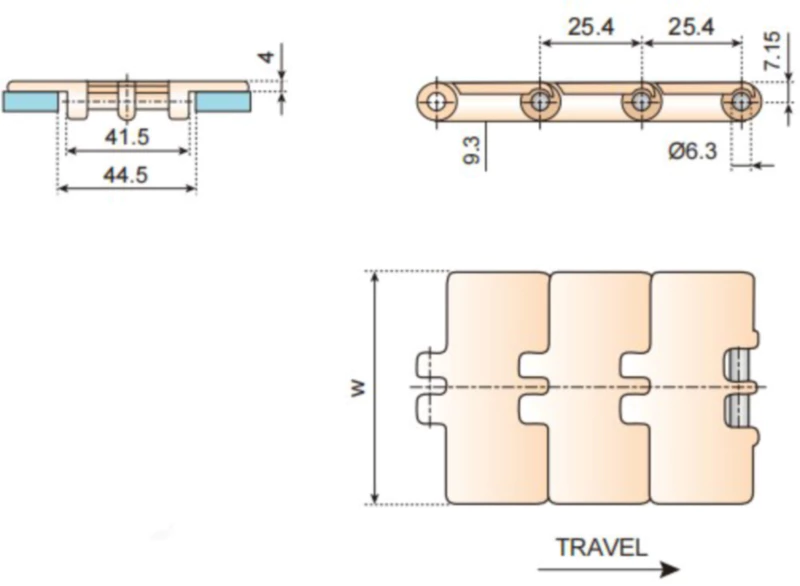

The Plastic Flat Top Chain consists of a series of flat chain plates connected by pins, rivets, or bolts. This structure forms a flat conveying surface between the chain plates, ensuring a stable, smooth transportation of objects.Mainly used for all kinds of food industry, such as beverage, bottle, can and other conveyors.The longest distance: 12MMax. speed: lubricant 80M/mindryness 50M/minWorking load: 1250NPin material: austenitic stainless steelPlate material: POM acetal(Temperature: -40 ~ 90℃)Packing: 10 feet = 3.048 M/box 39pcs/M

Chain Board Shape and Size

The shape and size of the chain board can be customized according to the specific application requirements. Generally, rectangular or square shapes are used, with the size designed and selected based on the requirements of the conveying system.

Features of the Plastic Flat Top Chain

The Plastic Flat Top Chain boasts numerous impressive features and technical parameters. These include a maximum load capacity, operating temperature range, chemical resistance, wear resistance, and tensile strength, providing accurate, useful data for potential customers to understand the product's capabilities and applicability.

Industries and Applications

The Plastic Flat Top Chain is widely used in various industries such as automobile manufacturing, electronic product manufacturing, mechanical processing, food and beverage transportation, and material transportation. Its superior adaptability in these fields makes it a popular choice.

Customer Case Studies

Practical customer case studies reveal the success stories of the Plastic Flat Top Chain in various applications, offering potential customers an insight into the actual application effects and commercial value of the product.

Customization Options

The Plastic Flat Top Chain offers customization options to meet specific requirements including different sizes, shapes, and accessory options. The flexibility of the chain makes it adaptable to various conveyor systems.

Installation and Maintenance

Guidance on the installation and maintenance of the Plastic Flat Top Chain includes proper installation methods, chain adjustments, and alignment requirements for gears or rollers. Their maintenance requirements are less than that of metal chains due to their corrosion resistance and self-lubricating properties, making them durable and able to withstand harsh environments and prolonged use.

Future Development of Plastic Flat Top Chain Technology

Potential future development of the Plastic Flat Top Chain technology could include advanced polymers or integrated intelligent technologies, further enhancing the performance and capabilities of the chains.

Other Chain Products

In addition to the Plastic Flat Top Chain, we offer a range of other chain products such as plastic chain, Stainless Steel Chain, agricultural chains, leaf chains, Pintle Chain, etc.

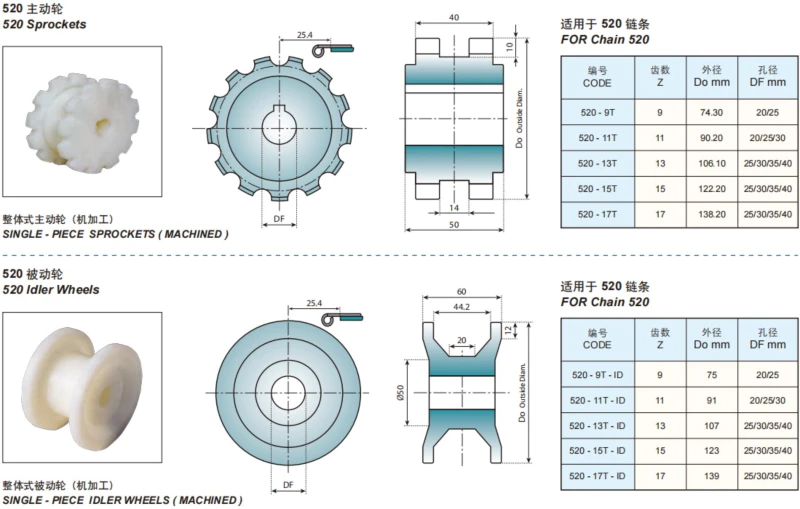

We also provide sprockets that match the chain.

Sprocket is a key component of chain power transmission. When the chain and sprocket are interlocked, the rotational motion of the sprocket transfers power to the chain, allowing it to move and drive. The design and size of the sprocket determine the torque and speed transmitted to the chain, directly affecting the operational efficiency and performance of the chain.
