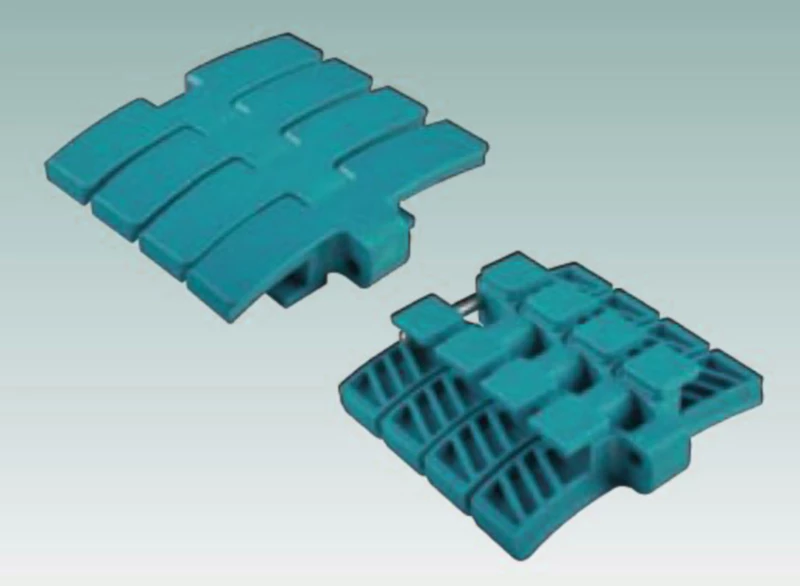

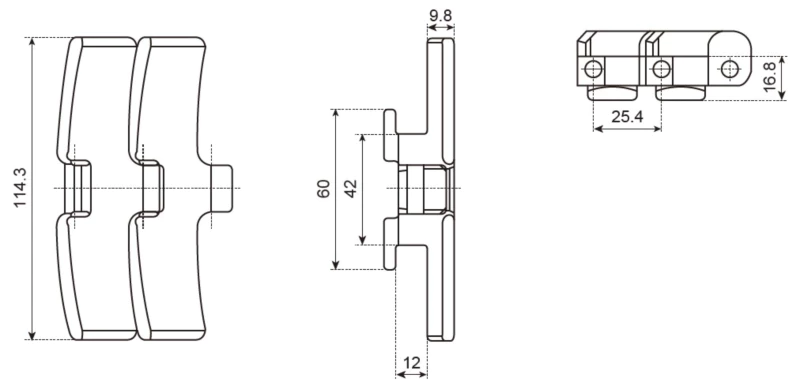

Material CompositionThe chain is made of high-quality plastic materials, ensuring strength, wear resistance, and long service life. The plastic construction also helps reduce noise levels during operation, creating a quieter working environment.Chain StructurePlastic Special Chains Flat Top Sideflexing Chain consists of individual modular links that can be easily assembled and disassembled, allowing for flexibility in conveyor system design. The chain is specifically engineered to enable smooth and reliable sideflexing motion, allowing for curved conveyor paths.Chain Plate Shape and SizeThe chain features a flat conveying surface, providing stability and support for products being transported. The chain plates have a width of 140 mm, with a pitch of 50.8 mm.Advantages1. Modular Design: Flat Top Sideflexing Chain consists of individual modular links that can be easily assembled and disassembled, allowing for flexibility in conveyor system design.2. Sideflexing Capability: The chain is specifically engineered to enable smooth and reliable sideflexing motion, allowing for curved conveyor paths.3. Flat Top Configuration: The chain features a flat conveying surface, providing stability and support for products being transported.4. High Strength and Durability: The chain is made of high-quality plastic materials, ensuring strength, wear resistance, and long service life.5. Low Friction: The smooth surface of the chain reduces friction and enables smooth product transfer.6. Easy Maintenance: The modular design facilitates quick and easy replacement of damaged or worn-out links.Application1. Food and Beverage Industry: Flat Top Sideflexing Chain is commonly used in bottling lines, packaging lines, and food processing applications that require curved conveyor paths.2. Packaging Industry: The chain is suitable for conveying products in packaging lines, including cartons, cases, trays, and containers.3. Pharmaceutical Industry: Flat Top Sideflexing Chain can be utilized in pharmaceutical manufacturing and packaging processes, ensuring smooth and precise product handling.4. Manufacturing and Assembly: The chain is suitable for various manufacturing and assembly applications where curved conveyors are needed.
How to Select1. Load Capacity: Consider the weight and size of the products to be conveyed to ensure the chain can handle the required load.2. Conveyor Speed: Determine the desired conveyor speed and select a Flush Grid Magnetflex Chain that can operate reliably at that speed.3. Environmental Conditions: Consider factors such as temperature, humidity, and chemical exposure to choose a chain with appropriate material properties for the specific environment.4. Application Requirements: Evaluate the need for magnetic attraction, hygiene compliance, and ease of cleaning when selecting the chain.5. Compatibility: Ensure compatibility with existing conveyor systems or components for seamless integration.Installation and Maintenance1. Proper Alignment: During installation, ensure that the chain is aligned correctly to prevent misalignment or excessive wear.2. Tension Adjustment: Maintain proper tension in the chain to prevent sagging or excessive strain.3. Regular Lubrication: Check the manufacturer's recommendations for lubrication intervals and use appropriate lubricants to ensure smooth chain operation.4. Routine Inspection: Regularly inspect the chain for wear, damage, or loose components, and replace any worn or damaged links promptly.5. Cleaning Procedures: Follow recommended cleaning procedures to remove debris, dirt, or product residues from the chain's surface.6. Spare Parts Availability: Keep a stock of spare links or components to facilitate quick replacement in case of unexpected failures.Possible Problems and Solutions1. Misalignment: Realign the chain to prevent excessive wear or damage.2. Chain Tension: Adjust the chain tension to prevent sagging or excessive strain.3. Wear and Tear: Replace any worn or damaged links promptly.4. Loose Components: Tighten any loose components to prevent damage or malfunction.5. Dirt, Debris, or Residues: Clean the chain surface using recommended procedures to prevent damage or contamination.Chain and Sprocket RelationshipThe chain and sprocket are crucial components of a conveyor system, with the sprocket providing the driving force that moves the chain along the conveyor path. Plastic Special Chains Flat Top Sideflexing Chain is designed to work seamlessly with matching sprockets, providing reliable and smooth operation for curved conveyor paths.

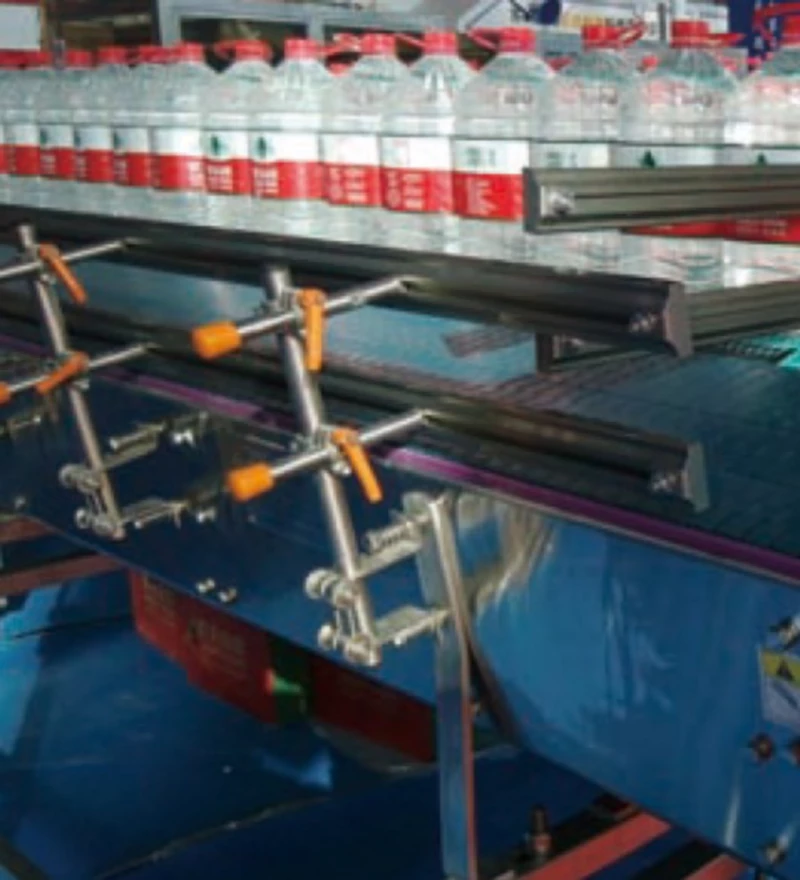

Other Chain ProductsIn addition to Plastic Special Chains Flat Top Sideflexing Chain, Raydafon offers a range of other conveyor chain products, including Plastic Chain, Stainless Steel Chain, agricultural chains, and leaf chains. These chains are suitable for various applications across different industries, providing strength, durability, and versatility for a wide range of conveyor system designs.About RaydafonRaydafon is a professional transmission parts company that has been committed to becoming an industry leader since its establishment in 2006. With expertise, international certifications, customization services, production equipment, and after-sales service, Raydafon produces various conveying equipment and accessories widely used in various industries such as beverage and food processing, aquatic product processing, pharmaceuticals, packaging, and electronics. Customers are welcome to inquire and customize products.Address
