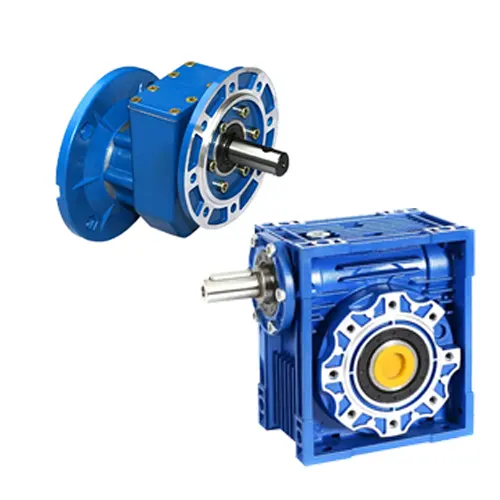

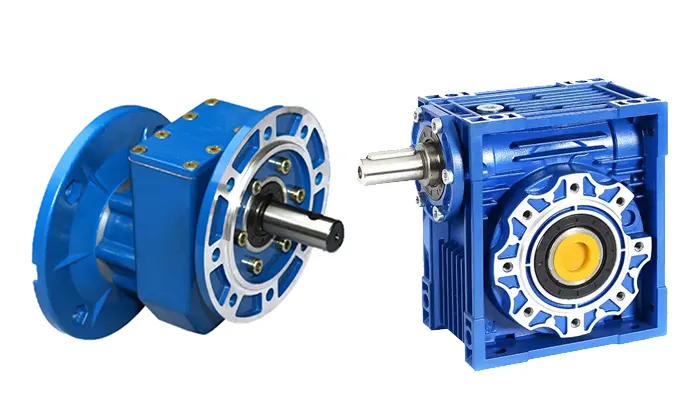

Poultry Feeding System Gearbox

The poultry feeding system gearbox is an important part of the poultry feeding system. It is used to transmit the power of the motor to the conveyor chain, thereby driving the conveyor chain to move and transport feed to each trough. The main function of the poultry feeding gearmotor is to transmit and regulate power. By using the gear reducer, the system is able to transfer power from an electric motor or other power source to the feeding equipment to drive feed delivery and distribution. The poultry feeding gearbox also has speed changing and direction changing functions, which can adjust the operating speed and direction of the feeding equipment as needed.

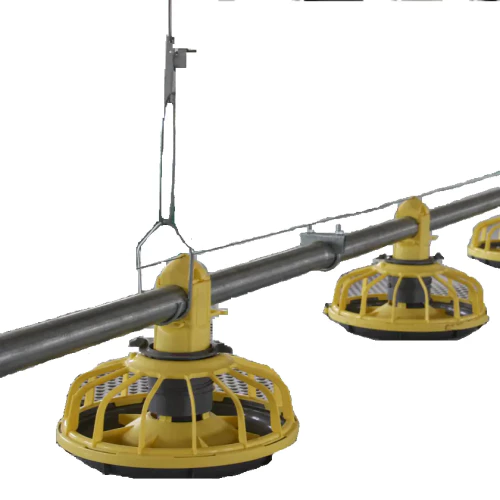

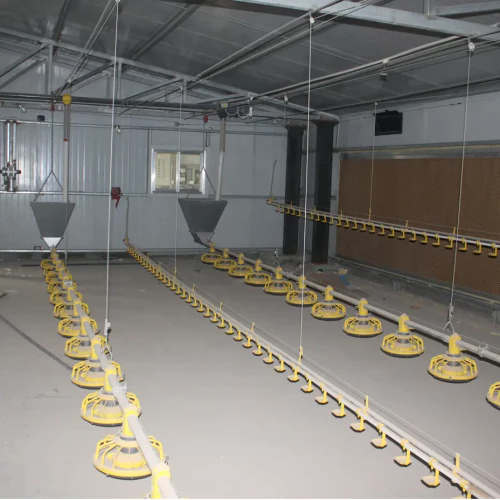

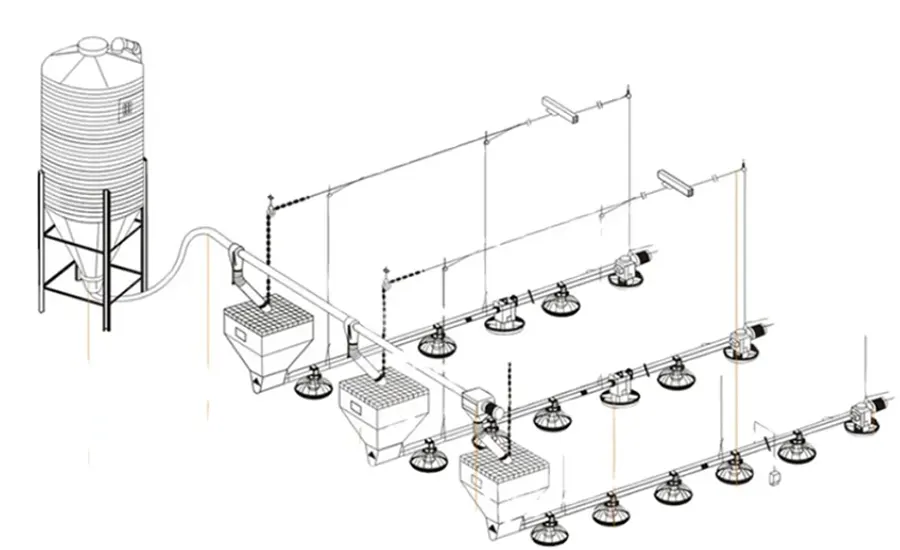

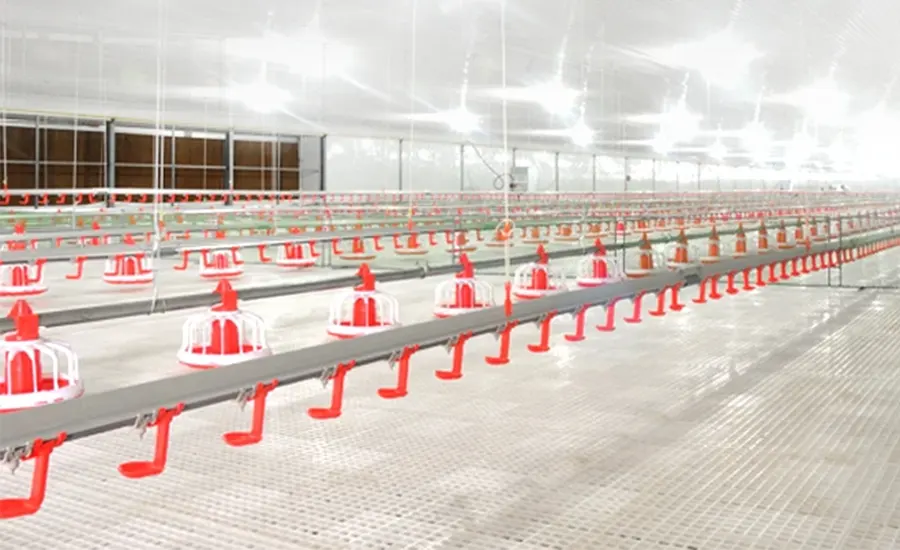

Automatic Poultry Feeding System

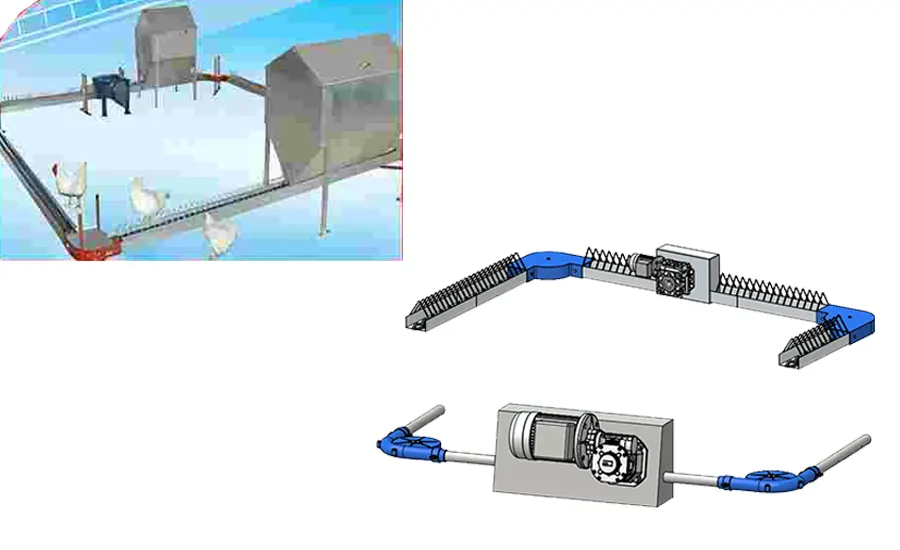

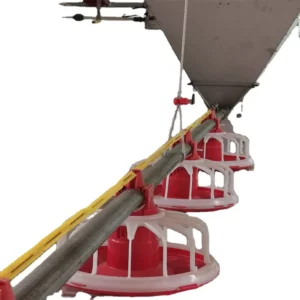

Chain Feeding System

Specifications of Poultry Gearbox

Product name	poultry gearbox
Motor phase	AC motors,1 phase or 3 phase
Rated power	0.25 kw~1.5 kw
Input speed	1410rpm at 50Hz,1660rpm at 60Hz
Options of input flanges	63B5,71B14,71B5,80B14,80B5
Typical ratio	1:3.93,1:4.75,1:5.7
Output flange types	Square flange or round flange
Output shaft types	Single keyway on shaft,hole on shaft
Application machine	Mainly used for poultry farm feeding system
	Customization for specific needs is available at Raydafon.



Poultry Gearbox Features

• Compact structure and simple assembly
• Wide speed ranges and high torque
• Low noise, good sealing performance, high efficiency
• Stable and safe, long lifetime, universal
• Multi-structure, various assembling methods

How Poultry Feeding System Gearboxes Work?

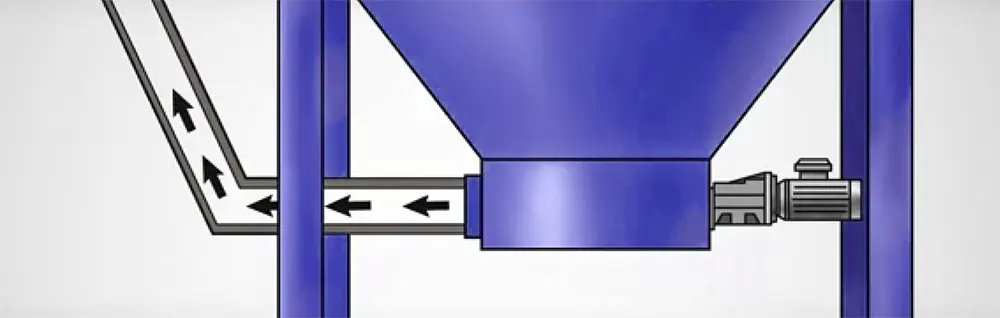

The working principle of the poultry feeding system gearbox is to use the meshing of gears to transmit power. The electric motor is connected to the input shaft of the gearbox through a coupling to drive the gears in the gearbox to rotate. The gears in the gear box transmit power according to a certain transmission ratio, and are finally output to the conveyor chain or screw conveyor.The specific working process is as follows:

• The motor starts and drives the input shaft of the gearbox to rotate through the coupling.
• The gears on the input shaft of the gearbox mesh with other gears in the gearbox to transfer power to the output shaft.
• The gears on the output shaft of the gearbox mesh with the gears on the conveyor chain or screw conveyor to transmit power to the conveyor chain or screw conveyor.
• A conveyor chain or screw conveyor drives the feed forward and ultimately delivers the feed to a trough or feeding tray.

Applications of Poultry Feeding Gearboxes

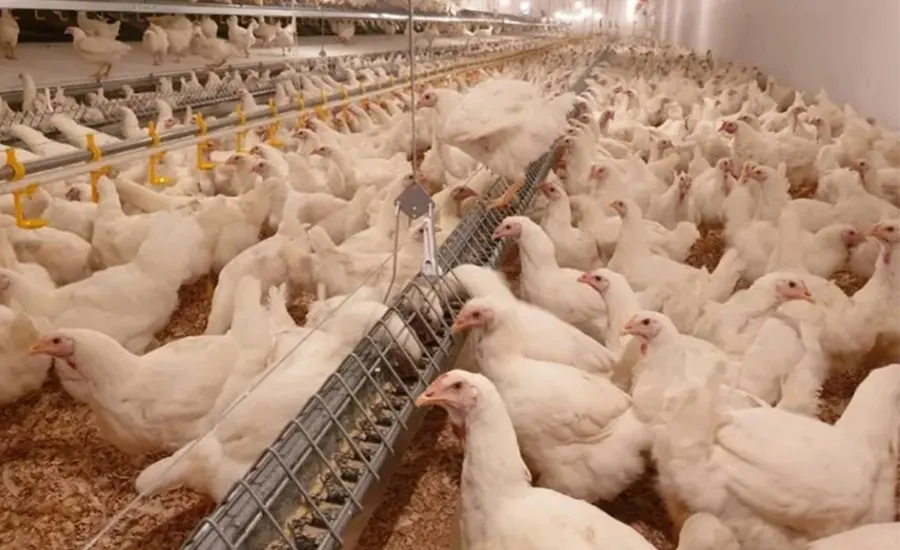

Poultry feeding gearboxes are widely used in various poultry farms, including

• chicken farms
• duck farms
• goose farms
• pig farms
• etc.

Besides, poultry feeding gearboxes can be used to transport powder, pellets, mixtures and other feeds.

Poultry Feeding System Gearbox Use and Maintenance

In order to extend the service life of the poultry feeding system gearmotor, the following matters should be paid attention to:

• Check the oil level of the gearbox regularly and add lubricating oil in time.
• Regularly check the gears and bearings of the gearbox and replace worn or damaged parts in a timely manner.
• Protect the gearbox from overload or impact.
• Keep the gearbox clean and dry.

Selection of Poultry Feeding Gearmotors

The poultry feeding system gear reducer is an important part of the poultry feeding system. Its performance and quality directly affect the efficiency and reliability of the poultry feeding system. When selecting and using a gearbox, the following factors should be fully considered to ensure the normal operation of the poultry feeding system.

• Motor power and speed
• The speed and torque of the conveyor chain.
• Gearbox transmission ratio
• Gearbox installation space
• Environment

[embed]https://youtu.be/HjiupwwPJEA[/embed]

Why Choose Raydafon?

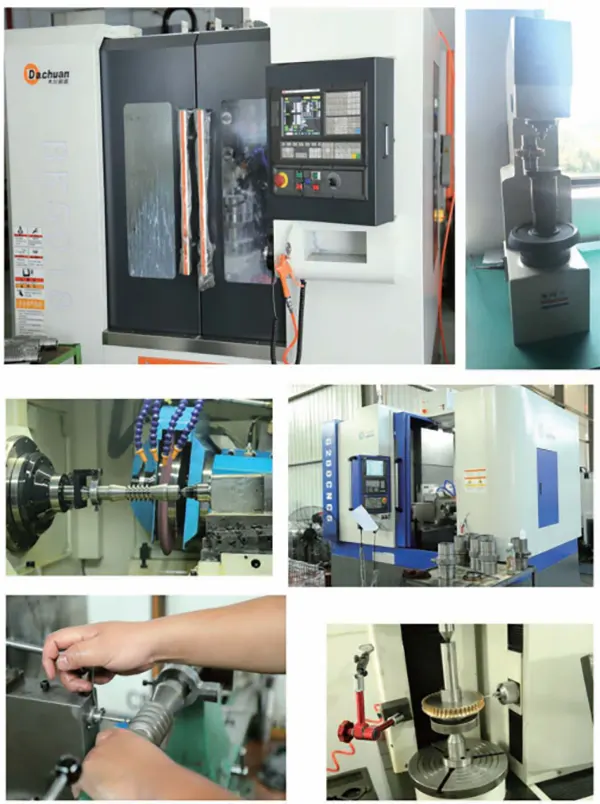

Raydafon is a comprehensive transmission enterprise that integrates research and development, manufacturing, and sales of reducers. Raydafon Group has more than 20 years of rich experience in the design, manufacturing and sales of speed reducers, serving customers Europe, America, Africa, Asia and so on, obtains the market consistent high praise.Raydafon has introduced advanced production equipment and testing equipment at home and abroad, hired industry professionals and technicians to carry out innovative research and development and manufacturing, and adopted standardized production management methods to strictly control every aspect of reducer production. It has been providing customers with services for many years.Over the years, we have further increased research and innovation in the field of transmission, and are committed to making transmission more effective and reliable! To better provide customers with transmission component solutions. At present, the main products include worm gear reducers, solar reducers, planetary reducers, harmonic reducers, and various non-standard reducers. The products are widely used in the equipment industry, food industry, car wash industry, packaging industry, transmission industry, Automation industry, solar energy industry, etc., the products are deeply welcomed and trusted by customers.
