PTO Shaft for John Deere Round Balers

Experience seamless operation with the Raydafon Group PTO Shaft for John Deere Round Balers. Crafted from premium materials for unmatched durability, this essential component ensures your baler runs smoothly, reducing downtime and enhancing productivity. Perfect for farmers and agricultural professionals, it solves common inefficiencies, offering a reliable, cost-effective solution that outperforms competitors. Elevate your farming experience today!

Send Inquiry

Product Description

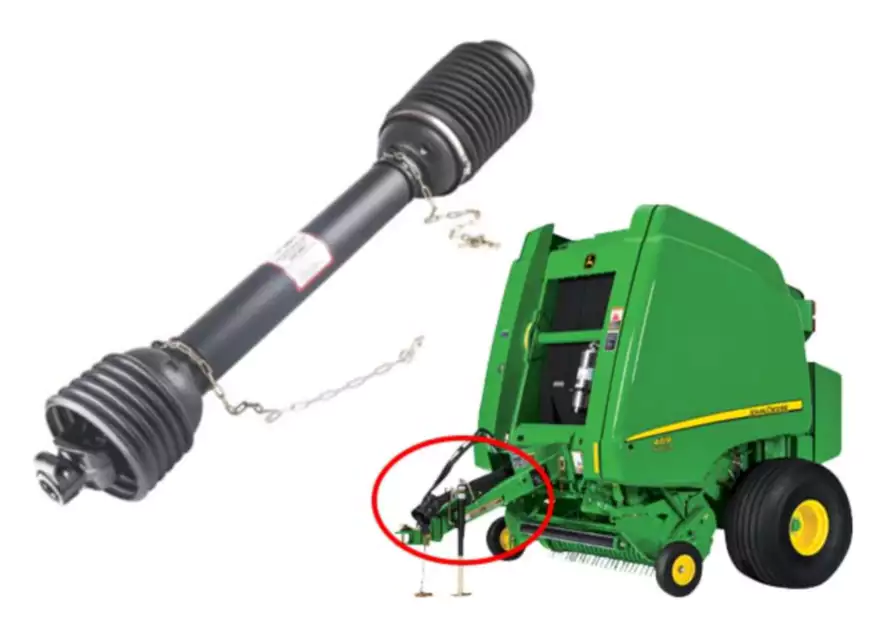

PTO Shaft for John Deere Round Balers

Applicable PTO Shaft Models

John Deere Round Balers and Premium Round Balers

Models: 469, 569 Round Balers, and Premium Round Balers

John Deere uses CAT4 and CAT5 constant-velocity drivelines, depending on the model, with friction clutch or cam clutch.Original Equipment PTO Shaft is Replacement of Weasler "Equal Arm" CVInput shafts are 1.375-6 or 1.375-21. Please click here with your specifications.

PTO Shaft: CAT 3, 4, 5 Constant Velocity

Available for tractors using:1.375"-6 or 1.375"-21 splineOther combinations are available.If you have a 1.75" x 20 spline tractor output we can modify a PTO CV head for you. Please call!

Model	PTO	Protection
469 Standard	CAT4	FRICTION CLUTCH
469 Premium	CAT4	CAM CLUTCH
469 Silage	CAT4	FRICTION CLUTCH
569 Standard	CAT4	FRICTION CLUTCH
569 Premium	CAT4	CAM CLUTCH
569 Silage	CAT4	FRICTION CLUTCH

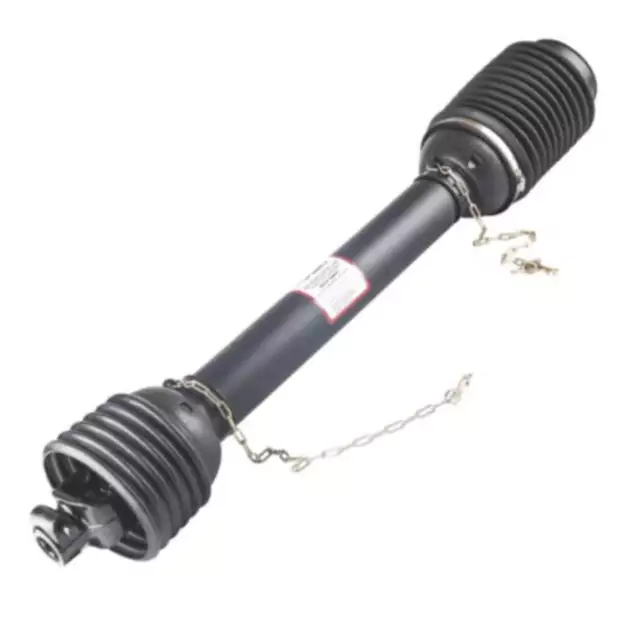

Round Baler PTO Shaft Features

The PTO Shaft is made to last, so you know the job will get done right, and it provides reliable service with durable construction. Raydafon high-performance PTO drive shafts are the foremost drive shaft solution in the agriculture and lawn and turf industries. These tractor PTO shafts are complete assemblies from tractor to implement. The PTO shafts are designed for continuous heavy-duty all-purpose use and meet the requirements of large farms and contractors.

PTO shaft length: 46 in. (compressed)
Round balers Series metric driveshafts are a top choice in the agriculture and lawn and turf industries.
PTO drive shaft features 1-3/8 in., 6 spline quick disconnect tractor, and implements connections for easy operation
Designed for large farms and contractors
Design adjustability (cut-to-length) capabilities offer versatility
Tractor PTO shaft supports interchangeability to fit with most competitor models (sold separately)
The easy lock guard system provides full coverage at maximum angles, a full 360-degree friction weld on the guard bell, and black coloring that is durable against ultraviolet light and ozone
Guard system is cold weather impact rated to -35 degrees C, meets and exceeds all applicable safety standards, and ensures a quick and easy process for removal and installation
Available extended lubrication E-kits reduce downtime with lubrication intervals of 50-250 hours (sold separately)
High-temperature triple lip seal retains grease better
The yoke features a cast iron collar and a through-bore to keep debris from collecting inside
Yoke is interchangeable with other Replacement of Weasler yokes and most standard yokes (sold separately)
Cross and bearing kit manufactured with high-quality steel for increased strength, high torque capacity, and longer life; standard kits can be upgraded to or interchanged with E-Kits (sold separately)

Original PTO Shaft Equipment

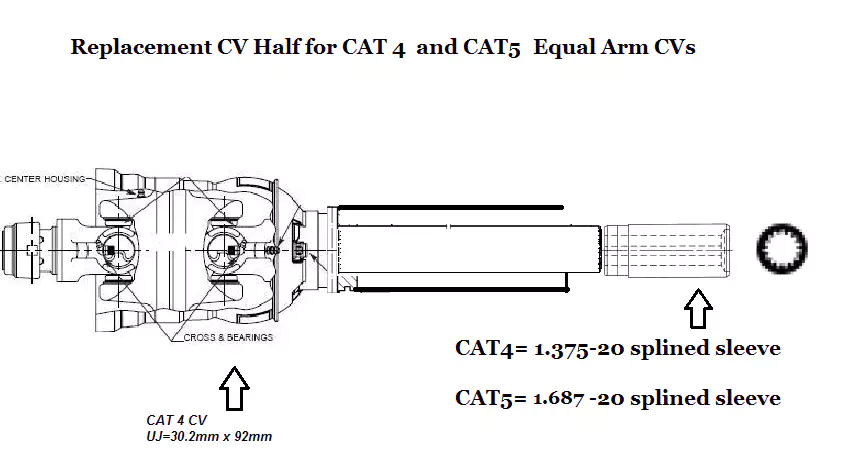

OEM Replacement of Weasler Half Shaft Replacements

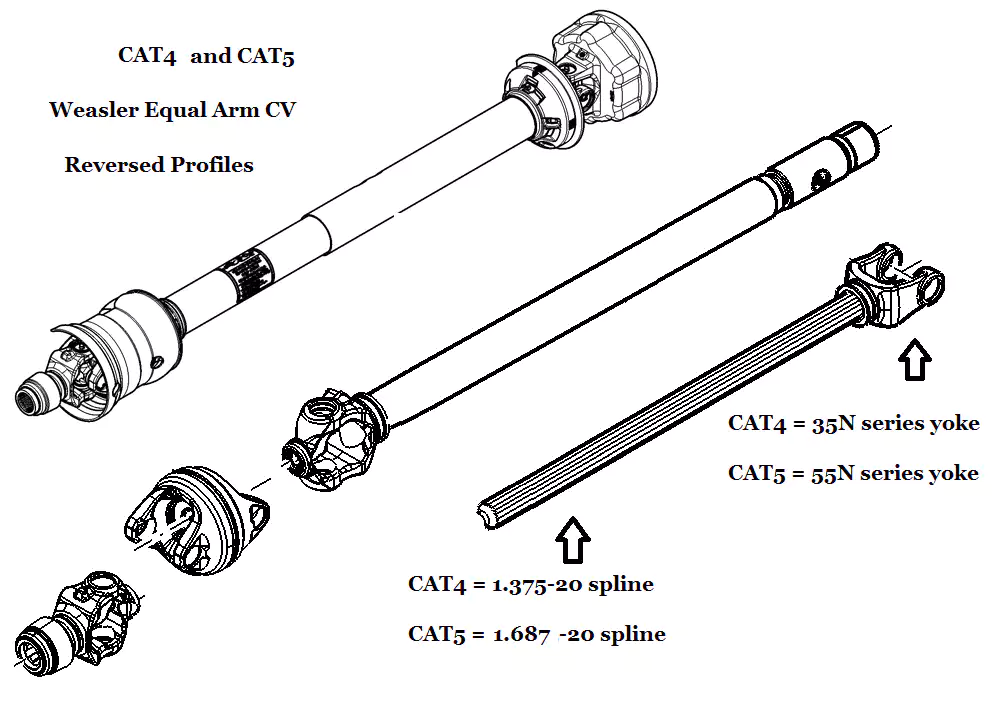

Check the diameter of the telescopic spline. Both sizes are used in various models. PTO Shaft for John Deere Round Balers

OEM John Deere PTO Shaft Replacements

Tractor splines	Telescoping splines	Part Number
1.375-6	1.375-20	92-14558659
1.375-6	1.375-20	92-14658659
1.375-6	1.750-20	92-14503559
1.375-21	1.750-20	92-14603559

Recommended Complete Replacement with Tube Profile

Constant Velocity PTO	Tractor	Base Part Number(add implement device)
CAT3/540	1.375-6	71R4121UCW07000
CAT4/540	1.375-6	CS6R121U2WR7014
CAT4/1000	1.375-21	CS6R121U2WR8000
CAT5/540	1.375-6	71R8121UCWR7R10
CAT5/1000	1.375-21	CS8R121U2WR8000

Baler Input Requirements

FT Clutches for 1.375-6 Spline Input

Universal Size	Torque nm	Part Number
CAT3 / S4	1000nm	6QE344901R
CAT3 / S4	1000nm	635E41203R
CAT4 / S6	1450nm	663G48403R
CAT4 / S7	1450nm	663H53403R
CAT5 / S8	1450nm	663L53403R
CAT5 / S9	1450nm	6LM453003R

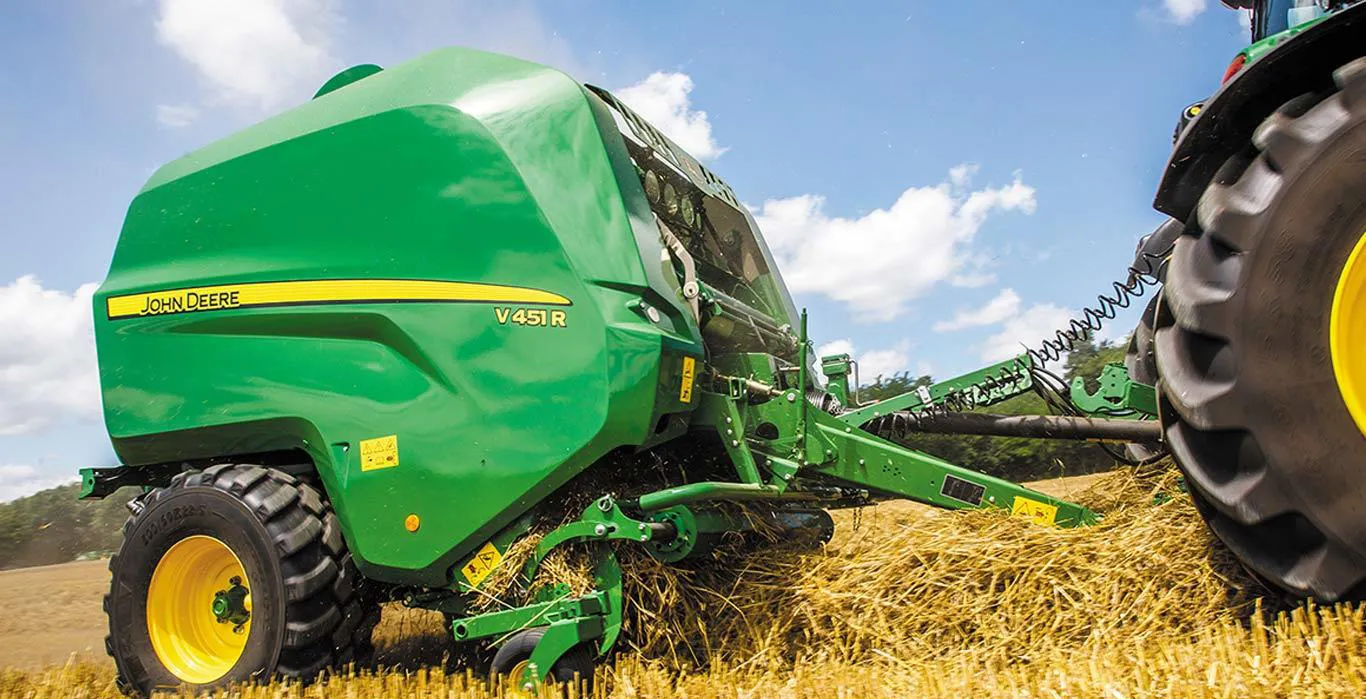

How Does the PTO Shaft Work?

Much agricultural equipment lacks independent power, which is where the tractor PTO shaft comes in.

Each end of the PTO shaft has connections to the tractor and machine. The tractor PTO shaft is operated with a simple switch and can rotate between 540 and 1,000 RPM, depending on the equipment. When engaged, the shaft draws power and torque from the tractor transmission to give your implement just the right amount of power to get you to work.

PTO shafts come in different sizes, and you'll need to find one that matches the coupling on the equipment you're towing. Attaching your tool to the tractor should be easy. If you have to lift the device off the ground to attach the shaft or the shaft is too long, forcing the connection can damage both. If you have an existing PTO shaft handy, it's easy to confirm your length. Close it and measure from PTO yoke to yoke.

PTO Shaft for John Deere Round Balers

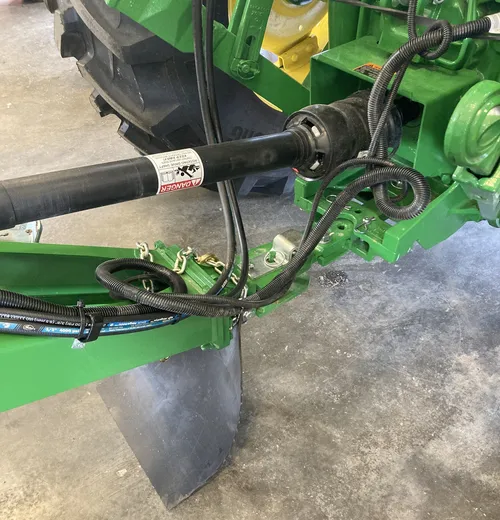

Round Baler PTO Shaft Using Precautions

In order to fully improve work efficiency, ensure the stability of the work, and prolong the service life of the machinery, agricultural machinery will also be used together. Today, we will give you a brief introduction to the use of agricultural machinery; PTO drive shaft installation should be how to coordinate. Taking the combined baler as an example, the following transmission shaft problems should be paid attention to when it is used with the tractor.

PTO Shaft for John Deere Round Balers 1. When mounting the packing machine, the PTO shaft should be in a straight line with the tractor PTO shaft of the crawler tractor.

2. PTO drive shaft assembly is an important working component for transmitting tractor power. When installing the PTO drive shaft assembly, it should be noted that the two dips of the intermediate power output shaft should be located in the same plane. It is easy to install errors without attention. If the opening direction is staggered 90°, it is easy to damage the cross joint of the PTO shaft.

3. When the ground turns, the PTO power output shaft should be separated, and the rototiller should stop and then be connected after the turn; otherwise, it will waste power, or the drive shaft will hit the limit chain.

4. Due to the large working resistance of the baler, it is necessary to add lubricating grease to the intermediate gearbox and PTO drive shaft regularly in the process of use to reduce wear.

How to Grease a PTO Shaft?

PTO shaft should be lubricated regularly to prevent universal joint failure and prevent shaft jamming. Failure to lubricate the shaft regularly or as specified in the PTO shaft maintenance plan may result in an end thrust that may damage the gearbox of the tool. Standard universal joints are recommended to be lubricated every 20 hours or every 8 hours under bad conditions. Remember! Grease follows the easiest path through the internal ports to the four cross bearings. Overheating and poor-quality grease baked in one port can prevent grease from reaching that bearing, resulting in the failure of a single cross-bearing. Most importantly, ensure that the protective cover is fully opened to ensure grease flow to all cross bearings. Insufficient lubrication through small guard access holes. Also, check the state of PTO shaft safety guards, and if they are damaged or in poor condition, arrange for the replacement to ensure operator safety.

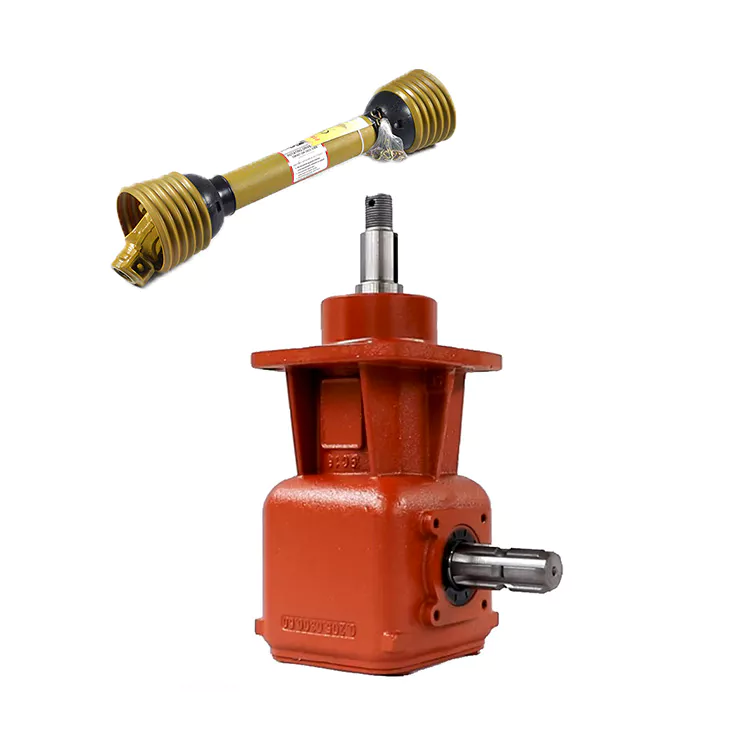

Agricultural Gearbox and PTO Shaft

The agricultural gearbox is designed to change the output speed of a PTO drive shaft. It can be used as a decreasing or increasing ratio gearbox. The decreasing ratio gearbox reduces the PTO shaft's speed from 1000 rpm to 540 rpm, allowing you to use equipment designed for 540 rpm. On the other hand, an increasing ratio gearbox increases the speed of the PTO shaft from 540 rpm to 1000 rpm.If you also need the agricultural gearboxes, please contact us and get a quote!

Round Baler PTO Shaft Manufacturers

For 60 years we have been manufacturing PTO drive shafts, safety devices, torque limiters, agricultural gearboxes, speed multipliers, and speed reducers for agricultural mechanization. As of today, we are certainly among the world leaders in engineering, producing, and commercializing agricultural PTO drive shafts. Our company also can make made-to-order PTO shafts with special yokes and lengths to meet your specific needs; when ordering or requesting a quotation on Made to-order PTO drive shafts, specify the style number and dimensions per drawing.For more information about us, contact us right away. We will do our best to meet your requirements for the product and provide the most perfect after-sales services for you. Feel free to take a closer look around our pages, and if you have interested in it, please inquire to us about your favorite items. Welcome you connect with us or come to our factory to make an order with sample for the good development of our distribution.
