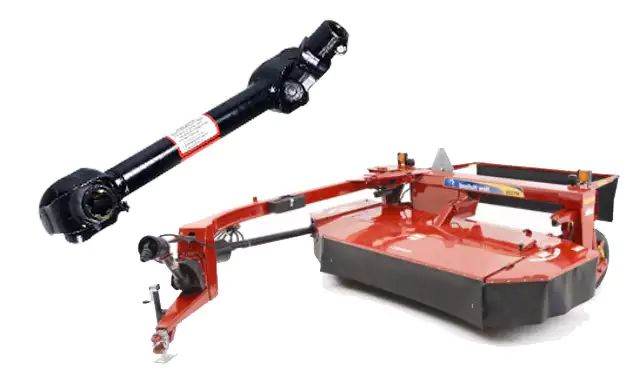

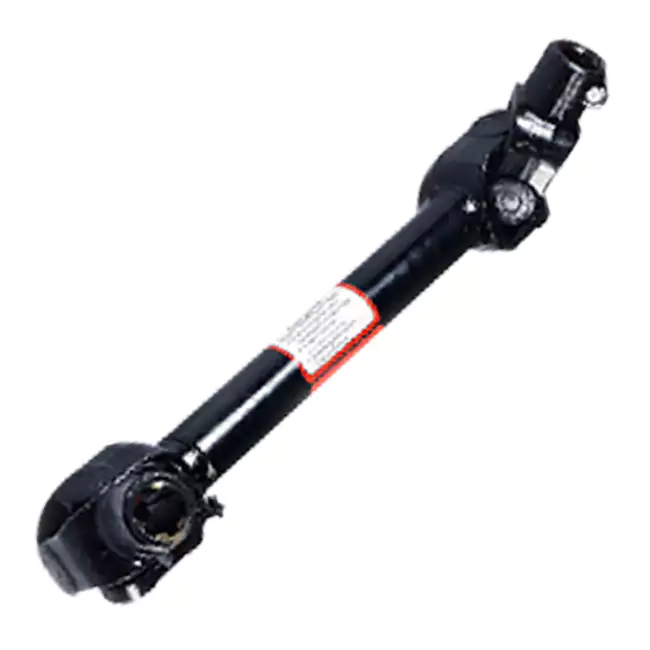

PTO Shaft for New Holland Disc Mower Discbines

PTO Shaft for New Holland Disc Mower Discbines

Our drive PTO shafts can be adapted to the following disc mower models：

New Holland Discbines 1431, 1432  Model 411, 1409, 1410, 1411, 1412, 1441, 1442, 1431, 143H7220, H7230, H7320, H7330, H7450, H7460, H7550, H7560Case IH DC 132,

Parts of a Pto Shaft

You must understand sizes, measuring, horsepower, and agriculture PTO shaft parts to choose the proper PTO shaft for your farm machinery. Though the yokes and U-joints are necessary for function, the safety chains and shield are essential parts of the PTO shaft to keep you safe during use.

• Internal Yoke- There are two, located at both ends of the PTO shaft -tractor and implement. This is welded to the drive end.
• Universal Joint- There are two at both ends of the PTO shaft.
• External Yoke- There are two at both ends of the PTO shaft. It has a "Y" shape to connect to the U-joint and a female hole.
• Safety Chains- The chains secure the PTO shaft onto the equipment and the tractor.
• Safety Shield- These cones are found on both ends.

Different Models PTO Shaft for Sale

All disciplines use multiple PTO shafts and a combination clutch.The types of PTO shafts and clutch locations vary from model to model.Models below were initially equipped with Replacement of Weasler and Replacement of Bondioli & Pavesi PTO shafts.

Part Number	Tractor	Implement	Description
New Holland Discbines 1431, 1432
14656853	1.375-21	1.5" x 23 spline	55N 80x50 Double CV
82-14656853	none	1.5" x 23 spline	55N 50 degrees CV half(implement)
83-14656853	1.375-21	none	55N 80 degrees CV half(tractor)
83-14756853	1.750-20	none	55N 80 degrees CV half(tractor)
New Holland Discbines Model 411
14656853	1.375-21	1.5" x 23 spline	55N 80x50 Double CV
82-14656853	none	1.5" x 23 spline	55N 50 degrees CV half(implement)
83-14656853	1.375-21	none	55N 80 degrees CV half(tractor)
83-14756853	1.750-20	none	55N 80 degrees CV half(tractor)
857-5521	none	1.375-21	55N 50 degrees CV clamp yoke only
New Holland Discbines 1409, 1410, 1411, 1412, 1441, 1442
55N-NH14XX-DISCBINE	1.375-6	none	CAT6 CV with 1.375-21 yoke
14656848	1.375-21	none	55N CV without implementing yoke
14756848	1.750-20	none	55N CV without implementing yoke

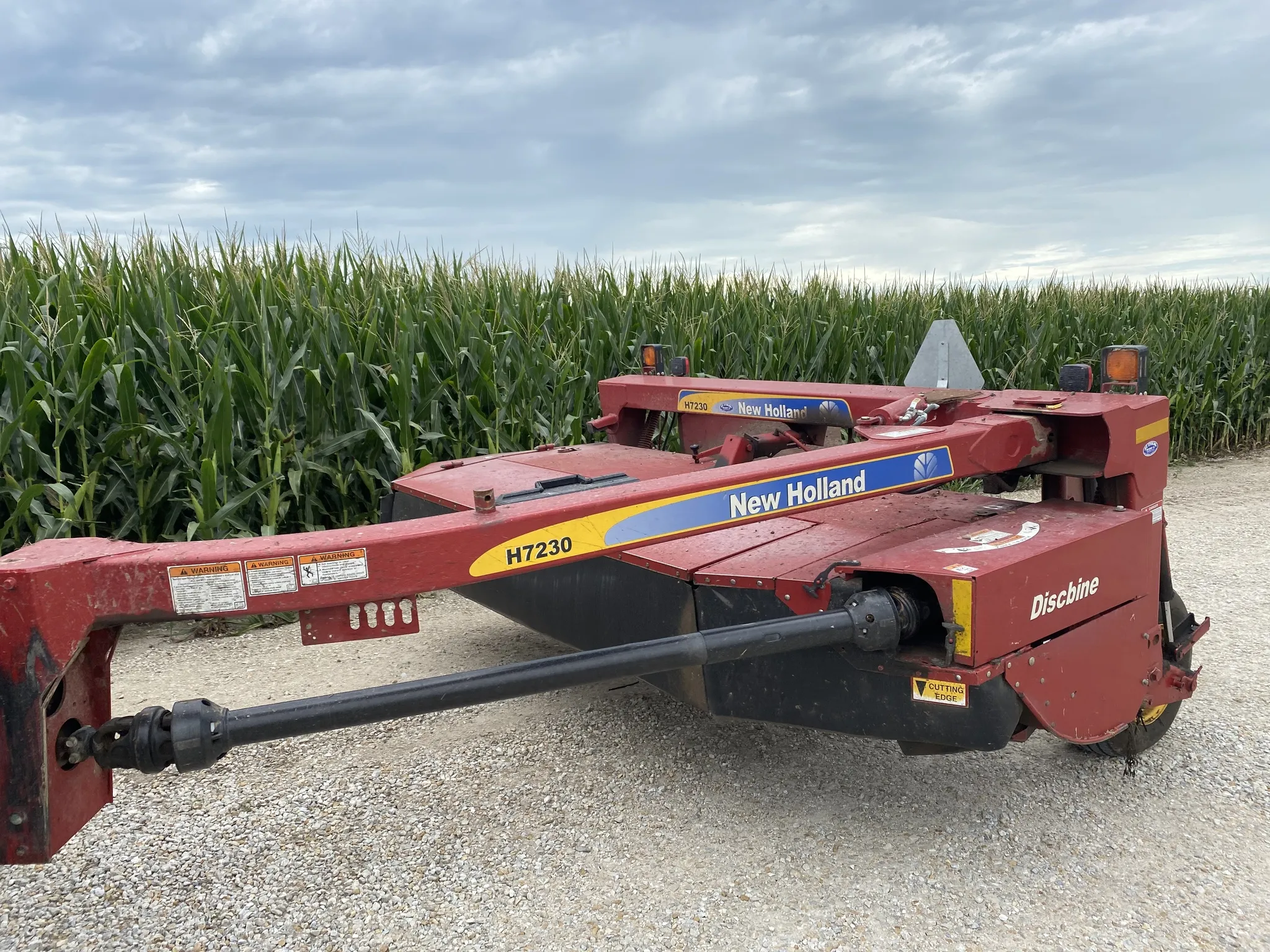

New Holland Discbines H7220, H7230, H7320, H7330, H7450, H7460, H7550, H7560
14605548	1.375-21	none	55N CV without implementing yoke
14705548	1.375-21	none	55N CV without implementing yoke

Model:	Primary	Intermediate	Secondary	HP	RPM
H7220	35N CV		35N Square	65	540
H7230	55N CV or standard	Jack style 1.375-21	H8 double CV	80	540/1000
H7320	35N CV		35N Square	65	540
H7330	55N CV or standard	Jack Style 1.375-21	H8 double CV	80	540/1000
H7450	55N Double 80/50 CV or55N standard (for swivel)		55N standard	90	1000
H7460	55N Standard	55N Square w/clutch	55N Standard	100	1000
H7550	55N Double 80/50 CV or55N standard (for swivel)	55N standard	55N standard	90	1000
H7560	55N Standard	55N Square w/clutch	55N standard	100	1000

Three Different Types of Pto Shafts

The type of PTO shaft you choose definitely depends on the job you need to do. If you're plowing, mowing, or shredding, there is a Power Take-Off shaft that is best for each task and helps guard your machinery against unnecessary pressure, hits, or tension.

Non-Shear PTO Shaft

This is designed for equipment not projected to meet sudden halts. It's a yoke-to-yoke arrangement. This can be used for large mowers, as the movements will be smooth, and there shouldn't be times of resistance or stopping.

Shear Pin PTO Shaft

The end yoke is in two pieces and uses a shear pin to hold them together for operation. The pin absorbs the shock if there is a sudden stop to avoid damaging the driveline. It can be used with equipment such as a chipper.

Slip Clutch PTO Shaft

Slip Clutch is designed to protect your tractor and your attached equipment from being damaged by internally sliding- allowing movement when an object is struck. For example, as the seasons change, rocks and stones come to the surface, and when you hit them, you want the shock absorbed, so you don't cause damage to the gearbox.

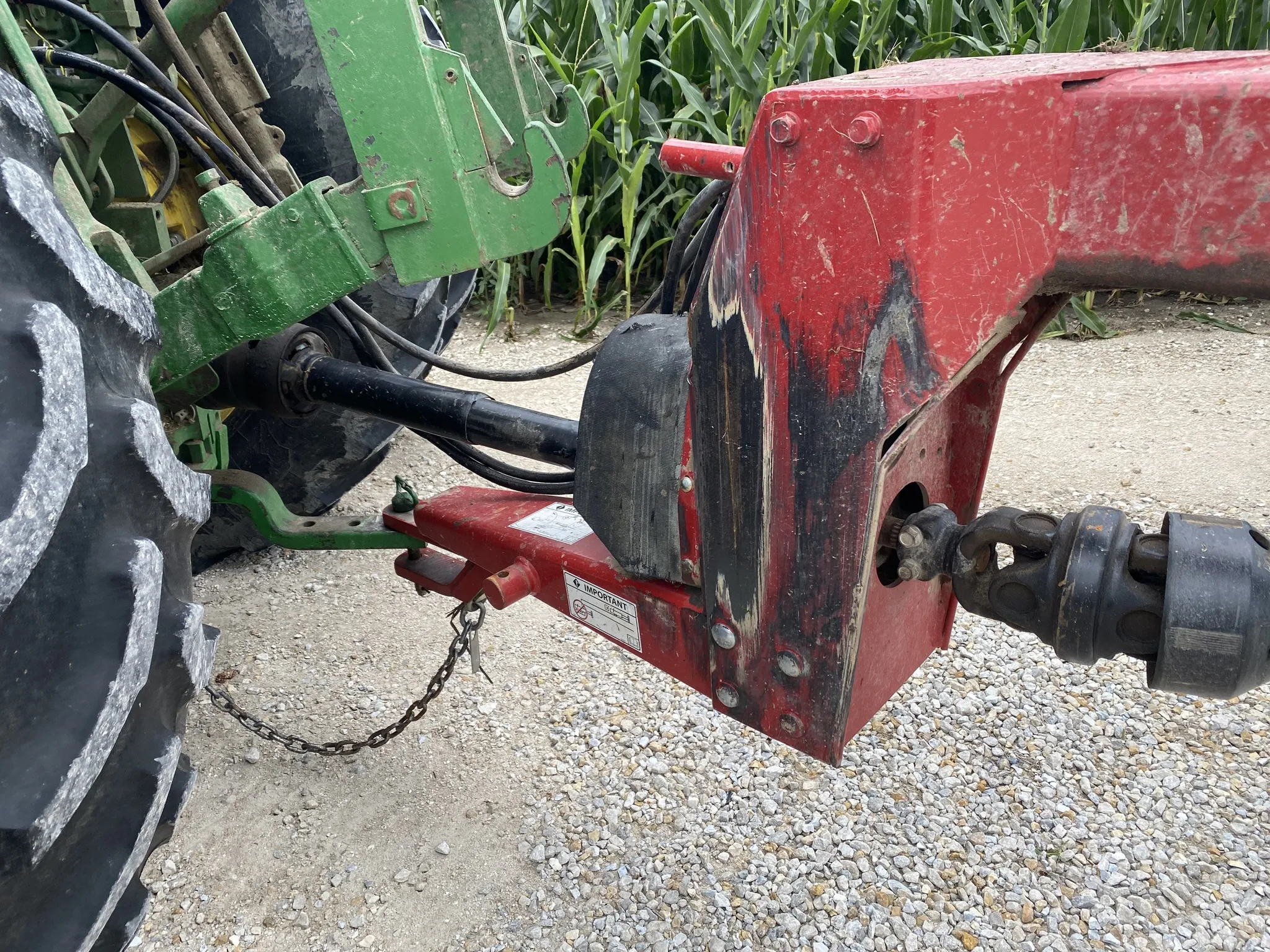

PTO Shaft Length Limit

The Power Take Off (PTO) shaft is the system that delivers power to your implement. It is, therefore, essential to understanding how it operates to ensure user safety. It is also imperative to be aware of maintenance requirements to prevent potential mechanical problems. PTO shafts have a rating and are not necessarily interchangeable between tractors or implements. It is, therefore, essential to fit the correct shaft to the tool according to the manufacturer's specifications and to ensure it is the right length.

• Length: The length of the PTO shaft is determined when setting up an implement on a tractor for the first time. If shortening of the PTO shaft is required, the operator must use the supplier's formula to cut the shaft to the correct length. This is usually done by taking measurements from the tractor output shaft and implementing the input shaft to where the PTO shaft will be at its shortest.
• Too long: If your PTO shaft is too long (or if the telescopic tubes have seized), "end thrust" can occur, which can destroy your tractor's internal PTO drive or implement clutch and gearbox, potentially voiding your machine warranty.
• Too Short: If the shaft is too short, it could potentially separate from the implement posing major safety issues and possible damage.

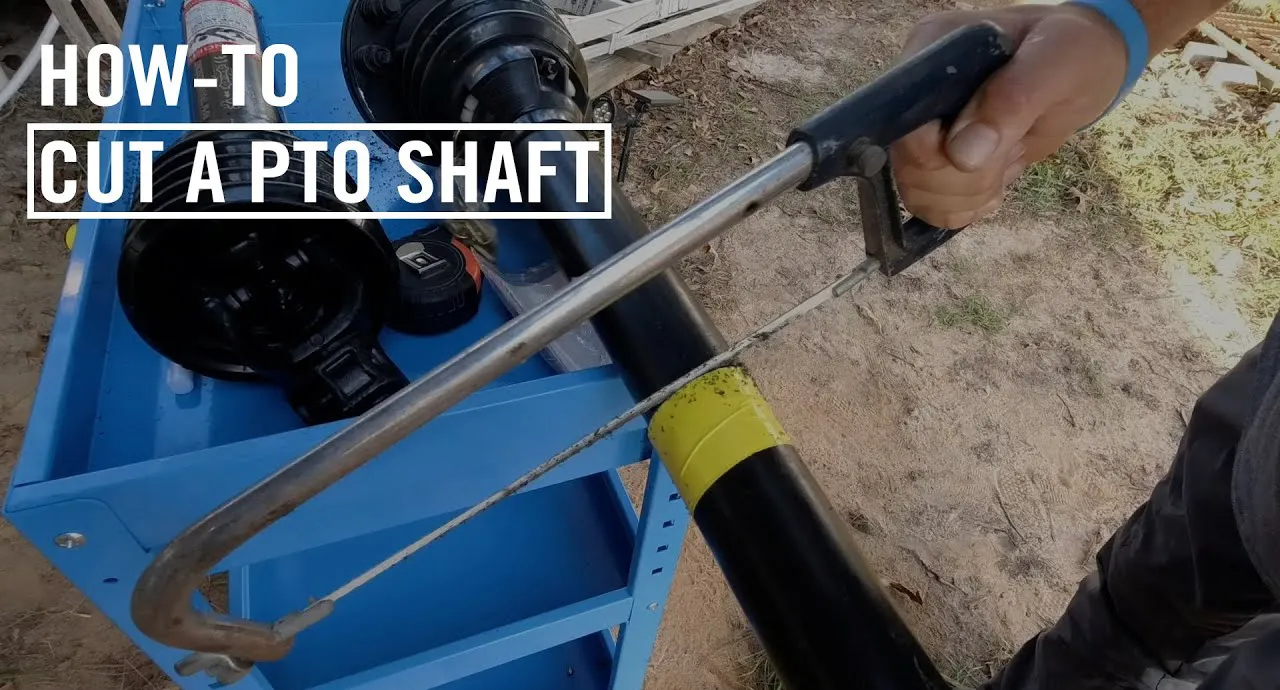

How do Cutting a PTO Shaft to the Right Length?

If the PTO shaft is too long, it might bind when the three-point hitch is lifted. Damage might be caused to the bearing of the chipper or the PTO of the tractor. If the PTO shaft is too long, it must be cut.   Equal amounts must shorten both PTO halves.1. Mount the chipper on the three-point hitch of the tractor.2. Cut the engine and remove the keys.   Lower the chipper on a firm and level surface.3. Lift the three-point hitch so that the power intake shaft of the chipper is at the same height as the PTO of the tractor. The PTO and the power intake should be closest to each other at that position.4. Pull the PTO shaft apart. Connect one half of the shaft to the chipper, so the locking pin is locked. Place the other end of the chipper flush with the end of the tractor's PTO. Lay the side of the end by the side. Mark on the shield how much must be cut off. The tubes must be so short that they cannot reach the bottom in any chipper position.5. Cut the plastic tube.6. Cut a piece from the profile tube, the same length as the piece you cut off of the shield. Shorten the other half of the PTO shaft to the same length.7. File sharp edges off of the profile tubes.

PTO Shaft Maintenance

The PTO shaft should be greased regularly to keep the universal joints from failing and to stop the shaft from seizing. Failure to lubricate your shaft regularly or as outlined in the PTO shaft's maintenance schedule could result in end thrust potentially destroying the implement's gearbox. It is recommended to grease standard universal joints every 20 hours or 8 hours for severe conditions. Remember! Grease follows the most straightforward path through internal ports to the four cross bearings. Overheating and poor-quality grease baked in one port will prevent grease from reaching that bearing, failing individual cross bearings.Most importantly, ensure you fully open the guard cover to ensure grease flows to all cross bearings. Greasing through the small guard access hole is not good enough. Also, check the state of the PTO safety guards; if they are damaged or in poor condition, arrange replacement assuring the operator's safety.

Agricultural PTO Shafts Applications

As we all know, at present, everyone attaches great importance to farmland production, especially in planting, harvesting, and maintenance, which is an integral part of output improvement. However, we must also find that today's farmland is no longer a busy life of farmers suffering, but a large area of farmland is only cultivated with machinery and equipment. Individual operators and farmers are present to cooperate in the operation, which shows the importance of agricultural machinery. Then there is the use of PTO shafts in agricultural machinery. For example, the sprayer, mower, harvester, field returning machine, and so on will be equipped with the PTO shaft. However, the PTO shaft selected is also different due to various agricultural machinery's other structures and uses. Therefore, there are many categories of Raydafon's PTO shafts. You can choose the appropriate PTO drive shaft according to the model used.

Agricultural Gearbox and PTO Shafts

PTO shafts are used in agricultural equipment such as tractors, combines, and harvesters. These components are subjected to high loads and stress, and it is vital to find out why they failed in the first place. Constant shaft compression can damage connecting shafts and even the tractor and implement. A PTO shaft for an agricultural gearbox is an integral part of a farming implement or tractor. And PTO shaft for the agricultural gearbox is secured with a safety shield at both ends and can be found on implements and tractors. A PTO shaft can be welded to the drive end using a universal joint, while the rear shaft can be welded directly to the tractor.If you also need the agricultural gearboxes, please feel free to contact us!

PTO Shaft Suppliers

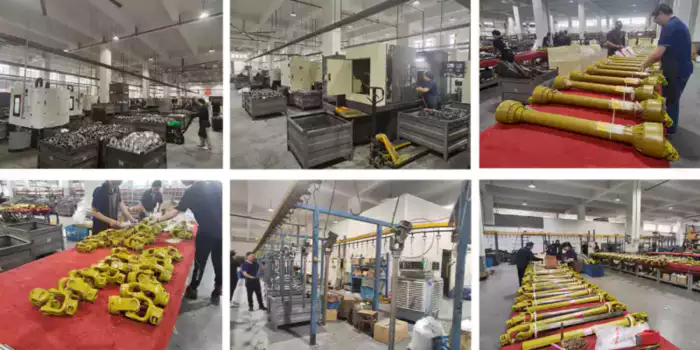

Raydafon is an industrial company integrating precision casting, precision forging, and machining. The company has more than 100 sets of equipment such as turning, milling, grinding, planing, drawing, numerical control, medium frequency electric furnace, casting line, 1000 ton friction press, coating line, etc. The company mainly produces agricultural machinery universal joint assembly, transmission shaft assembly, agricultural machinery transmission shaft, agricultural transmission shaft, plow shaft assembly, spline shaft, precision castings, die forgings, and other products. The products cover more than 100 varieties of 11 series, such as rotary cultivators, pulpers, field returning machines, lawnmowers, and so on. It has an annual output of 120000 sets of agricultural machinery universal joint assembly, 4000 tons of precision castings, and 4000 tons of die forgings. The company adheres to the enterprise spirit of "people-oriented, unity and cooperation, excellence." Adhering to the enterprise tenet of "quality wins, honesty, and trustworthiness, customer first." Establish the business philosophy of "taking customer needs as the work objective" to provide considerate customer service.We look forward to cooperating with new and old customers for joint development!
