Our PTO Shaft Adaptable Models

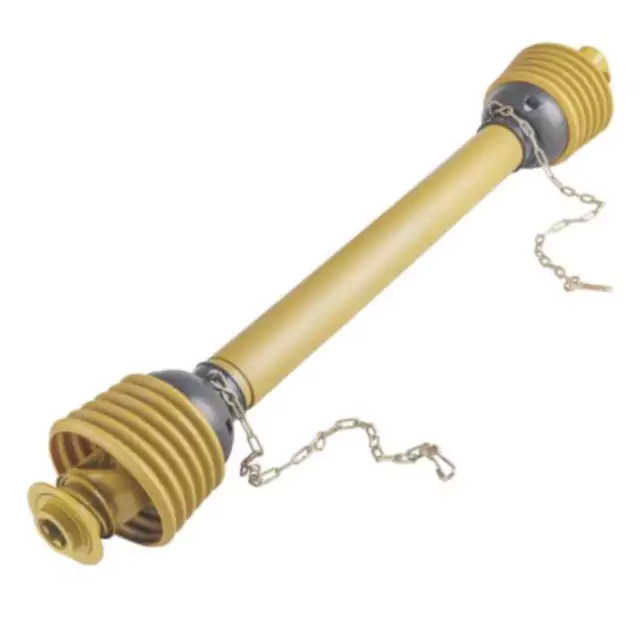

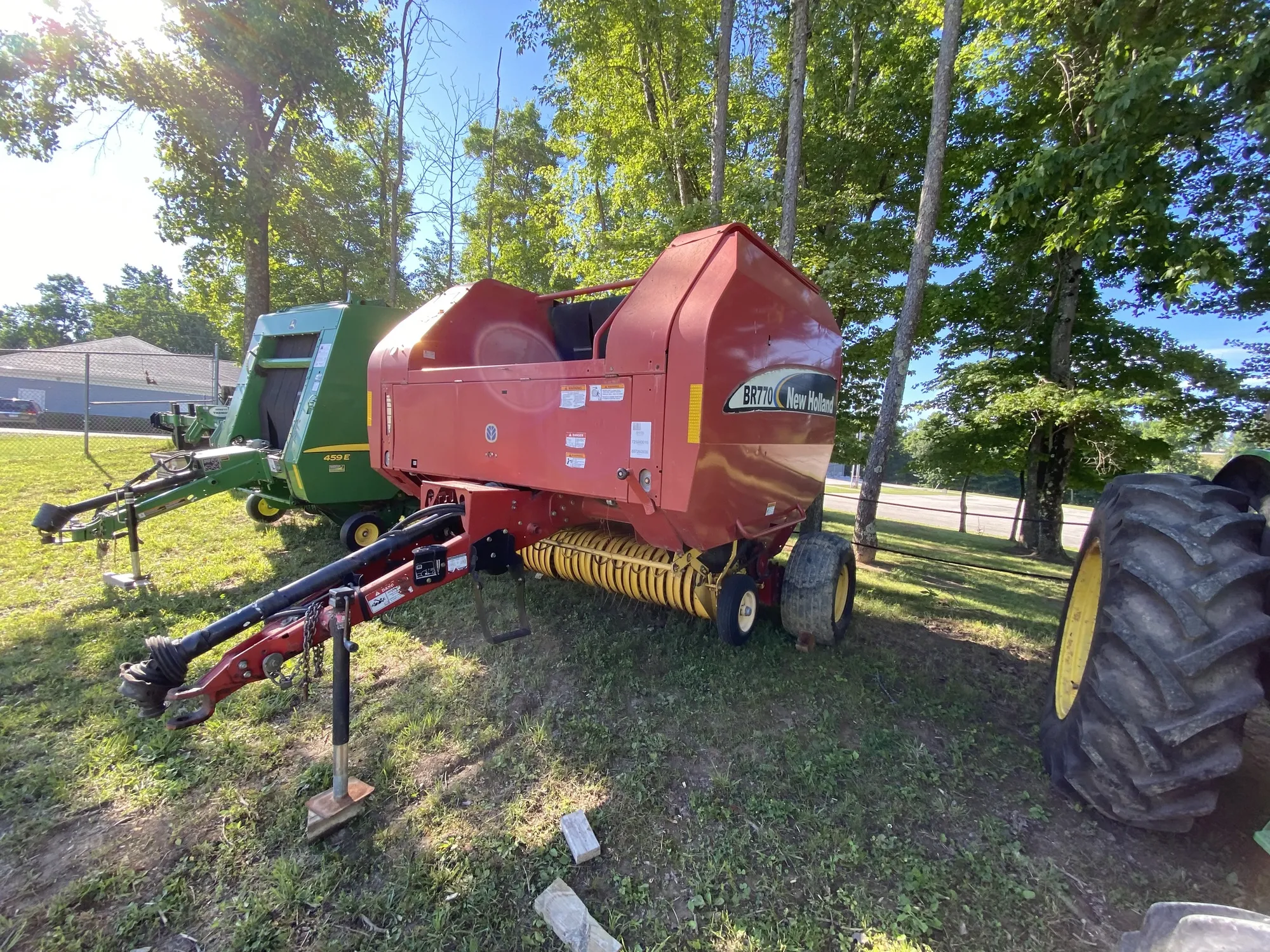

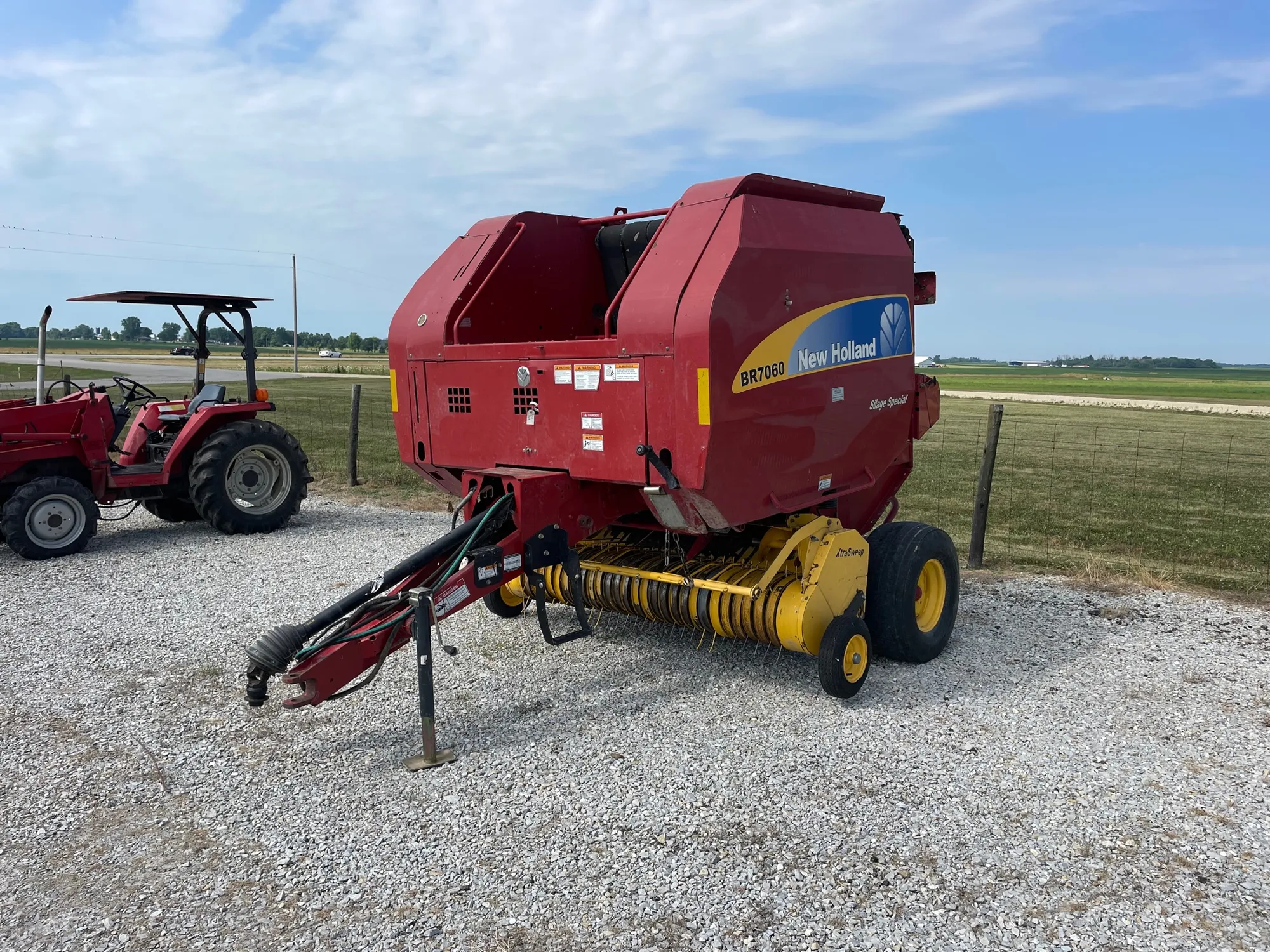

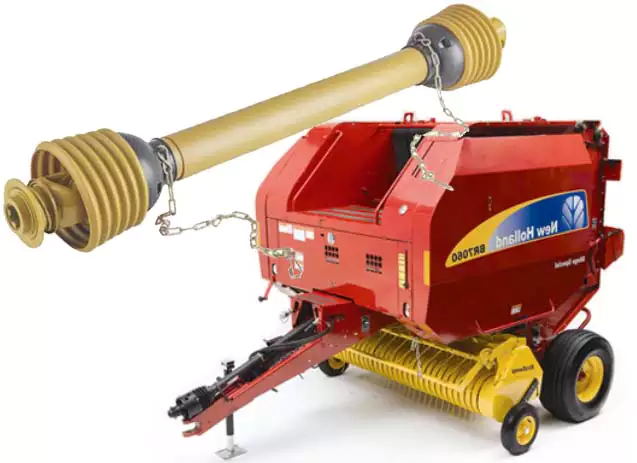

New Holland Round Balers

Models: BR7050, BR7060, BR7070, BR7080, BR7090

New Holland calls for CAT3, CAT4, and CAT5 constant-velocity drivelines, depending on the model, with various torque limiters.Input shafts are 1.375-6 or 1.375-21. Please contact us with your specifications.Available for tractors using 1.375-6 or 1.375-21Input shaft is 1.375-6 or 1.375-21Other combinations are available.

MODEL	HP	CAT	TORQUE DEVICE
BR7050	40	CAT3	SHEAR BOLT
BR7050 HM	45	CAT3	SHEAR BOLT
BR7060	60	CAT4	SHEAR BOLT
BR7060 STD	60	CAT4	SLIP CLUTCH
BR7060 SS	65	CAT4	SLIP CLUTCH
BR7060 CC	100	CAT5	CUTOUT CLUTCH
BR7070	70	CAT4	SLIP CLUTCH
BR7070 SS	70	CAT4	SLIP CLUTCH
BR7070 CC	105	CAT6	CUTOUT CLUTCH
BR7080	70	CAT5	SLIP CLUTCH
BR7090	80	CAT5	SLIP CLUTCH

PTO Shaft Slip Clutches and Shear Bolt Clutches

Constant Velocity PTO	Tractor	Base Part Number	Implement Device
CAT3/540	1.375-6	71R4121UCW07000	must specify
CAT4/540	1.375-6	7G7R121U2WR7R07	must specify
CAT4/1000	1.375-21	CS6R121U2WR8000	must specify
CAT5/540	1.375-6	71R8121UCWR7R10	must specify
CAT5/1000	1.375-21	CS8R121U2WR8000	must specify

Round Baler PTO Shaft Advantages / Features:

1. Materials:

Our company has purchased steel from several large steel groups , such as Ningbo Steel Mill, Shanghai Bashan Steel Mill, Beijing Shrugging Steel Mill whose steel have good mechanical properties and stability of chemical component. it keep the shaft  to be of high quality.2. Manufacture ProcessionFirst, we have our own High-precision Digital Machining center for mould making in special Mould Workshop, excellent mould make product beautiful appearance and its size accurately.The second, we adopt blasting procession, removing the Oxidation surface, make the surface to be bright and clean and uniform and beautiful.The third, in heat treatment: We use the Controlled-atmosphere Automatic heat treatment Furnace,3. Quality Control:Quality control is strictly performed from buying raw materials in the warehouse to different machining processions and to final packing. 100% inspection during production.4. Production Capacity

A single PTO shaft, every month can produce 16000 pcs.

PTO Shaft Application

As long as the device does not have its own engine, you will see it being used. For example, you will often see power takeoff used in commercial vehicles and agricultural equipment. In fact, PTO shaft innovation mainly comes from the wisdom of farmers. The tractor engine is used as a PTO shaft to operate a jackhammer or other equipment.Some other applications you see for PTO shafts include:(1) wood chipper(2) Hay baler(3) Harvester(4) Mechanical arm(5) water pump

Precautions for Using Round Baler PTO Shaft

In order to fully improve work efficiency, ensure the stability of the work, and prolong the service life of the machinery, agricultural machinery will also be used together. Today, we will give you a brief introduction to the use of agricultural machinery; PTO drive shaft installation should be how to coordinate. Taking the combined baler as an example, the following transmission shaft problems should be paid attention to when it is used with the tractor.1. When mounting the packing machine, the PTO shaft should be in a straight line with the tractor PTO shaft of the crawler tractor.2. PTO drive shaft assembly is an important working component for transmitting tractor power. When installing the PTO drive shaft assembly, it should be noted that the two dips of the intermediate power output shaft should be located in the same plane. It is easy to install errors without attention. If the opening direction is staggered 90°, it is easy to damage the cross joint of the PTO shaft.3. When the ground turns, the PTO power output shaft should be separated, the rototiller should stop, and then connected after the turn; otherwise, it will waste power or the drive shaft will hit the limit chain.4. Due to the large working resistance of the baler, it is necessary to add lubricating grease to the intermediate gearbox and PTO drive shaft regularly in the process of use to reduce wear.

Round Baler PTO Shaft Maintenance

The PTO shaft should be greased regularly to keep the universal joints from failing and to stop the shaft from seizing. Failure to grease your shaft regularly or as outlined in the PTO shaft’s maintenance schedule could result in end thrust potentially destroying the implement’s gearbox. It is recommended to grease standard universal joints every 20 hours or 8 hours for severe conditions. Remember! Grease follows the easiest path through internal ports to the four cross bearings. Overheating and poor quality grease baked in one port will prevent grease reaching that bearing, resulting in failure of individual cross bearings. Most importantly ensure that you fully open the guard cover to ensure grease flows to all cross bearings. Greasing through the small guard access hole is not good enough. Also check the state of the PTO safety guards, if they are damaged or in poor condition arrange replacement assuring the safety of the operator.

Round Baler PTO Shaft Length Requirements

The PTO shaft is the system that delivers power to your implement. It is therefore important to understand how it operates to ensure user safety. It is also imperative to be aware of maintenance requirements to prevent any potential mechanical problems. PTO shafts have a rating and are not necessarily interchangeable between round balers or implements. It is therefore important to fit the correct shaft to the implement, according to the manufacturer’s specifications and to make sure it is the correct length.

• Length: The length of the PTO shaft is determined when setting up an implement on a round baler for the first time. If shortening of the PTO shaft is required the operator must use the supplier’s formula to cut the shaft to the correct length. This is normally done by taking measurements from the round baler output shaft and implement input shaft to implement where the PTO shaft will be at its shortest.
• Too long: If your PTO shaft is too long (or is the telescopic tubes have seized) “end thrust” can occur which can destroy your round balers internal PTO drive or implement clutch and gearbox, potentially voiding your machine warranty.
• Too Short: If the shaft is too short it could potentially separate from the implement posing major safety issues and possible damage.

PTO Shaft for Agricultural Gearbox

Agricultural equipment includes various PTO shafts. Each one is connected by yokes at each end and rotates between 540 and 1,000 rpm. A safety universal PTO shield is commonly installed on both ends of a PTO shaft to protect the operator. These protective shields are also found in tractors and agricultural implements, ensuring maximum efficiency. The use of internal yokes also provides added safety.The agricultural gearbox is designed to change the output speed of a PTO drive shaft. It can be used as a decreasing or increasing ratio gearbox. With the decreased ratio gearbox, it reduces the PTO shaft's speed from 1000 rpm to 540 rpm, allowing you to use equipment designed for 540 rpm. On the other hand, an increasing ratio gearbox increases the speed of the PTO shaft from 540 rpm to 1000 rpm.If you also need the agricultural gearboxes, please contact us for more information.

Round Baler PTO Shaft Manufacturer

Raydafon covers an area of more than 12000 square meters and employs more than 100 people. We specialize in developing, manufacturing, and selling PTO shafts, industrial universal shafts, automobile drive shafts, universal joint coupling shafts, universal joints, etc. The annual turnover is 60 million yuan and 9 million US dollars, increasing year by year. Our products enjoy a high reputation among customers in Europe, the United States, Asia, Australia, and North America. We are the top three professional OEM suppliers of many agricultural tool factories in the domestic market. Raydafon transmission shaft adheres to our “QDP” principle: quality first, rapid delivery, and competitive price. We have obtained CE, TS / 16949, and ISO9001 certification and have systematic production equipment and a QC team to ensure our quality and delivery. We welcome friends from all walks of life to visit and establish mutually beneficial long-term cooperative relations.

Select the Right PTO Shaft

The selection of the PTO shaft is essential to provide sufficient power to the auxiliary equipment without seriously limiting the main functions of the prime mover. The selection of the power takeoff requires application-specific information and the power requirements of the auxiliary or drive components.The following is a quick list of PTO shaft selection considerations:◆Torque and horsepower requirements for driven components◆Intermittent or continuous operation◆Application usage◆Speed requirements for driven parts◆Mounting face dimensions and options◆Space allocation◆PTO shaft participation modeHaving these specifications makes the correct selection of the PTO a simple task.
