PTO Snow Blower/Tractor Snow Blower/Tractor Snow Thrower for Cleaning Road Snow

PTO Snow Blower/Tractor Snow Blower/Tractor Snow Thrower for Cleaning Road Snow

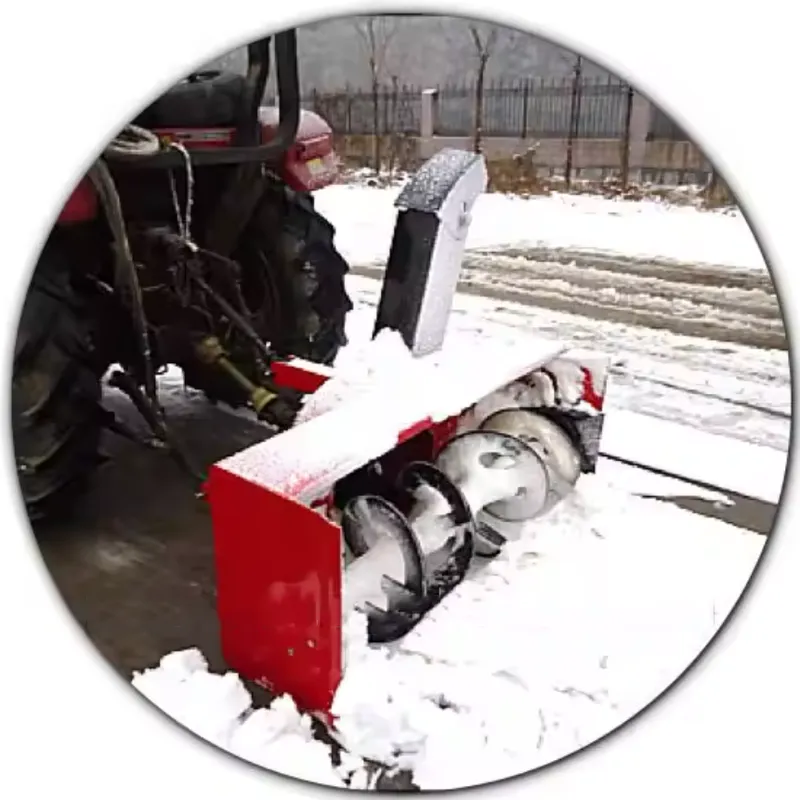

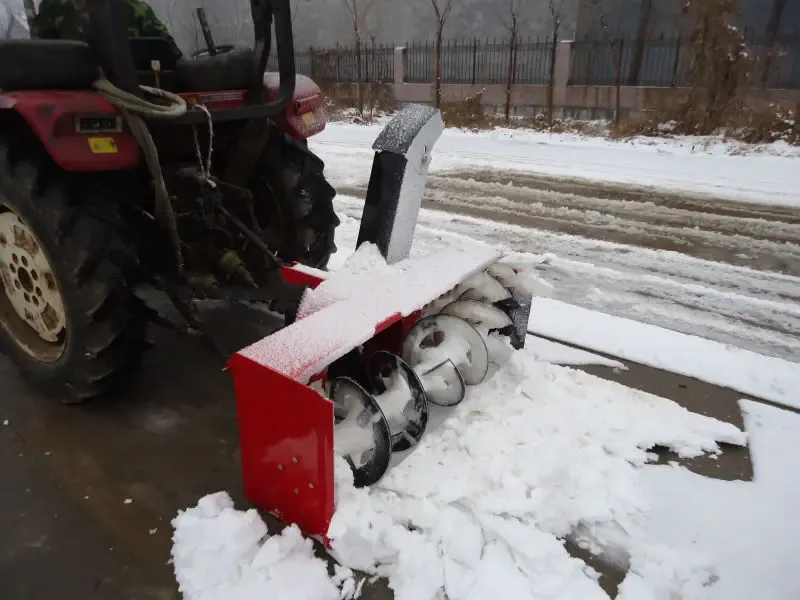

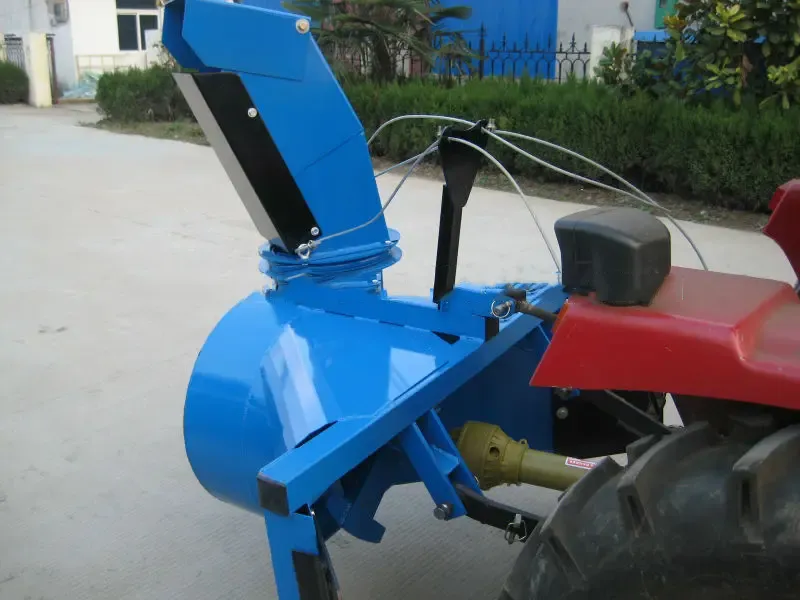

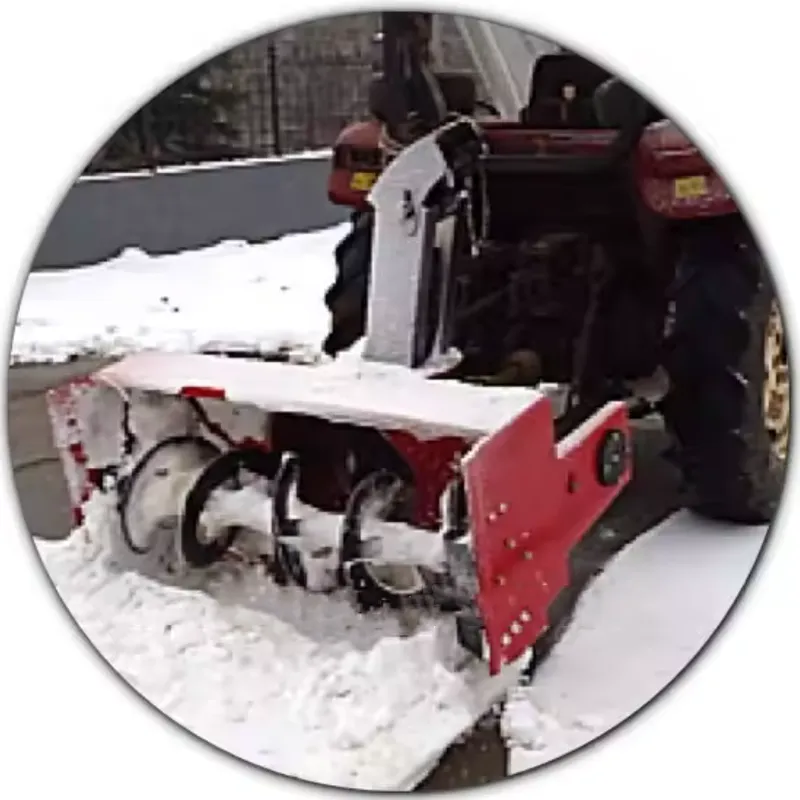

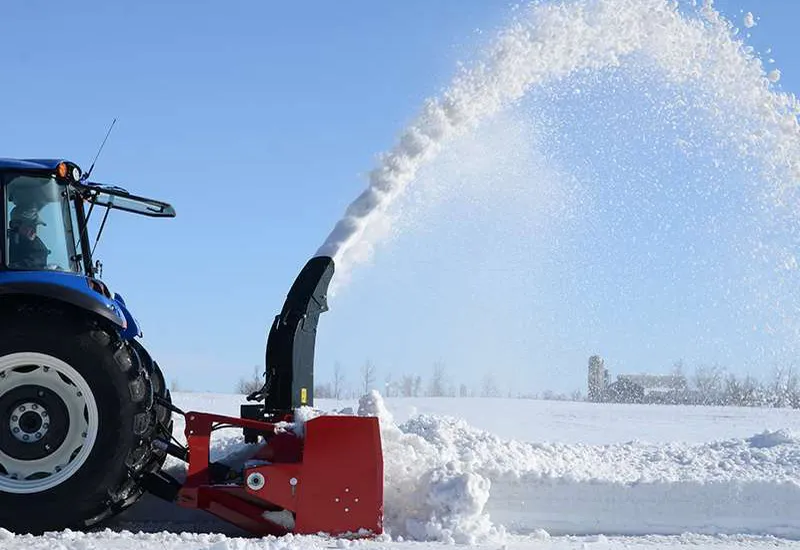

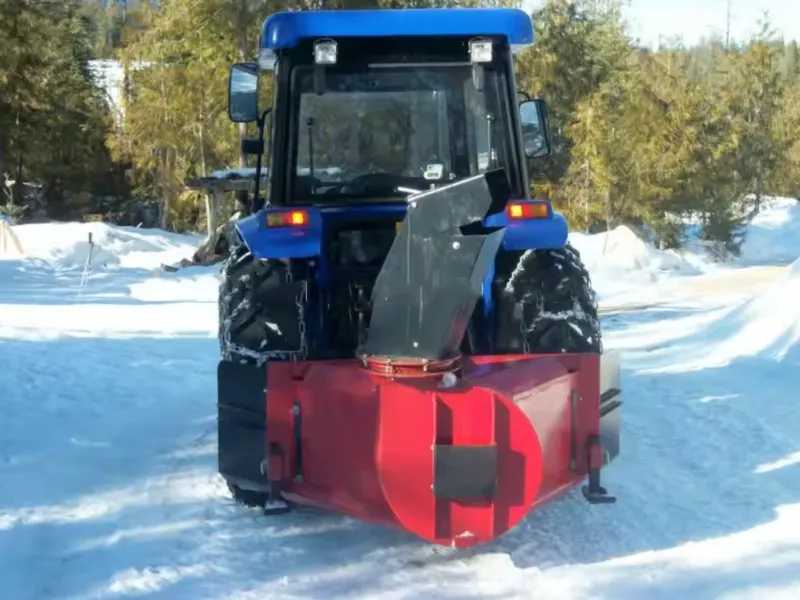

A tractor snow blower, also known as a tractor snow thrower, is a powerful attachment designed for clearing snow from large areas, such as driveways, parking lots, and roads. It is a highly efficient and effective machine that is commonly used in regions with heavy snowfall or for commercial snow removal purposes. The tractor snow blower is specifically designed to be attached to the front or rear of a tractor, utilizing the tractor's power and mobility to clear snow quickly and effectively. It consists of a rotating auger, which is a spiral-shaped device with metal blades or paddles, and a discharge chute. Here's a brief overview of how a tractor snow blower works: Attachment to a tractor: The snow blower is connected to the tractor using a hitch or mounting system. It is typically powered by the tractor's power take-off (PTO) system, which transfers power from the tractor's engine to the snow blower's auger and other components. Auger operation: The auger is the main component responsible for collecting and breaking up the snow. As the tractor moves forward, the rotating auger scoops up the snow and feeds it into the blower housing. Blower housing: The snow, collected by the auger, is directed into the blower housing, where it encounters a high-speed impeller. The impeller spins rapidly, creating a strong airflow that propels the snow towards the discharge chute. Discharge chute: The discharge chute is an adjustable component that directs the snow away from the cleared area. It can be rotated and angled to throw the snow in the desired direction, usually to the side or off to the side of the clearing path. Clearing path: The tractor snow blower is typically wider than the tractor itself, allowing for efficient snow removal in a single pass. It clears a wide swath of snow with each pass, significantly reducing the time and effort required for snow removal. Tractor snow blowers are available in various sizes and configurations to suit different tractor models and snow clearing needs. Some advanced models may include additional features such as hydraulic chute rotation and deflection control, allowing for easier operation and precise snow placement.

Tractor Snow Blower/Tractor Snow Thrower Specifications

Model	RX518PTO	RX618PTO
Cutting Width	54”	66”
Cutting Height	24”	24”
Fan No.	4 blades	4 blades
Fan Diameter	18”	18”
Auger Diameter	4.8”	4.8”
Drive Fan	Hydraulic w/gearbox	Hydraulic w/gearbox
Drive auger	Gearbox w/chain	Gearboxw/chain
Hitch Type	3-point Cat,1or	3-point Cat,1or
Hitch adjustment	3 position	3 position
Chute Deflector	Handing/4position /115°-145°	Handing/4position /115°-145°
System controls&drive	PTO w/shear pin	PTO w/ shear pin
Tractor HP	25-35HP	25-55HP
Approx. Weight	700lbs	800lbs

Benefits of Using the Tractor Snow Blower(Tractor Snow Thrower)

Using a tractor snow blower, also known as a tractor snow thrower, for cleaning road snow offers several benefits. Here are some of the key advantages: 1. Efficient Snow Removal: Tractor snow blowers are designed to clear large amounts of snow quickly and efficiently. When attached to a tractor, they can cover a wide clearing path, allowing for faster snow removal on roads. This helps minimize disruptions and restore road access promptly, ensuring smooth traffic flow. 2. Handling Heavy Snowfall: Tractor snow blowers are built to handle heavy snowfall and deep snow accumulation, making them ideal for clearing roads after significant snowstorms. Their powerful auger and impeller can break up and throw large amounts of snow, allowing for effective snow clearing in challenging conditions. 3. Increased Productivity: Compared to manual snow removal methods or using smaller snow blowers, using a tractor snow blower significantly increases productivity. The wide clearing path and powerful snow throwing capabilities enable road crews to clear more snow in less time. This is crucial for maintaining road safety and minimizing disruptions caused by snow accumulation. 4. Enhanced Safety: Clearing road snow with a tractor snow blower contributes to improved safety for motorists and pedestrians. By promptly removing snow from the road surface, traction is restored, reducing the risk of accidents caused by slippery conditions. Additionally, the increased visibility of road markings and signs improves overall road safety. 5. Cost Savings: Utilizing a tractor snow blower for road snow clearing can lead to cost savings in the long run. It eliminates the need for manual labor-intensive snow removal methods and reduces the reliance on hiring snow removal services or using heavy machinery that may be less efficient. By efficiently clearing snow, it saves time and labor costs associated with manual methods. 6. Versatility and Adaptability: Tractor snow blowers are versatile attachments that can be used with various types of tractors, including those used for road maintenance. They can be easily attached and detached, allowing the tractors to be used for other tasks when not clearing snow. This versatility makes them a valuable tool for road maintenance crews.

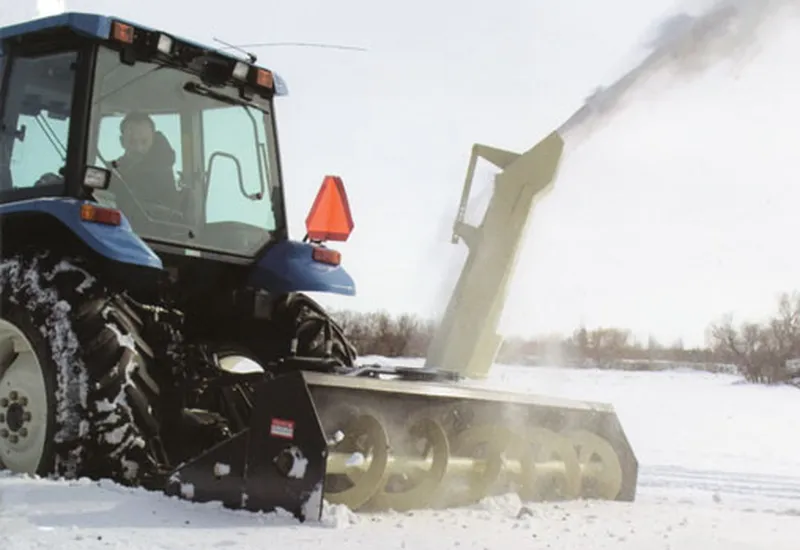

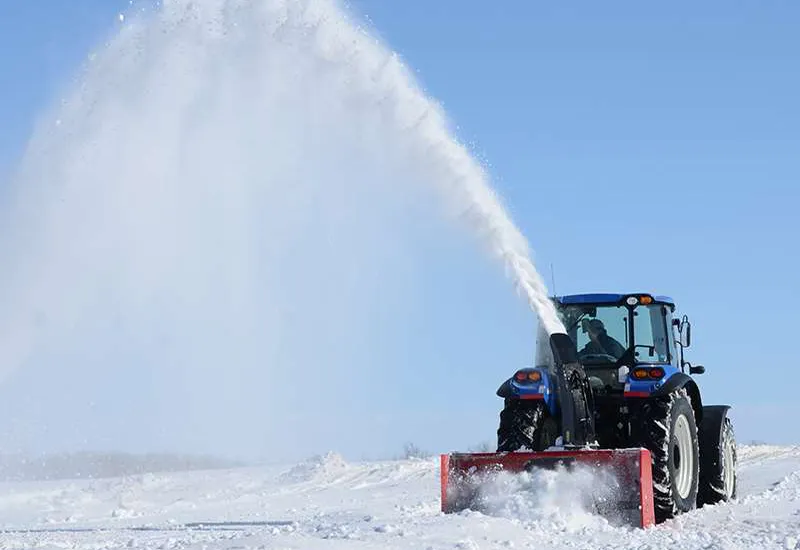

Tractor Snow Blower(Tractor Snow Thrower) Common Applications

Tractor snow blowers, also known as tractor snow throwers, have a wide range of applications. They are versatile machines designed for efficient snow removal in various settings. Here are some common applications of tractor snow blowers: (1) Residential Snow Removal: Tractor snow blowers are commonly used by homeowners to clear snow from driveways, walkways, and other residential areas. Their ability to cover wide clearing paths allows for quick and efficient snow removal, saving homeowners time and effort compared to manual shoveling. (2) Commercial Snow Removal: Tractor snow blowers are widely used for commercial snow removal purposes. They are employed by property managers, snow removal contractors, and municipal services to clear snow from parking lots, sidewalks, shopping centers, business complexes, and other commercial areas. Tractor snow blowers' wide clearing paths and powerful snow throwing capabilities enable efficient snow removal in large areas. (3) Road and Highway Snow Clearance: Tractor snow blowers play a crucial role in maintaining safe road conditions during winter. They are used by road maintenance crews and departments of transportation to clear snow from roads, highways, and other transportation routes. Tractor snow blowers help restore road access, improve traction, and minimize accidents caused by snow accumulation. (4) Airport Snow Removal: Airports require specialized snow removal equipment to ensure safe take-offs and landings. Tractor snow blowers, often attached to larger airport maintenance vehicles, are used to clear snow from runways, taxiways, and aprons. Their efficiency and power allow for swift snow removal, minimizing disruptions to air traffic. (5) Agricultural Operations: Tractor snow blowers are useful in agricultural settings for clearing snow from farmyards, access roads, and livestock areas. They help maintain safe conditions for both animals and farm machinery during winter months. (6) Public Facilities and Institutions: Tractor snow blowers are utilized by public facilities such as schools, hospitals, government buildings, and military bases to clear snow from parking lots and walkways. They help ensure safe access for employees, visitors, and emergency vehicles.

Tractor Snow Blower(Tractor Snow Thrower) Common Troubleshooting

When using a tractor snow blower for cleaning road snow, you may encounter certain issues or problems that can affect its performance. Here are some common troubleshooting steps to address these issues:

• Clogging of Snow: If the snow blower becomes clogged, it can hinder its snow-throwing capability. To address this issue, first, make sure the power take-off (PTO) is disengaged, and the engine is turned off. Use a long stick or rod to clear any snow or debris that may be blocking the auger or impeller. It's important to exercise caution and never use your hands to clear the clog.
• Insufficient Snow Discharge: If the snow blower is not throwing snow far enough or the discharge chute is not rotating properly, check for any obstructions in the chute or impeller. Clear any debris or ice buildup that may be causing the obstruction. Ensure that the chute rotation mechanism is functioning correctly and not binding.
• Uneven Snow Clearing: If the snow blower is leaving patches of uncleared snow or not clearing evenly, it could be due to an uneven ground or adjustment issue. Check the height adjustment of the skid shoes or scraper bar to ensure they are properly set. Adjust them if necessary to achieve an even clearing height.
• Auger or Belt Slippage: If the auger or belt is slipping, it can affect the snow blower's performance. Inspect the auger and drive belts for any signs of wear or damage. Replace worn or damaged belts as needed. Adjust the tension of the drive belt according to the manufacturer's instructions to prevent slippage.
• Engine Performance Issues: If the tractor's engine is running poorly or experiencing issues, it can impact the snow blower's performance. Check the fuel level, spark plug, and air filter for any problems. Ensure that the engine is properly tuned and running smoothly.
• Excessive Vibration or Noise: Excessive vibration or unusual noise during operation can be a sign of a mechanical issue. Inspect the snow blower for any loose or damaged parts, such as bolts, nuts, or bearings. Tighten or replace any loose or damaged components to reduce vibration and noise.
• Lack of Power or Slow Auger Rotation: If the snow blower is not operating at full power or the auger rotation is slow, it could indicate a problem with the tractor's PTO system. Check the PTO engagement mechanism and ensure that it is fully engaged. Verify that the tractor's engine is running at the appropriate speed for optimal snow blower performance.

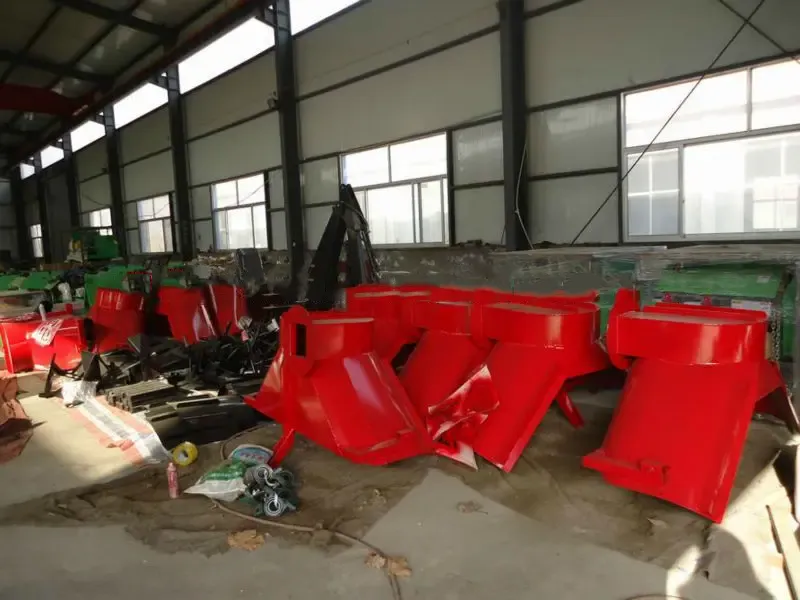

Why Choose Raydafon's 3 Point Hitch Snow Blower?

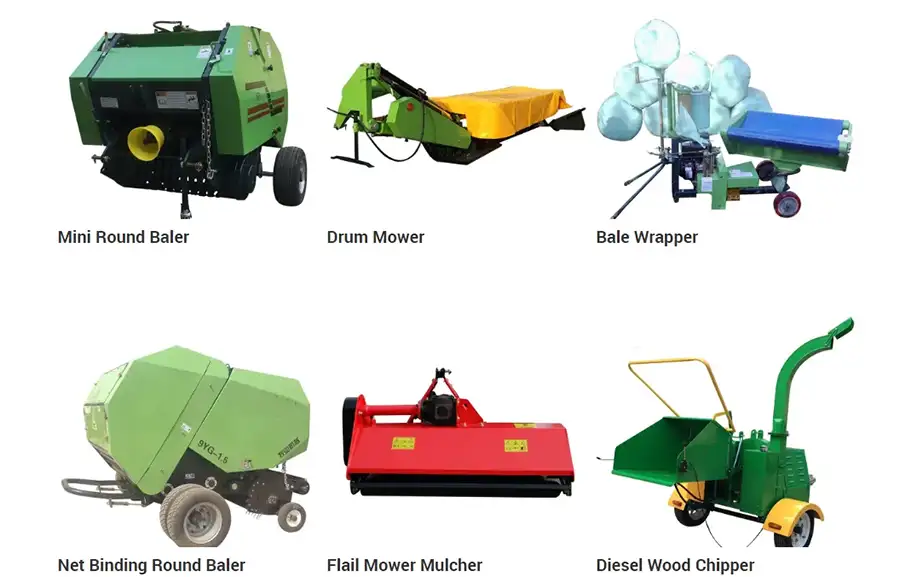

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery, such as PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Our company has more than 100 employees, among which there are 20 technical technical staff and five senior R&D personnel. Besides, we have abundant financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system. Our production technology is strong and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding. We have accumulated more than ten years of experience in production, and mainly produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China. Our main products are PTO shafts, agricultural gearboxes, large round baler, mini round baler, PTO wood chipper, diesel wood chipper, corn seeder, drum mowers, rotary hay rakes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, log splitter, front end loader, backhoe, snow blower, road sweeper, etc. The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round. We offer a range of professional, international certifications, customized services, state-of-the-art production facilities, and dependable after-sales services.
