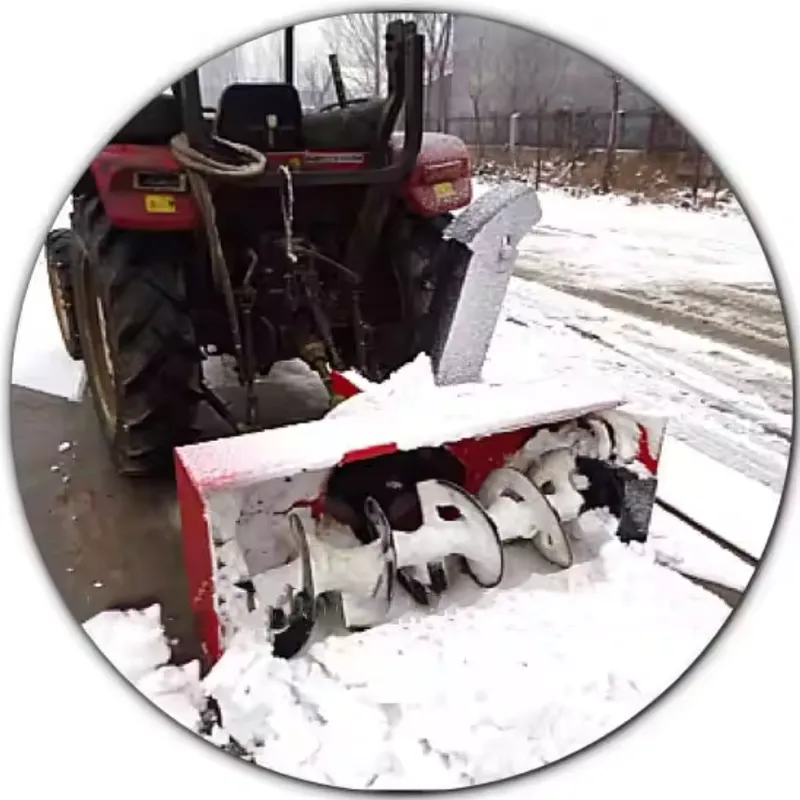

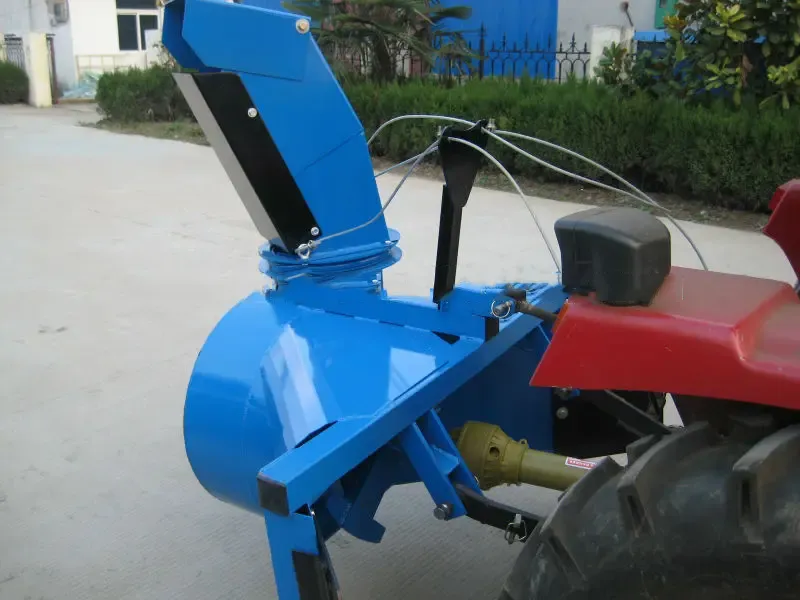

Tractor Mounted 3 Point Hitch Snow Blower for Cleaning Road Snow RX518 RX618

Tractor Mounted 3 Point Hitch Snow Blower for Cleaning Road Snow RX518 RX618

A tractor-mounted 3-point hitch snow blower is a powerful and efficient machine designed to clear snow from large areas, such as driveways, parking lots, and roadways. It is typically attached to the rear of a tractor using a 3-point hitch system, which provides stability and allows for easy maneuverability. The snow blower itself consists of a rotating auger or impeller, which breaks up and propels the snow away from the clearing path. It is driven by the power take-off (PTO) of the tractor, transferring the power from the tractor’s engine to the snow blower. These snow blowers come in various widths, ranging from around 48 inches to over 96 inches. The wider the snow blower, the larger the clearing path, allowing you to clear more snow in less time. The auger or impeller inside the snow blower is responsible for breaking up and propelling the snow. They are designed to handle heavy, wet snow and throw it a significant distance away from the clearing area. Tractor-mounted snow blowers are built to withstand harsh weather conditions and heavy use. They are typically made of sturdy materials such as steel or reinforced composite, ensuring longevity and reliability. These snow blowers are designed to work with tractors equipped with a 3-point hitch system. They can be attached to a wide range of tractors, making them versatile and adaptable to different agricultural or landscaping setups.

Tractor Mounted 3 Point Hitch Snow Blower Specifications

Model	RX518PTO	RX618PTO
Cutting Width	54”	66”
Cutting Height	24”	24”
Fan No.	4 blades	4 blades
Fan Diameter	18”	18”
Auger Diameter	4.8”	4.8”
Drive Fan	Hydraulic w/gearbox	Hydraulic w/gearbox
Drive auger	Gearbox w/chain	Gearbox w/chain
Hitch Type	3-point Cat,1or	3-point Cat,1or
Hitch adjustment	3 position	3 position
Chute Deflector	Handing/ 4position /115°-145°	Handing/ 4position /115°-145°
System controls&drive	PTO w/shear pin	PTO w/ shear pin
Tractor HP	25-35HP	25-55HP
Approx. Weight	700lbs	800lbs

Advantages of Using the Tractor Mounted 3 Point Hitch Snow Blower

Using a tractor-mounted 3-point hitch snow blower offers several advantages over other types of snow removal equipment. Here are some key benefits: 1. Power and Efficiency: Tractor-mounted snow blowers are powered by the tractor's engine, which provides substantial power to break up and throw snow at a high velocity. This enables them to handle large quantities of snow quickly and efficiently, reducing the time and effort required for snow removal. 2. Versatility: These snow blowers can be easily attached to a tractor with a 3-point hitch system, making them compatible with a wide range of tractors. This versatility allows you to use the same equipment for different snow removal tasks, whether it's clearing driveways, parking lots, or larger areas like roadways. 3. Maneuverability: Tractors are designed to be highly maneuverable, especially when equipped with a snow blower attachment. The 3-point hitch system allows for precise control and adjustment of the snow blower's position, making it easier to navigate around obstacles such as curbs, parked cars, or landscaping features. 4. Clearing Capacity: Tractor-mounted snow blowers are available in various widths, ranging from around 48 inches to over 96 inches. The wider clearing path allows you to clear a larger area with each pass, increasing productivity and reducing the number of passes required to complete the job. 5. Durability and Longevity: These snow blowers are built to withstand heavy-duty use and harsh winter conditions. They are typically constructed with sturdy materials like steel and have reinforced components, ensuring durability and longevity even in demanding snow removal applications. 6. Adjustable Features: Many tractor-mounted snow blowers offer adjustable features such as chute rotation and height adjustment. The adjustable chute allows you to control the direction in which the snow is thrown, while height adjustment features help you adapt to different snow depths or uneven terrain, ensuring efficient and precise snow clearing.

How Does the Tractor Mounted 3 Point Hitch Snow Blower Work?

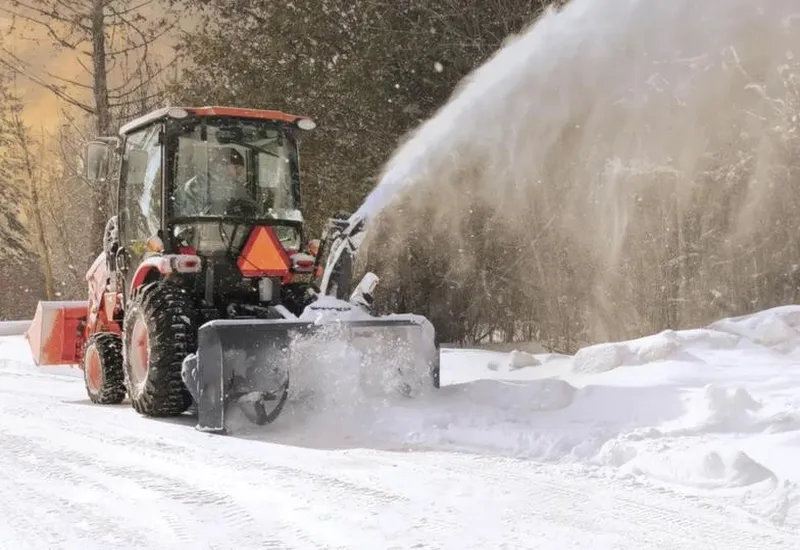

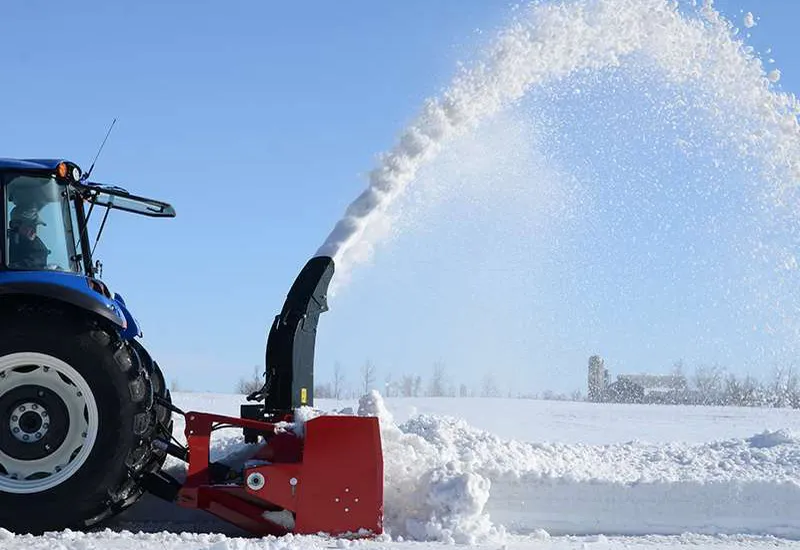

A tractor-mounted 3-point hitch snow blower works by utilizing the power of the tractor's engine and the rotational force from the power take-off (PTO) to clear snow from the desired area. Here's a step-by-step breakdown of how it operates:

• Attachment: The snow blower is connected to the tractor's 3-point hitch system. The 3-point hitch provides a stable connection between the tractor and the snow blower, allowing for efficient power transfer and maneuverability.
• Power Source: The snow blower is powered by the tractor's engine. The power is transferred to the snow blower through the PTO, which is a rotating shaft on the back of the tractor. When engaged, the PTO transfers power from the engine to the snow blower's auger or impeller.
• Auger or Impeller: The snow blower features a rotating auger or impeller, which is responsible for breaking up and propelling the snow. The auger consists of a rotating spiral-shaped blade that collects and feeds the snow to the impeller. The impeller, located behind the auger, further accelerates the snow and throws it out through the discharge chute.
• Clearing Path: As the tractor moves forward, the snow blower is operated to clear the snow in its path. The rotating auger or impeller collects the snow from the ground and feeds it into the impeller.
• Discharge Chute: The snow is thrown out of the snow blower through the discharge chute. Many snow blowers have an adjustable chute that allows you to control the direction in which the snow is thrown. Some models even offer a 180-degree rotation, enabling you to blow the snow to the left or right side.
• Height Adjustment: The snow blower may have adjustable skid shoes or shoes with runners, which allow you to adjust the height at which the blower operates. This feature is useful for adapting to different snow depths or uneven surfaces.
• Safety Features: Tractor-mounted snow blowers are equipped with safety features to prevent damage and ensure safe operation. For example, shear pins or overload protection systems are designed to break or disengage if the auger encounters a blockage or excessive load, preventing damage to the equipment.

Operation Precautions of Tractor Mounted 3 Point Hitch Snow Blower

When operating a tractor-mounted 3-point hitch snow blower, it is important to follow certain precautions to ensure safe and efficient operation. Here are some operation precautions to keep in mind: (1) Read the Manual: Familiarize yourself with the manufacturer's instructions and safety guidelines provided in the manual. Understand how to properly operate and maintain the snow blower before using it. (2) Safety Gear: Wear appropriate safety gear, including protective eyewear, gloves, and sturdy footwear. These will help protect you from flying debris and provide better grip and traction while operating the equipment. (3) Clear the Area: Before starting the snow blower, ensure the area is clear of objects such as rocks, branches, or debris that could be picked up and thrown by the machine. Clearing the area will prevent damage to the equipment and reduce the risk of injury. (4) Maintain Safe Distance: Keep bystanders, pets, and other people at a safe distance from the operating area. The snow blower can throw snow and debris at high speeds, which may cause injury if someone is too close. (5) Check the Conditions: Assess the weather and ground conditions before operating the snow blower. Avoid using it on steep slopes, icy surfaces, or uneven terrain, as this can affect stability and maneuverability. (6) Slow and Steady: Operate the snow blower at a moderate and controlled speed. Avoid sudden acceleration or sharp turns, as this can lead to loss of control and potential accidents. (7) Clearing Blockages: If the snow blower gets clogged or blocked, shut off the PTO and engine before attempting to clear the blockage. Use a tool, such as a stick or shovel handle, to remove any snow or debris while keeping your hands and feet away from moving parts. (8) Adjust the Chute Safely: When adjusting the chute direction, make sure the engine and PTO are turned off. Use the provided controls or levers to adjust the chute position, and avoid reaching into the discharge area while the snow blower is running. (9) Regular Maintenance: Perform regular maintenance checks on the snow blower, including inspecting belts, bolts, and shear pins, and lubricating moving parts as recommended by the manufacturer. This helps ensure the equipment remains in good working condition and reduces the risk of malfunctions.

Why Choose Raydafon's 3 Point Hitch Snow Blower?

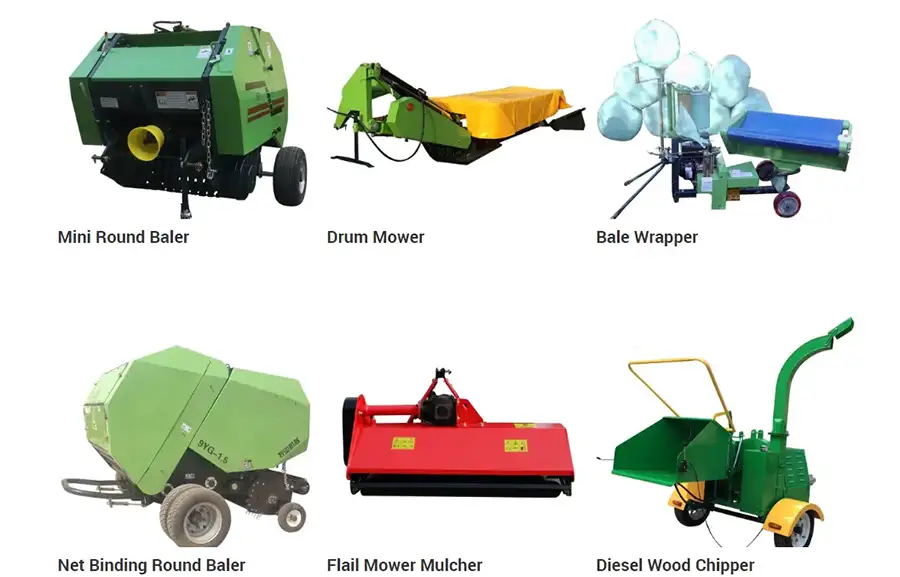

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery, such as PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Our company has more than 100 employees, among which there are 20 technical technical staff and five senior R&D personnel. Besides, we have abundant financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system. Our production technology is strong and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding. We have accumulated more than ten years of experience in production, and mainly produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China. Our main products are PTO shafts, agricultural gearboxes, large round baler, mini round baler, PTO wood chipper, diesel wood chipper, corn seeder, drum mowers, rotary hay rakes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, log splitter, front end loader, backhoe, snow blower, road sweeper, etc. The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round. We offer a range of professional, international certifications, customized services, state-of-the-art production facilities, and dependable after-sales services.
