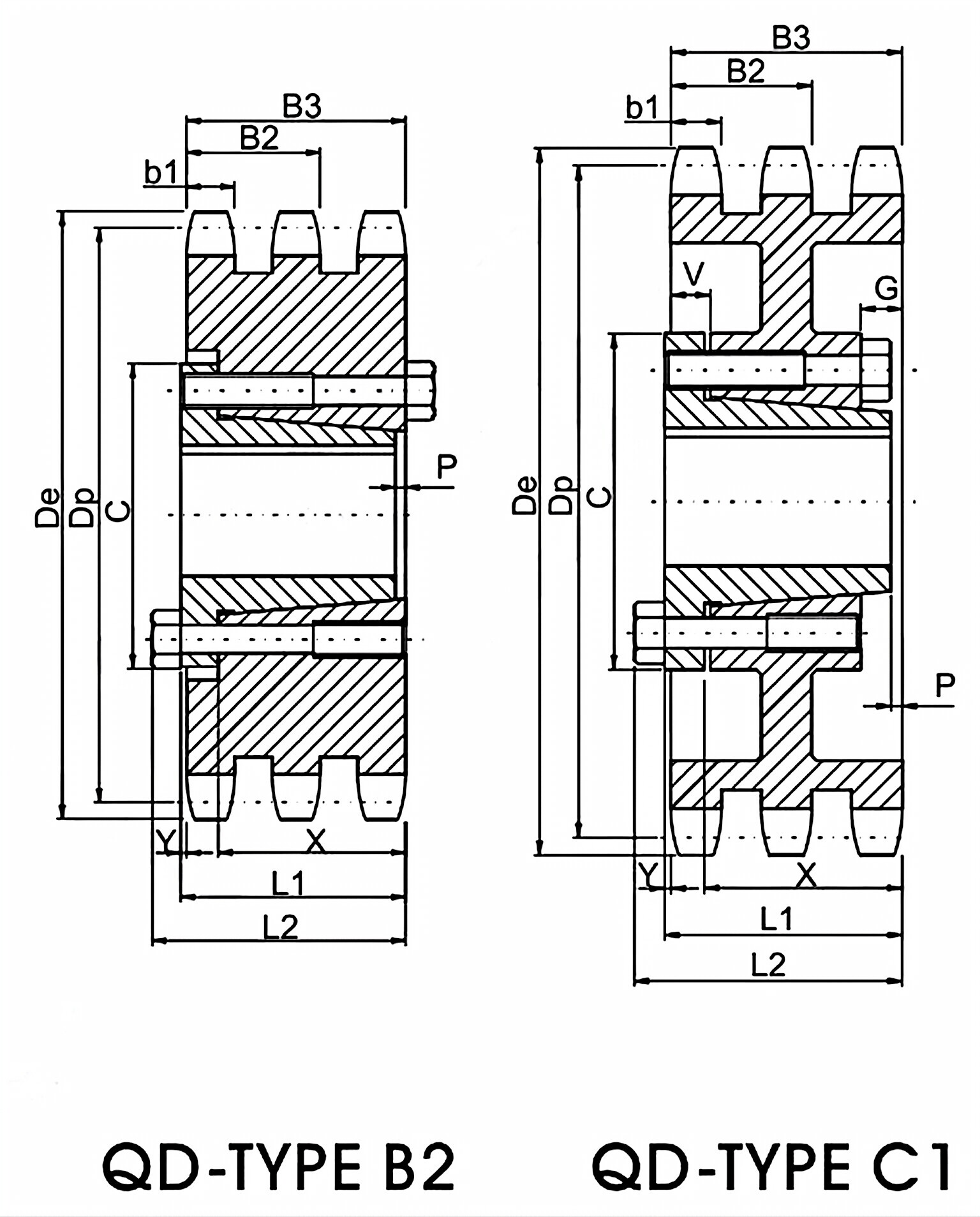

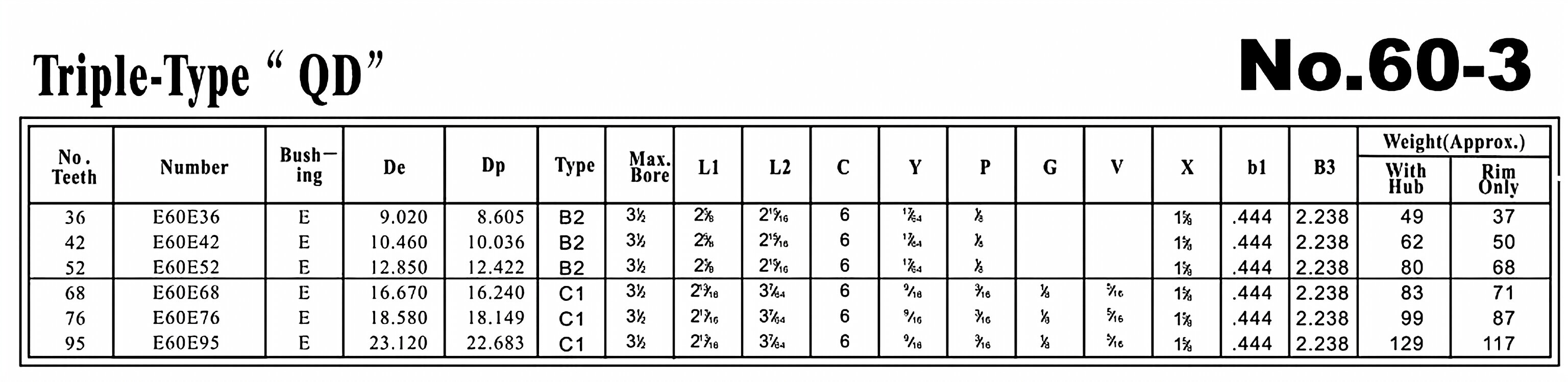

QD Sprocket No.60-3 Triple Type

Introduction

QD Sprocket No.60-3 Triple Type is a type of QD sprocket that is commonly used in transmission systems. QD sprockets are an essential component in power transmission, providing a means to transfer torque and rotational motion.

Definition and Basic Structure of QD Sprocket

A QD sprocket is a type of sprocket that is designed with a quick disconnect (QD) bushing. The QD bushing allows for easy installation and removal of the sprocket without the need for extensive disassembly. The basic structure of a QD sprocket consists of a hub, teeth, and the QD bushing.

Characteristics and Functions of QD Bushing

• Easy Installation: The QD bushing simplifies the installation process of the sprocket, saving time and effort.
• High Load Capacity: QD bushings are designed to withstand heavy loads, ensuring reliable performance in demanding applications.
• Standardized Design: QD bushings are manufactured to meet industry standards, ensuring compatibility with various shaft sizes.
• Compact Design: The compact size of QD bushings allows for space-saving installations in tight spaces.
• Low Maintenance Cost: QD bushings require minimal maintenance, reducing overall maintenance expenses.

One of the key advantages of QD bushings is their ease of installation and removal. This feature allows for quick and efficient sprocket replacements or adjustments, minimizing downtime and maximizing productivity.

Installation and Removal Process of QD Bushing

1. Prepare Tools and Materials: Gather the necessary tools and materials, including a wrench and lubricant.
2. Clean Shaft and Sprocket Surface: Ensure that the shaft and sprocket surfaces are clean and free from dirt or debris.
3. Position Sprocket: Position the sprocket on the shaft, aligning the keyway or set screw holes.
4. Install QD Bushing: Slide the QD bushing onto the shaft, ensuring a snug fit.
5. Secure Sprocket: Tighten the set screws or bolts on the QD bushing to secure the sprocket in place.
6. Check: Inspect the installation for proper alignment and tightness to ensure reliable operation.

Manufacturing Process of QD Sprocket

1. Raw Material Preparation: Select suitable materials, such as steel, for the manufacturing of QD sprockets.
2. Cutting: Cut the raw material into the desired shape and size.
3. Forging or Casting: Forge or cast the material to further refine its shape.
4. Machining: Use precision machining techniques to create the teeth and other necessary features.
5. Teeth Rolling: Roll the teeth to ensure accurate tooth profiles and proper meshing with the chain.
6. Heat Treatment: Apply heat treatment to enhance the hardness and strength of the sprocket.
7. Surface Treatment: Perform surface treatments, such as coating or plating, to improve corrosion resistance.
8. Quality Inspection: Conduct thorough quality inspections to ensure the sprocket meets specified standards.

Frequently Asked Questions (FAQ)

1. Q: What are the advantages of using a QD sprocket?

A: The advantages of using a QD sprocket include easy installation and removal, high load capacity, standardized design, compact size, and low maintenance cost.

2. Q: How do I install a QD bushing on a sprocket?

A: To install a QD bushing on a sprocket, follow these steps: prepare tools and materials, clean the shaft and sprocket surface, position the sprocket, install the QD bushing, secure the sprocket, and check the installation.

3. Q: What is the manufacturing process of QD sprockets?

A: The manufacturing process of QD sprockets involves raw material preparation, cutting, forging or casting, machining, teeth rolling, heat treatment, surface treatment, and quality inspection.

4. Q: Can QD sprockets be used in high-load applications?

A: Yes, QD sprockets are designed to withstand high loads, making them suitable for various heavy-duty applications.

5. Q: Are QD bushings interchangeable between different sprocket sizes?

A: QD bushings are manufactured to industry standards, allowing for interchangeability between different sprocket sizes within the compatible range.
