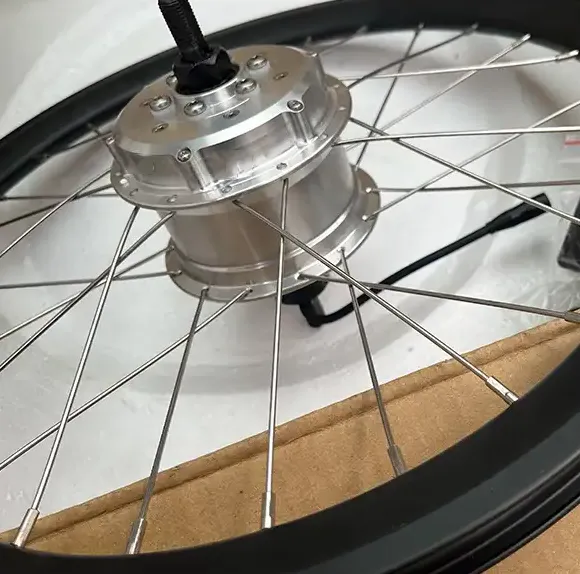

Raydafon 14 Inch Front Wheel Electric Bicycle Kit Sustainable 250W 36V Ebike Hub Motor Conversion Kit

Experience the future of sustainable transportation with the Raydafon 14 inch front wheel electric bicycle kit. This conversion kit features a powerful yet efficient 250W 36V ebike hub motor, bringing a new level of performance and convenience to your cycling journeys. The kit includes a brushless motor, ensuring a smooth and quiet ride, and a stylish design in either black or silver. With a rated voltage of 24V/33V/36V and an output power of 250W, this motor offers a strong and steady performance.

Specifications of P100 Front Hub Motor for E-bike

Item No.	P100SWXDC36/P100SWXC36
Diameter	103mm±1mm
Width	100±2mm
Brake types	Disc brake / V brake
Outlet position	Under the shaft on the right side
Controller	Internal
Spoke no.	20H，24H，28H，32H，36H
Spoke types	14g
Controller	Internal
Sensor	Wireless pedal sensor
Rated power	250W
Max. power	500W
Max. torque	30N·m
Rated voltage	36V
Rated input current	7.8A
Reduction ratio	1 : 13.5
Grade-ability	＞20%
Efficiency	＞89%
Revolution	160-260RPM
Applicable wheel diameter	14-29inch
Color	Black/Silver
Operation temperature	-20-45℃
Storage temperature	-20-45℃
Waterproof & Dust-proof	IP65
Weight	1.7KGS

P100 E-bike Front Hub Motor Dimension

Advantages of the Raydafon Front Hub Motor

With the Raydafon 14 inch front wheel electric bicycle kit, you'll gain a wealth of benefits. These include:

1. Built-in controller: This offers optimal control over your ebike, enhancing your riding experience.
2. Wireless pedal sensor: A convenient feature that monitors your pedaling effort and adjusts the motor assistance accordingly.
3. Easy to install & disassemble: This means you can easily switch between using your bike as a regular bicycle or an electric bicycle.
4. Max. power 750W, torque exceeds 40N??m: This provides a powerful boost to your cycling, making it easy to climb steep hills and maintain high speeds.
5. Efficiency ??90%: This ensures the majority of the power from your battery is used to drive the motor, not wasted as heat.
6. Wireless control: Provides easy control over your ebike without the need for complex wiring.

At Raydafon, we have the capability and expertise to produce this high-quality front hub motor, ensuring you receive a product that meets your expectations in terms of performance and reliability.

Applications of the P100/P110 Front Hub Motors

The P100/P110 front hub motors are versatile and suitable for various applications, including:

1. Commuting: E-bikes equipped with P100/P110 front hub motors are perfect for daily commuting, providing assistance to riders, making it easier to cover longer distances and overcome steep hills.
2. Urban Riding: These motors are ideal for navigating through busy city streets and congested traffic.
3. Recreation and Leisure: Whether you're exploring trails, cruising along scenic routes, or enjoying outdoor adventures, these motors provide an extra boost to enhance your overall experience.
4. Delivery Services: Many food delivery services and courier companies use e-bikes with these motors due to their efficiency and ability to navigate through urban environments.
5. Tourism and Sightseeing: These motors are often used in tourism applications, allowing tourists to explore cities, landmarks, and tourist attractions with ease.
6. Electric Bike Sharing Programs: Bike-sharing programs often use e-bikes with these motors, providing convenient transportation options in urban areas.

How Does the Ebike System P100/P110 Front Hub Motor Work?

The P100/P110 front hub motor is an integral part of an e-bike system. Here's a general overview of how it works:

1. Power Source: The e-bike system typically includes a rechargeable battery pack that provides electrical energy to the motor.
2. Motor Controller: This component manages the flow of electricity from the battery to the motor. It receives input from the rider through controls like a throttle or pedal-assist sensor.
3. Torque Sensor or Throttle: The e-bike system may have a torque sensor, which measures the force applied to the pedals, or a throttle, which allows the rider to control the motor's power output directly.
4. Motor Assistance: When the rider applies force to the pedals or activates the throttle, the motor controller interprets the input and sends the appropriate amount of power to the motor.
5. Front Hub Motor: The P100/P110 front hub motor is located in the front wheel hub of the e-bike. When power is supplied, the motor generates rotational force that propels the bike forward.
6. Power Transmission: The motor's rotational force is transmitted to the wheel through integrated gears, allowing the bike to maintain a consistent speed or accelerate.
7. Regenerative Braking: Some e-bike systems may have regenerative braking capabilities. When the brakes are applied, the motor can act as a generator, converting the kinetic energy back into electricity and storing it in the battery for later use.
8. Display and Control Unit: This unit provides the rider with information such as speed, battery level, and selected assistance level. It also allows the rider to adjust settings and control the motor's assistance level.

Choosing the Right P100/P110 Front Hub Motor for Your Ebike System

When choosing the right P100/P110 front hub motor for your e-bike system, there are several factors to consider:

1. Power and Torque: The power and torque output of the front hub motor will determine the level of assistance it provides. Consider your riding needs and terrain.
2. Efficiency: Look for a front hub motor that offers high efficiency, as this can have a significant impact on the range and overall performance of your e-bike.
3. Compatibility: Ensure that the P100/P110 front hub motor you choose is compatible with your e-bike system. Check the motor's specifications, including voltage and wattage requirements, and compare them with your battery and motor controller specifications.
4. Wheel Size: Consider the wheel size of your e-bike when selecting a front hub motor. The motor should be designed to fit the specific wheel size of your e-bike.
5. Weight and Size: Front hub motors vary in weight and size. Consider the weight and dimensions of the motor, as it can affect the overall weight distribution and handling of your e-bike.

Maintenance of the P100/P110 Front Hub Motor

Proper maintenance of the P100/P110 front hub motor is crucial to ensure its longevity and optimal performance. Here are some maintenance tips:

1. Regular Cleaning: Keep the front hub motor clean by wiping it down regularly with a damp cloth.
2. Inspection: Periodically inspect the front hub motor for any signs of damage, loose connections, or wear.
3. Lubrication: Some front hub motors may require lubrication for smooth operation. Apply lubrication as recommended, taking care not to over-lubricate.
4. Battery Maintenance: Follow the manufacturer's instructions for battery maintenance, such as proper charging procedures and storage guidelines.
5. Wheel Maintenance: As the front hub motor is integrated into the front wheel, it's important to maintain the wheel's condition.
6. Water and Moisture Protection: Avoid excessive moisture and submerging the motor in water. If riding in wet conditions, take precautions like using fenders and avoiding deep puddles.

Why Choose Raydafon's P100/P110 Front Hub Motor for Your Ebike System?

Established in 1993, Raydafon Electric Technology Co Ltd. is dedicated to the R&D, manufacturing, and worldwide marketing of high-end electric bicycle parts. All our products are designed and developed in-house and protected by a number of domestic and international intellectual property rights.We have introduced professional production and testing equipment and advanced production lines and established a complete quality management system. We adhere to the enterprise spirit of "Technology Drives Healthy Life," adhere to the business philosophy of "Credit First, Quality First," and constantly develop new products to meet customer needs and market changes. All our products are CE-certified and protected by independent intellectual property rights.At present, our main products include super-mini wireless motors, super-mini intelligent motors, ALL-IN-ONE front hub motors, P100/P110 front hub motors, water bottle Li-Ion batteries, Wireless buttons, Wireless displays etc. They are suitable for all kinds of bikes. Our products can provide electric power support for bicycles while maximizing bicycles' original appearance and characteristics, making riding more convenient, easy, and environmentally friendly.If you are seeking the high-end electrical components of electric bicycles. If you are still worried about traffic jams, and if you would like to contribute to environmental protection, Raydafon sincerely welcomes global distributors to visit and negotiate. We look forward to working with you to jointly promote the development of the electric bicycle industry and contribute to environmental protection.
