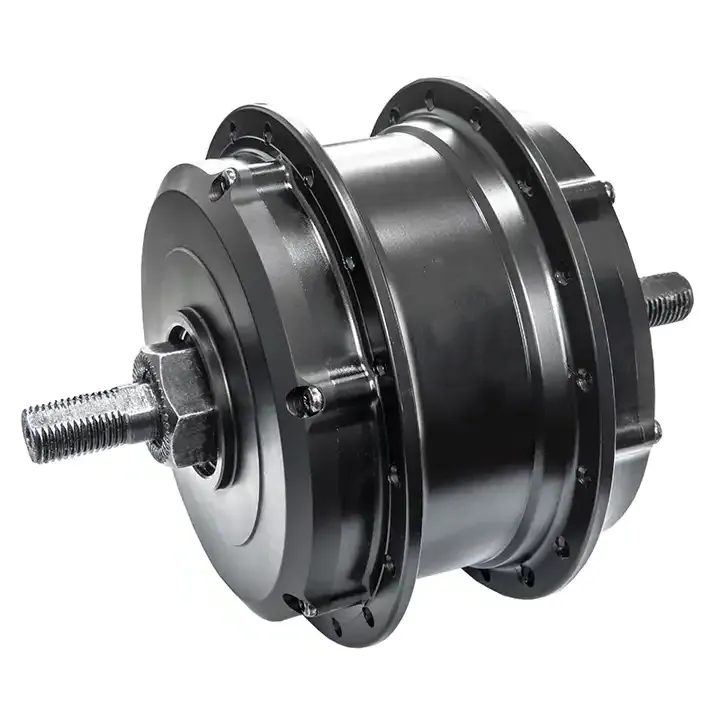

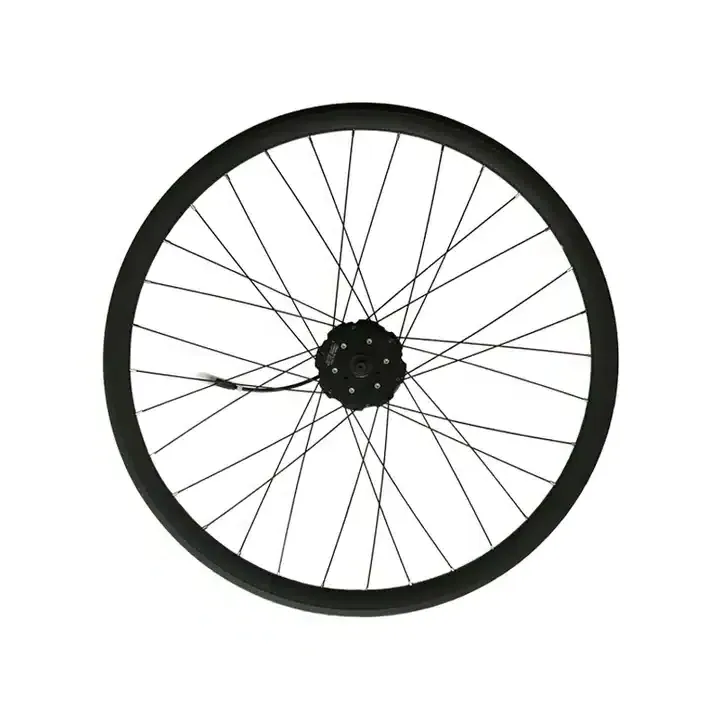

Raydafon Brushless Non-gear Hub Motor with controller electric bicycle conversion kit

Experience an unprecedented level of convenience, power, and efficiency with the Raydafon Brushless Non-gear Hub Motor with controller electric bicycle conversion kit. This is a complete solution for those seeking to convert their traditional bicycle into an e-bike, delivering exceptional performance and quality. With a rated output power of 250W and efficiency of no less than 90%, this brushless hub motor is truly a powerhouse of electric bicycle technology.

Specifications of P110 Front Hub Motor for E-bike

Item No.	P110SWXDC36/P110SWXC36
Diameter	113mm±1mm
Width	135±2mm
Brake types	Disc brake / V brake / Roller brake
Outlet position	Under the shaft on the right side
Spoke no.	20H，24H，28H，32H，36H
Spoke types	14g
Controller	Internal
Sensor	Solar pedal sensor
Rated power	250W
Max. power	750W
Max. torque	50N·m
Rated voltage	36V
Rated input current	7.8A
Reduction ratio	1 : 13.5
Grade-ability	＞20%
Efficiency	＞90%
Revolution	160-260RPM
Applicable wheel diameter	14-29inch
Color	Black/Silver
Operation temperature	-20-45℃
Storage temperature	-20-45℃
Waterproof & Dust-proof	IP65
Weight	2.3KG

P110 E-bike Front Hub Motor Dimension

Product Advantages

The P110 Powerful Front Hub Motor is not just about raw power. It also offers numerous advantages that set it apart from the competition.

1. Built-in controller: This feature enhances the convenience factor, eliminating the need for external controllers and making the setup straightforward and uncomplicated.
2. Wireless pedal sensor: The wireless pedal sensor allows for smooth and seamless interaction between the rider and the motor, optimizing the riding experience.
3. Easy to install and disassemble: Whether you're a seasoned bike mechanic or a newbie, the installation process is a breeze. The easy disassembly also means maintenance is hassle-free.
4. Max. power 750W, torque exceeds 40N??m: Despite its compact design, this motor packs a serious punch, delivering a maximum power output of 750W and torque exceeding 40N??m.
5. Efficiency ??90%: High efficiency means less energy waste and longer battery life, translating to more time on the road and less time charging.
6. Wireless control: Enjoy the benefits of wireless control, giving you the freedom to adjust settings and control the motor remotely.

With these compelling advantages, it's clear why we've chosen to produce the P110 Powerful Front Hub Motor. It's a product that delivers on every front, providing an unmatched electric bicycle experience.

Applications of the P100/P110 Front Hub Motor

The P100/P110 front hub motors are versatile and adaptable, making them suitable for a wide range of applications.

1. Commuting: These motors make daily commuting a breeze, effortlessly tackling long distances and steep hills.
2. Urban Riding: Navigate through busy city streets with ease, thanks to the smooth acceleration provided by the P100/P110 front hub motors.
3. Recreation and Leisure: Whether it's exploring trails or cruising along scenic routes, these motors enhance the overall riding experience.
4. Delivery Services: The efficiency and maneuverability of these motors make them a popular choice for food delivery and courier services.
5. Tourism and Sightseeing: Tourists can explore attractions and landmarks at their own pace with e-bikes equipped with these front hub motors.
6. Electric Bike Sharing Programs: E-bikes in bike-sharing programs often feature these motors, providing users with a convenient and efficient mode of transport.

How Does the Ebike System P100/P110 Front Hub Motor Work?

The P100/P110 front hub motor is more than just a component; it's part of a comprehensive system that powers the electric bicycle.

1. 1. Power Source: The battery pack serves as the power source, supplying the motor with the electrical energy it needs to function.
   2. Motor Controller: This vital component manages the flow of electricity from the battery to the motor, based on inputs from the rider.
   3. Torque Sensor or Throttle: Depending on the control option, the system may feature a torque sensor or a throttle to control the motor's power output.

1. Motor Assistance: When the rider pedals or activates the throttle, the motor controller interprets the input and sends the appropriate power to the front hub motor.
2. Front Hub Motor: The P100/P110 front hub motor, located in the front wheel hub, generates torque that propels the e-bike forward.
3. Power Transmission: The gears integrated into the hub motor transmit the motor's rotational force to the wheel, allowing the e-bike to accelerate or maintain speed.
4. Regenerative Braking (optional): Some e-bike systems, including those with P100/P110 front hub motors, can convert the kinetic energy of the moving e-bike back into electricity during braking, storing it in the battery for later use.
5. Display and Control Unit: This unit, mounted on the handlebars, provides the rider with essential information and allows them to adjust settings and control the motor's assistance level.

Choosing the Right P100/P110 Front Hub Motor for Your Ebike System

Several factors come into play when selecting the right P100/P110 front hub motor for your e-bike system.

1. Power and Torque: Depending on your riding needs and terrain, you may need a motor with higher power or torque. Keep in mind that more powerful motors may consume more battery energy.
2. Efficiency: High efficiency can significantly impact the range and overall performance of your e-bike.
3. Compatibility: Ensure the motor is compatible with your e-bike system. Check the motor's voltage and wattage requirements and compare them with your battery and motor controller specifications.
4. Wheel Size: The motor should fit your e-bike's wheel size. Common sizes include 26 inches, 27.5 inches, and 29 inches.
5. Weight and Size: The weight and size of the motor can affect your e-bike's balance and handling. A lighter motor can contribute to better maneuverability, while a larger motor may affect the bike's aesthetics and balance.

Maintenance of the P100/P110 Front Hub Motor

Maintaining your P100/P110 front hub motor is crucial to ensure its longevity and optimal performance.

1. Regular Cleaning: Regularly wipe down the motor with a damp cloth to remove dirt and dust.
2. Inspection: Periodically inspect the motor for any signs of damage, loose connections, or wear.
3. Lubrication: Some motors may require lubrication. Refer to the manufacturer's guidelines to determine if lubrication is necessary.
4. Battery Maintenance: Follow the manufacturer's instructions for battery maintenance. Regularly check the battery's charge level and ensure it is properly connected to the motor.
5. Wheel Maintenance: Maintain the wheel's condition, as the motor is integrated into the front wheel. Regularly inspect the wheel for proper alignment, trueness, and spoke tension.
6. Water and Moisture Protection: While the P100/P110 front hub motor is designed to withstand some level of water exposure, avoid excessive moisture and submerging the motor in water.

Why Choose Raydafon's P100/P110 Front Hub Motor for Your Ebike System?

Established in 1993, Raydafon Electric Technology Co Ltd. is dedicated to the R&D, manufacturing, and worldwide marketing of high-end electric bicycle parts. We have introduced professional production and testing equipment, advanced production lines, and established a complete quality management system. We adhere to the enterprise spirit of "Technology Drives Healthy Life," and constantly develop new products to meet customer needs and market changes. All our products are CE-certified and protected by independent intellectual property rights. Our product is renowned for its reliable quality, exquisite craftsmanship, and stylish design. We offer a wide range of products, including super-mini wireless motors, super-mini intelligent motors, ALL-IN-ONE front hub motors, P100/P110 front hub motors, water bottle Li-Ion batteries, Wireless buttons, Wireless displays etc. They are suitable for all kinds of bikes. If you are seeking high-end electrical components of electric bicycles, Raydafon sincerely welcomes global distributors to visit and negotiate. We look forward to working with you to jointly promote the development of the electric bicycle industry and contribute to environmental protection. Author: Yjx
